System Specifications

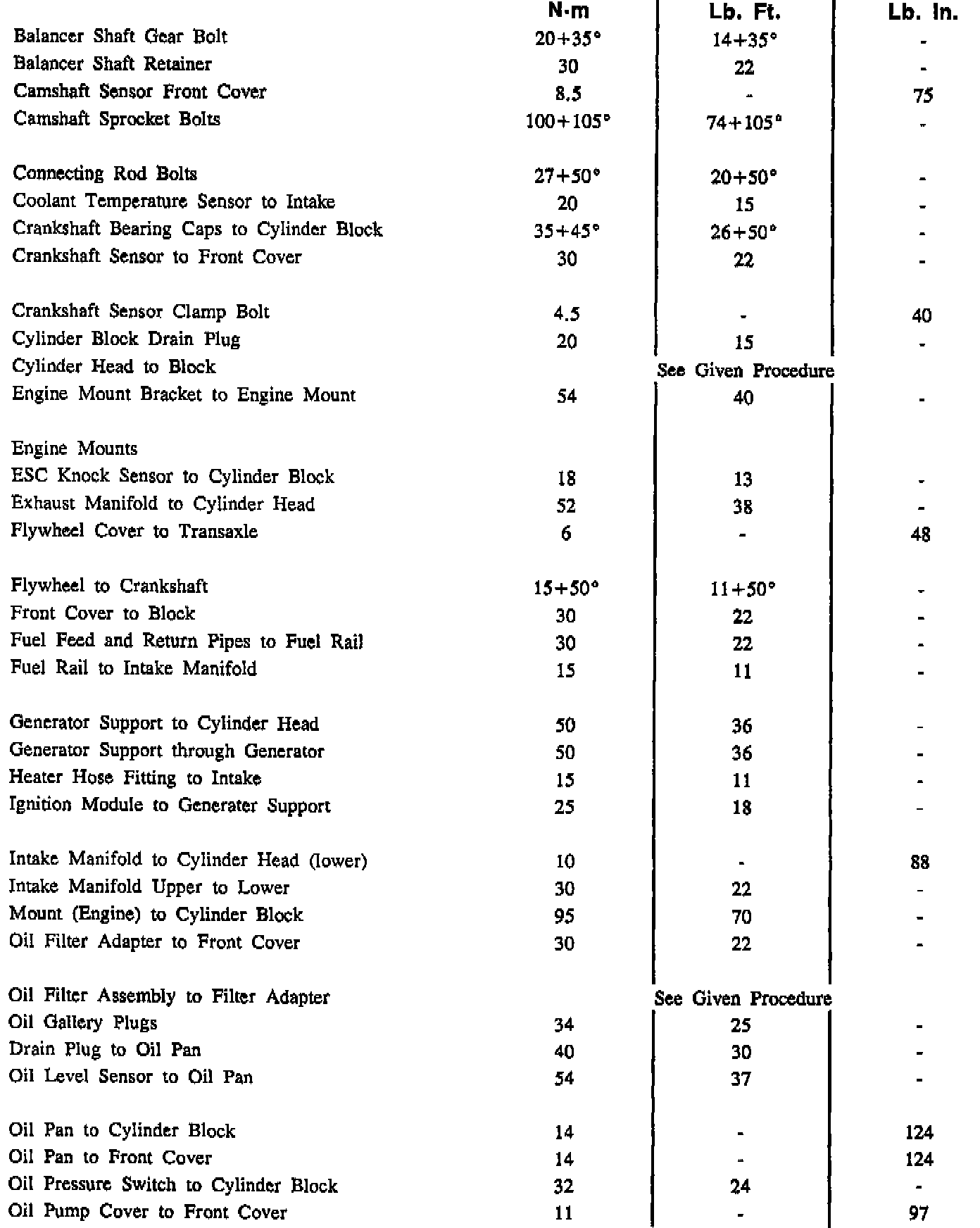

Torque Specifications:




Toque Specifications (continued):

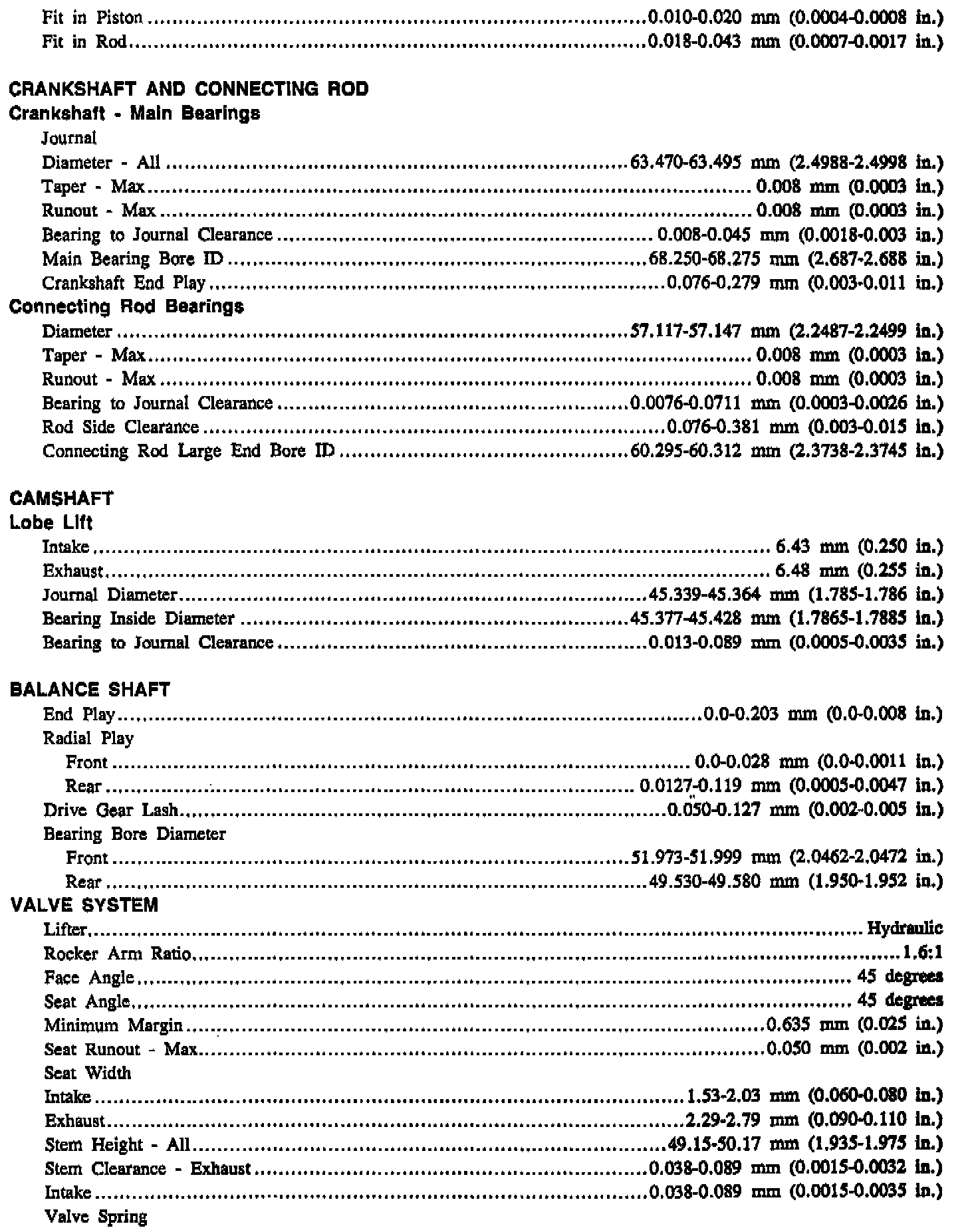

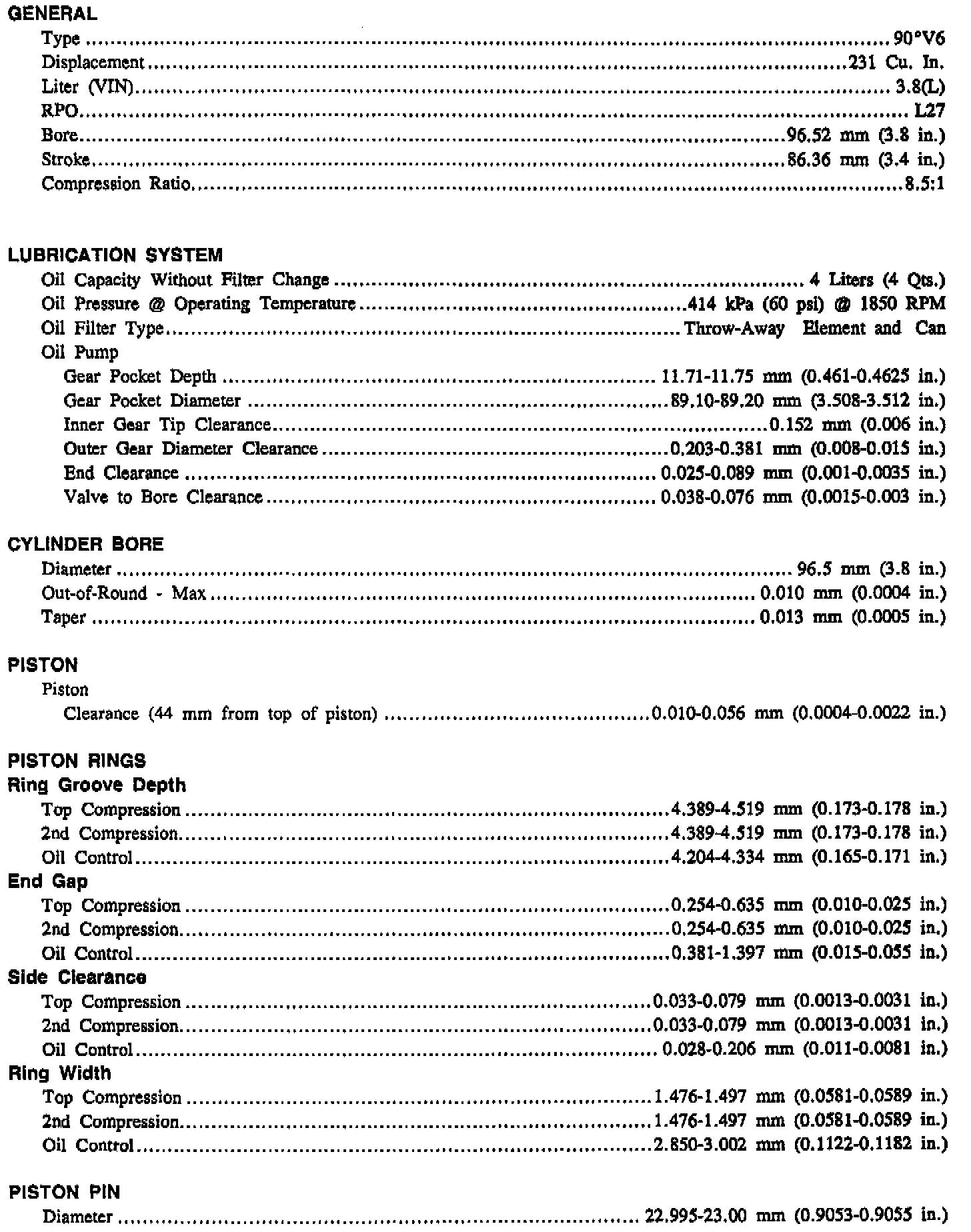

Engine Specifications:




Engine Specifications (continued):




Engine Specifications (continued):









Intake Manifold Sequence:





Cylinder Head Sequence:
