Abs Light Driver Module: Removal

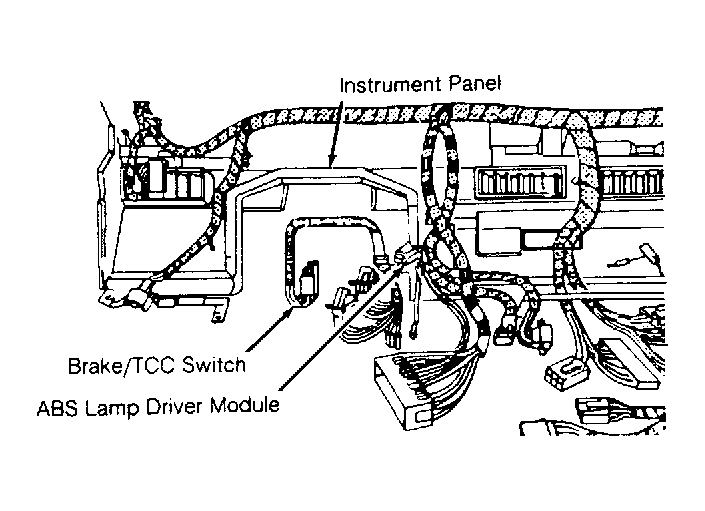

Turn ignition off. Disconnect negative battery cable. Remove insulator panel below steering column. Disconnect light driver module wiring harness connector located on right side of steering column. Remove ABS light driver module. See Figure .
