Distributor & Ignition System Check

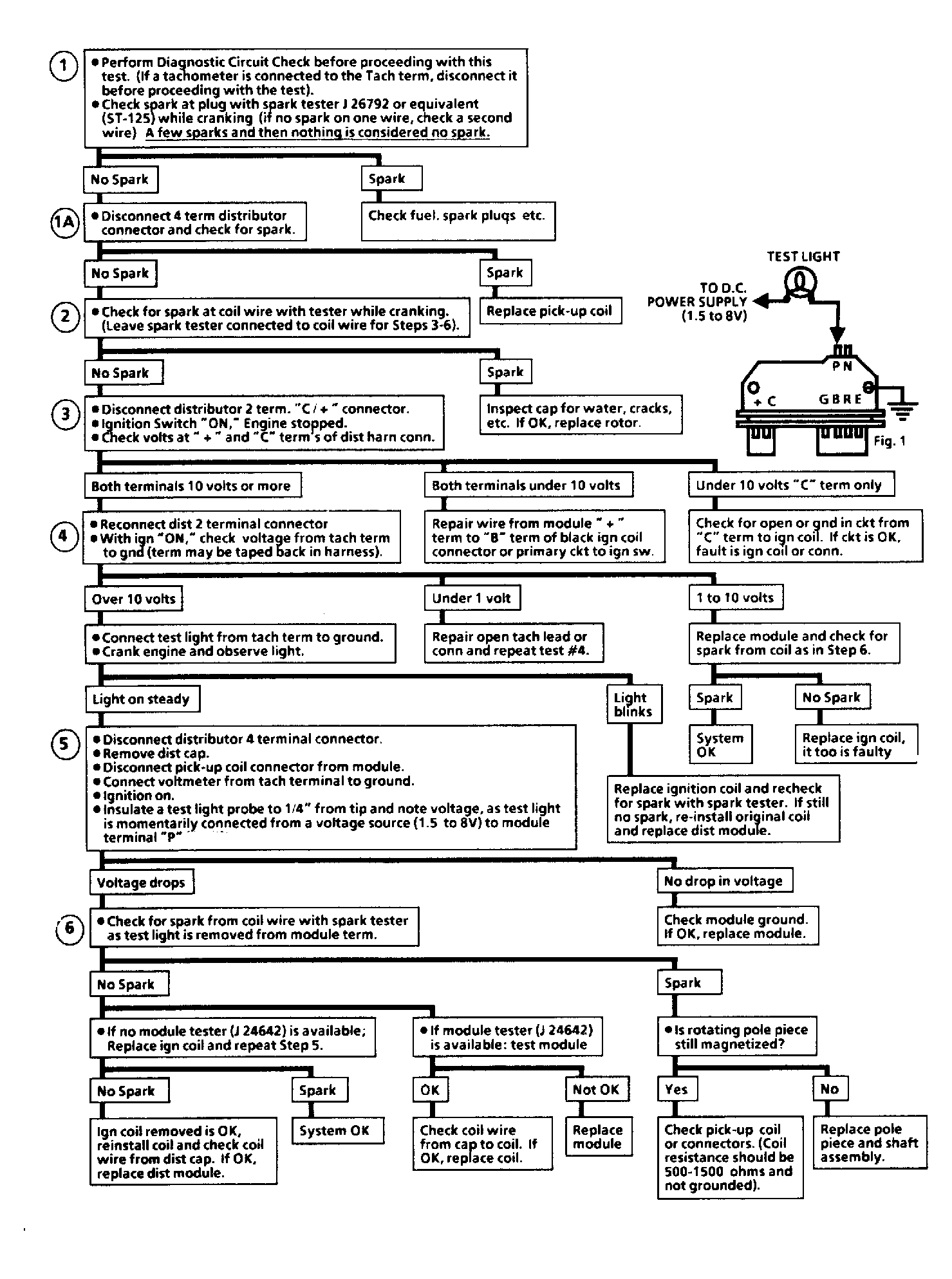

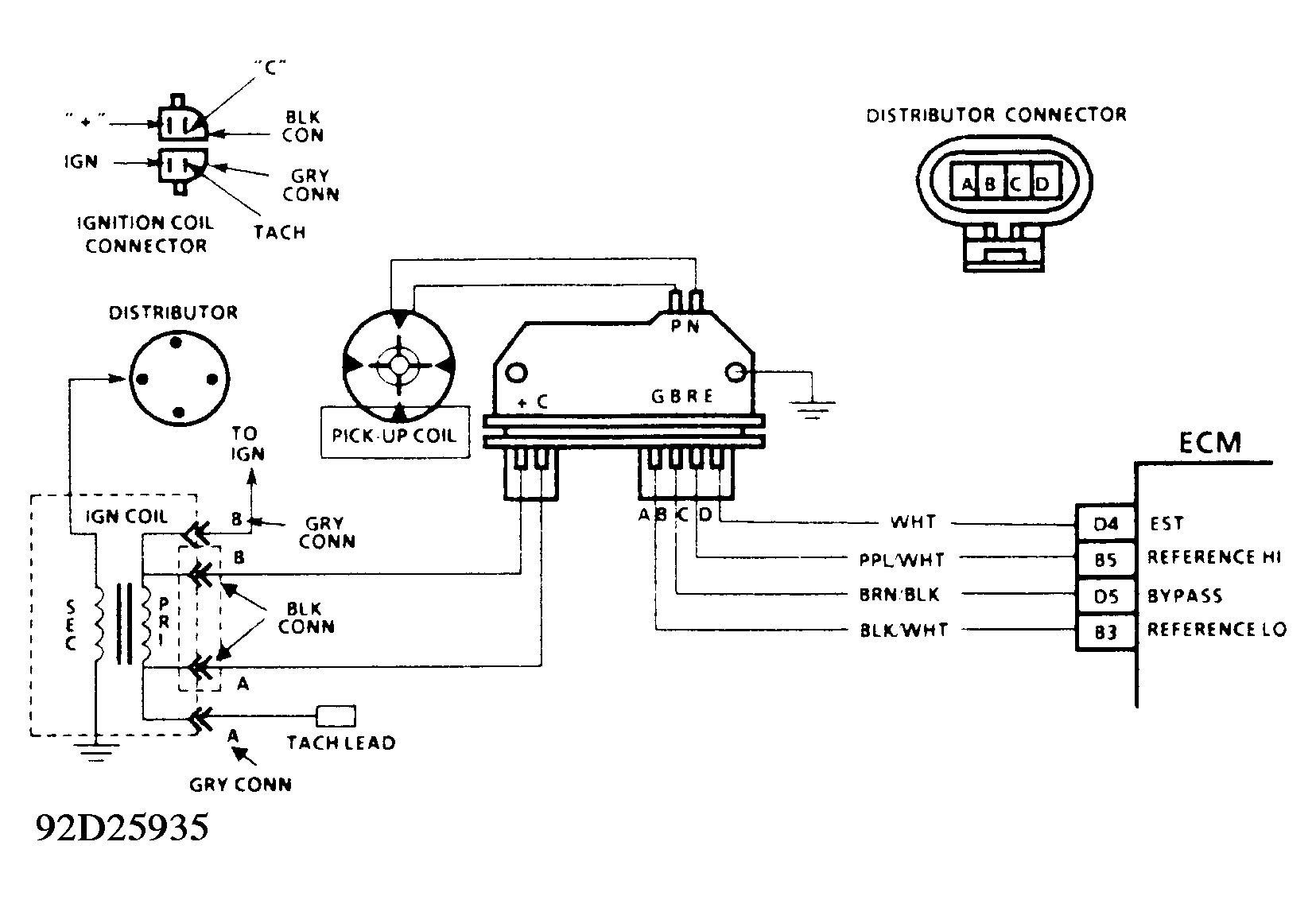

Refer to wiring diagram and diagnostic flow chart (CHART C-4A) to diagnose and service ignition system. See Figure and Figure .

Fig 1: Testing Ignition Coil

Courtesy of GENERAL MOTORS CORP.
