Data Link Connector

For Data Link Connector terminal identification, see Fig 1 .

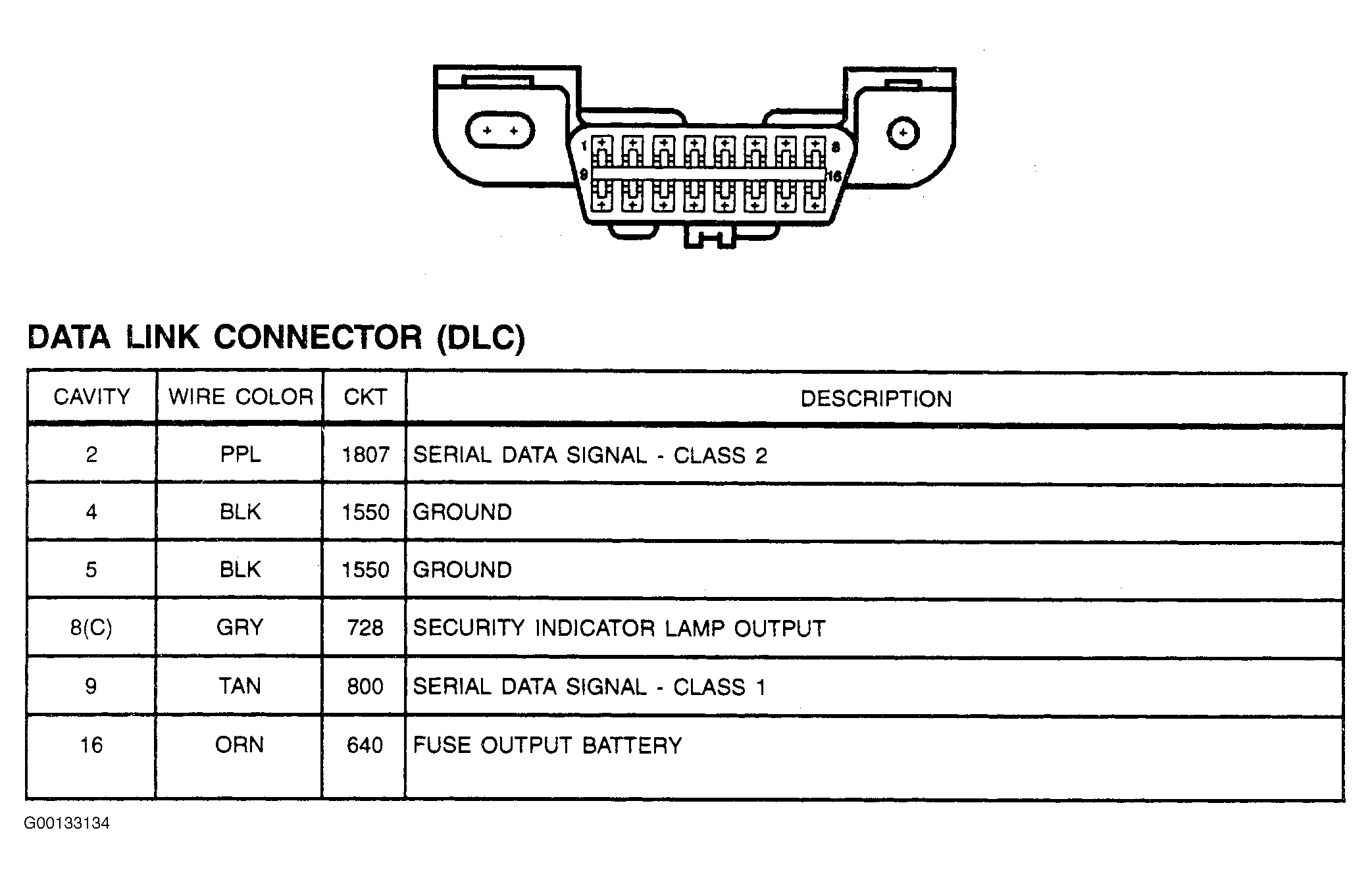

Fig 1: Identifying Data Link Connector Terminals
G00133134Courtesy of GENERAL MOTORS CORP.
