C3 (Blue)
Connector End View:

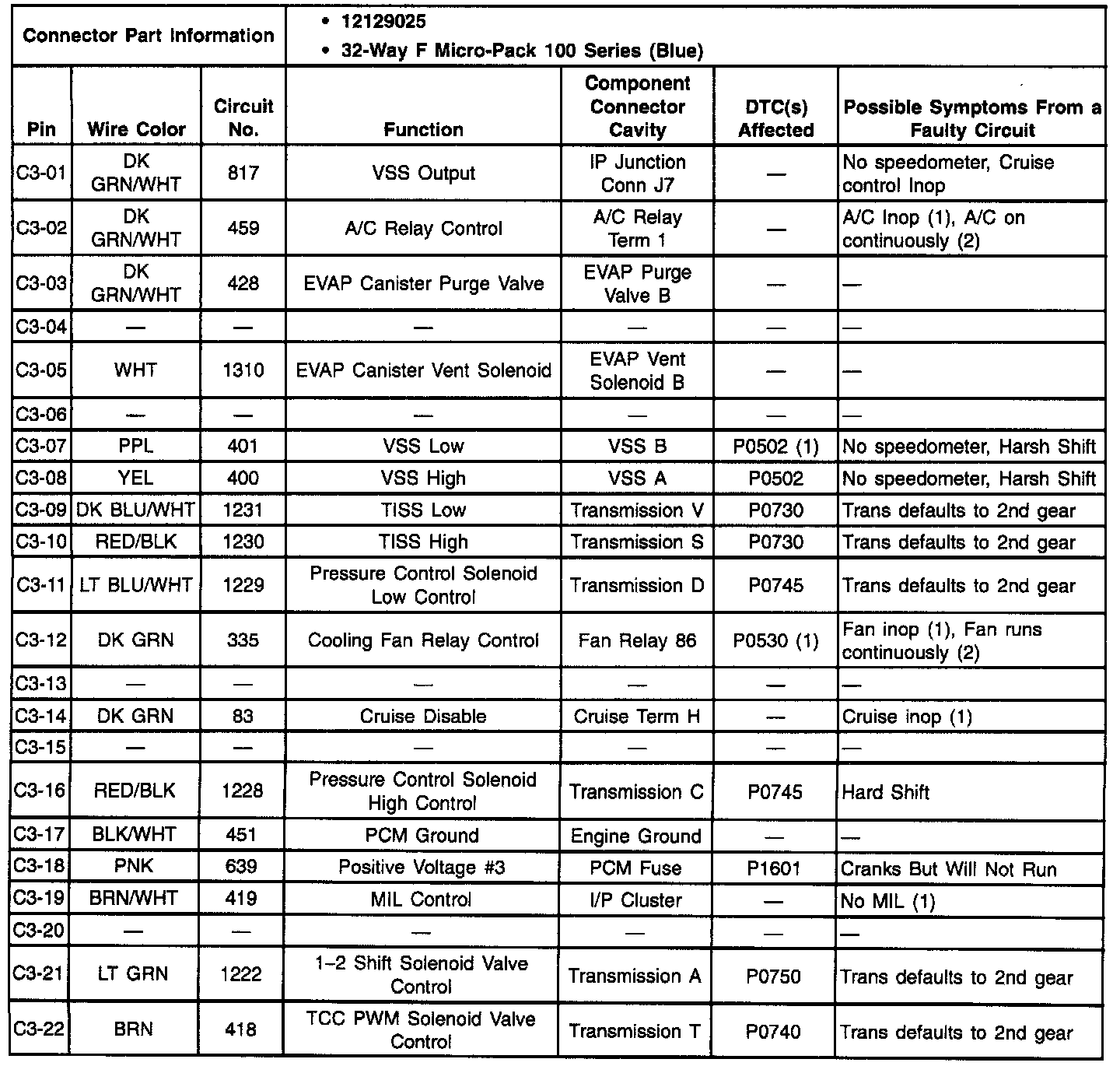

PINS C3-1 THRU C3-22
Diagnostic Chart:

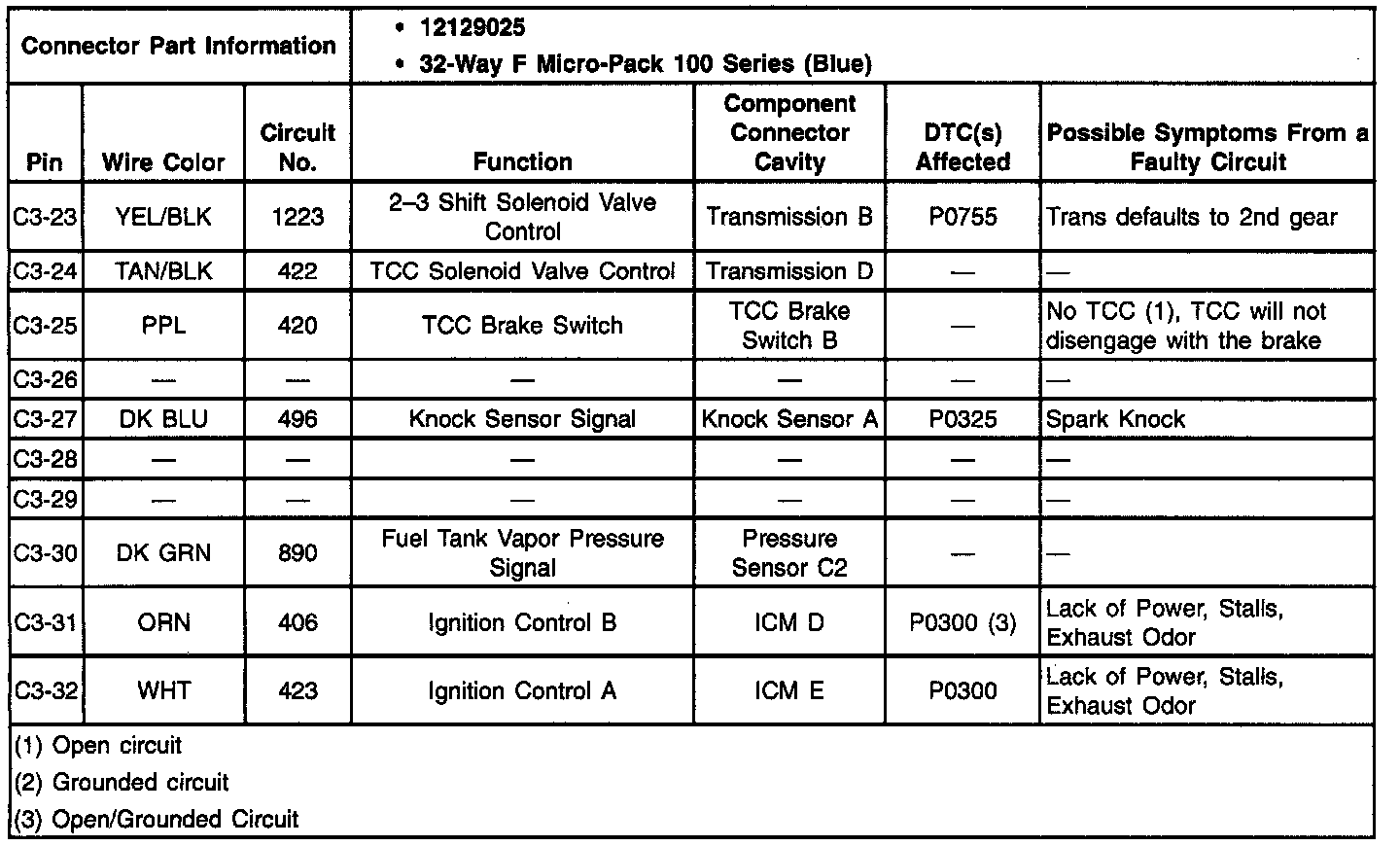

PINS C3-23 THRU C3-32
Diagnostic Chart:
