Trans Sport V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Connector C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector C1

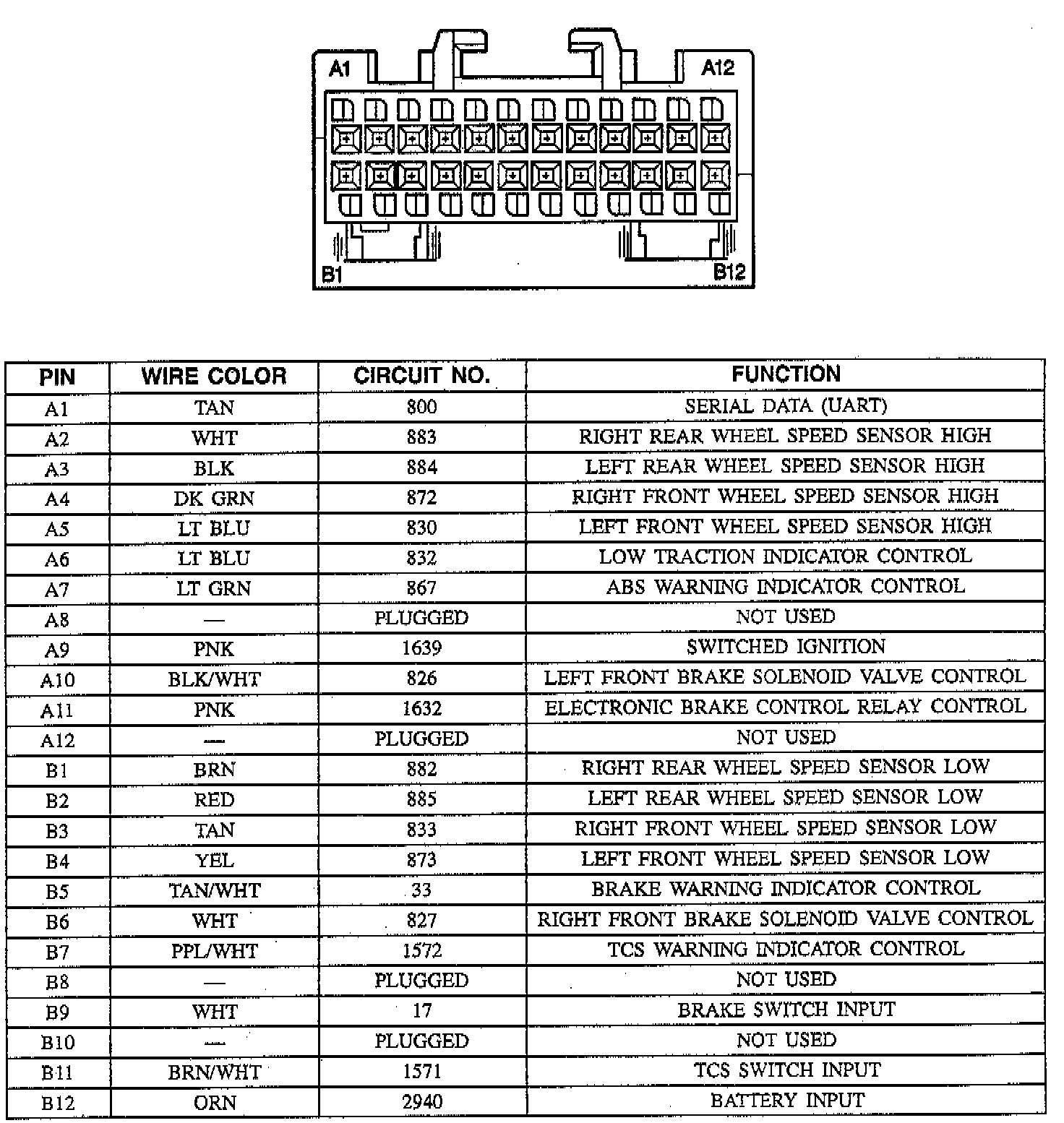

EBCM/EBTCM 24-Way F Micro-Pack 100 Series Lt Gry Connector C1 End View:
