Thread Repair Specifications
ENGINE BLOCK-FRONT VIEW

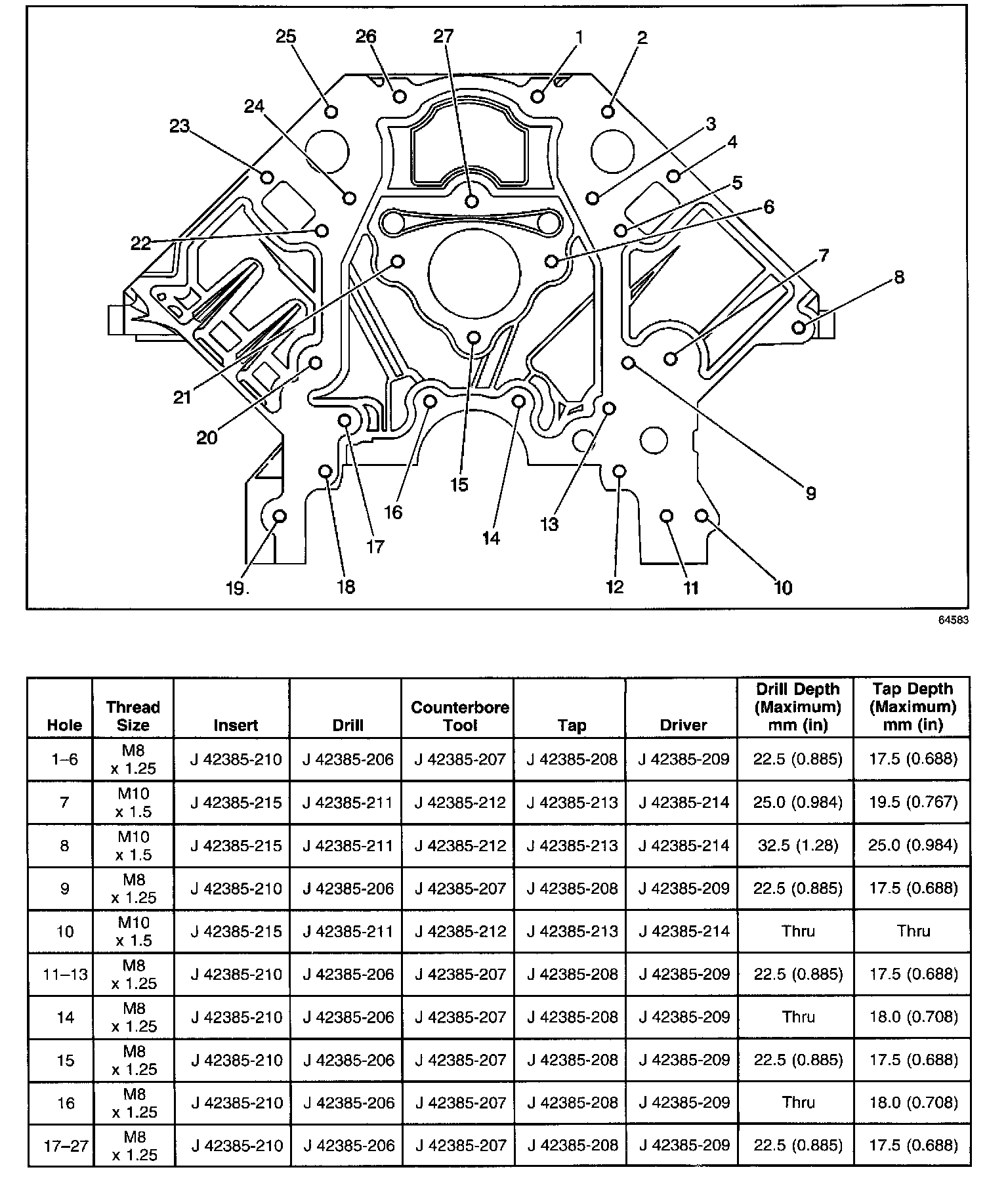

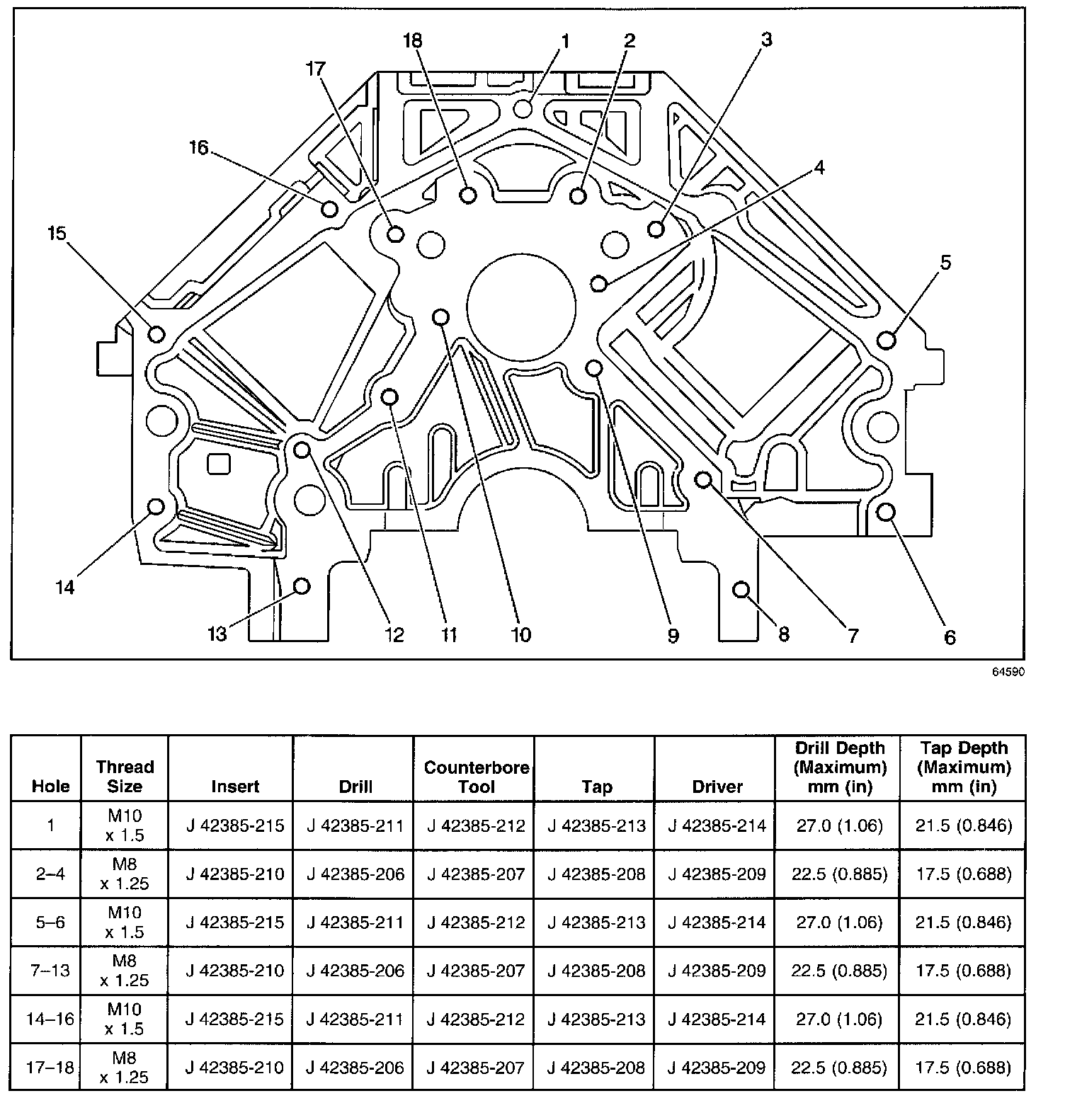

ENGINE BLOCK-REAR VIEW

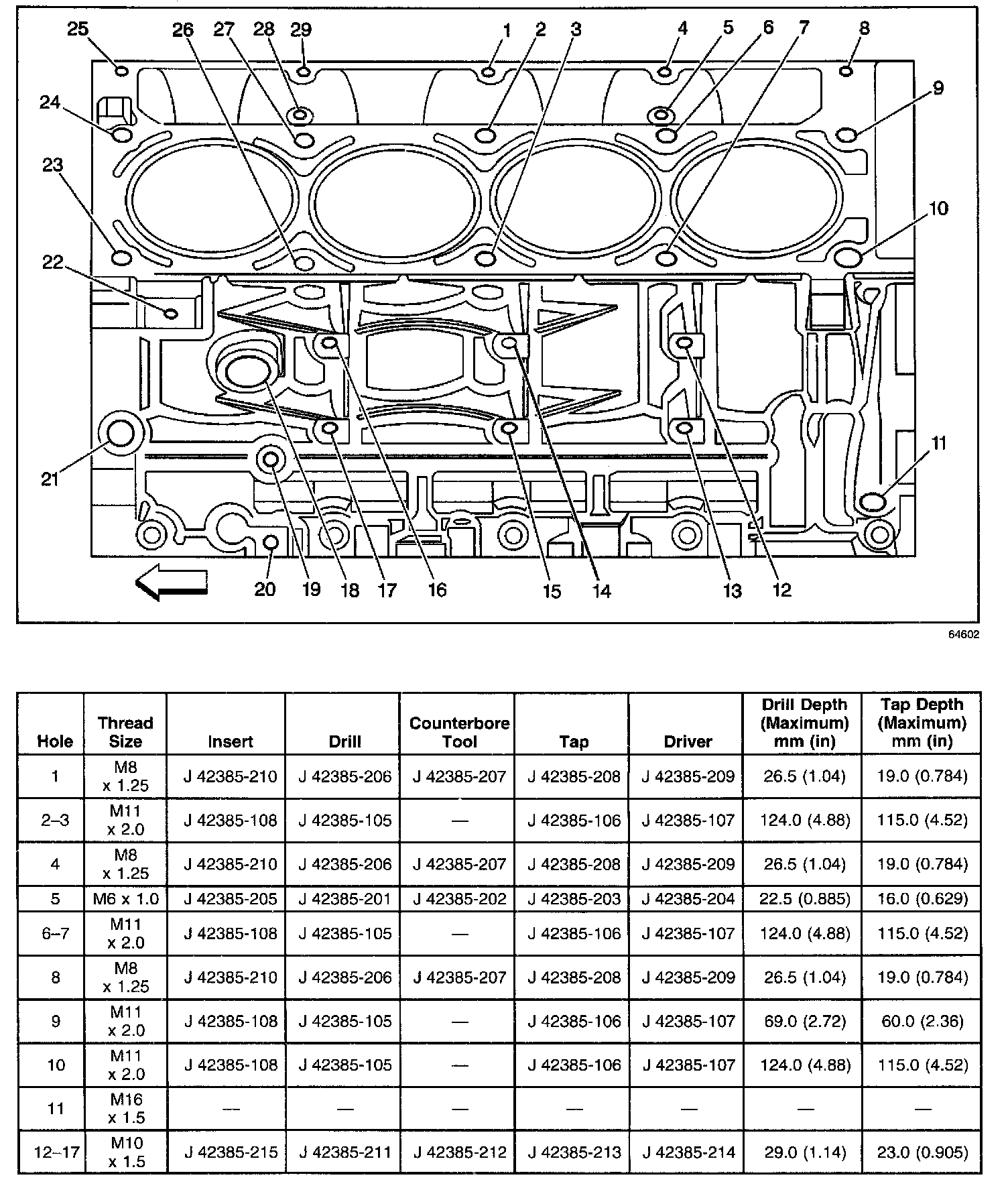

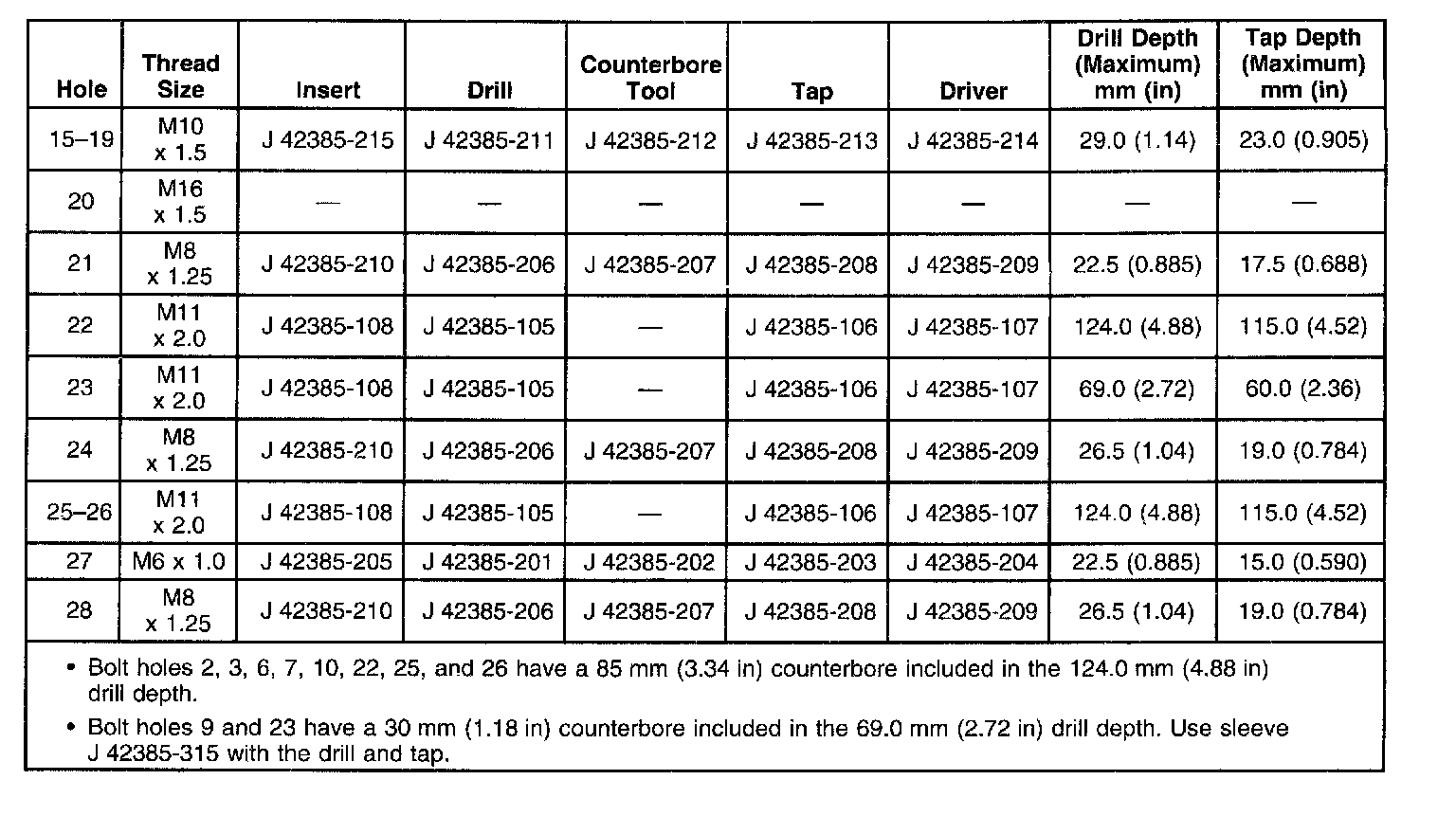

ENGINE BLOCK-LEFT SIDE VIEW

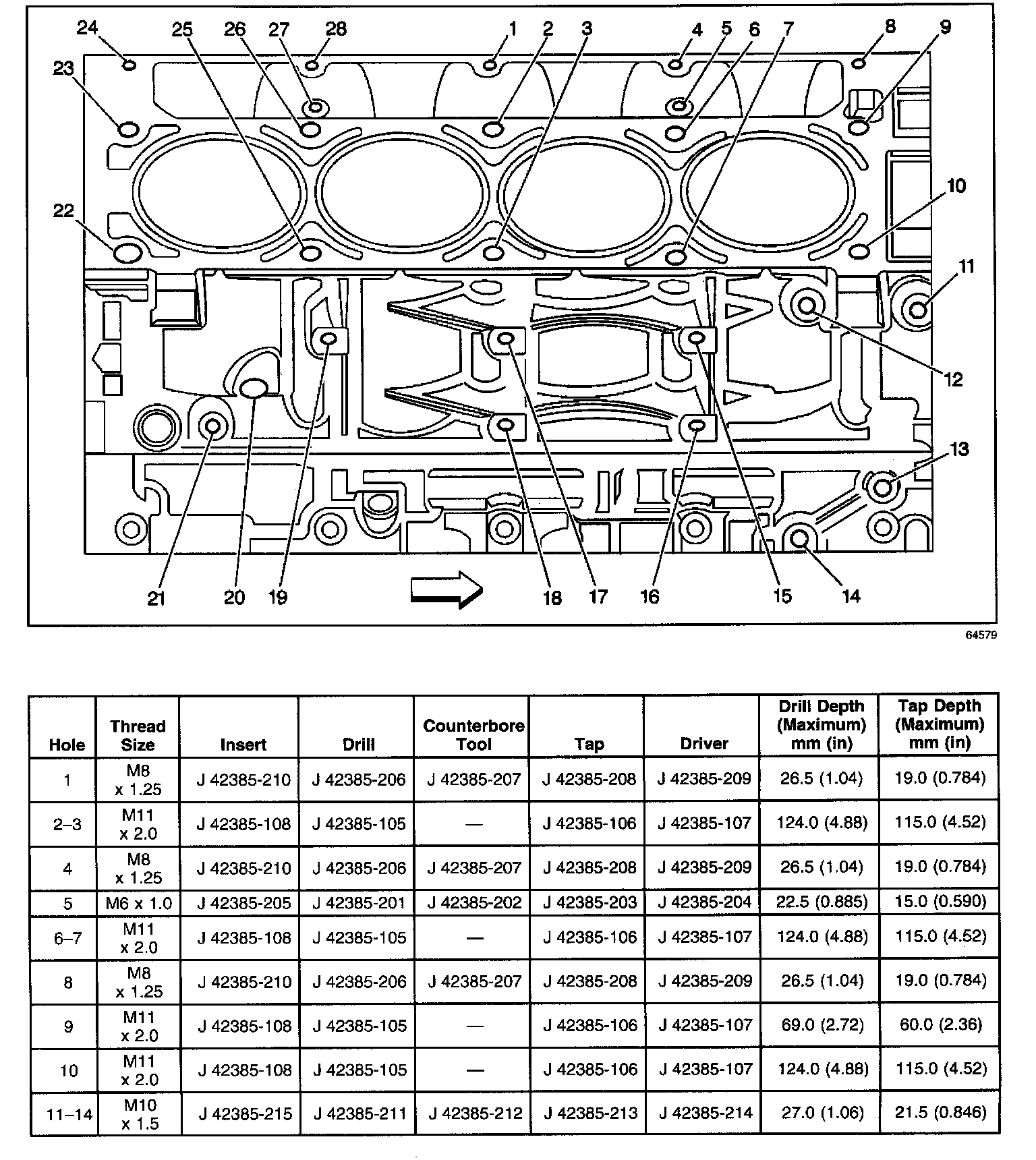

ENGINE BLOCK-RIGHT SIDE VIEW

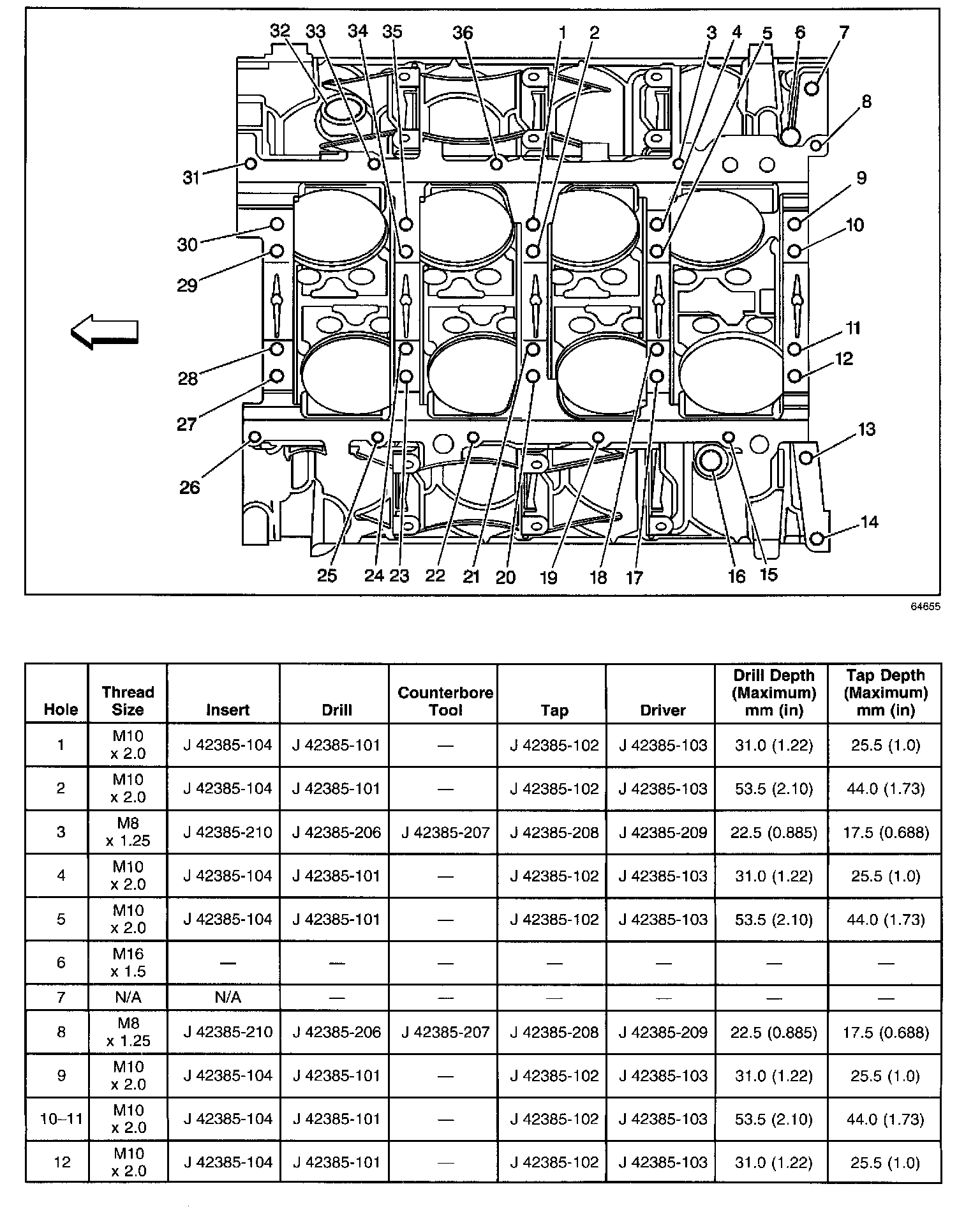

ENGINE BLOCK-BOTTOM VIEW

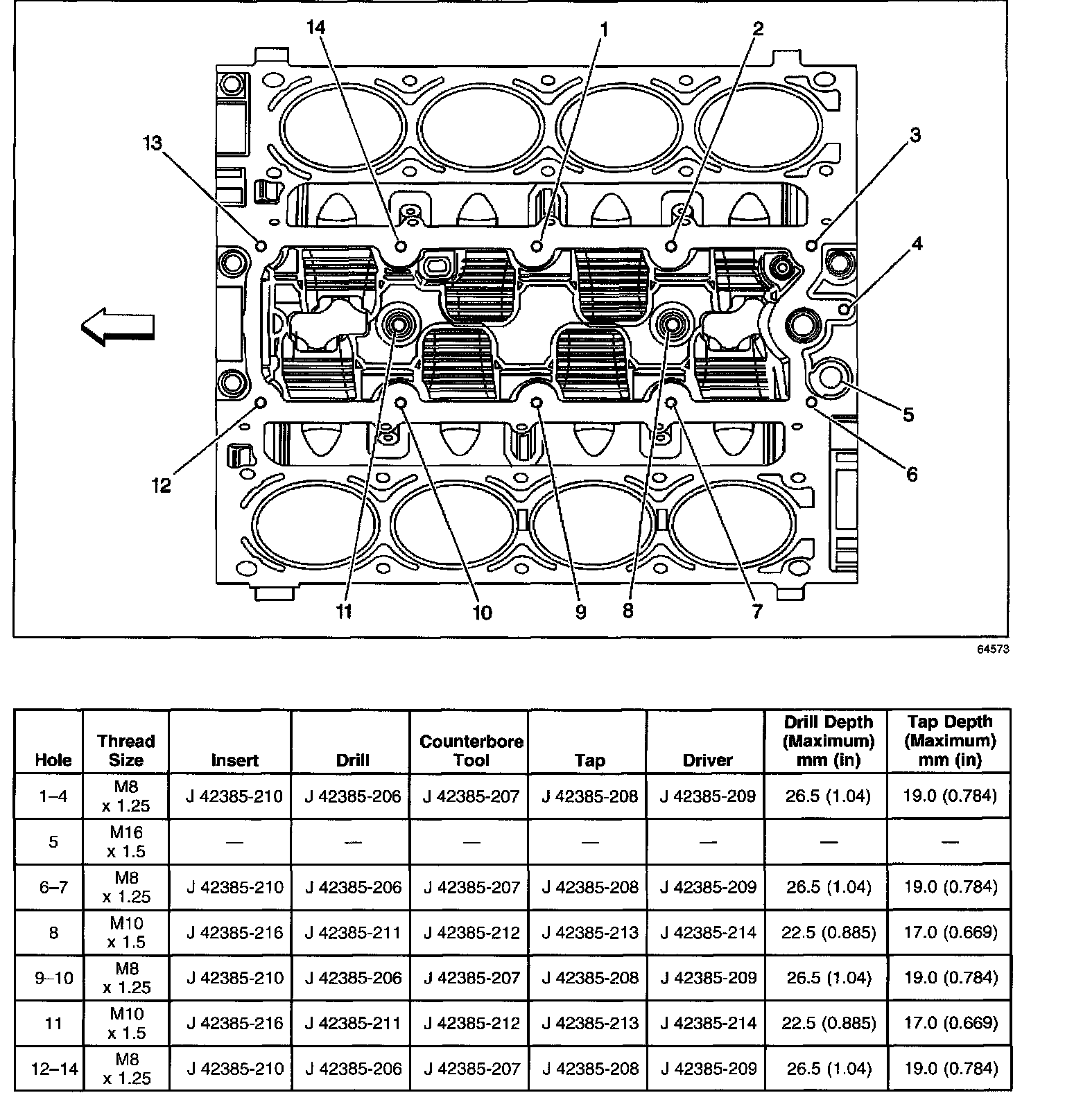

ENGINE BLOCK-TOP VIEW

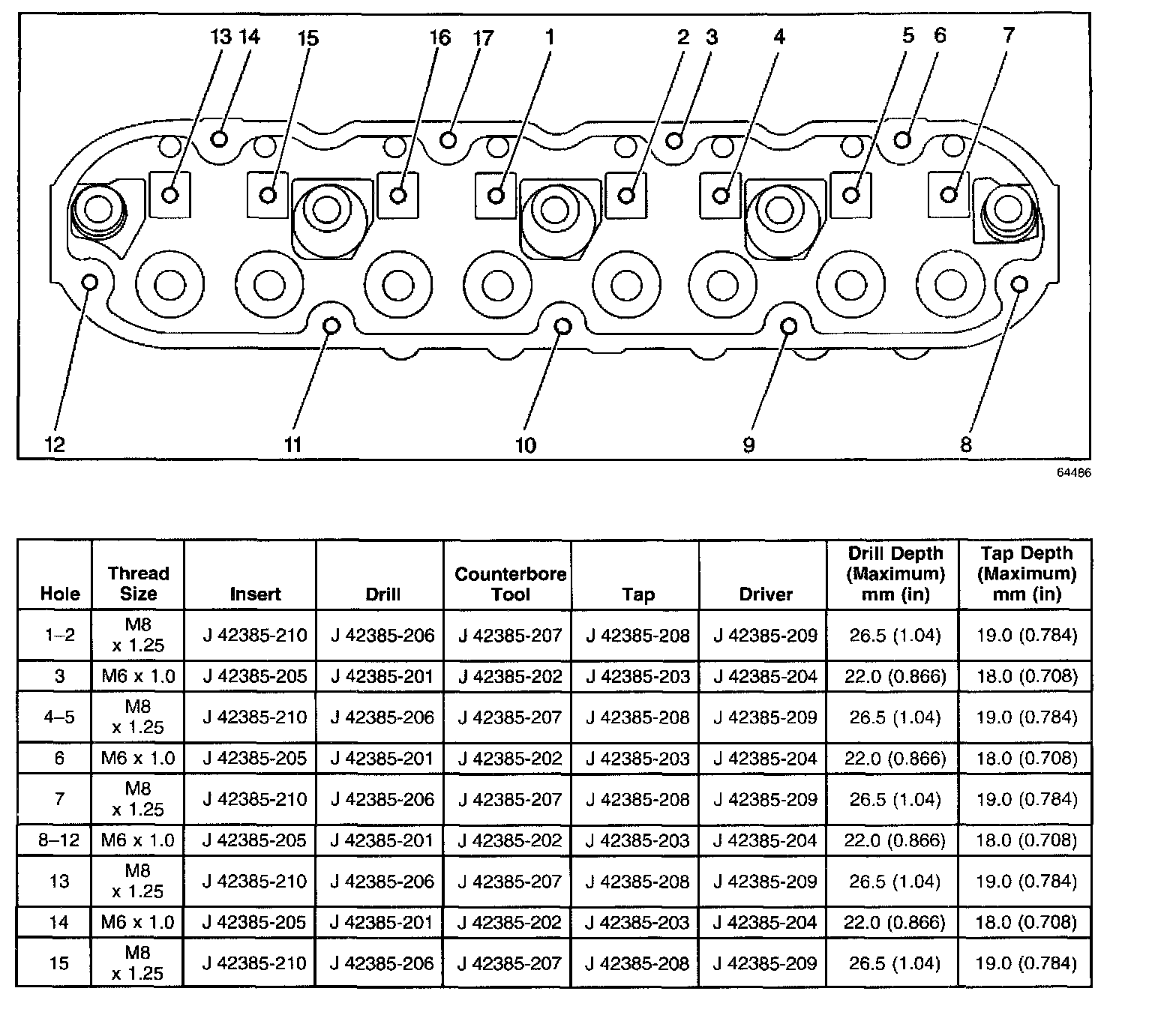

CYLINDER HEAD-TOP VIEW

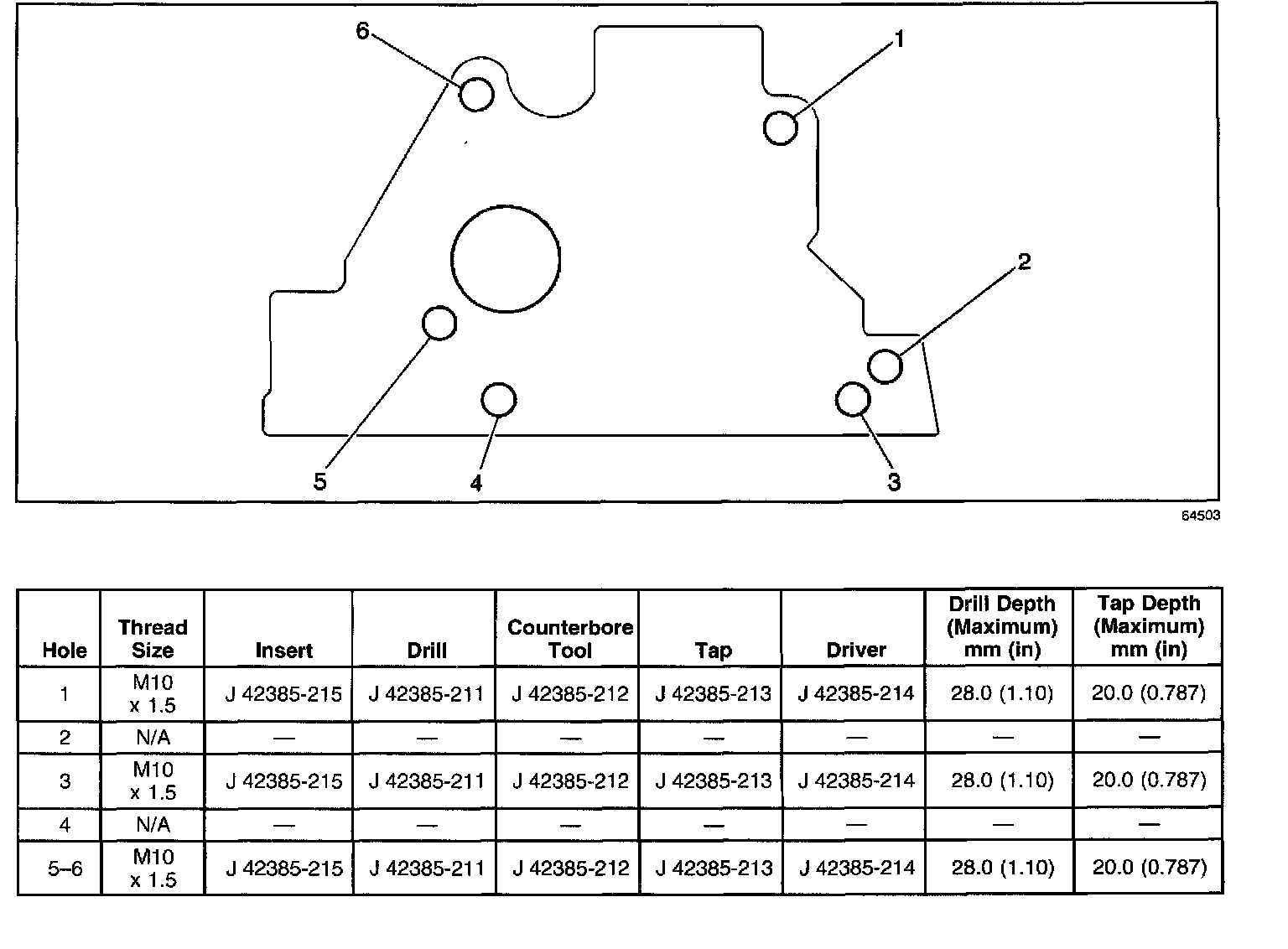

CYLINDER HEAD-END VIEW

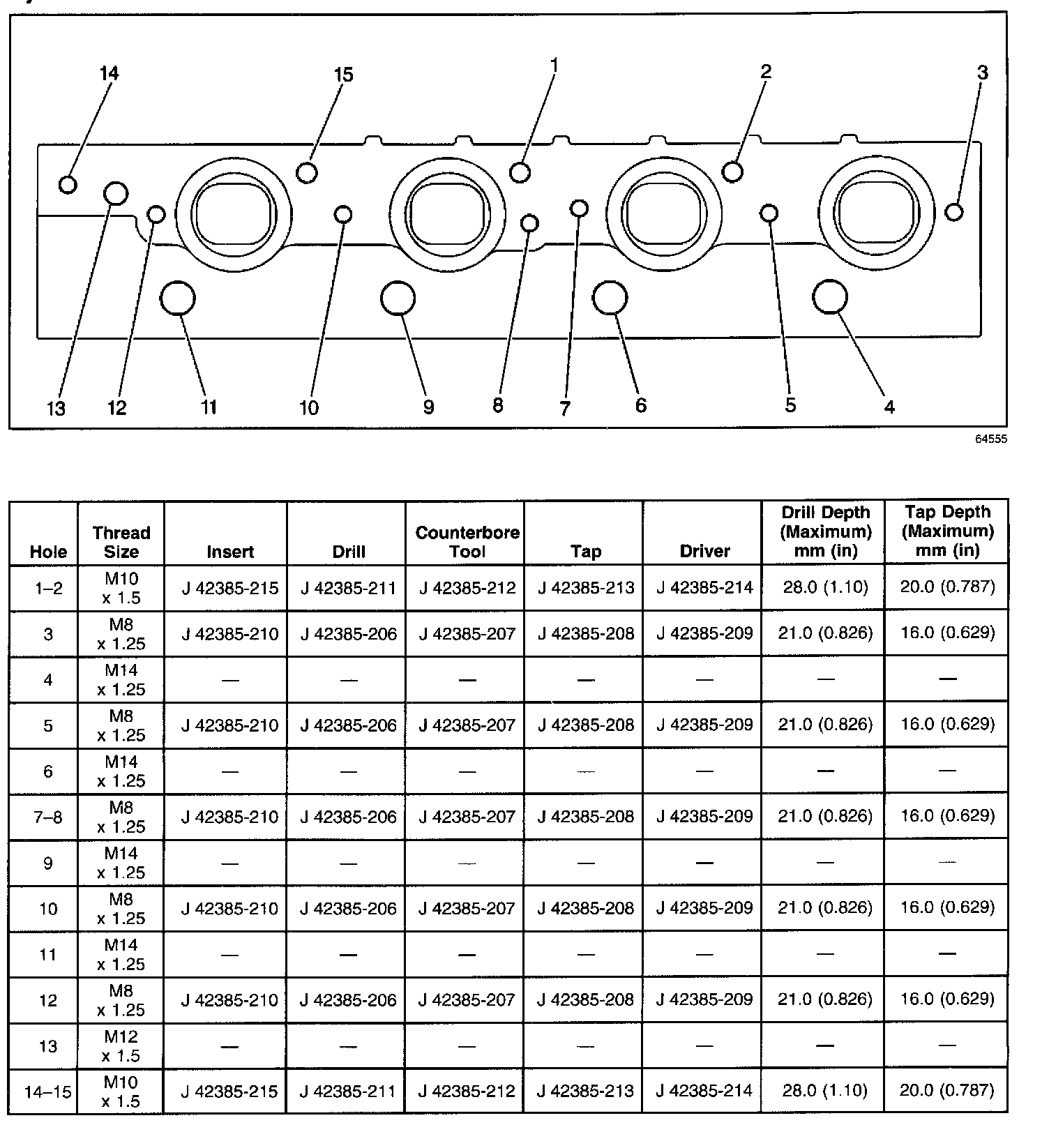

CYLINDER HEAD-EXHAUST MANIFOLD DECK VIEW

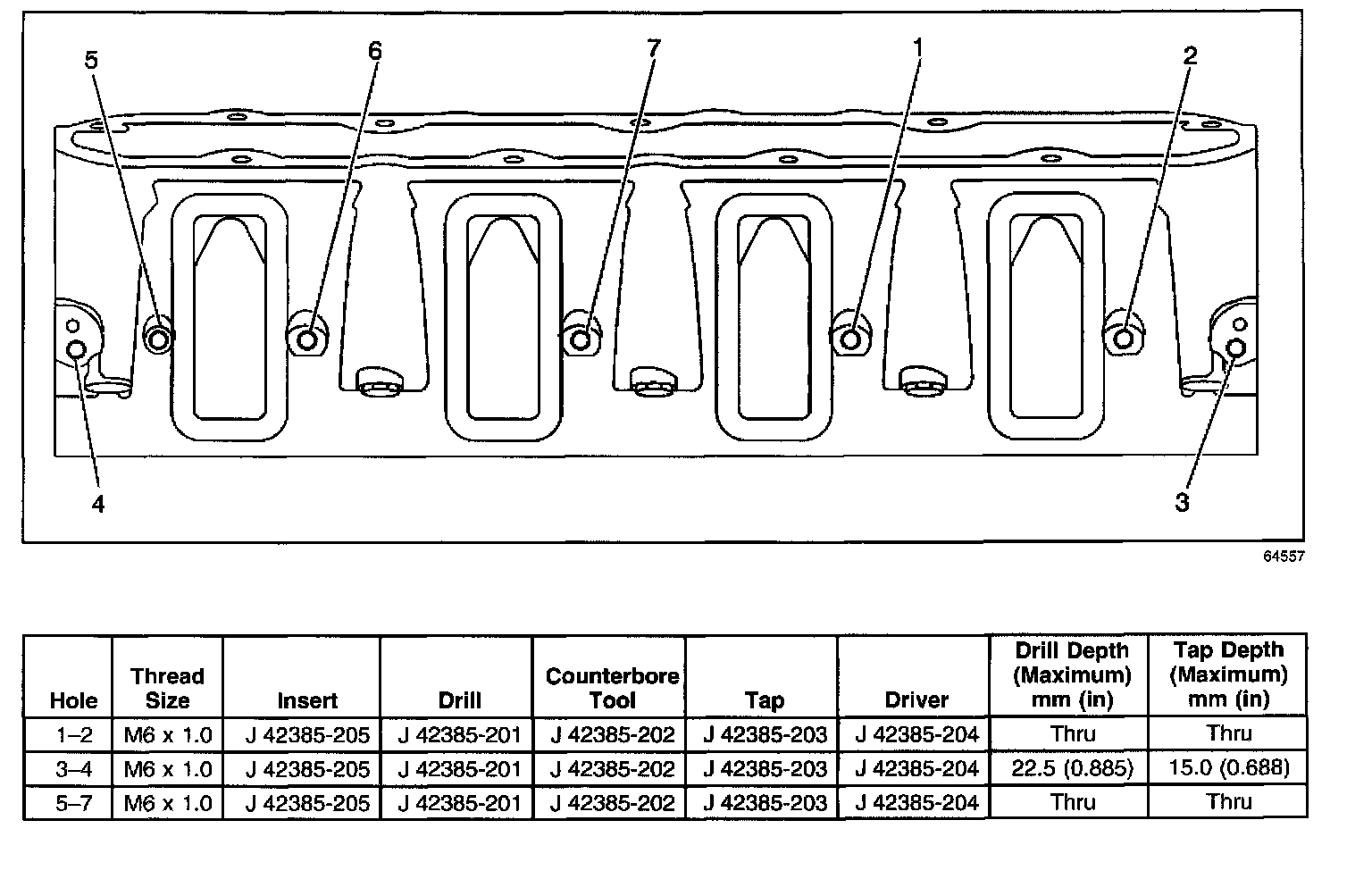

CYLINDER HEAD-INTAKE MANIFOLD DECK VIEW
