Home >> Pontiac >> 1999 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Electronic Brake Control Module

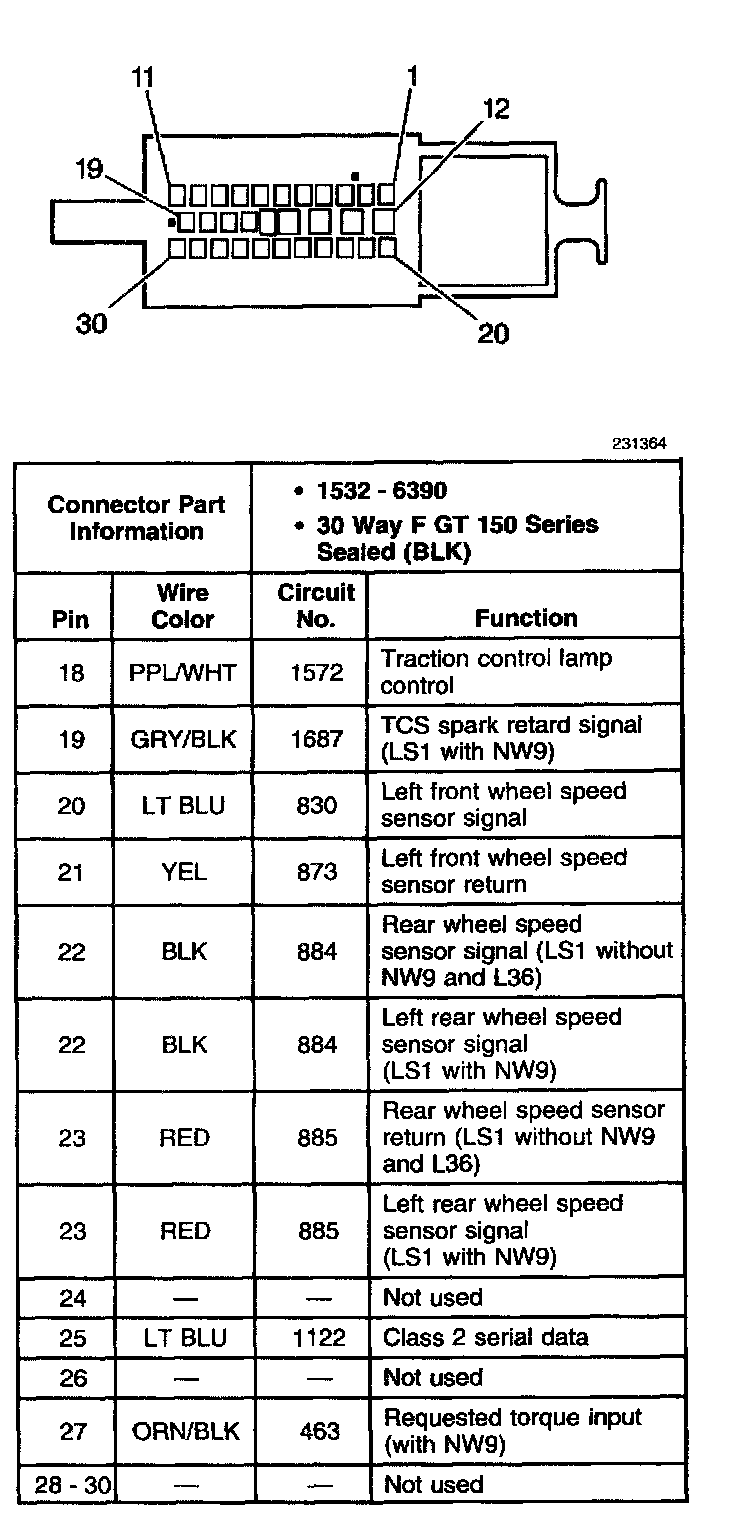

Part 1 Of 2:

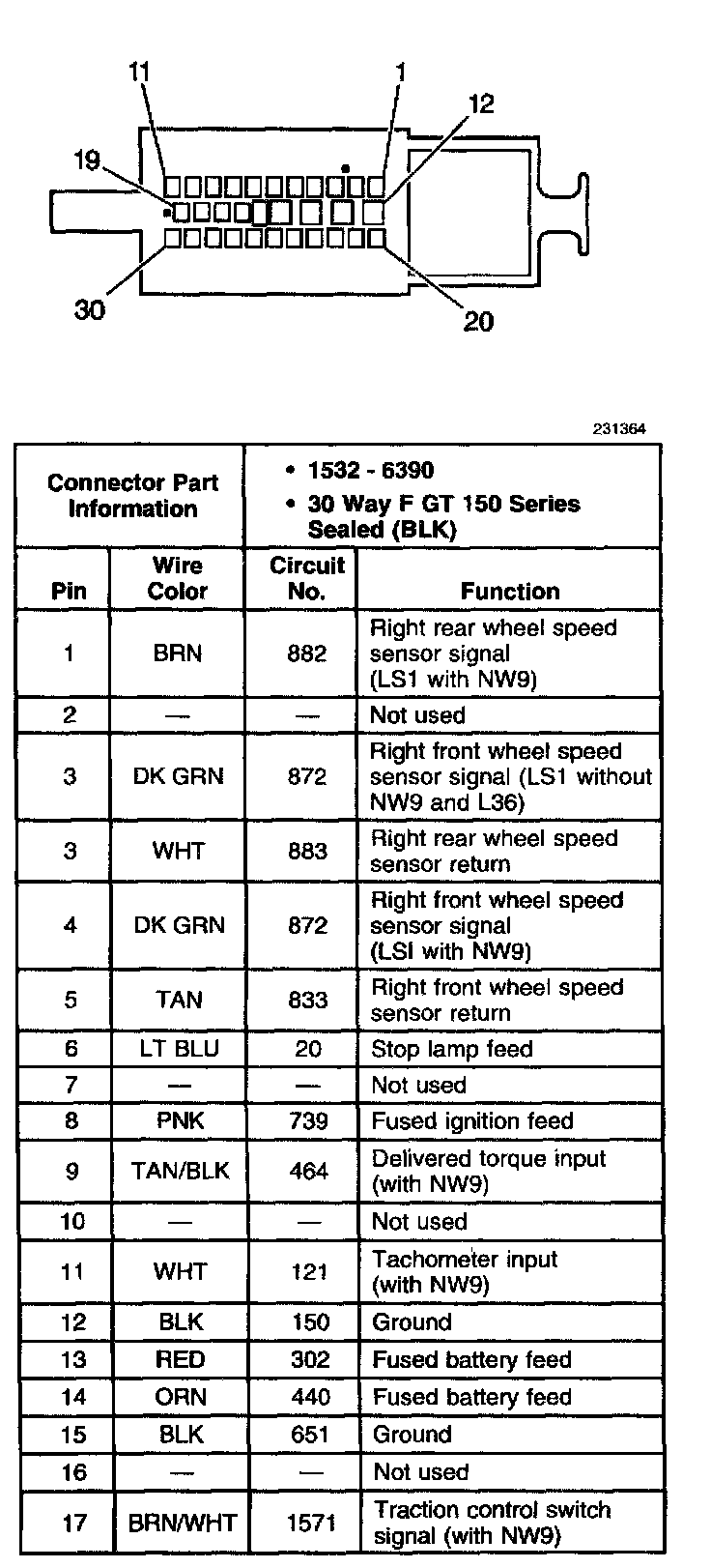

Part 2 Of 2:
