Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
A/T Controls
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

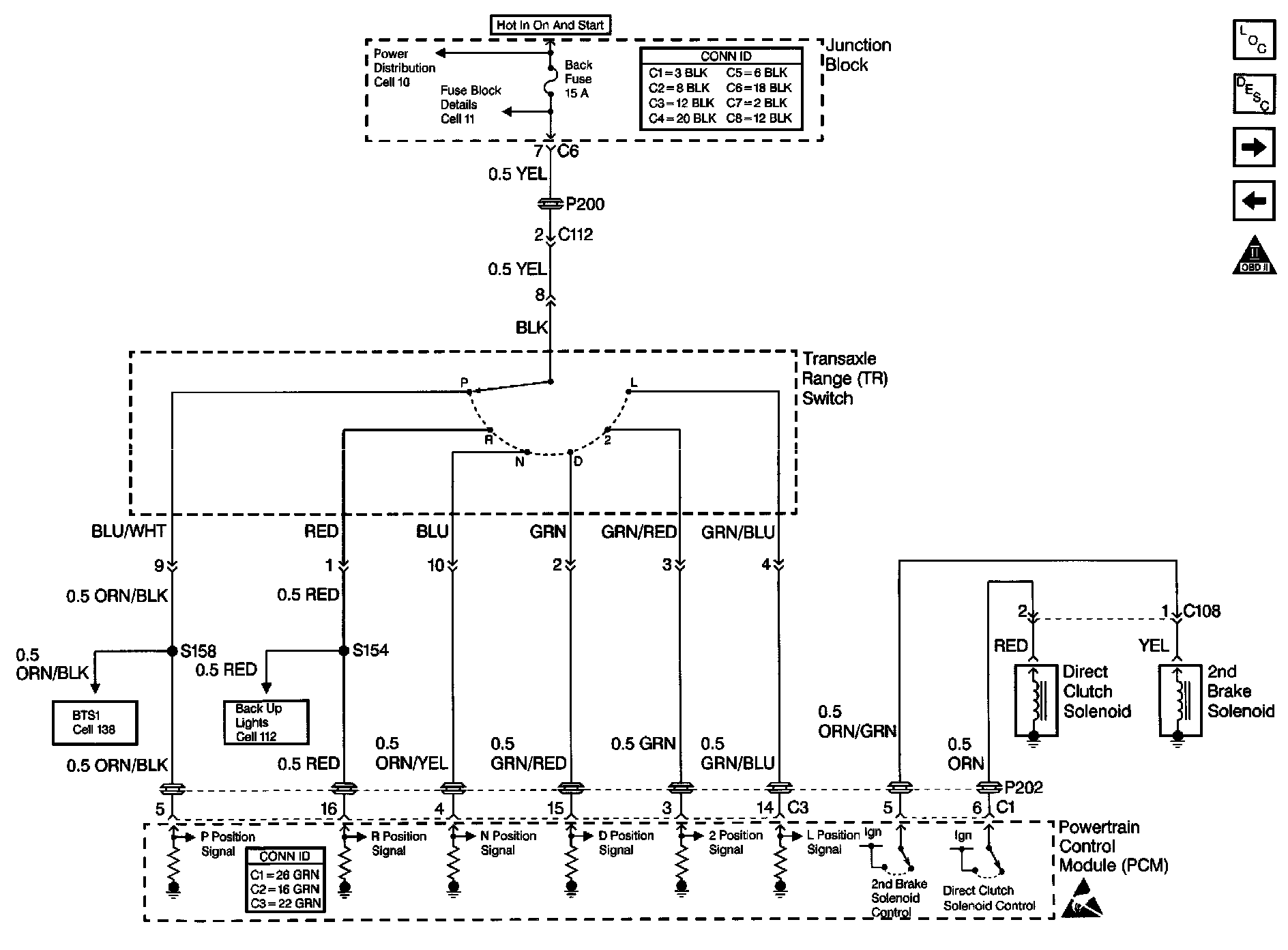

A/T Controls
Engine Controls Schematics: A/T Controls:
