IP Junction Block, Left

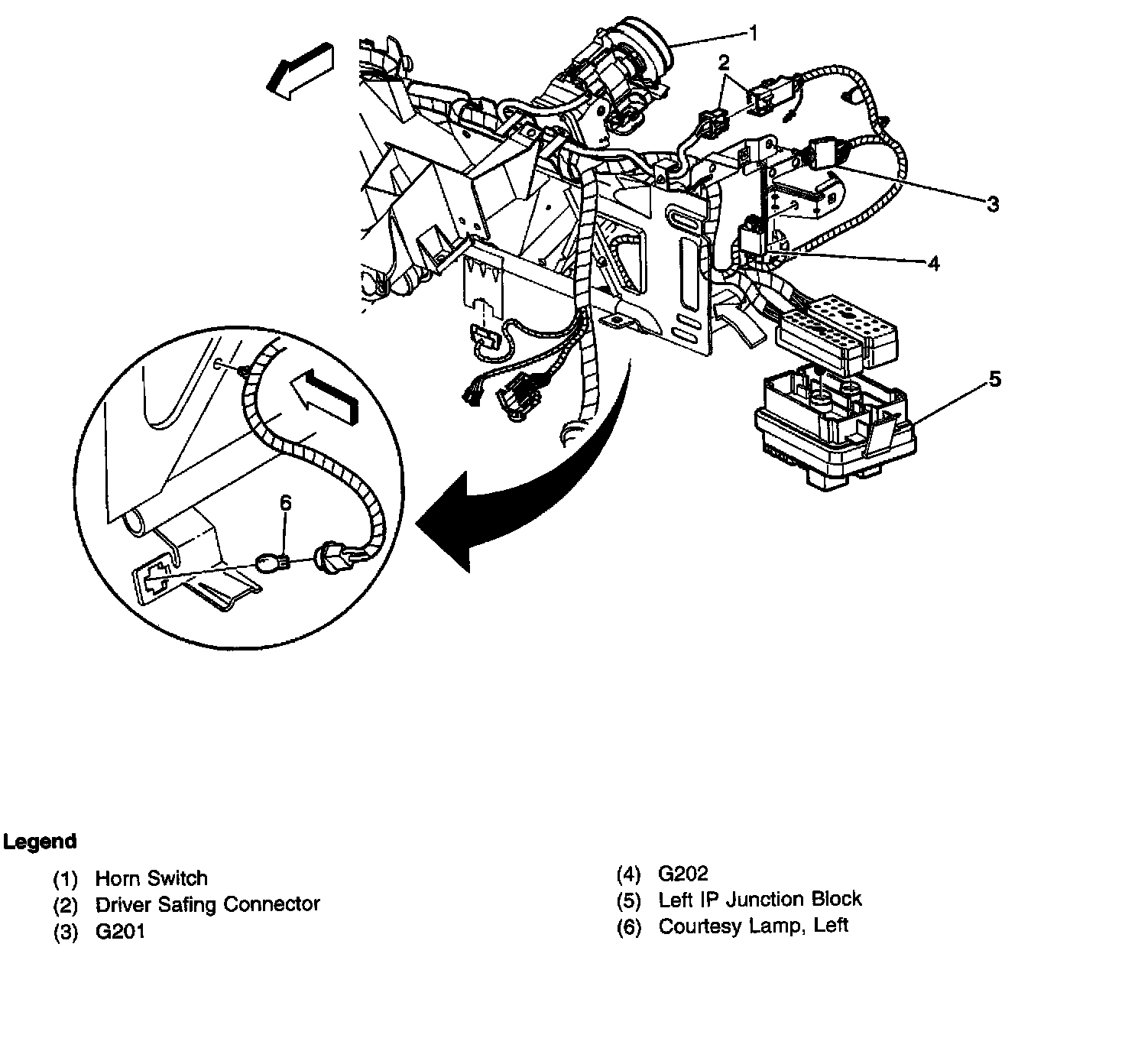

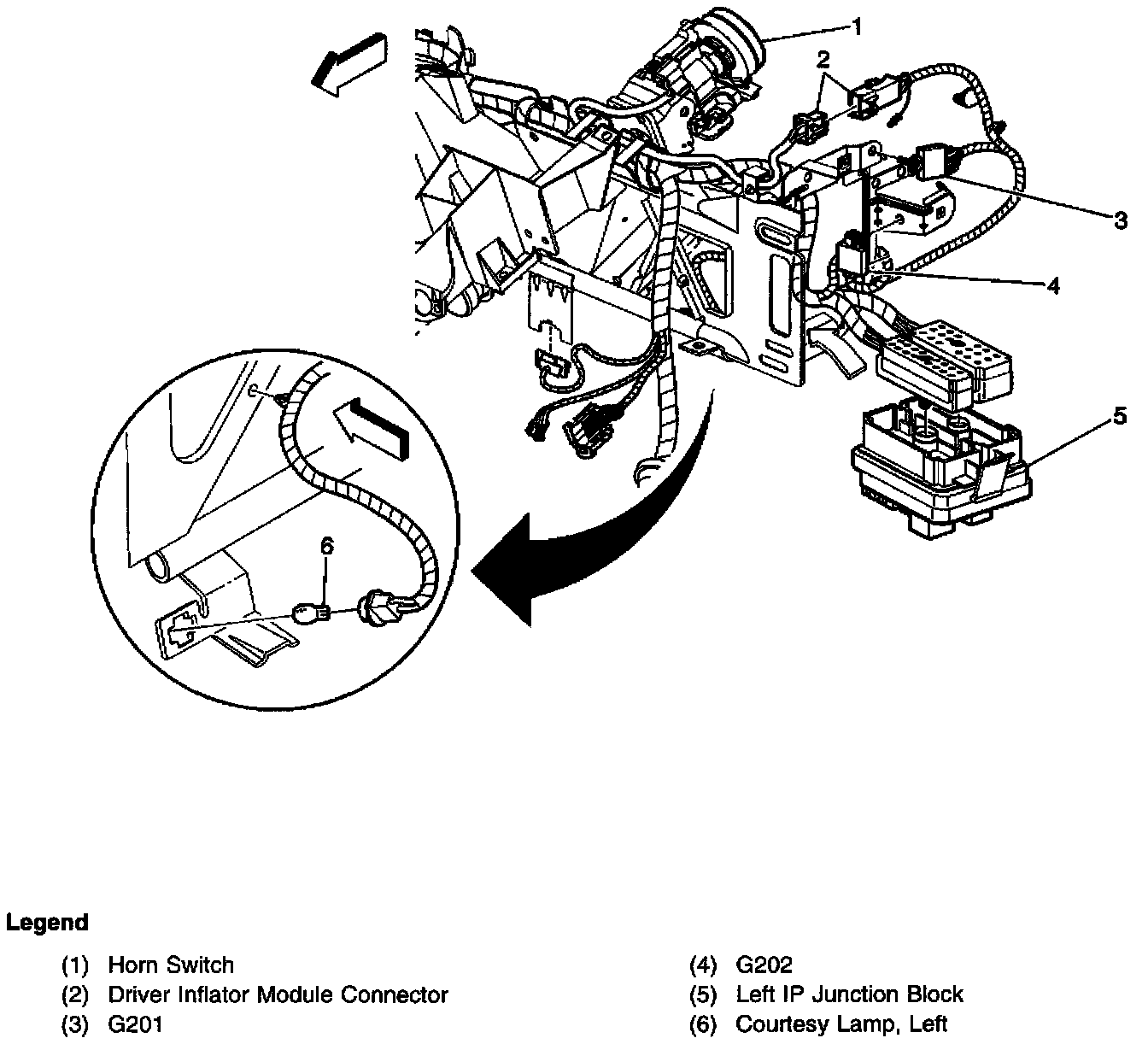

Location View:
Left Side Of Instrument Panel:
Location View:
On the left side of the instrument panel
