Installation Procedure

Important:  Ensure that the module strap is not twisted during the installation of the cable.

1. Install the cable to the module band.
2. Install the cable to the module.
   Fig 1: Installing Cable To Module Band

   Courtesy of GENERAL MOTORS CORP.
3. Install the cable to the throttle lever and accelerator control cable bracket.

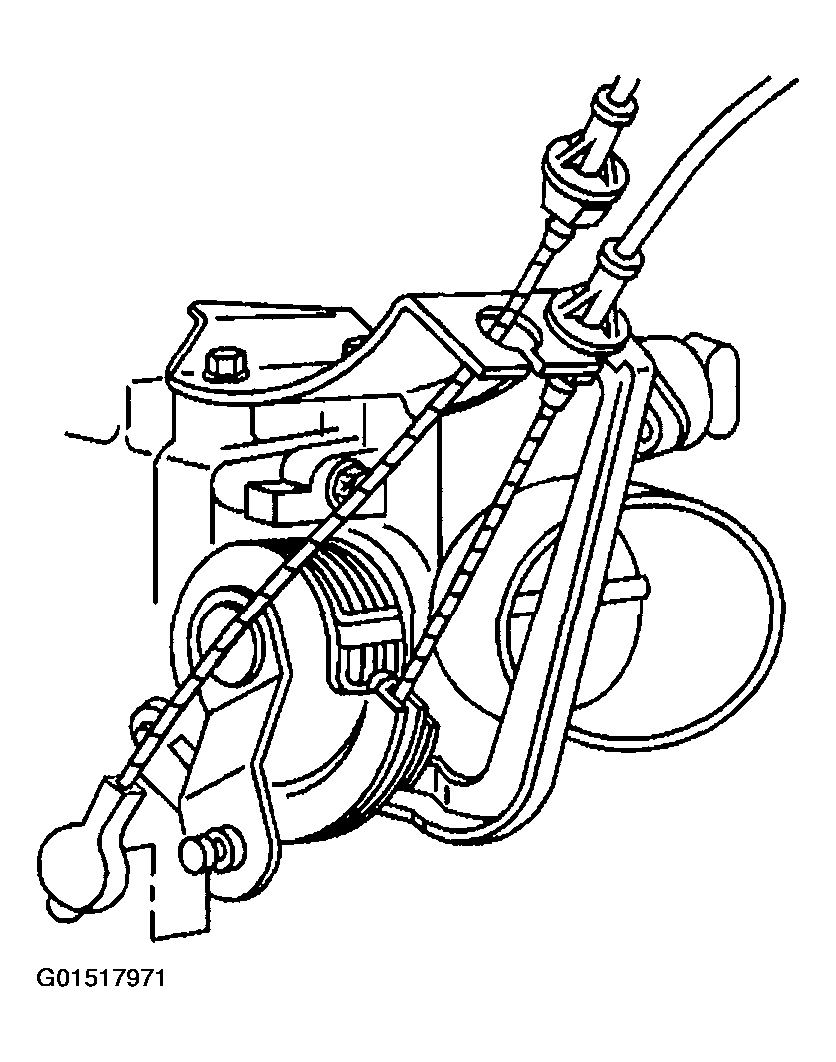

   Fig 2: Installing Cable To Throttle Lever

   Courtesy of GENERAL MOTORS CORP.
