Removal Procedure

Important:  Do not exchange digital radio receivers between vehicles. Exchanging digital receivers between vehicles will activate the digital radio theftlock. "XM theftlock" will be displayed.

1. Remove the I/P compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) .
2. Remove the receiver bracket nuts.
3. Remove the receiver from the bracket.
4. Disengage the electrical connector and the antenna connectors from the XM radio receiver.

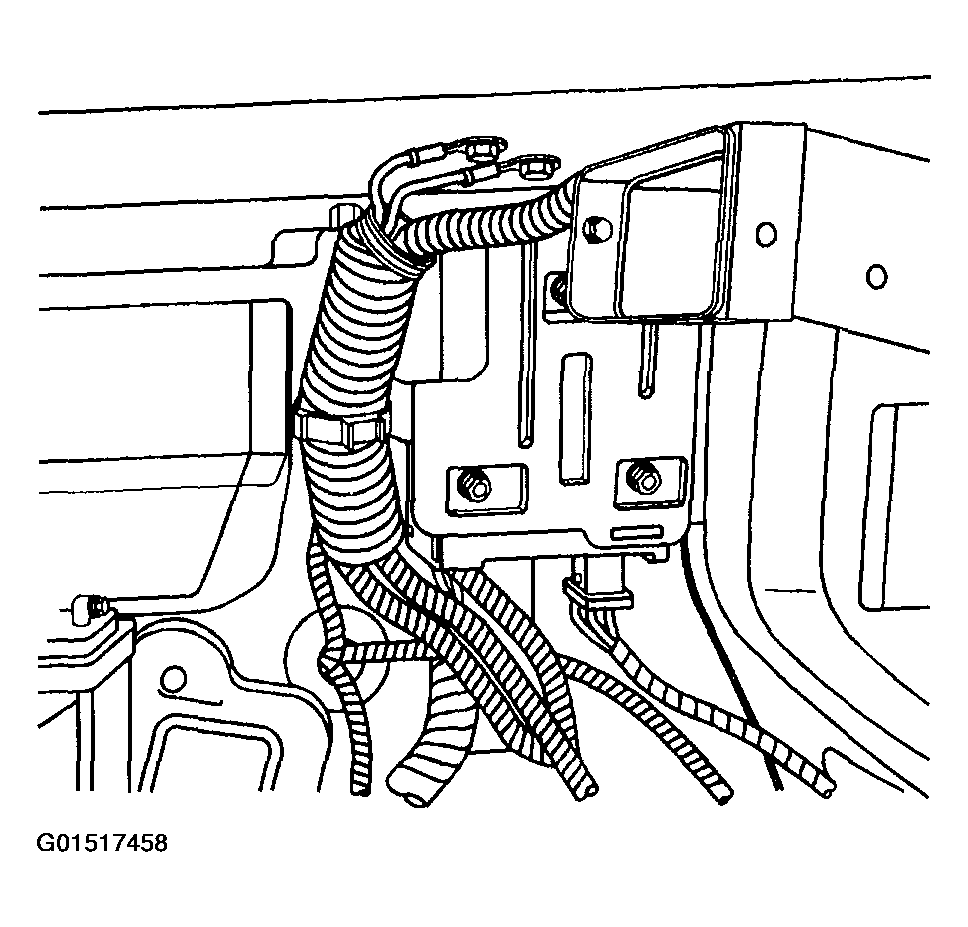

   Fig 1: Removing Receiver From Bracket

   Courtesy of GENERAL MOTORS CORP.
5. Remove the XM digital radio receiver from the vehicle.
   Fig 2: Removing XM Digital Radio Receiver From Vehicle

   Courtesy of GENERAL MOTORS CORP.
