Schematic and Routing Diagrams

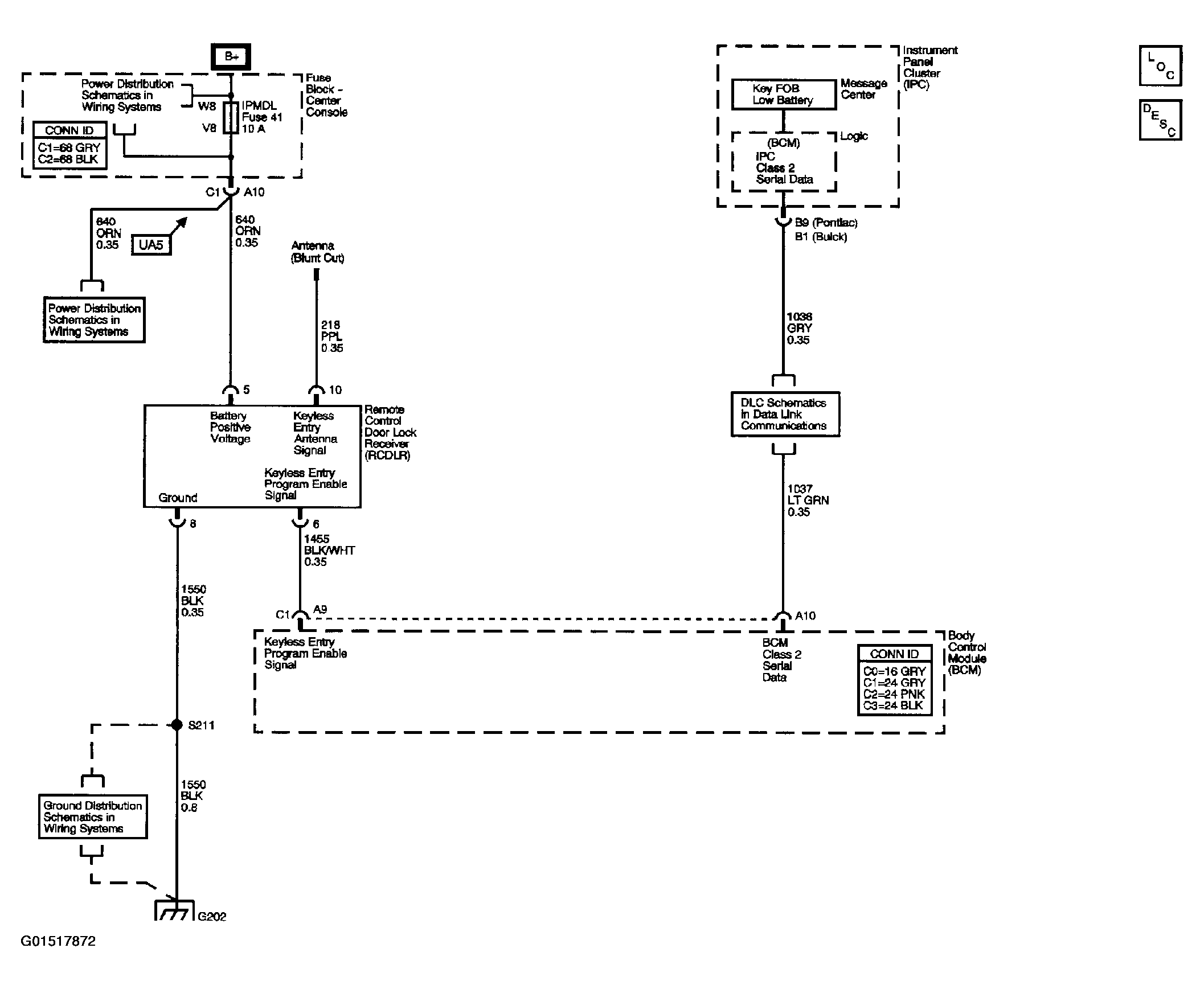

Fig 1: Keyless Entry Schematics

G01517872

Courtesy of GENERAL MOTORS CORP.
