Removal Procedure

  1. Remove the lumbar support knob by pulling off the lumbar control shaft.
  2. Remove the lumbar support knob from the vehicle.

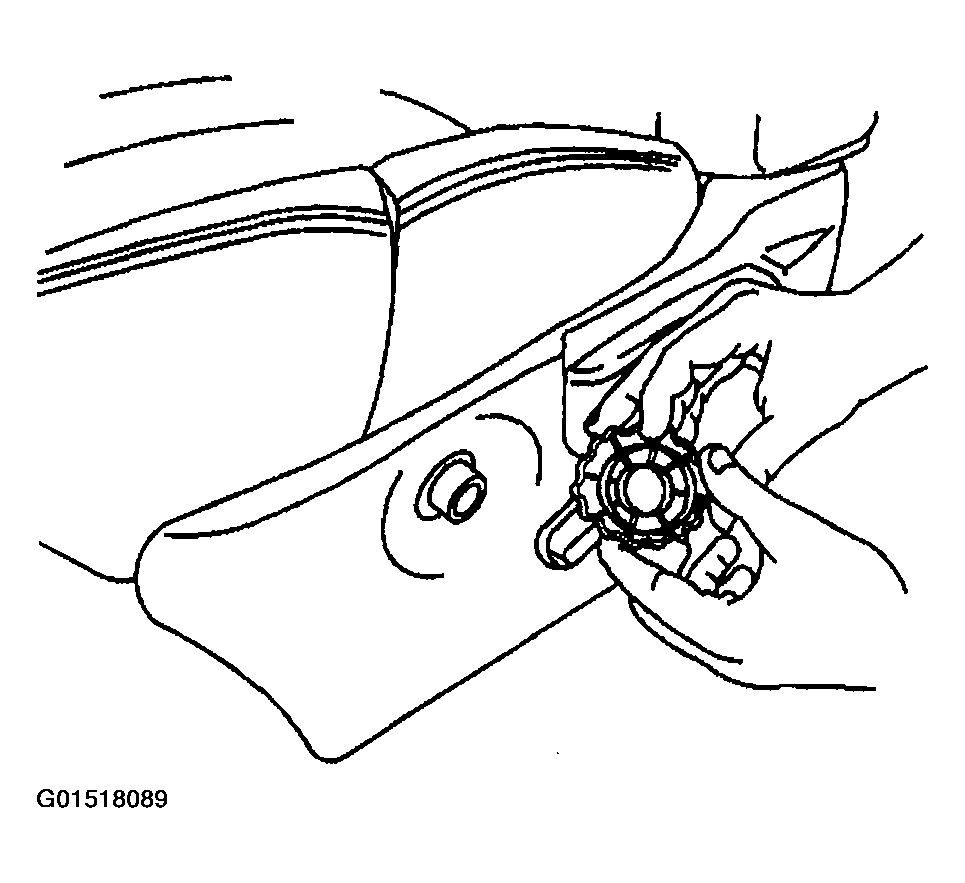

    Fig 1: Removing Lumbar Support Knob
    G01518089Courtesy of GENERAL MOTORS CORP.
