Removal Procedure

  1. Remove the front seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Remove the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .

    Important:  Remove the front seat cover and pad as one piece, if replacing the front seat back frame only.

  3. Remove the front seat back cushion cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT  .
  4. Remove the front seat back pad from the front seat back frame. Refer to SEAT BACK PAD REPLACEMENT - FRONT  .
  5. Remove the front seat lumbar from the front seat back, if required. Refer to LUMBAR REPLACEMENT - FRONT SEAT  .

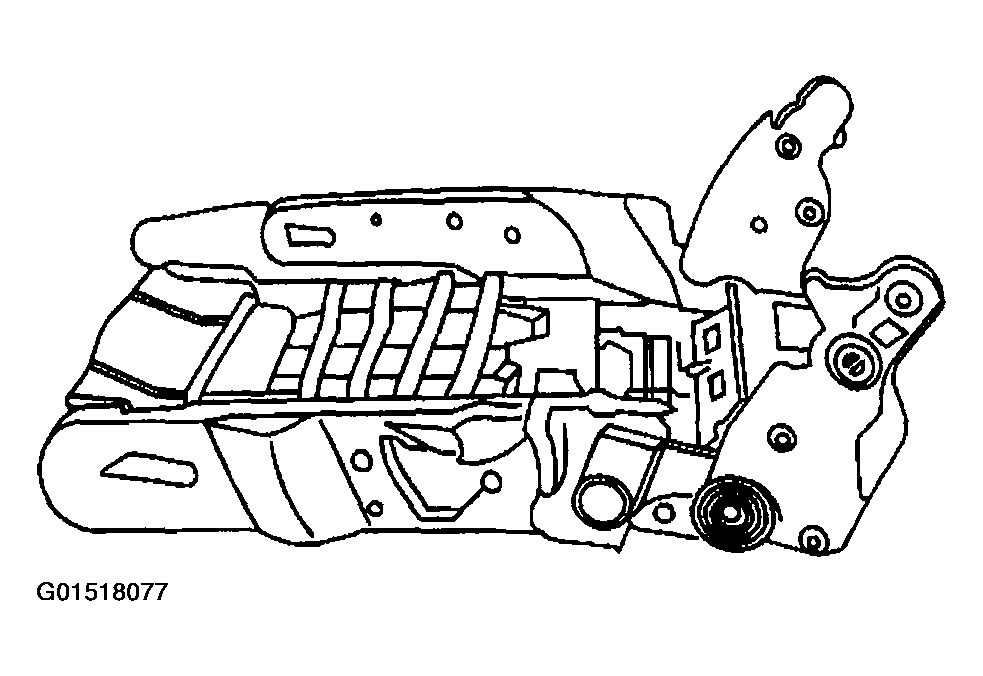

    Fig 1: Removing Front Seat Back Frame
    G01518077Courtesy of GENERAL MOTORS CORP.
