Installation Procedure

Install the front seat back onto the front seat cushion.
Install the wiring harnesses to the heated seat and to the side air bag through the front seat cushion and frame area.

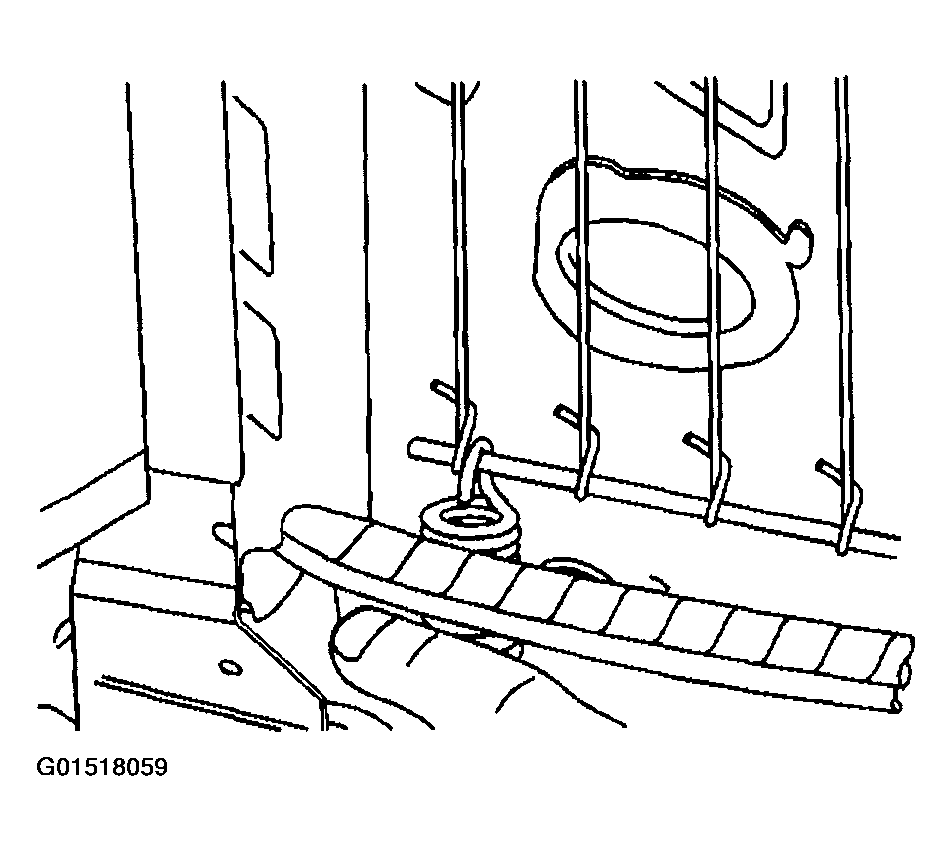

Fig 1: Installing Front Seat Back Onto Front Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Install the back to the seat cushion frame.
Install the left front bolts to the seat back recliner hinge.
Tighten

Tighten the bolts to 40 N.m (30 lb ft).

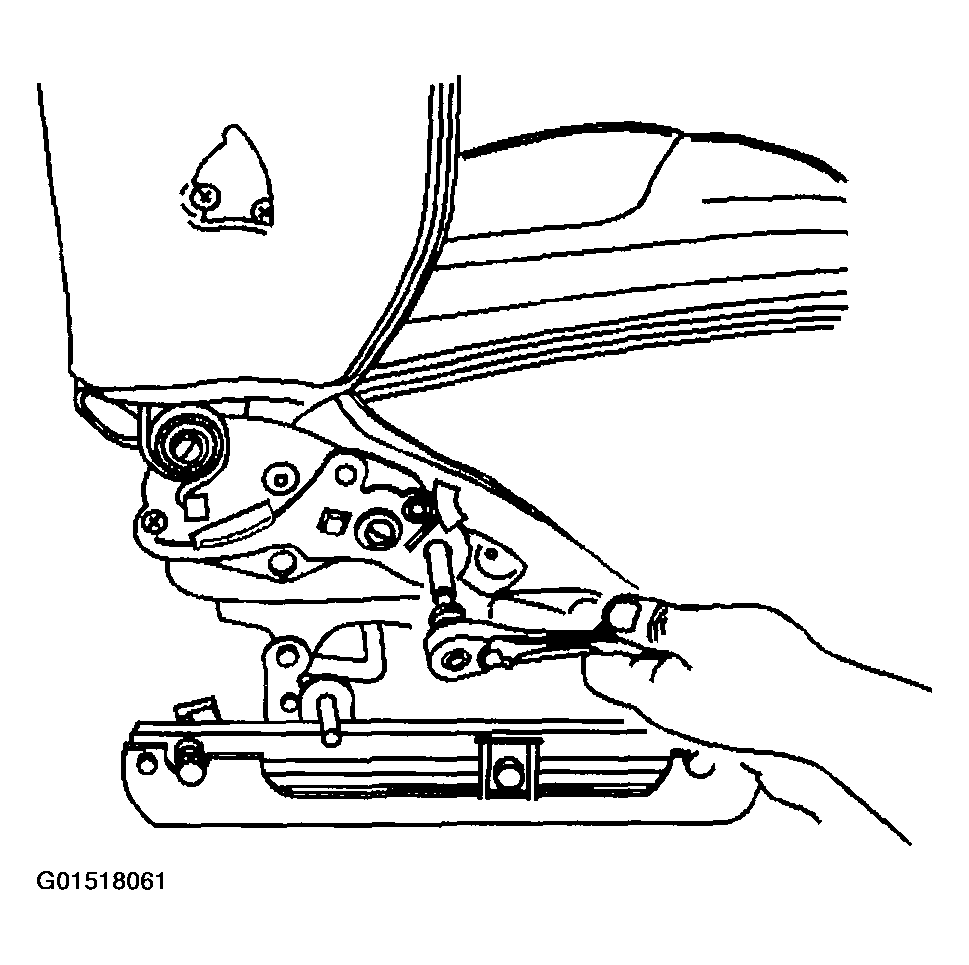

Fig 2: Installing Left Front Bolts To Seat Back Recliner Hinge
Courtesy of GENERAL MOTORS CORP.
Install the right front bolts to the seat back recliner hinge.
Tighten

Tighten the bolts to 40 N.m (30 lb ft).

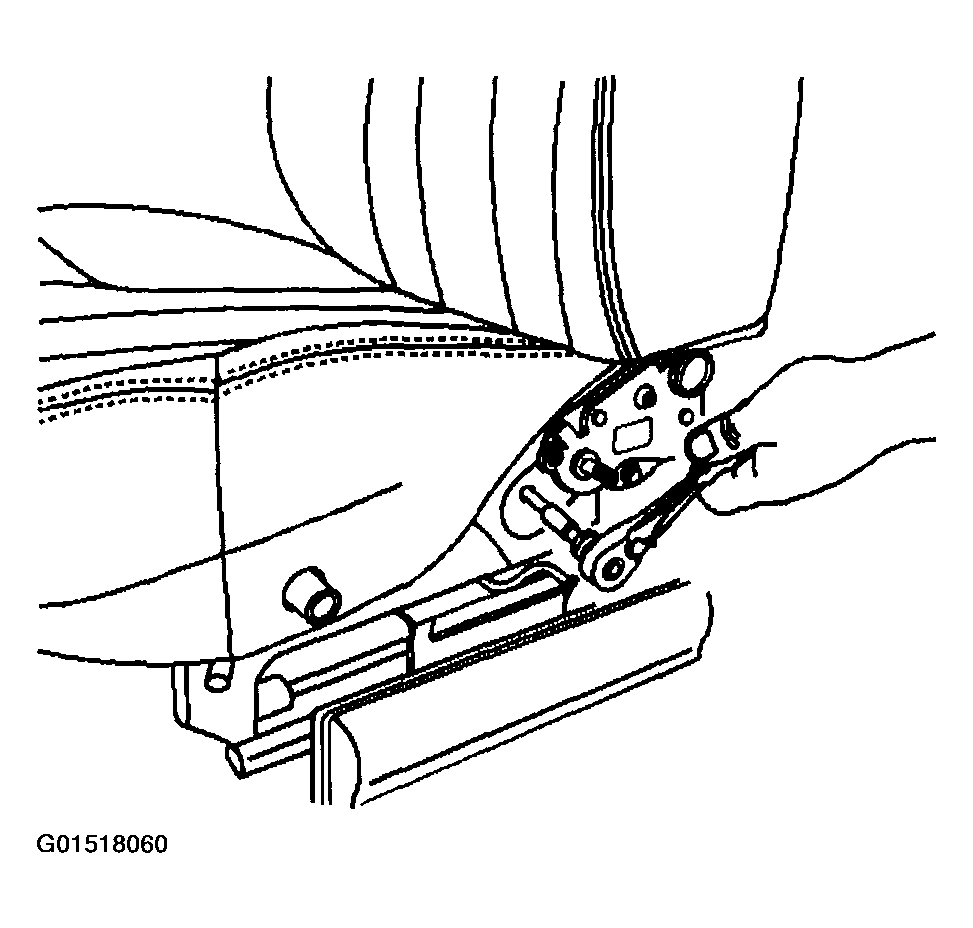

Fig 3: Installing Right Front Bolts To Seat Back Recliner Hinge
Courtesy of GENERAL MOTORS CORP.
Install the recliner cable ends to the seat back recliner hinge.
Install the outer trim panel to the front seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT .
Install the inner trim panel to the front seat cushion. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT - FRONT .
Inspect the seat back for proper operation.
Install the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET .

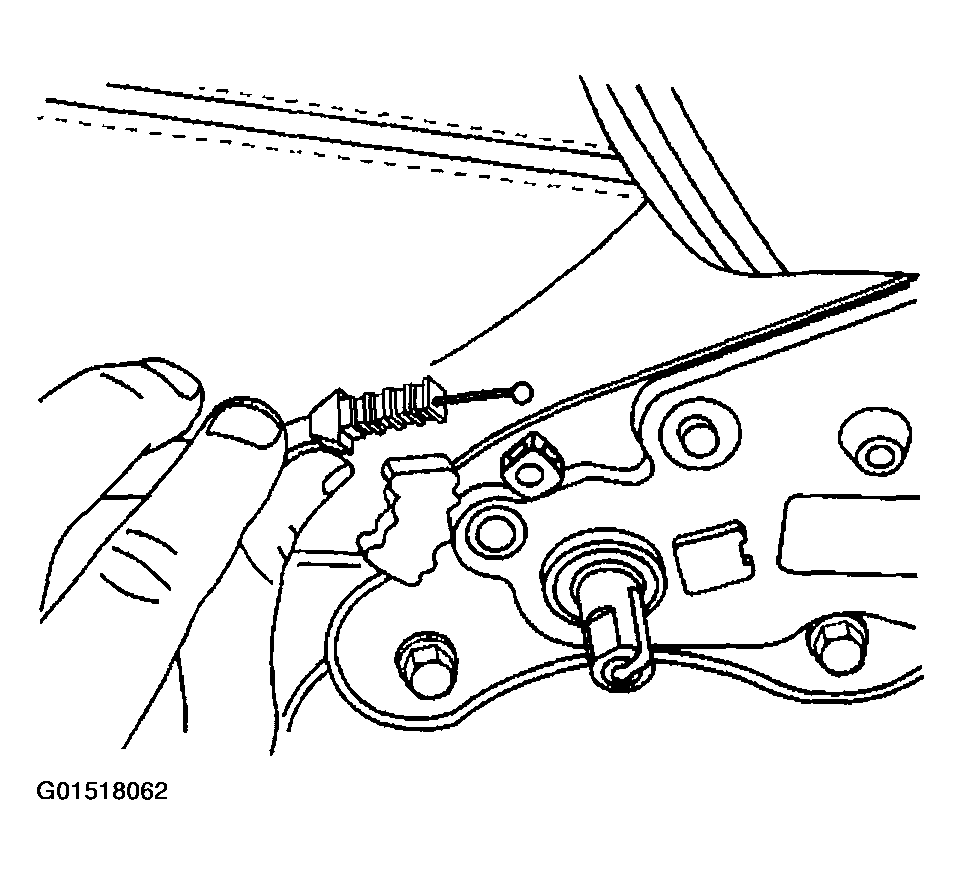

Fig 4: Installing Recliner Cable Ends To Seat Back Recliner Hinge
Courtesy of GENERAL MOTORS CORP.
