Installation Procedure

  1. Connect all required wiring harnesses to the front seat cushion frame.
  2. Install the front seat cushion to the front seat cushion frame. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  3. Install the front seat cushion cover to the front seat cushion. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .
  4. Install the front seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - FRONT  .
  5. Install the front seat. Refer to SEAT BACK REPLACEMENT - FRONT  .
  6. Install the front bucket seat to the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

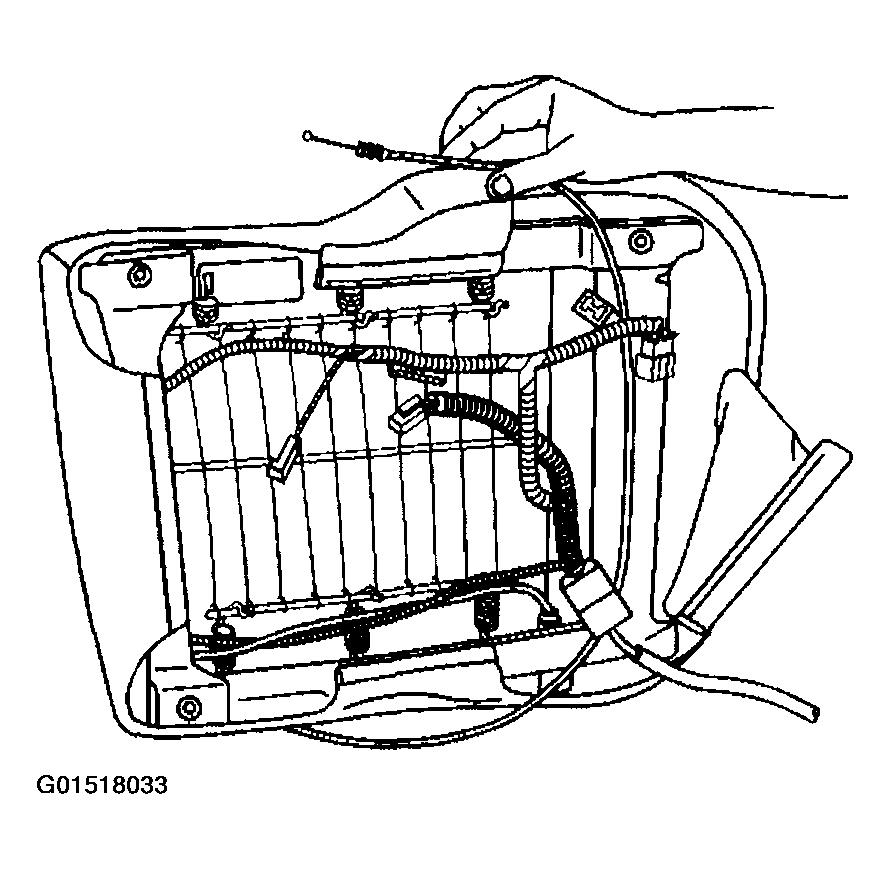

    Fig 1: Connecting All Required Wiring Harnesses To Front Seat Cushion Frame
    G01518033Courtesy of GENERAL MOTORS CORP.
