Schematic and Routing Diagrams

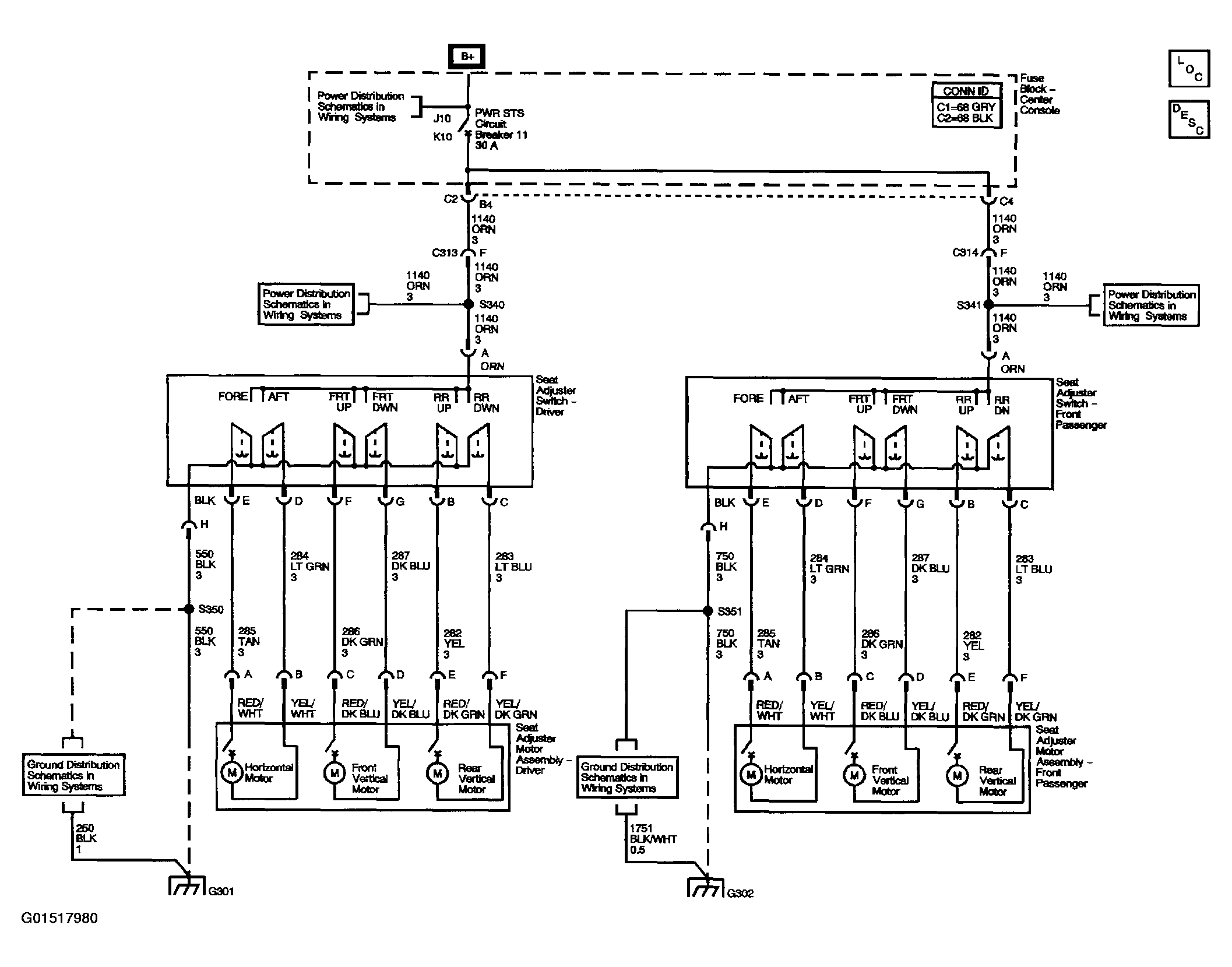

Fig 1: Power Seats Schematics
G01517980Courtesy of GENERAL MOTORS CORP.

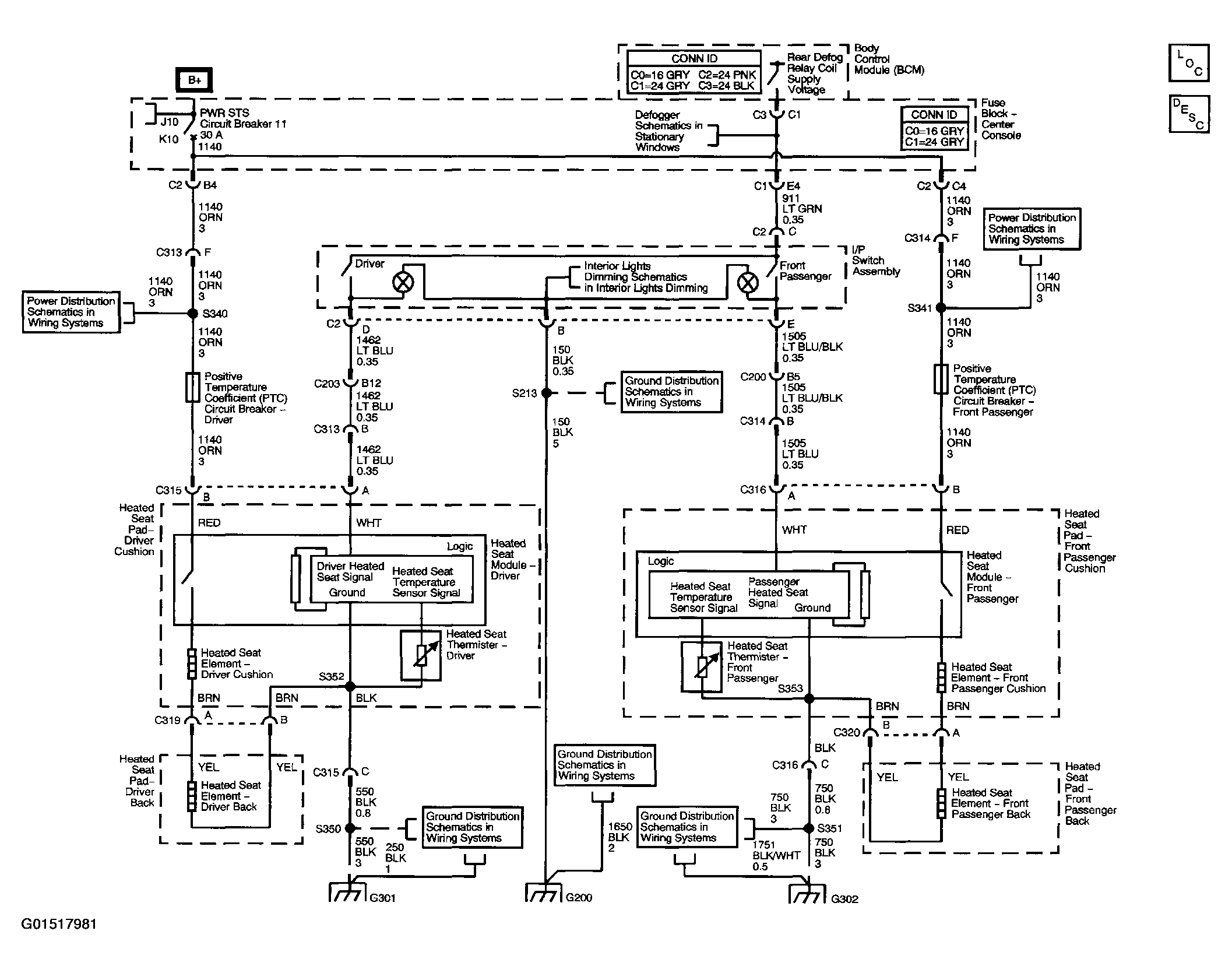

Fig 2: Heated Seats Schematics
G01517981Courtesy of GENERAL MOTORS CORP.

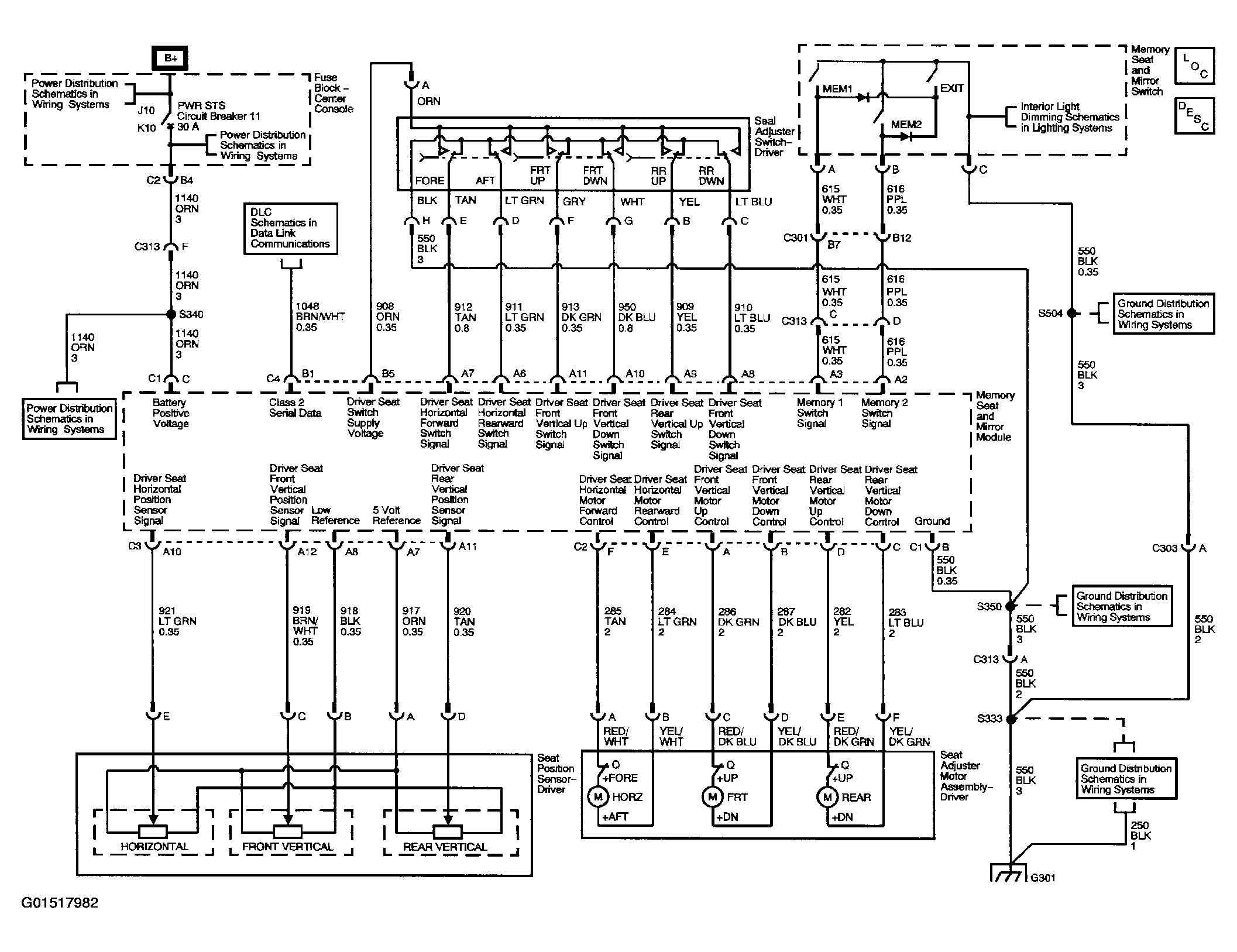

Fig 3: Memory Seats Schematics
G01517982Courtesy of GENERAL MOTORS CORP.
