Removal Procedure

  1. Use a small flat-bladed tool in order to remove the switch plate from the front door trim panel

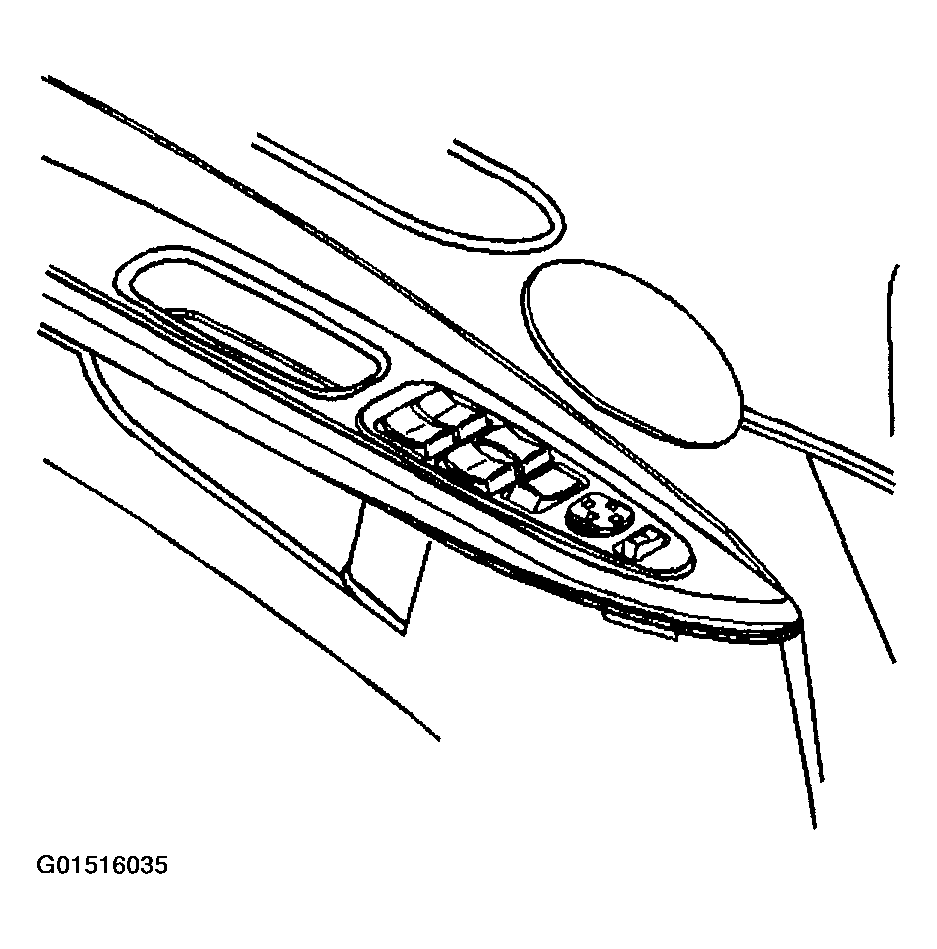

    Fig 1: Removing Power Mirror Switch (Rendezvous - 1 Of 3)
    G01516035Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the switch plate.

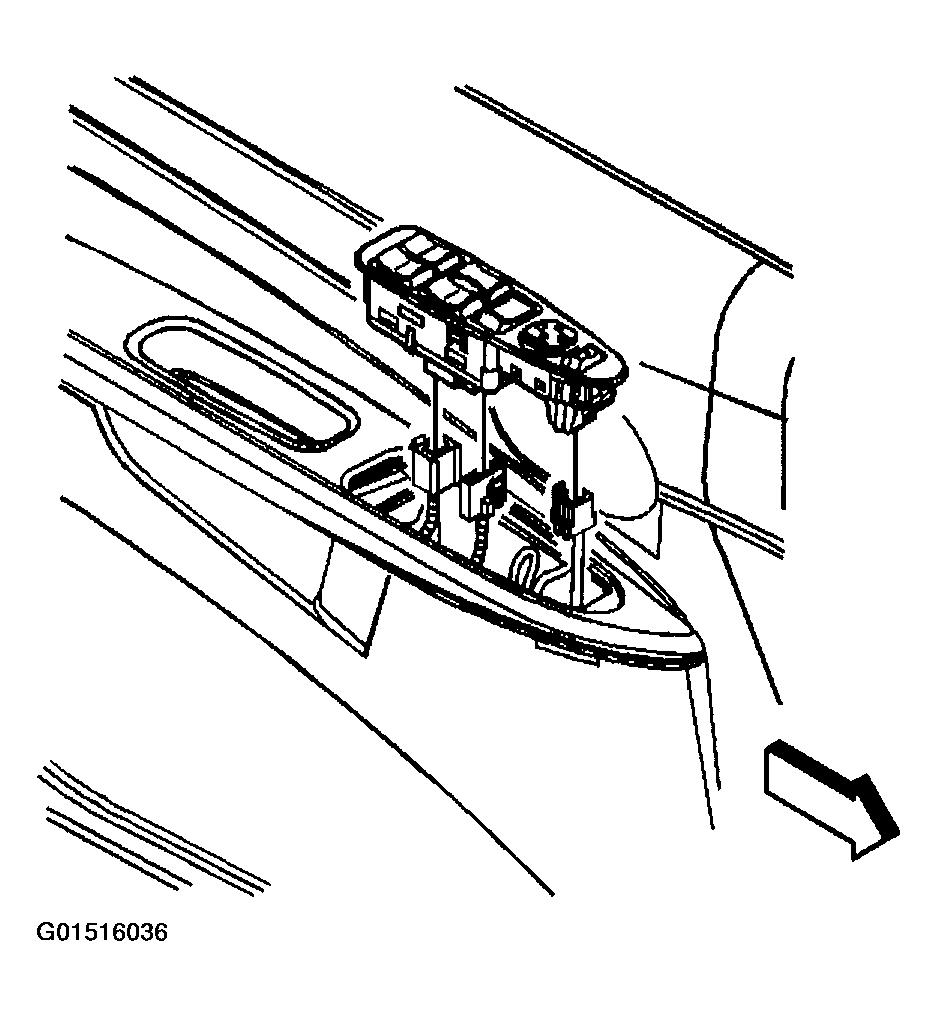

    Fig 2: Removing Power Mirror Switch (Rendezvous - 2 Of 3)
    G01516036Courtesy of GENERAL MOTORS CORP.
  3. Use a small flat-bladed tool in order to remove the power mirror switch from the switch plate

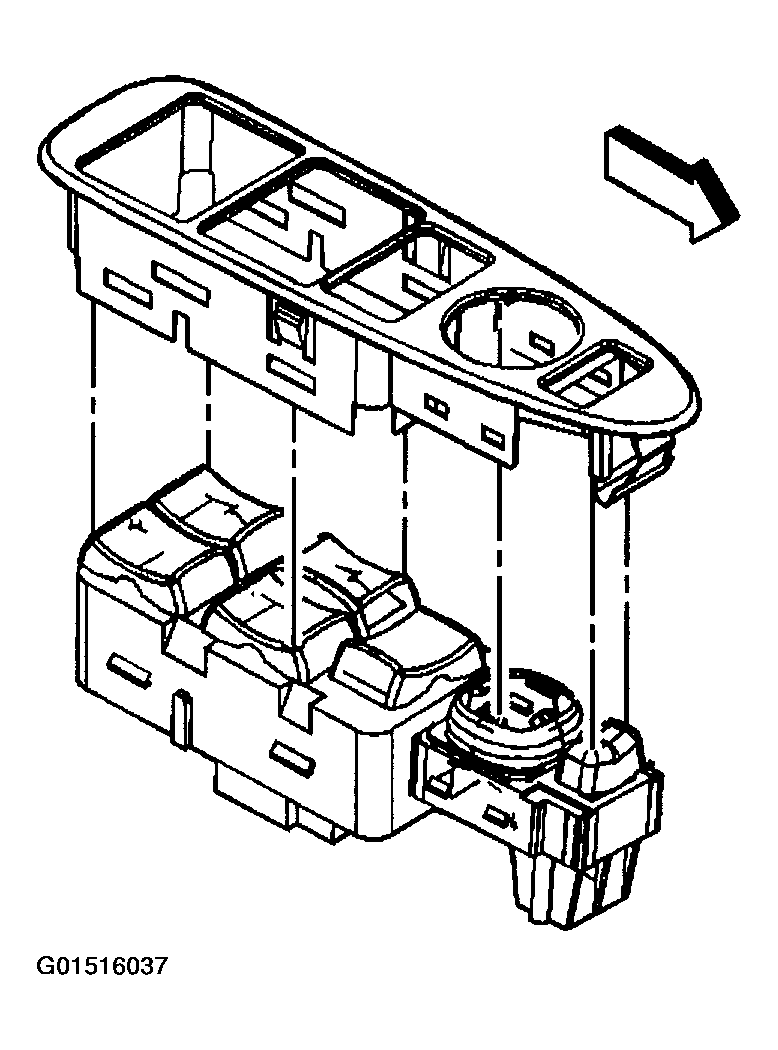

    Fig 3: Removing Power Mirror Switch (Rendezvous - 3 Of 3)
    G01516037Courtesy of GENERAL MOTORS CORP.
