Removal Procedure

  1. Use a small flat-bladed tool at the front of the power window switch in order to remove the switch plate from the front door trim panel

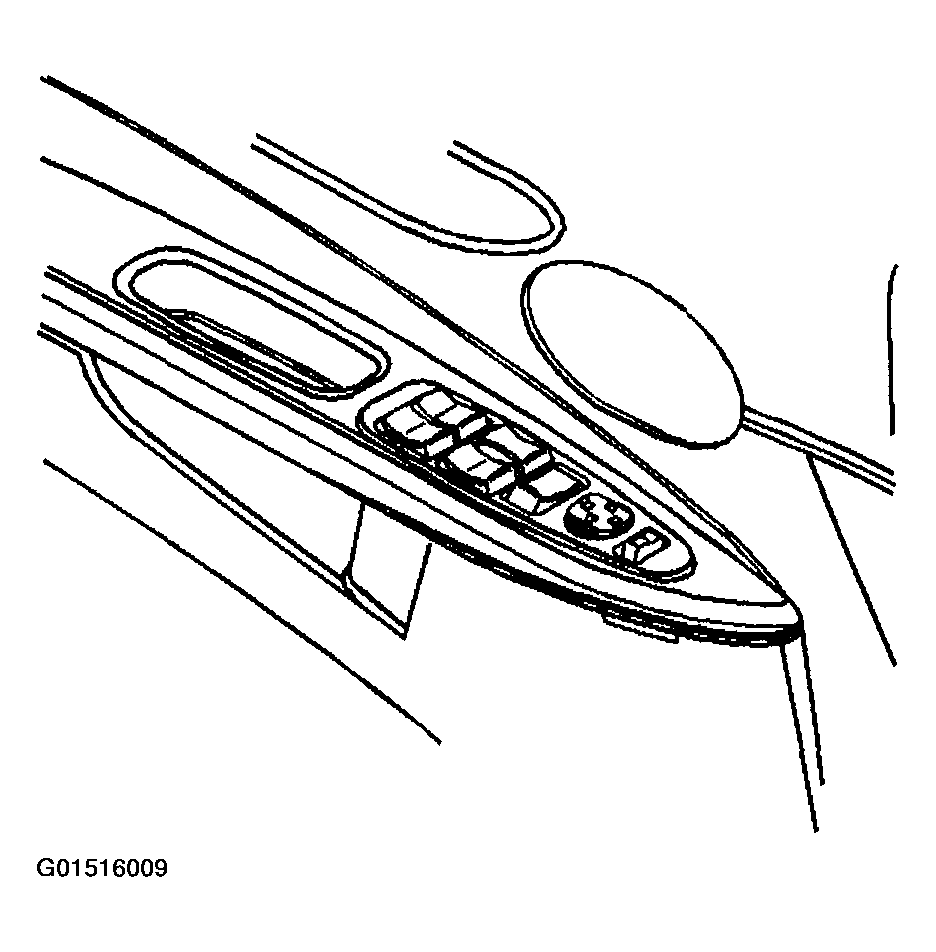

    Fig 1: Removing Left Front Power Window Switch (Rendezvous - 1 Of 3)
    G01516009Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the power window switch.
  3. Remove the power window switch from the front door trim panel.

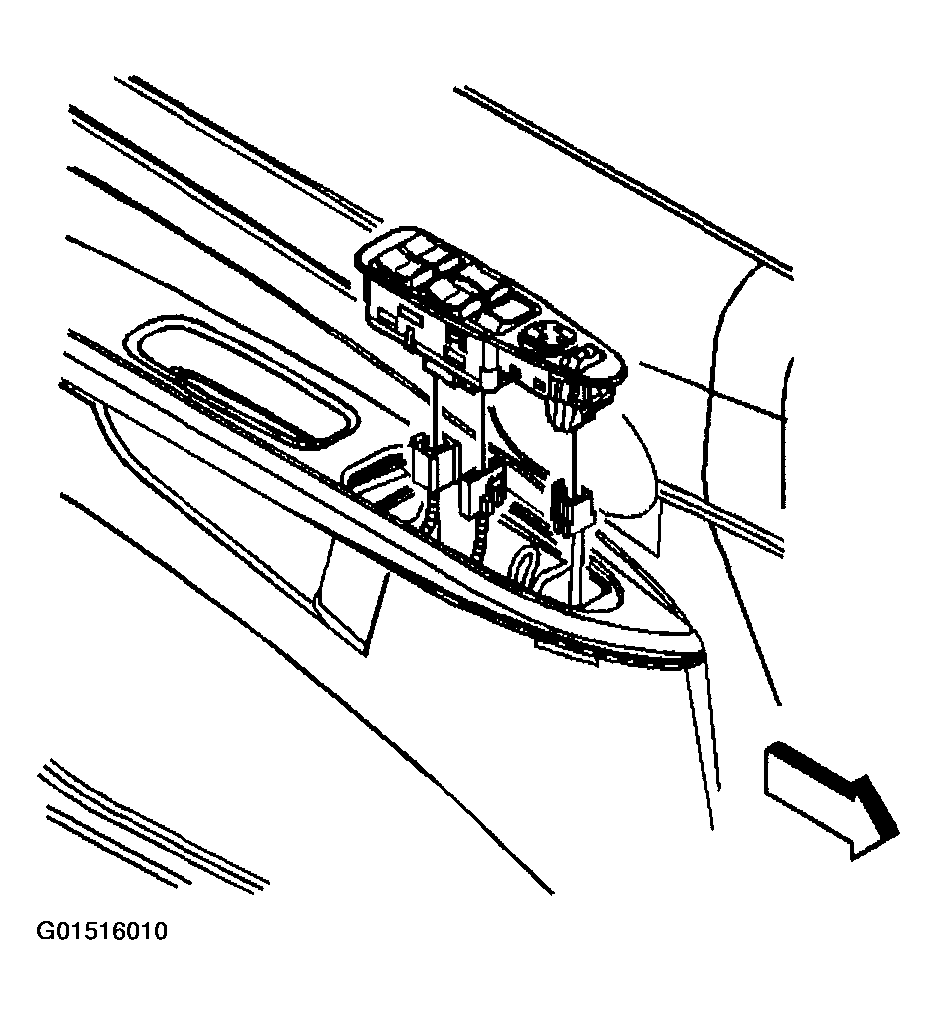

    Fig 2: Removing Left Front Power Window Switch (Rendezvous - 2 Of 3)
    G01516010Courtesy of GENERAL MOTORS CORP.
  4. Use a small flat-bladed tool in order to remove the power window switch from the switch plate

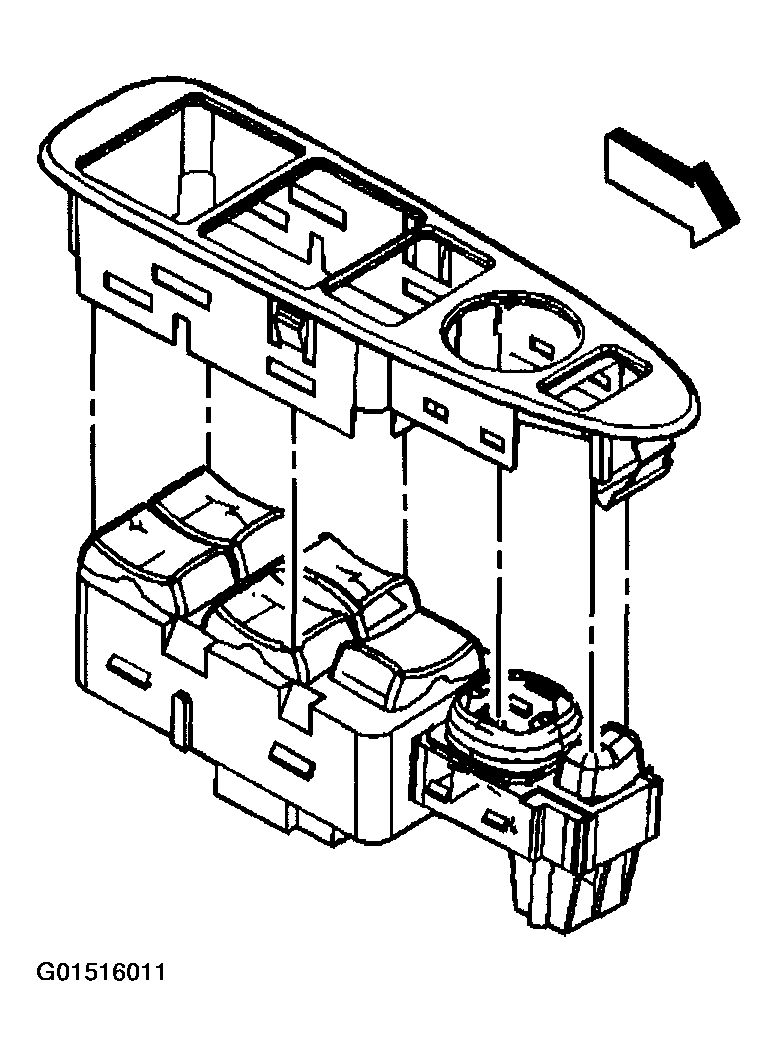

    Fig 3: Removing Left Front Power Window Switch (Rendezvous - 3 Of 3)
    G01516011Courtesy of GENERAL MOTORS CORP.
