Installation Procedure

  1. Install the upper jumper harness connector from the rear body pass-thru connector.
  2. Install the jumper harness grommet to the retainer.
  3. Install the wheel speed sensor connectors (2,3).

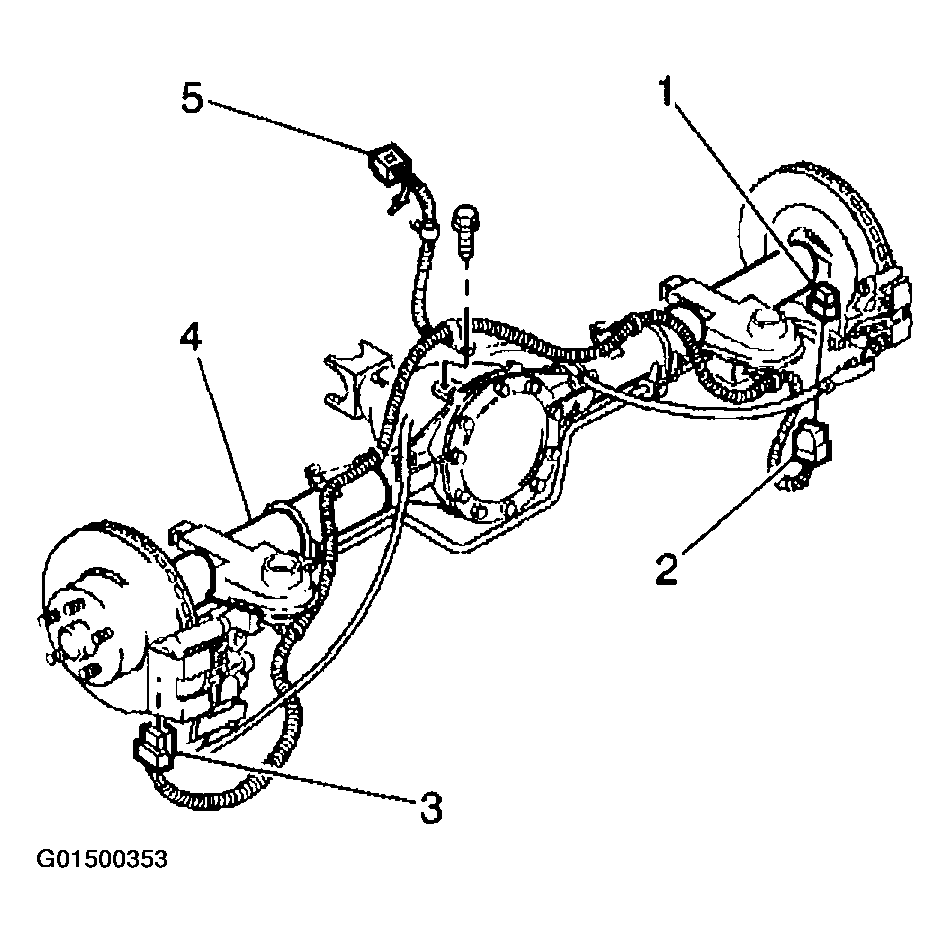

Fig 1: Installing Jumper Harness
G01500353Courtesy of GENERAL MOTORS CORP.
