Removal Procedure
- Raise and support the vehicle.
- Remove the tire and wheel.
- Remove the brake caliper and support the brake caliper. Do NOT disconnect the brake hose. Refer to BRAKE ROTOR
in Disc Brakes.
- Remove the brake caliper bracket. Refer to BRAKE CALIPER
in Disc Brakes.
- Remove the brake rotor.
Courtesy of GENERAL MOTORS CORP.

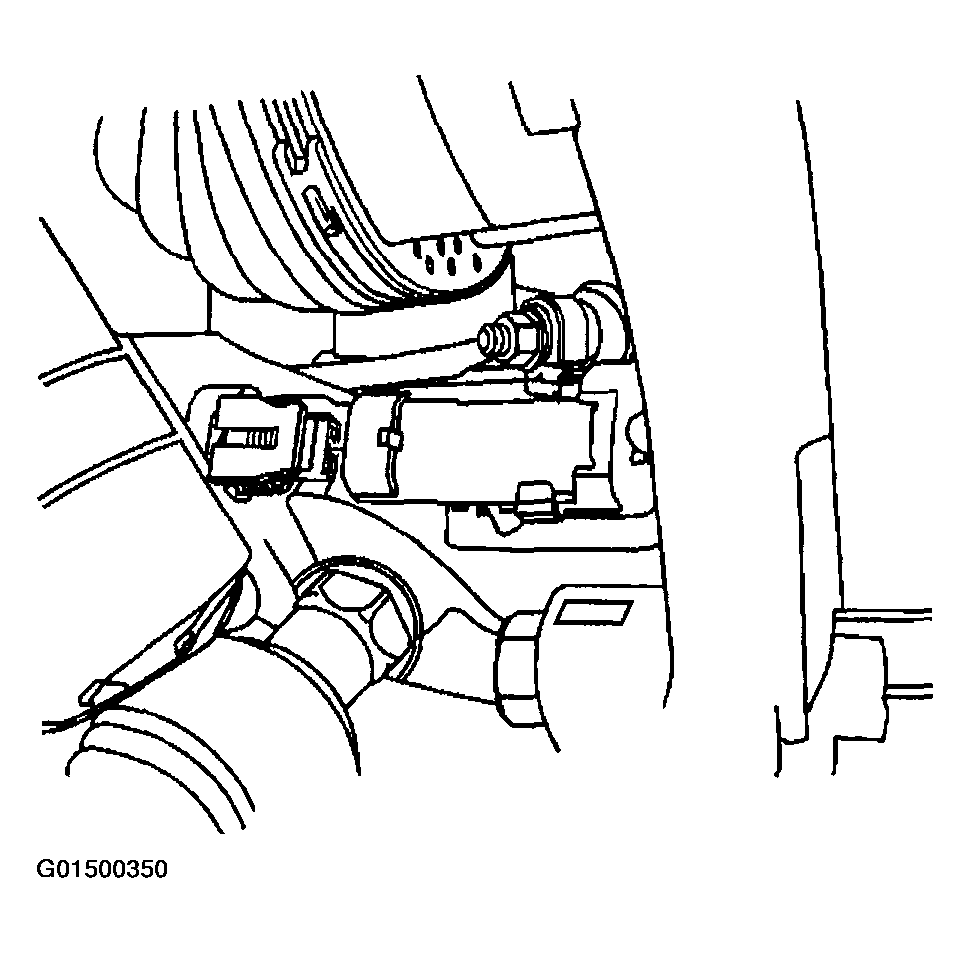

- Disconnect the wheel speed sensor electrical connector.
- Disconnect the wheel speed sensor electrical connector from the connector bracket.
- Disconnect the drive axle from the wheel bearing/hub. Refer to PROPELLER SHAFT REPLACEMENT
in Wheel Drive Shafts.
- Remove and DISCARD the wheel bearing/hub bolts.
- Remove the wheel bearing/hub.
