Sunroof Motor Connector End View

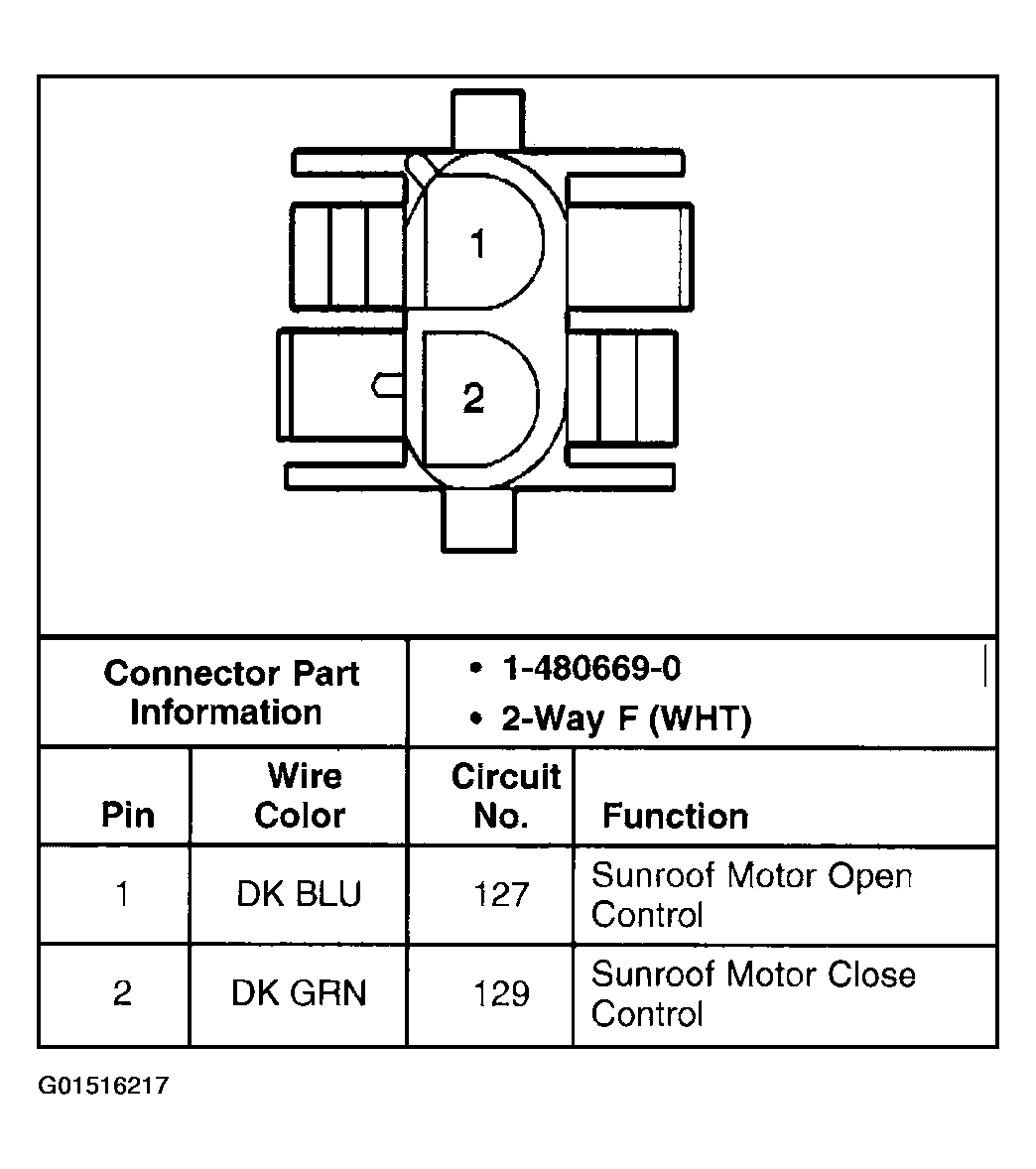

Fig 1: Sunroof Motor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
