Charging System Test

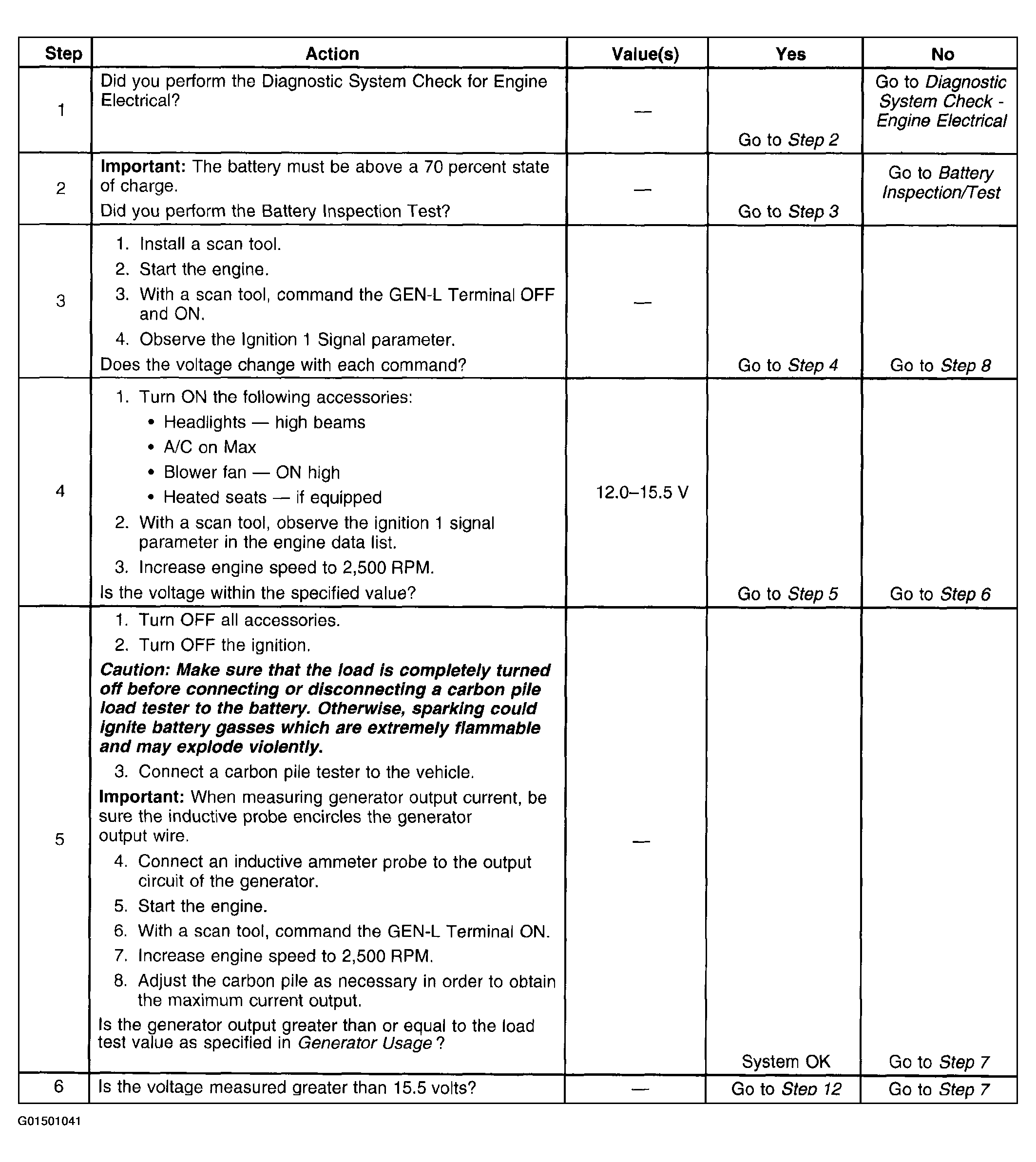

Fig 1: Charging System Test (Steps 1-6)
G01501041Courtesy of GENERAL MOTORS CORP.

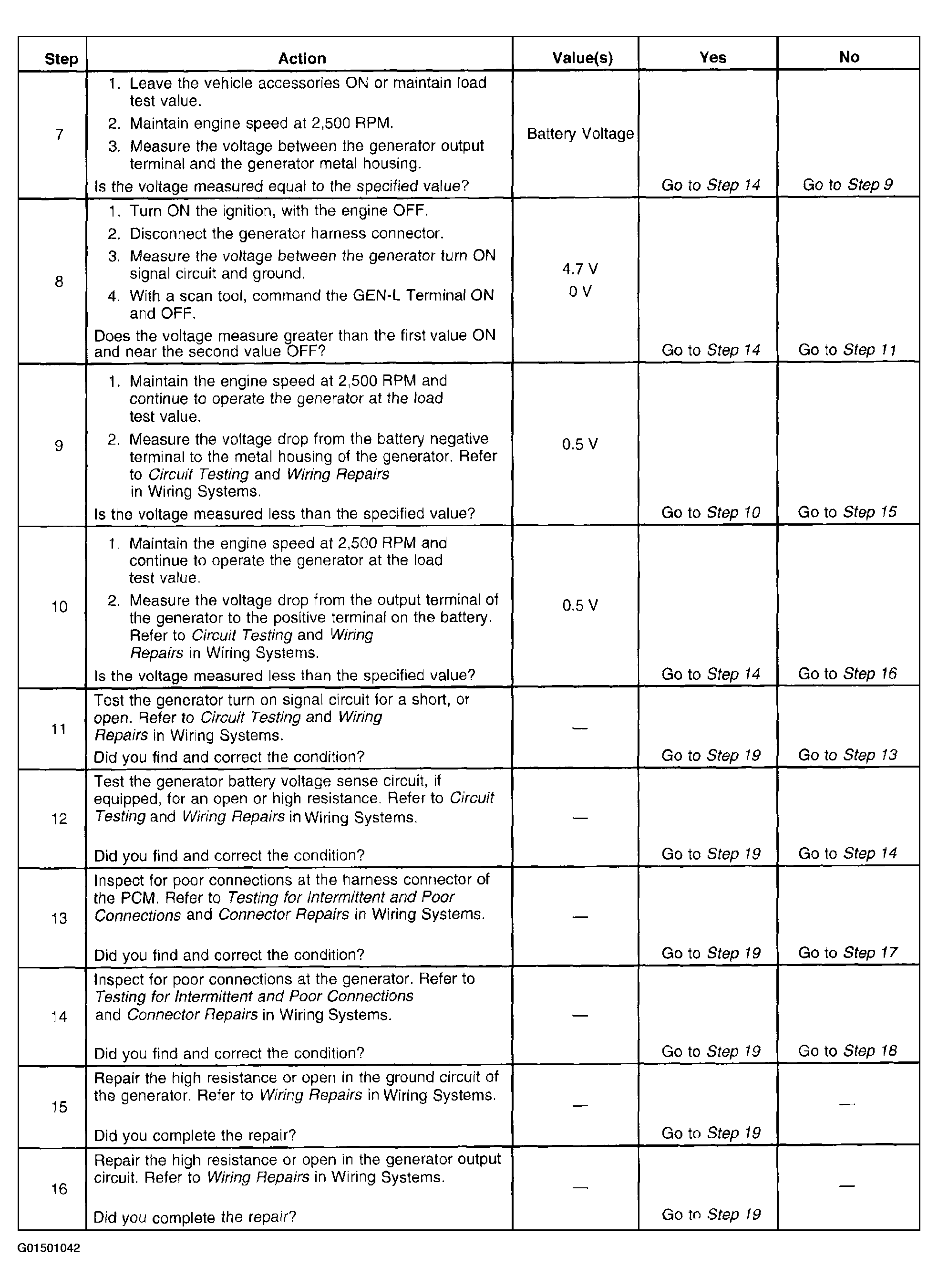

Fig 2: Charging System Test (Steps 7-16)
G01501042Courtesy of GENERAL MOTORS CORP.

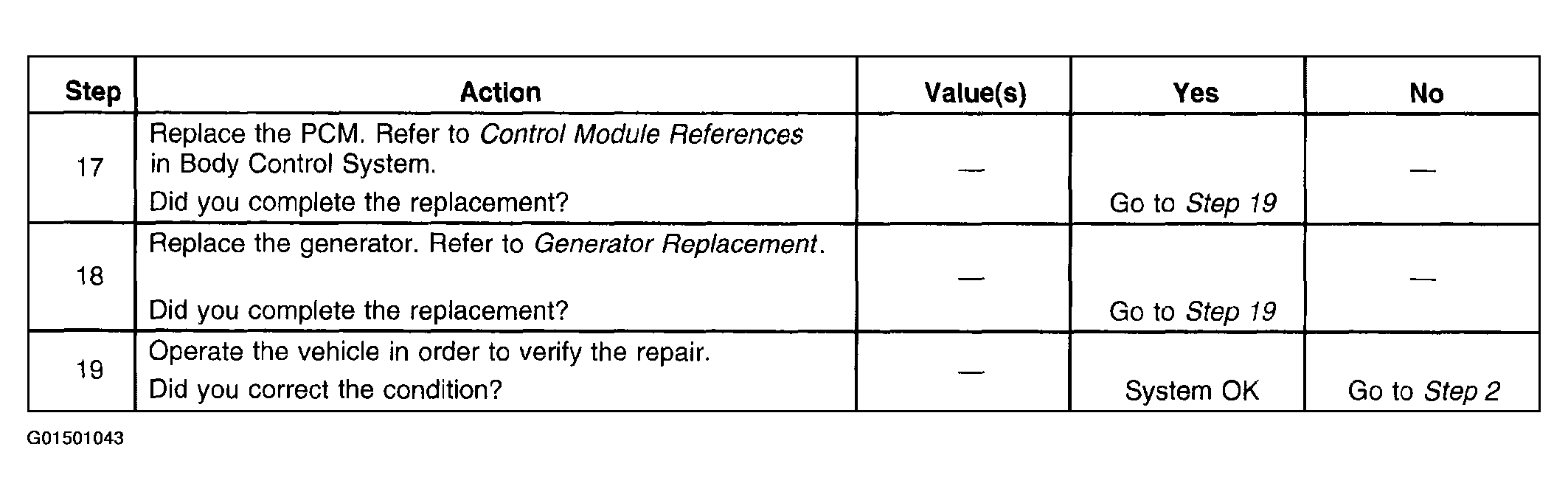

Fig 3: Charging System Test (Steps 17-19)
G01501043Courtesy of GENERAL MOTORS CORP.
