Installation Procedure

Connect the electrical connectors to the switch.

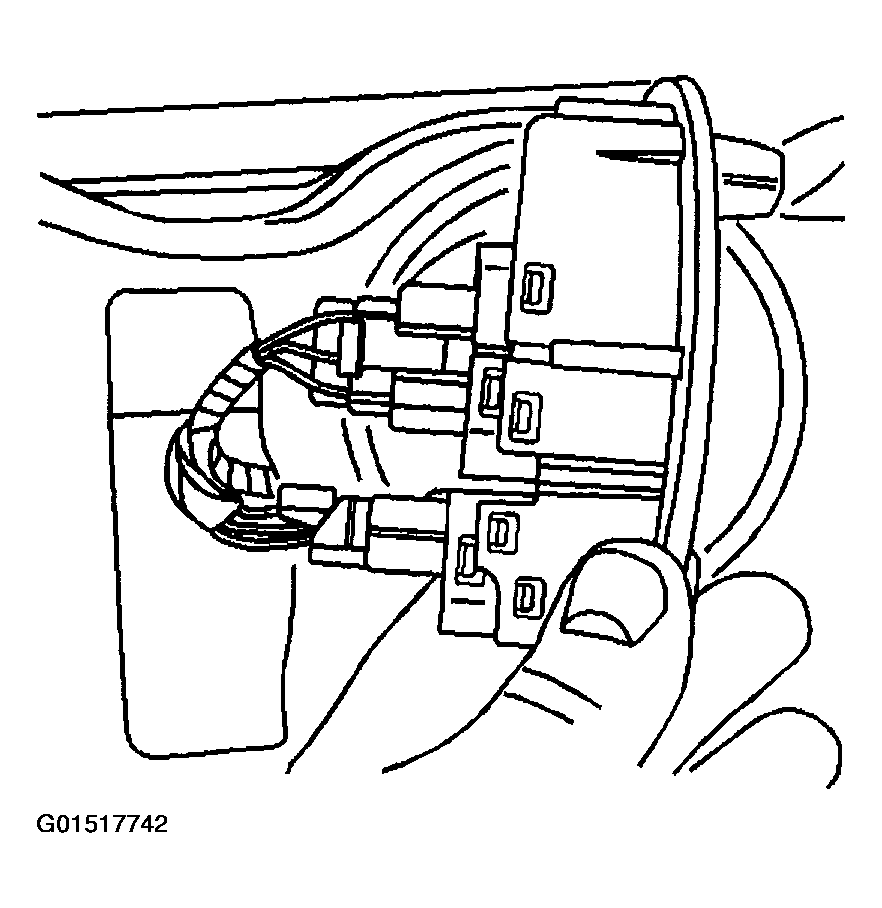

Fig 1: Connecting Electrical Connectors To Switch
Courtesy of GENERAL MOTORS CORP.
Install the driver information center switch to the IP trim plate.
Push the switch assembly to the IP trim plate until the assembly is fully seated.

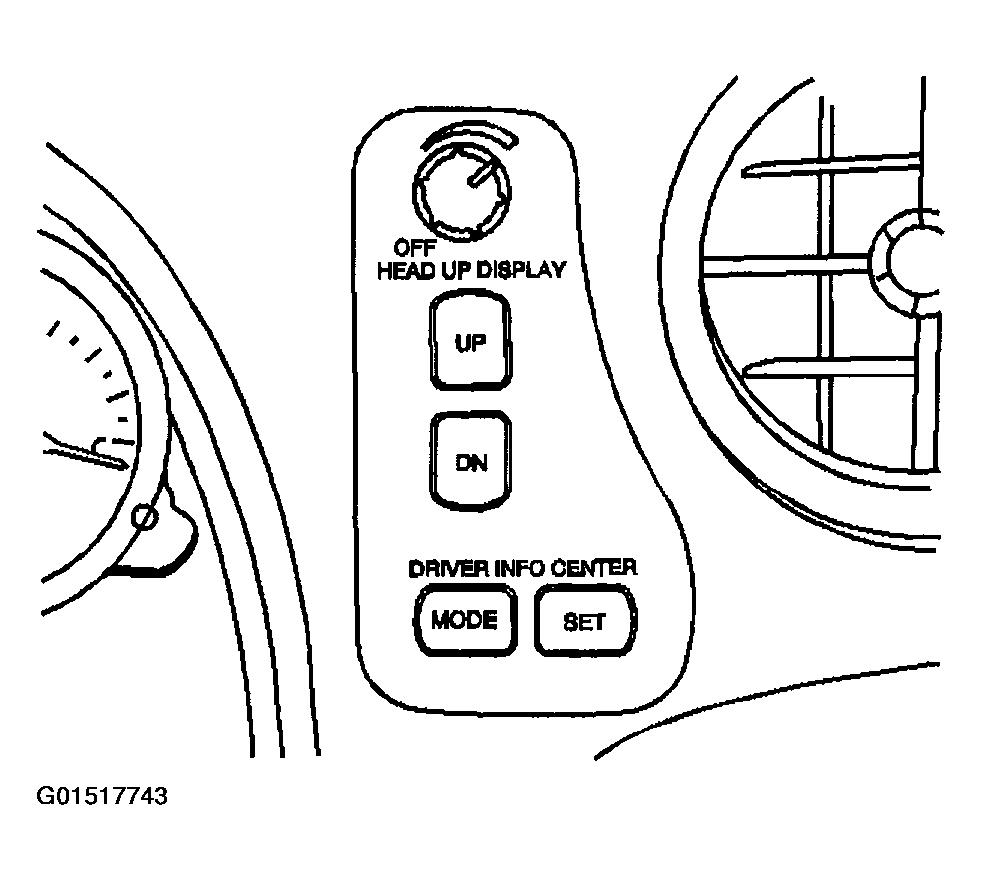

Fig 2: Installing Driver Information Center Switch To IP Trim Plate
Courtesy of GENERAL MOTORS CORP.
