HVAC Connector End Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

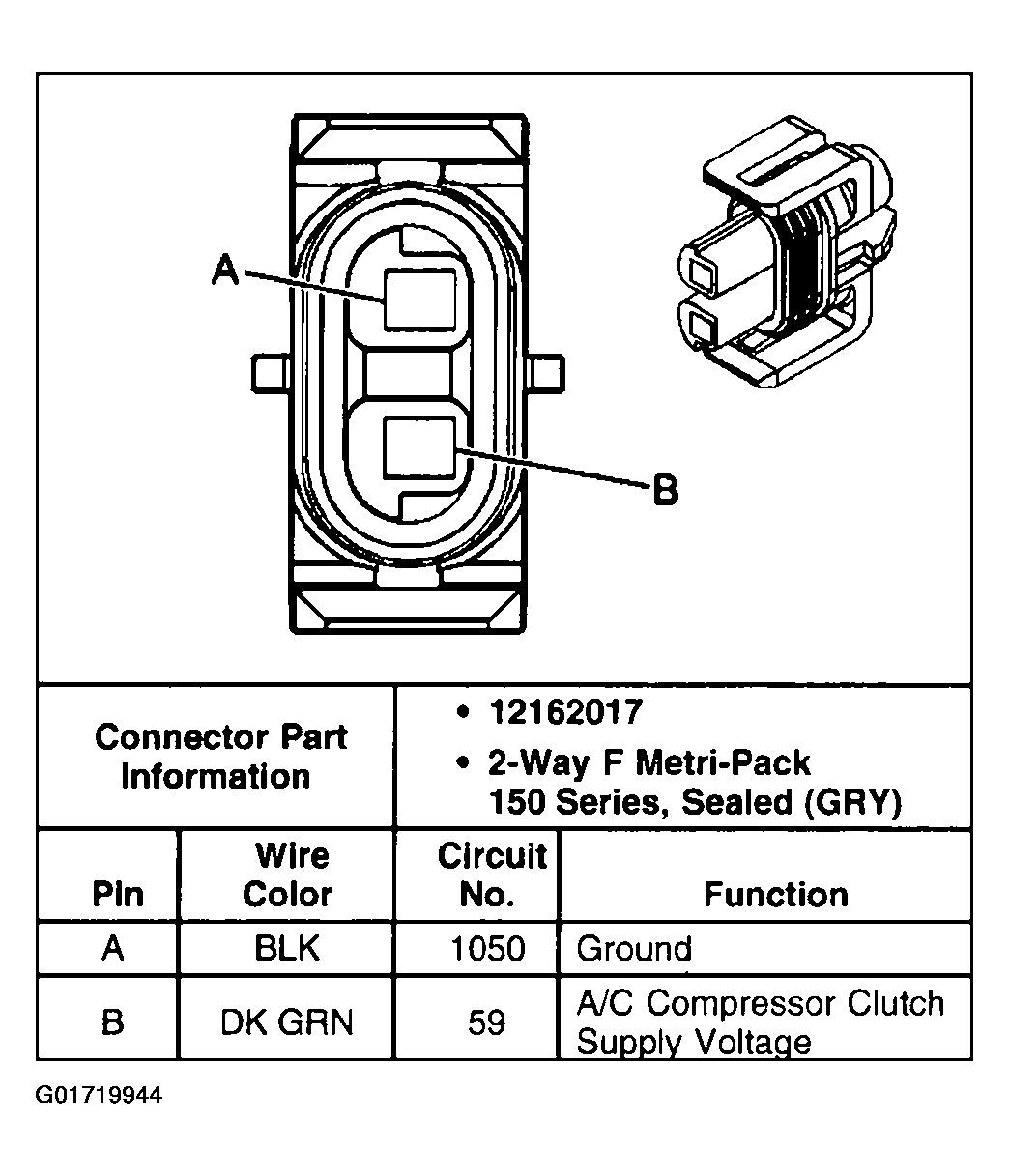

Fig 1: A/C Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

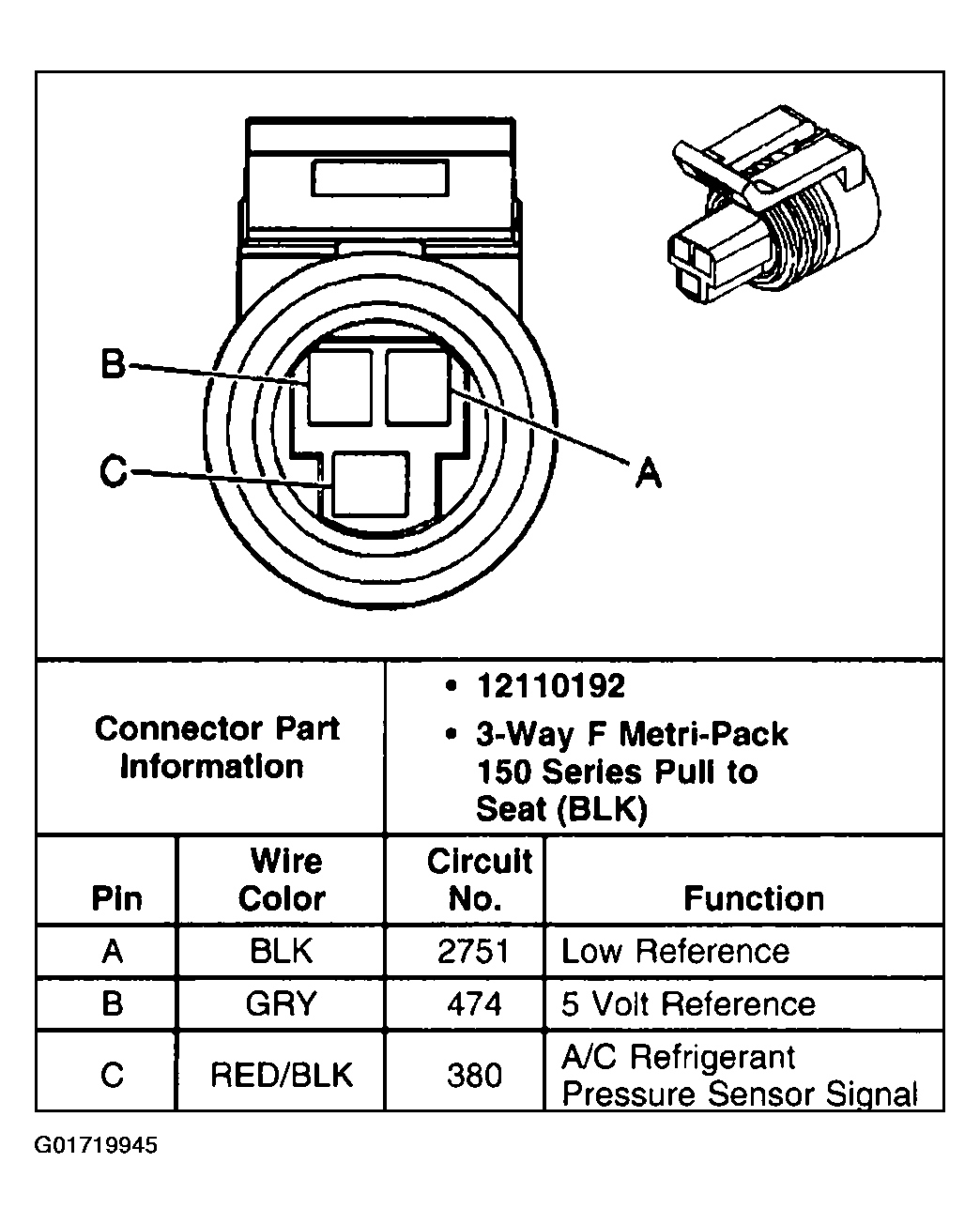

Fig 2: A/C Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

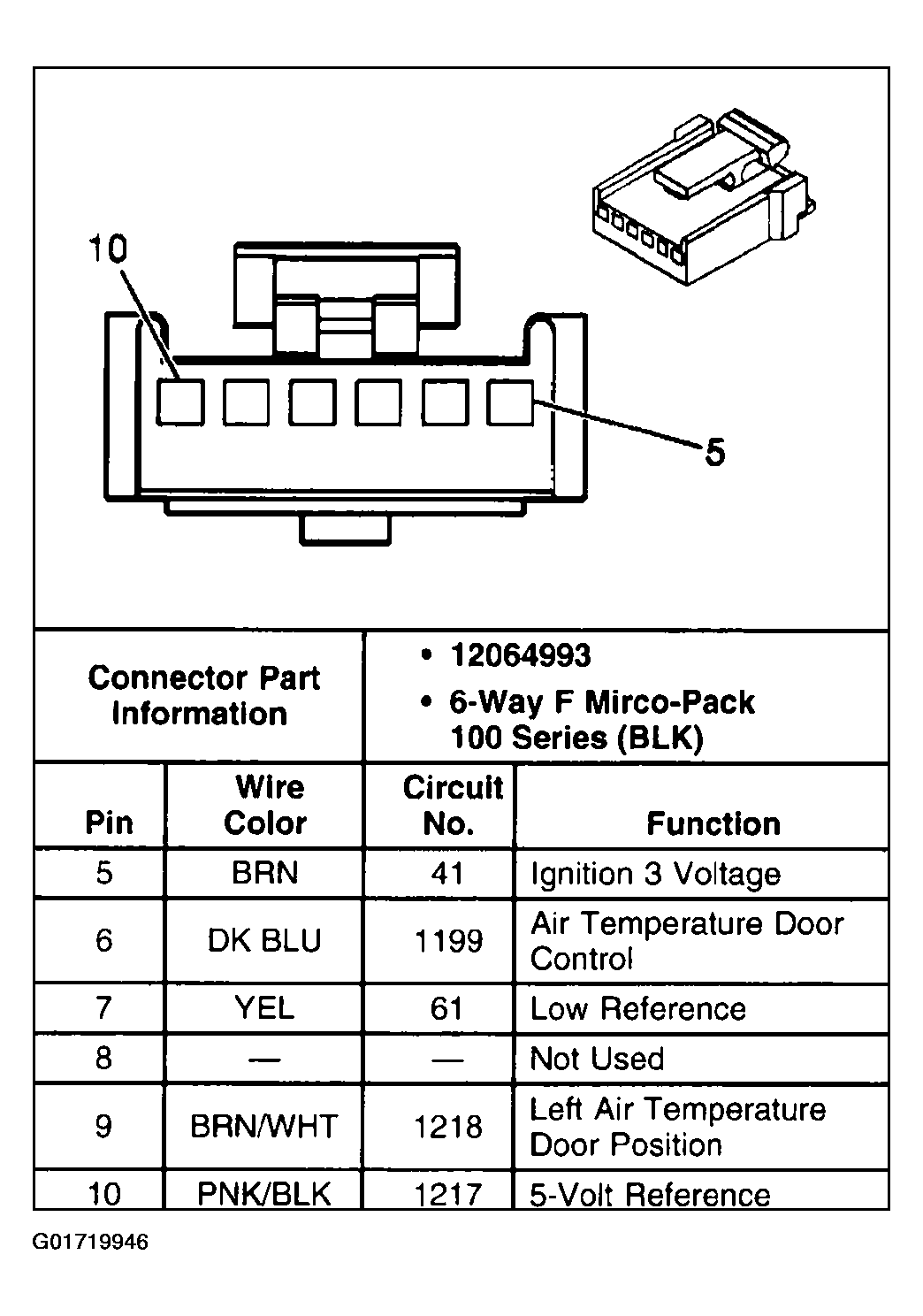

Fig 3: Air Temperature Actuator-Left

Courtesy of GENERAL MOTORS CORP.

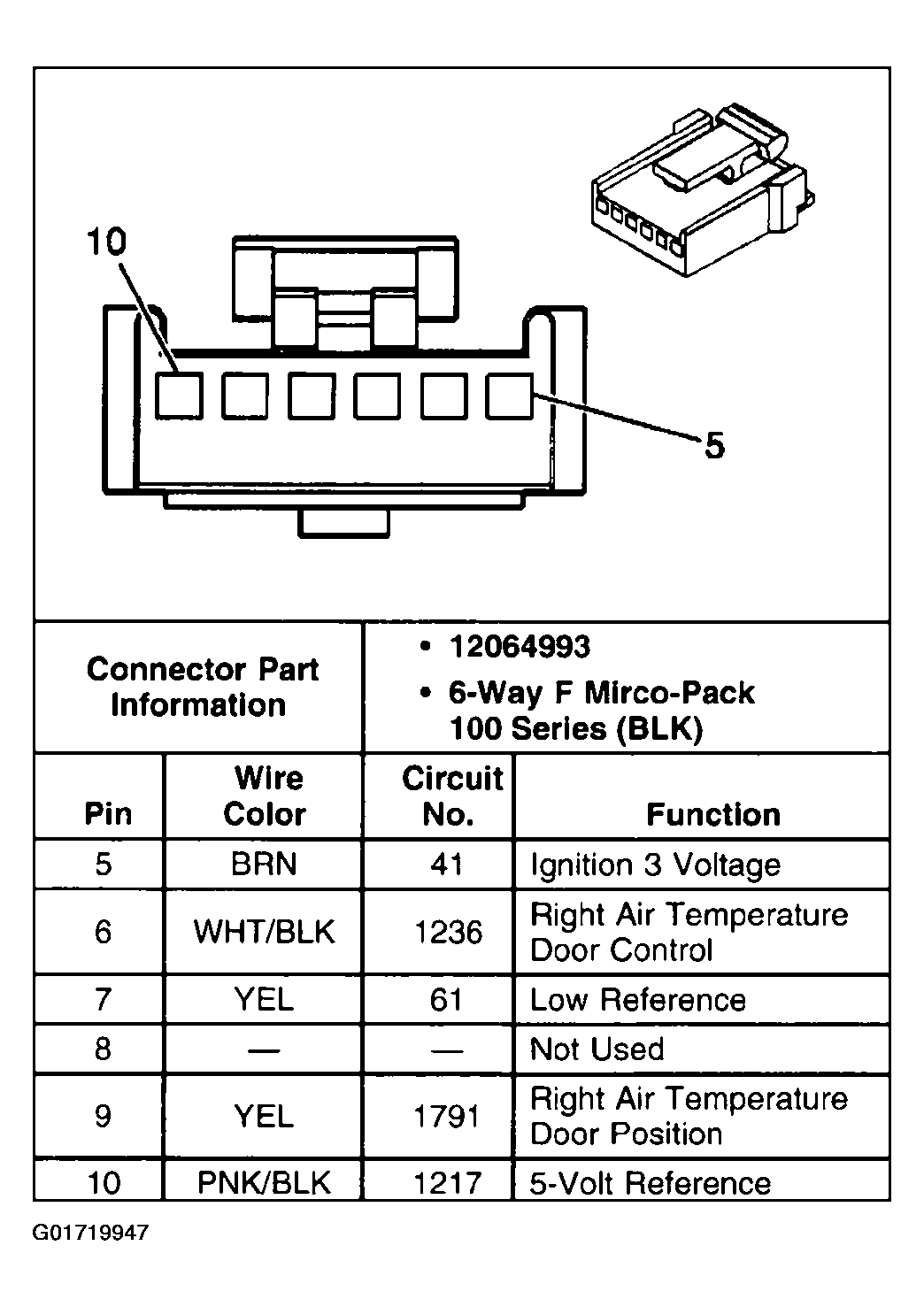

Fig 4: Air Temperature Actuator-Right

Courtesy of GENERAL MOTORS CORP.

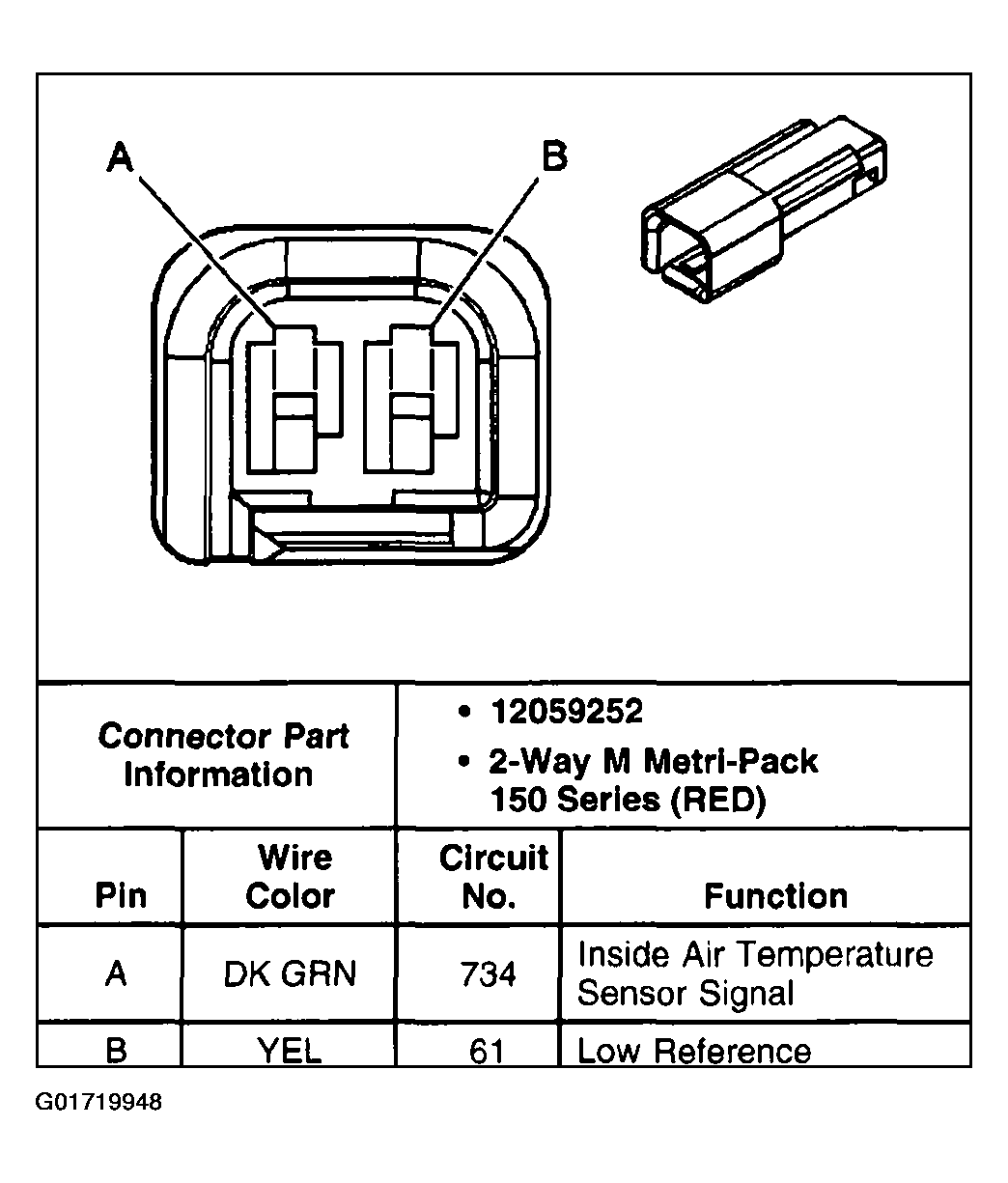

Fig 5: Air Temperature Sensor-Inside

Courtesy of GENERAL MOTORS CORP.

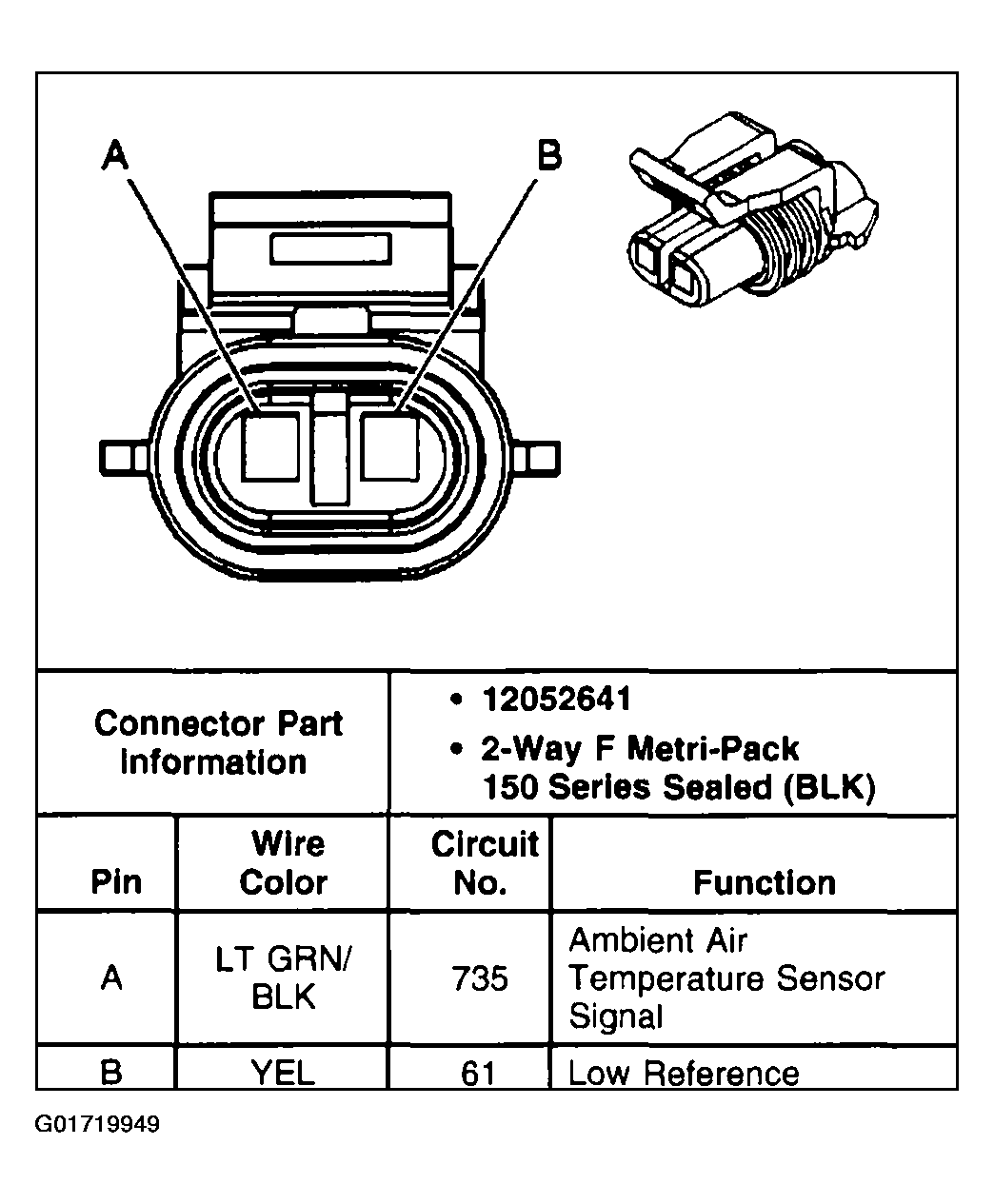

Fig 6: Ambient Air Temperature Sensor-Outside

Courtesy of GENERAL MOTORS CORP.

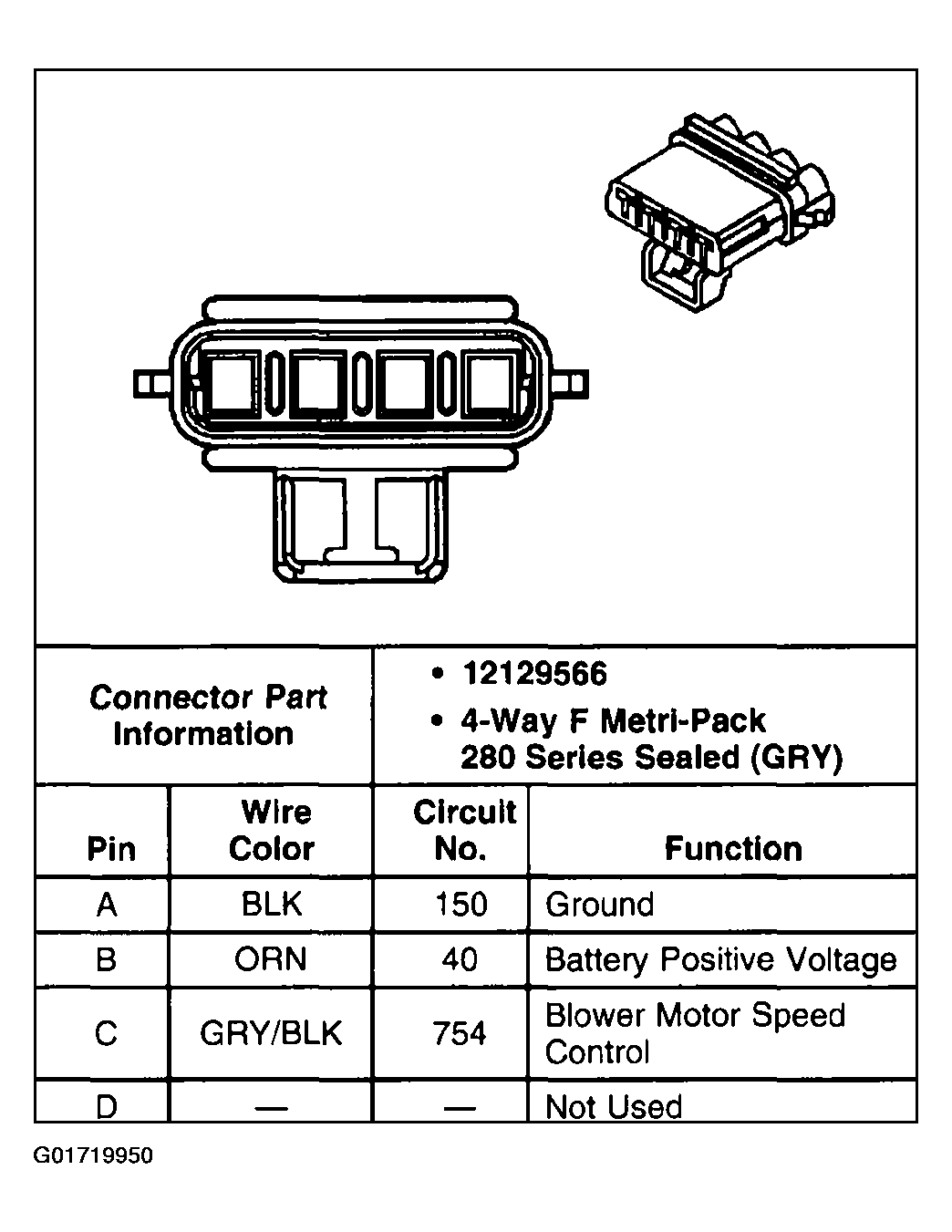

Fig 7: Blower Motor Control Processor

Courtesy of GENERAL MOTORS CORP.

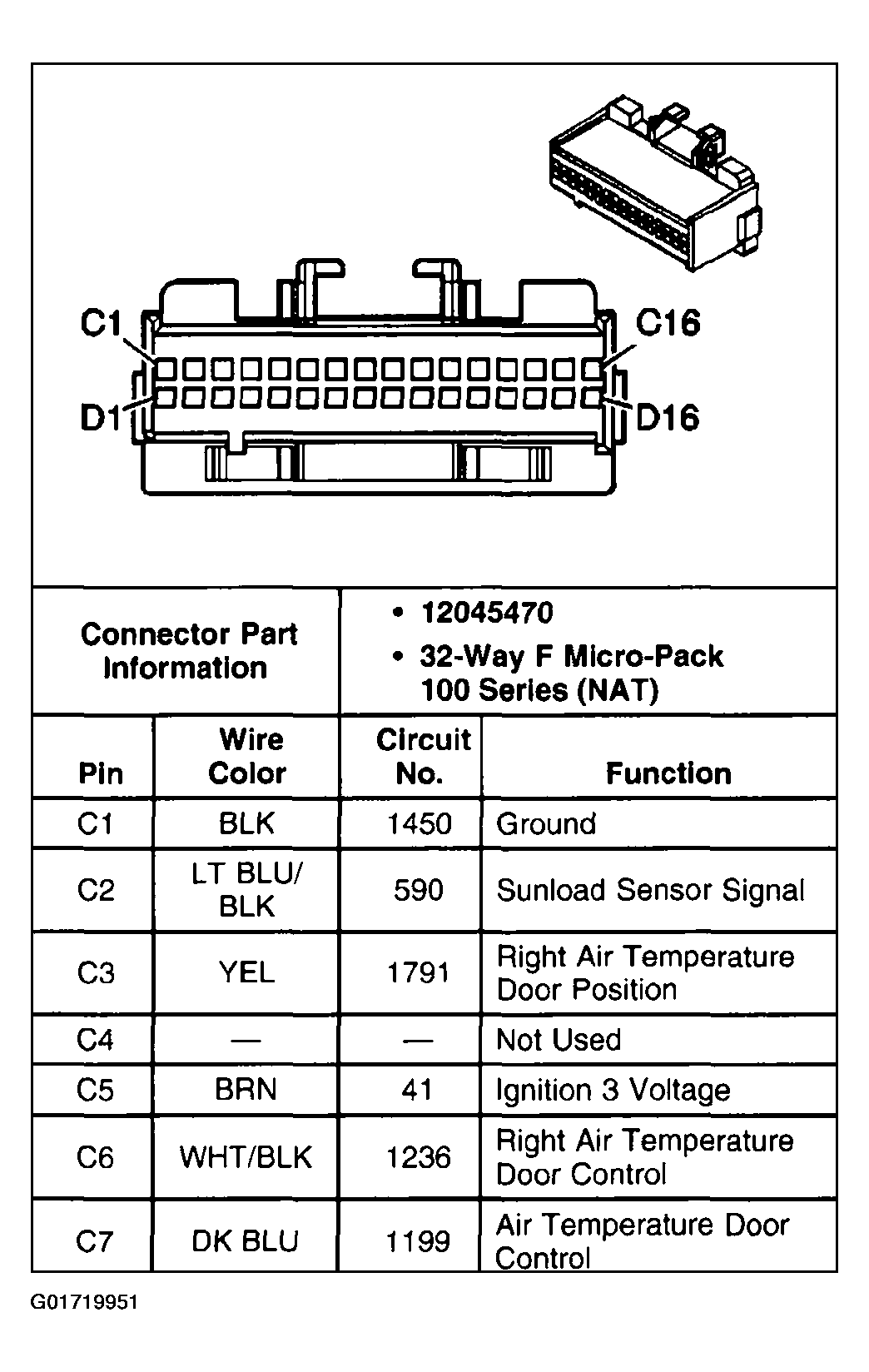

Fig 8: HVAC Control Module (1 of 2)

Courtesy of GENERAL MOTORS CORP.

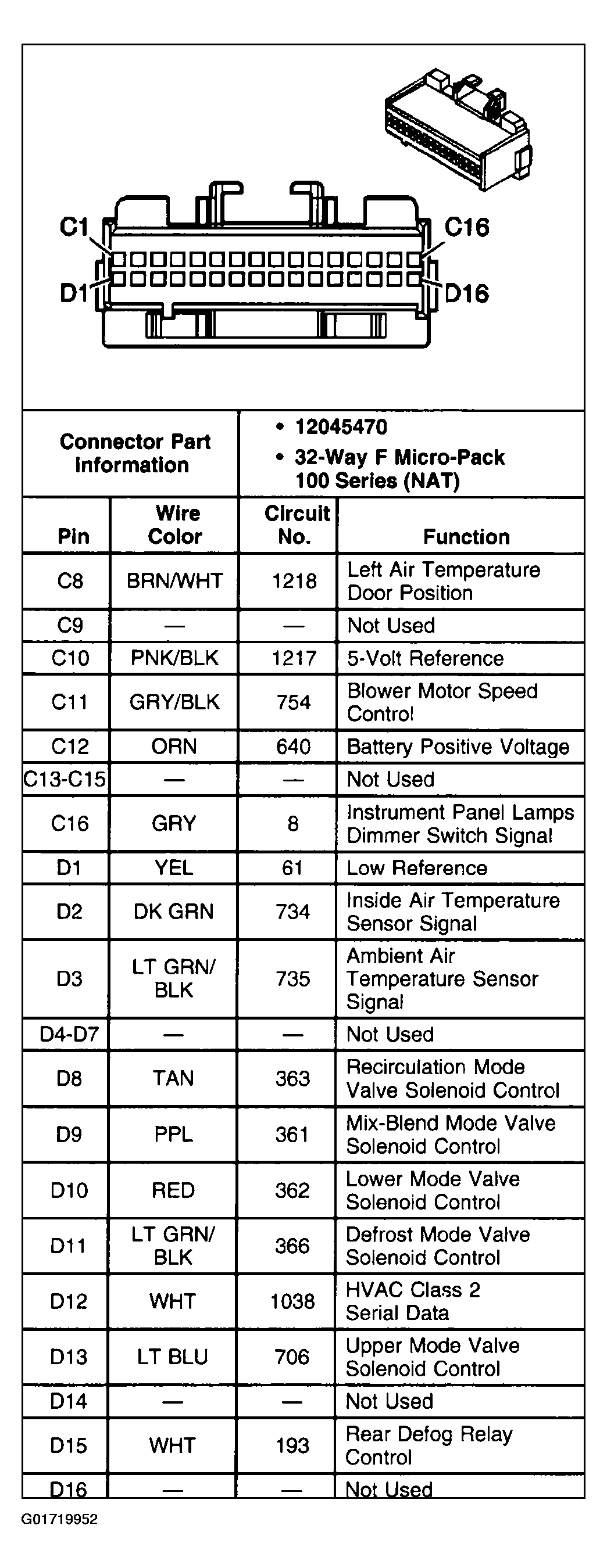

Fig 9: HVAC Control Module (2 of 2)

Courtesy of GENERAL MOTORS CORP.

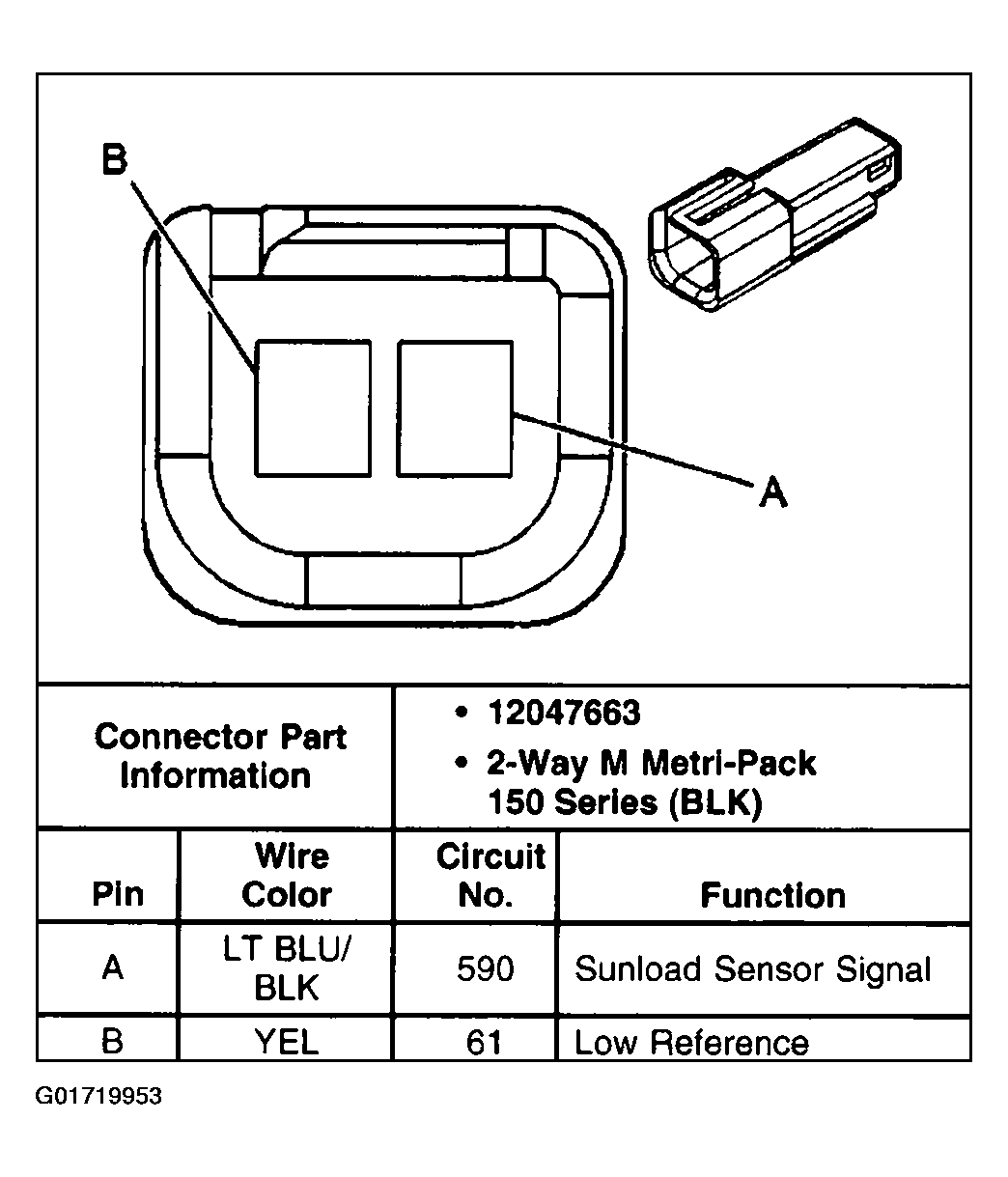

Fig 10: Sunload Sensor

Courtesy of GENERAL MOTORS CORP.

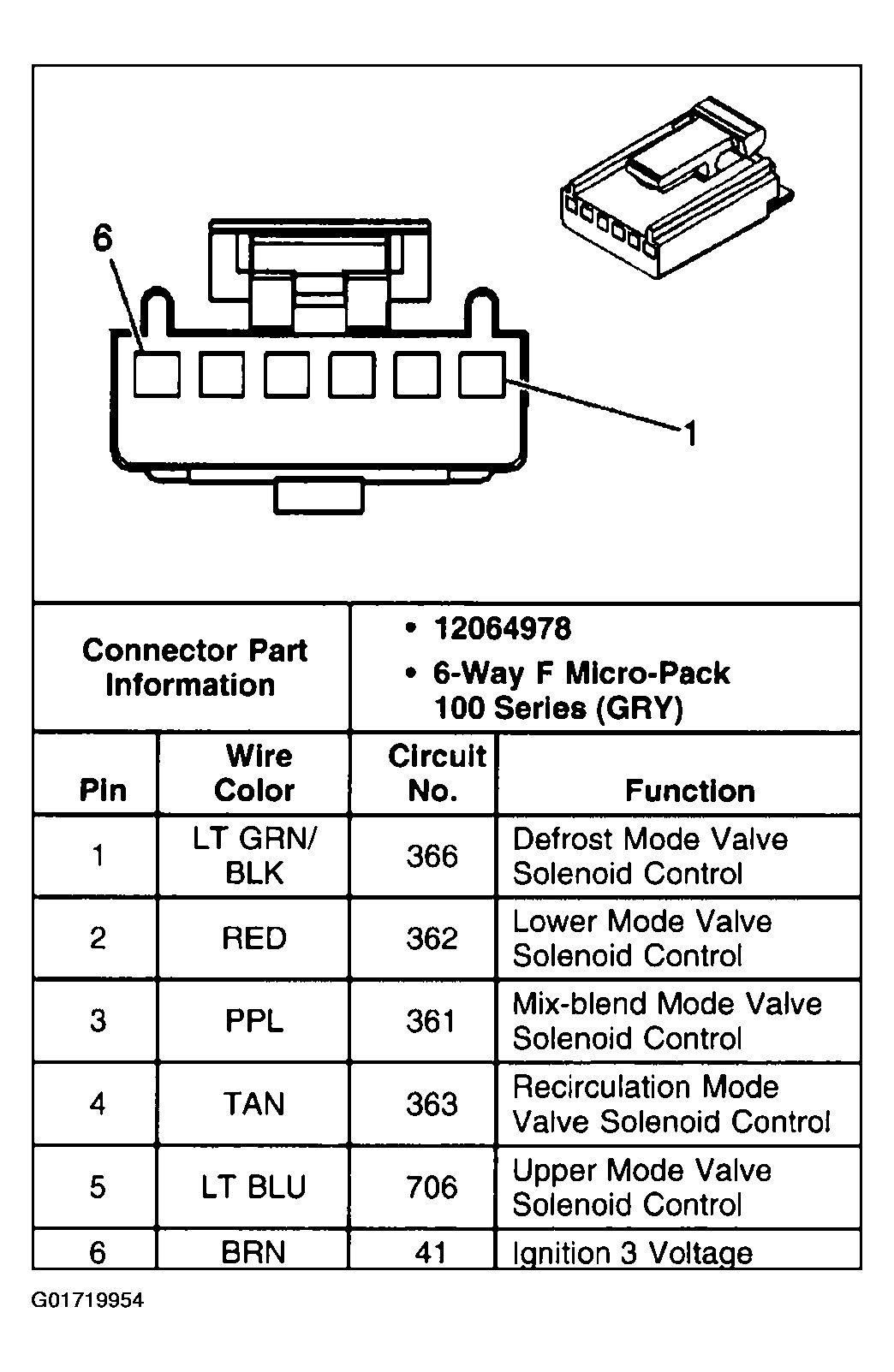

Fig 11: Vacuum Control Assembly

Courtesy of GENERAL MOTORS CORP.
