Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in GAUGES AND INSTRUMENT PANELS .
  2. Disconnect the electrical connector from the vacuum control assembly.

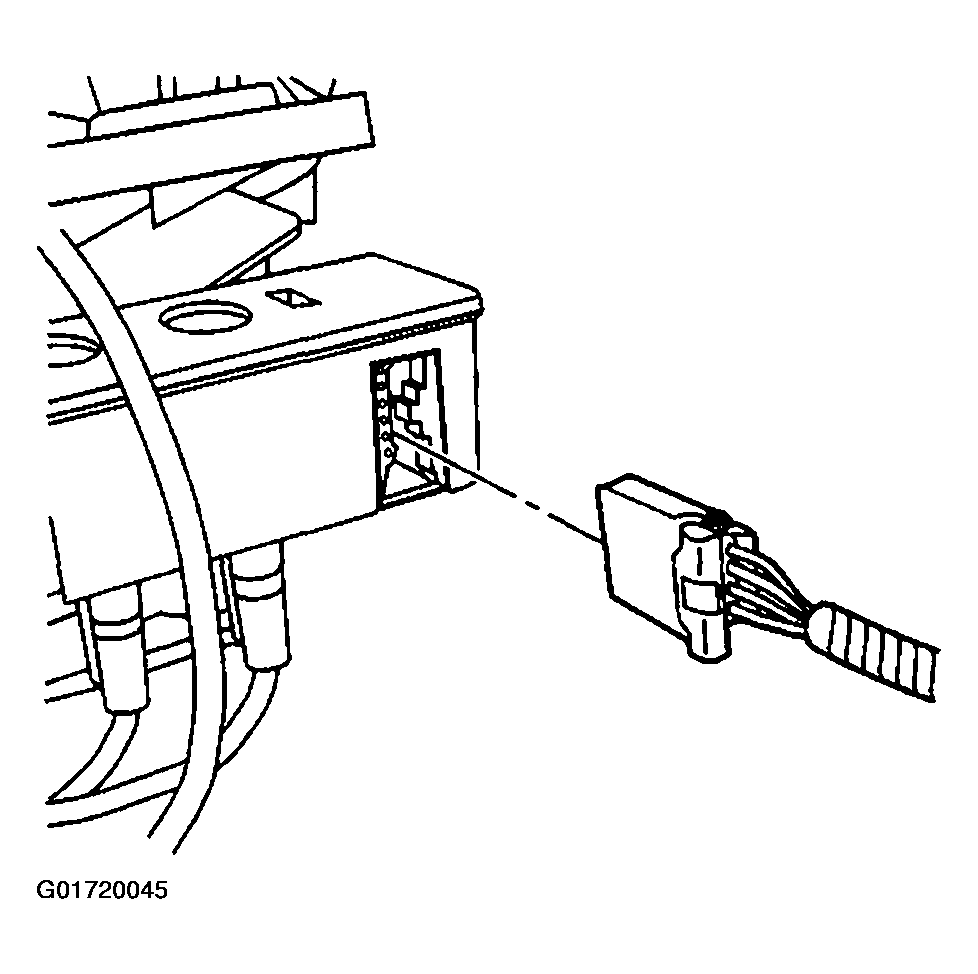

    Fig 1: Electrical Connector To The Vacuum Control Assembly
    G01720045Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the vacuum harness connector from the vacuum control assembly.

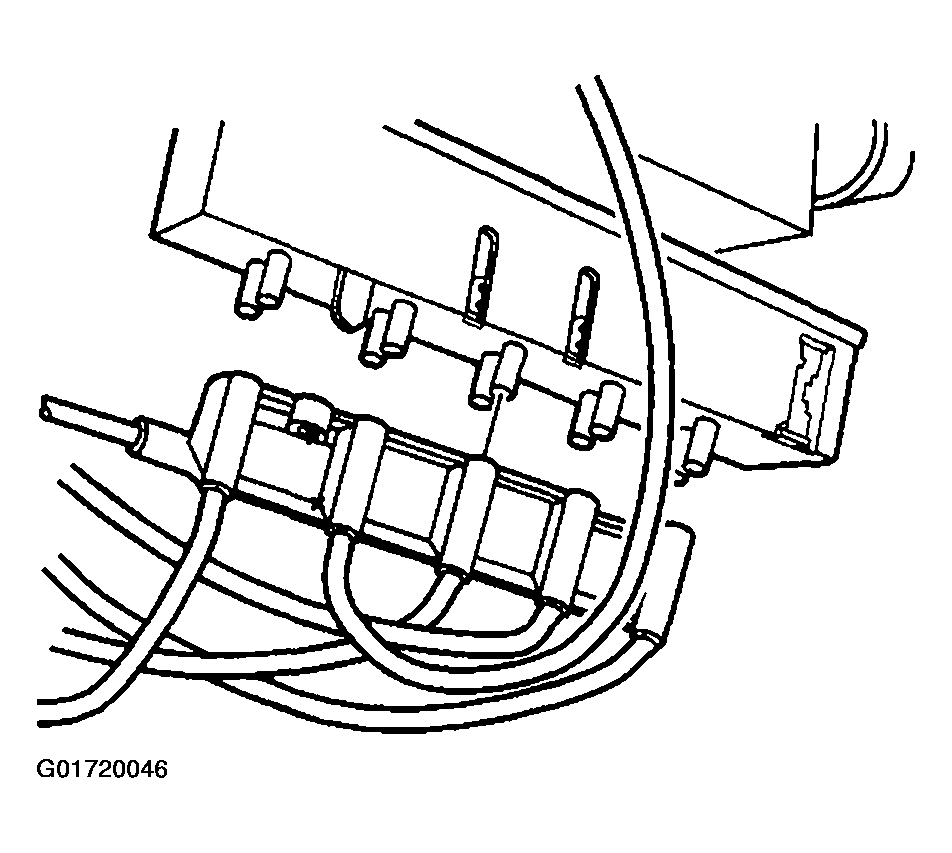

    Fig 2: Vacuum Harness Connector From The Vacuum Control Assembly
    G01720046Courtesy of GENERAL MOTORS CORP.
  4. Remove the mounting screws from the vacuum control assembly.
    NOTE: Pull the vacuum control assembly straight down to release the tab from the slot in the HVAC module case.
  5. Remove the vacuum control assembly.

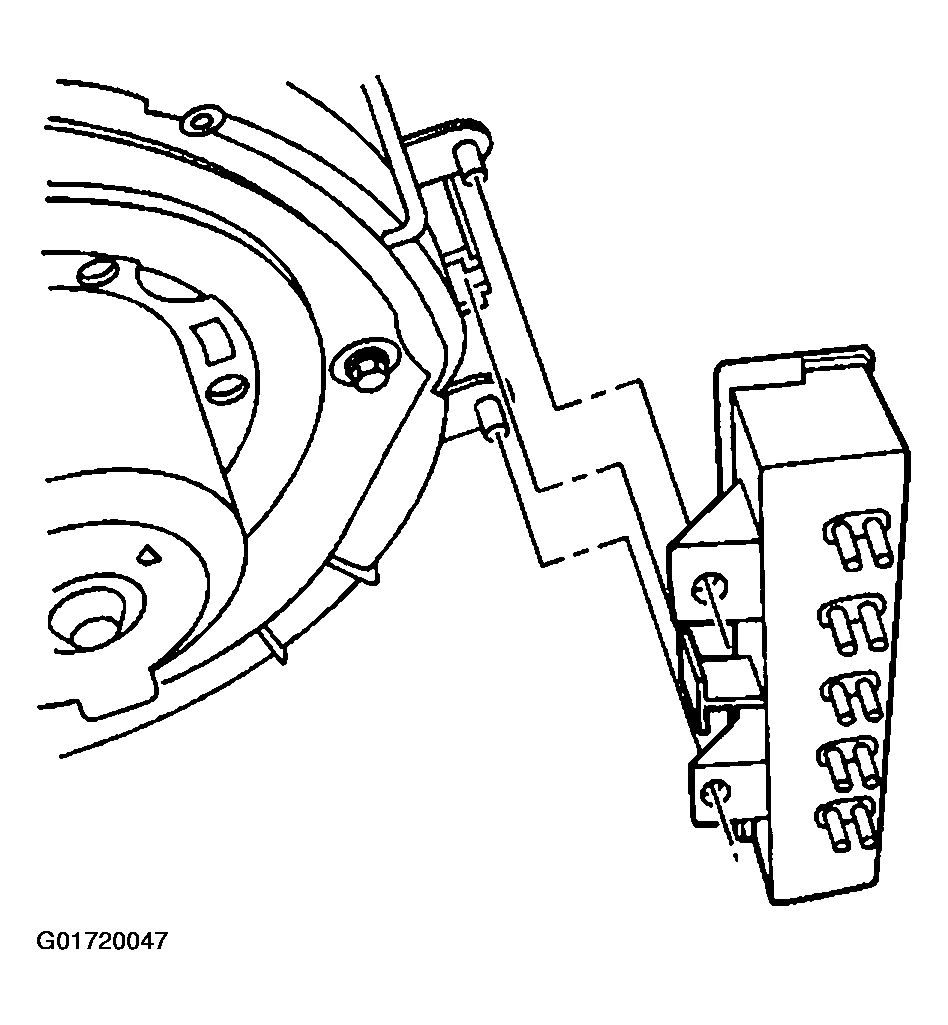

    Fig 3: Vacuum Control Assembly
    G01720047Courtesy of GENERAL MOTORS CORP.
