HVAC Control Assembly: Installation

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors and the vacuum harness, if equipped, to the HVAC control assembly. Install the HVAC control assembly into the I/P. Install the retaining screws to secure the HVAC control assembly. Install the accessory trim plate. Install the front floor console.

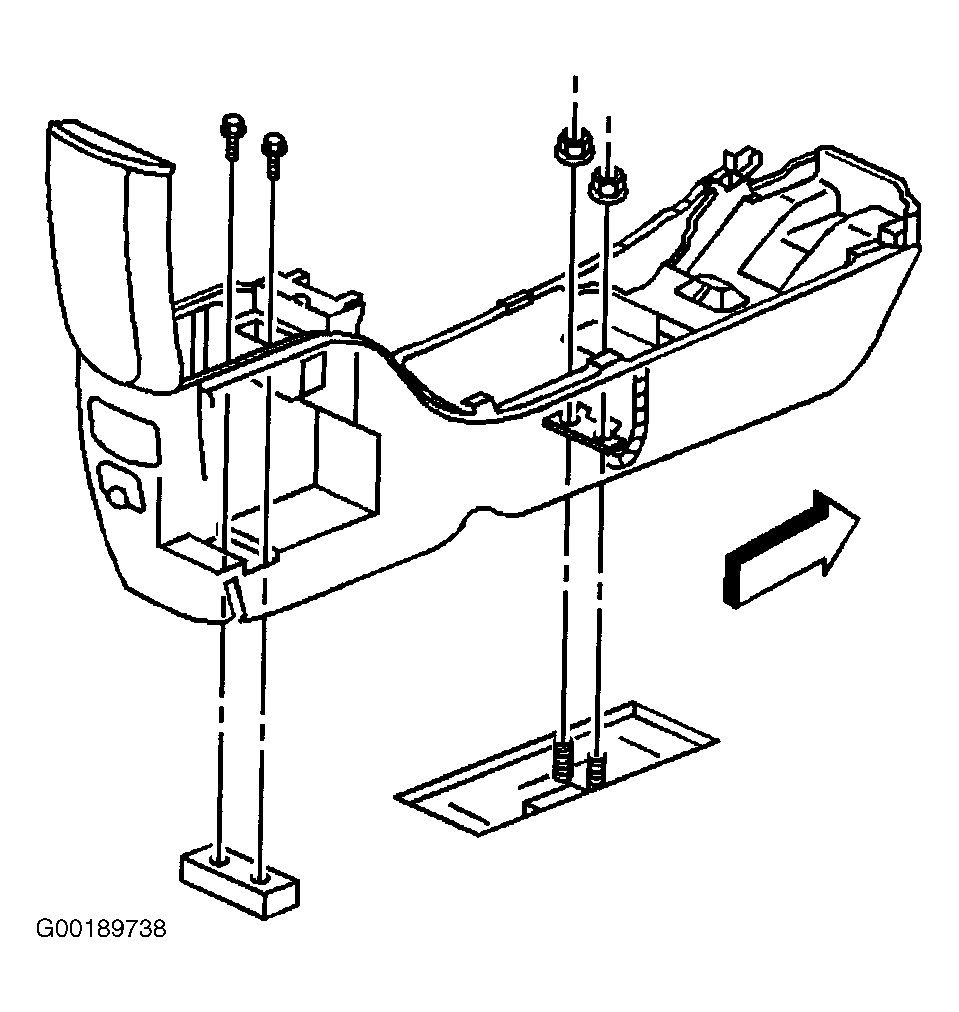

Fig 1: Removing & Installing Floor Console (D55)
G00189738Courtesy of GENERAL MOTORS CORP.

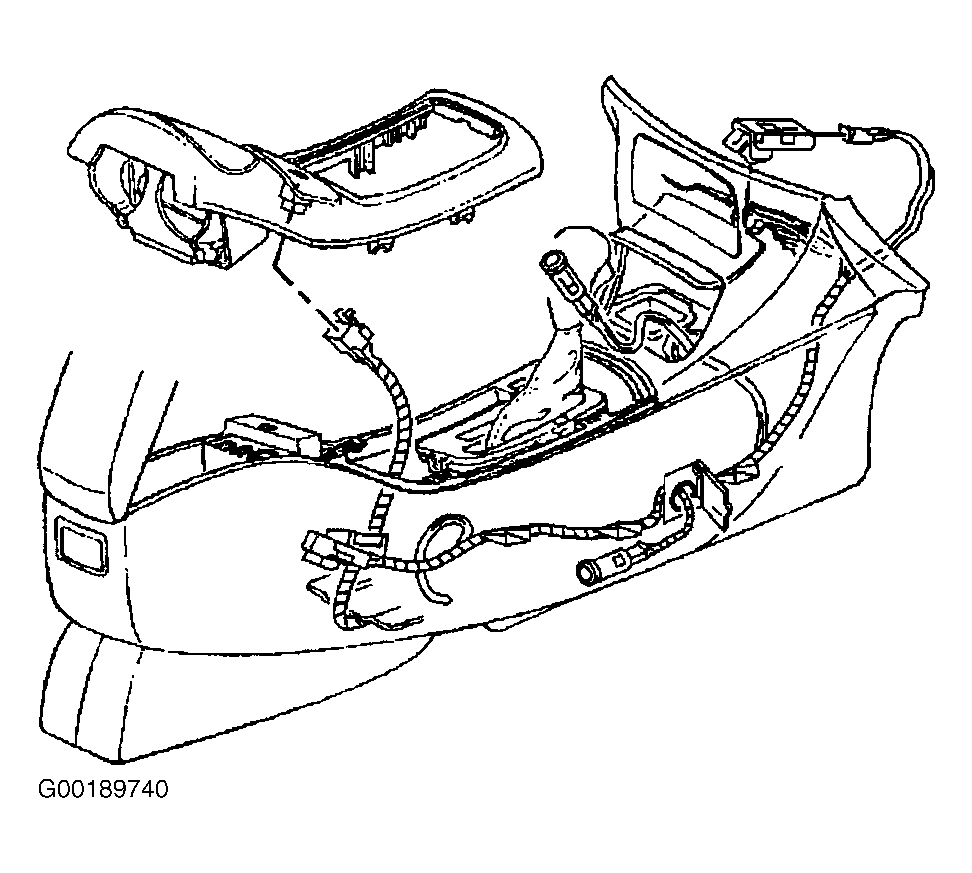

Fig 2: Removing & Installing Floor Console Trim Plate (D06)
G00189740Courtesy of GENERAL MOTORS CORP.

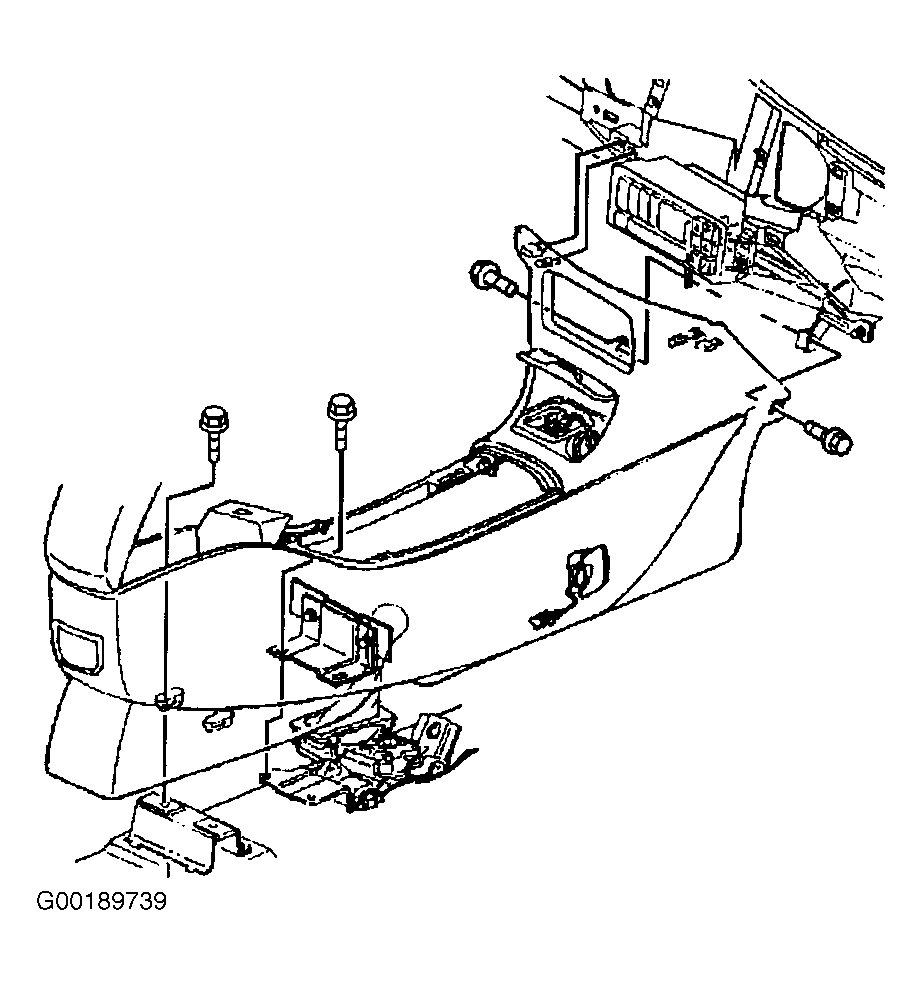

Fig 3: Removing & Installing Floor Console (D06)
G00189739Courtesy of GENERAL MOTORS CORP.

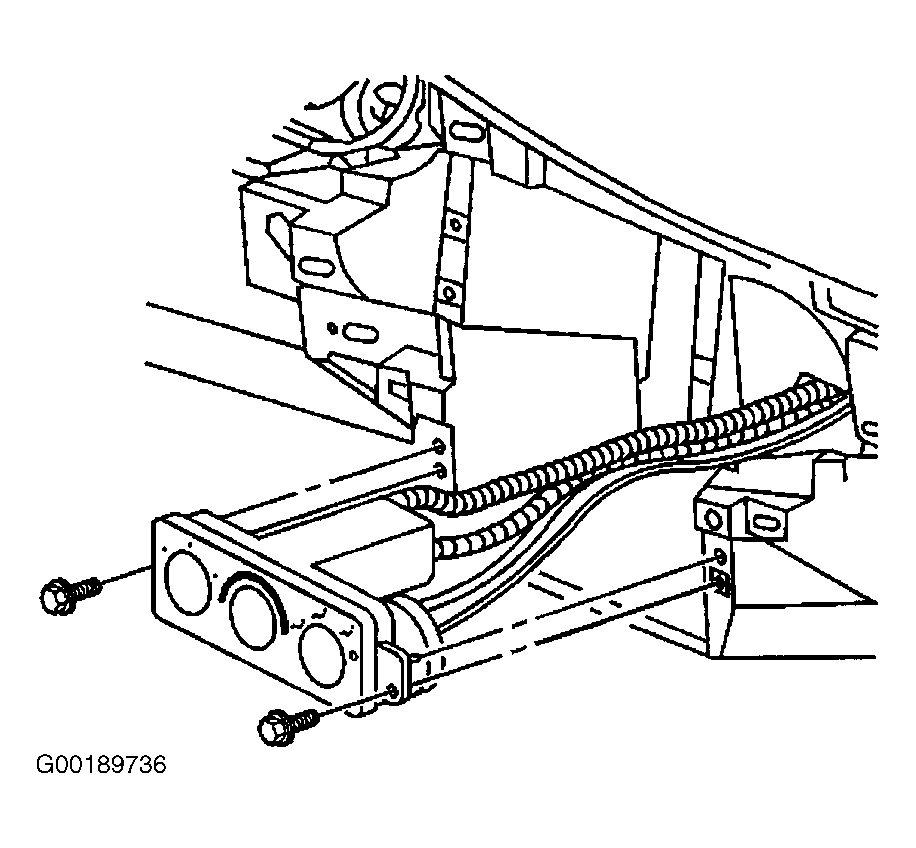

Fig 4: Removing HVAC Control Assembly Screws
G00189736Courtesy of GENERAL MOTORS CORP.

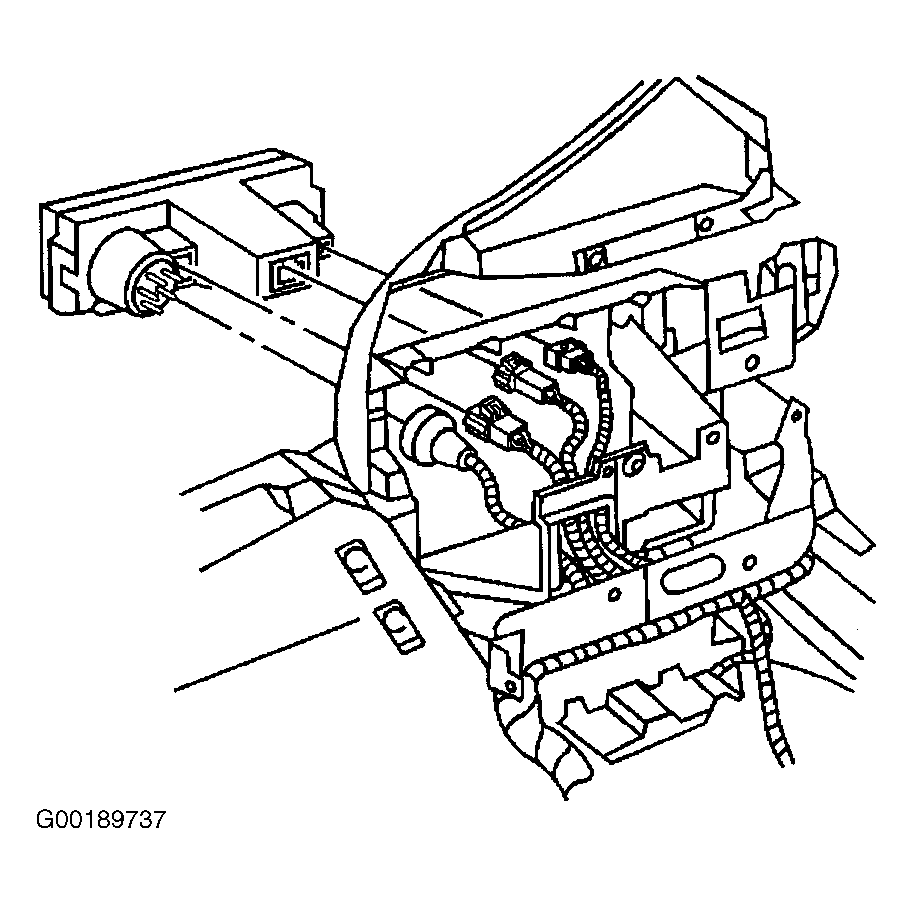

Fig 5: Removing & Installing HVAC Connectors
G00189737Courtesy of GENERAL MOTORS CORP.
