Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retainers from the body side protectors.
  2. Remove the driver side body side front protector from the vehicle.

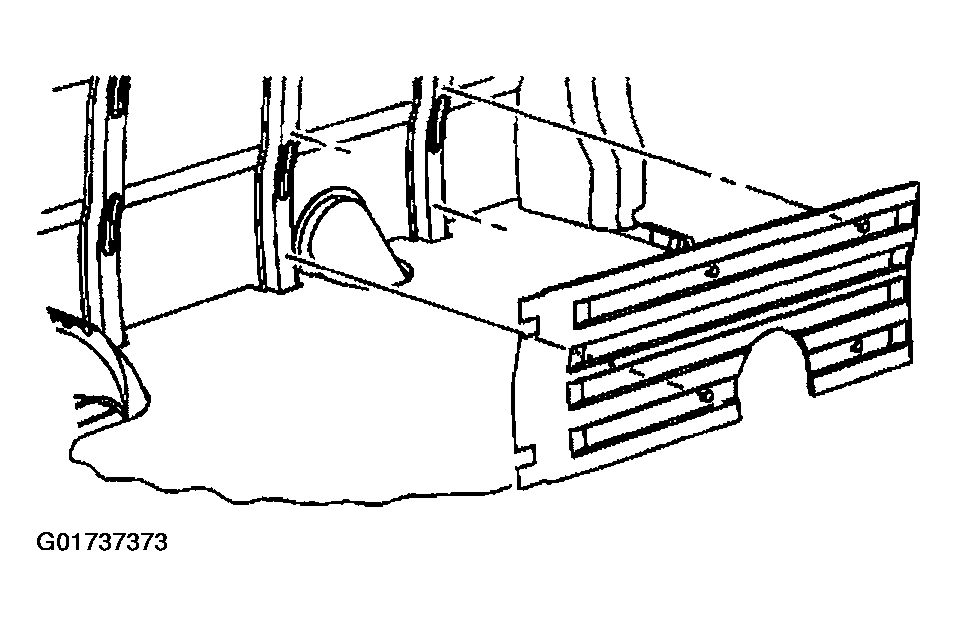

    Fig 1: Removing Retainers & Driver Side Body Side Front Protector
    G01737373Courtesy of GENERAL MOTORS CORP.
  3. Remove the driver side body side rear protector from the vehicle.

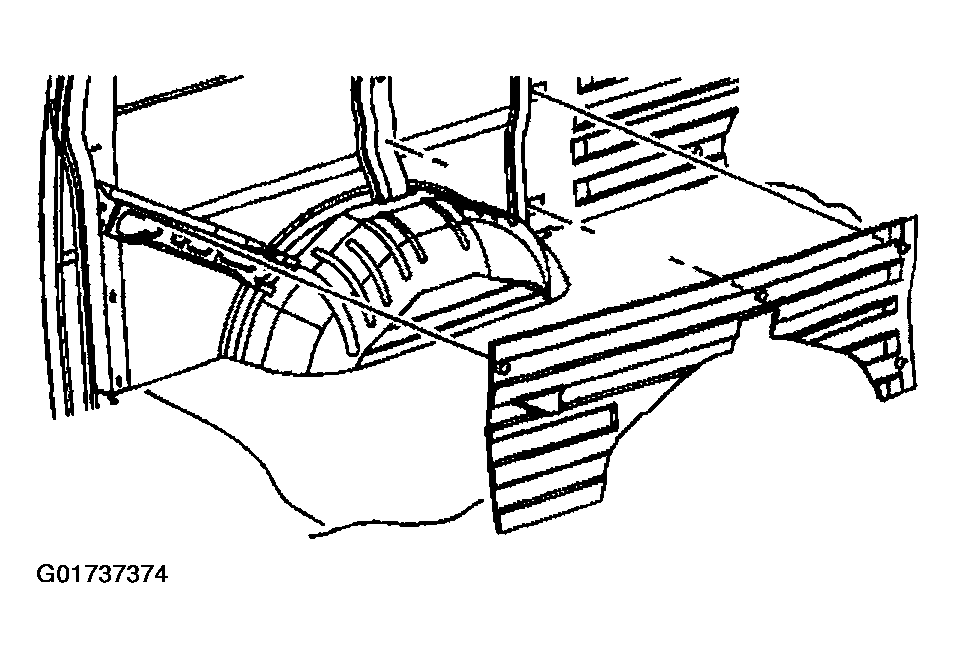

    Fig 2: Removing Driver Side Body Side Rear Protector
    G01737374Courtesy of GENERAL MOTORS CORP.
  4. Remove the passenger side body side protector from the vehicle.

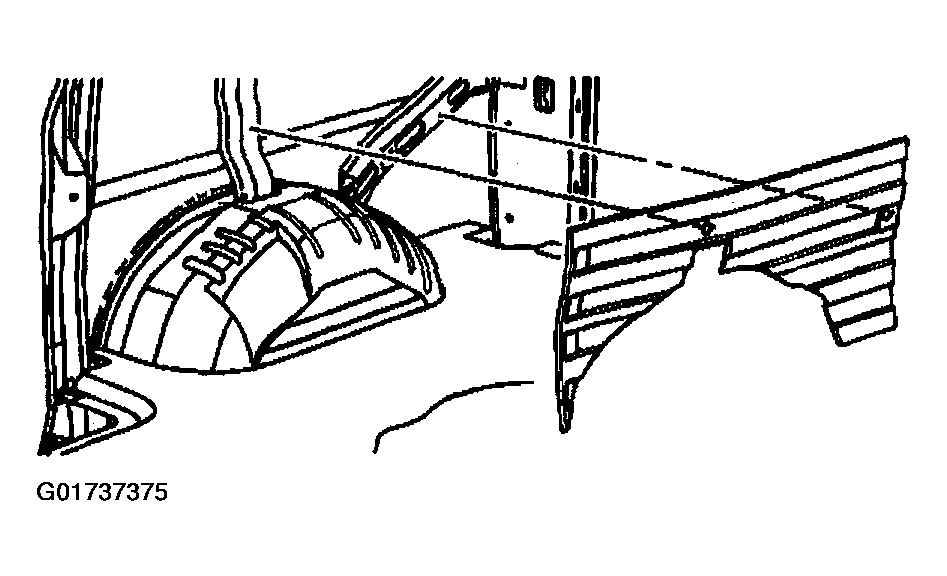

    Fig 3: Removing Passenger Side Body Side Protector
    G01737375Courtesy of GENERAL MOTORS CORP.
