Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backup lamp bulbs to the sockets, if removed.

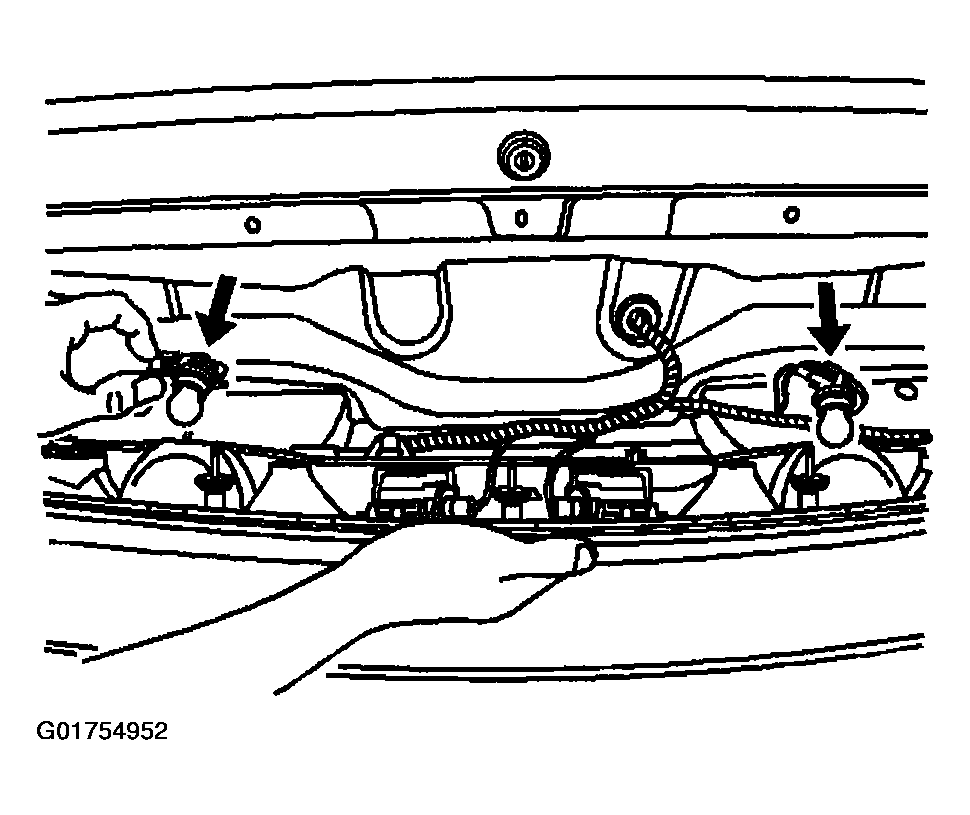

  2. Fig 1: Identifying Backup Lamp Bulb/Sockets
    G01754952Courtesy of GENERAL MOTORS CORP.
  3. Install the backup lamp bulb/sockets to the applique by rotating clockwise until fully seated.
  4. Install the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
