Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Align the console compartment lamp switch to the top of the console compartment.
Press the switch into place to secure.
Connect the electrical connector (2) to the console compartment lamp switch.

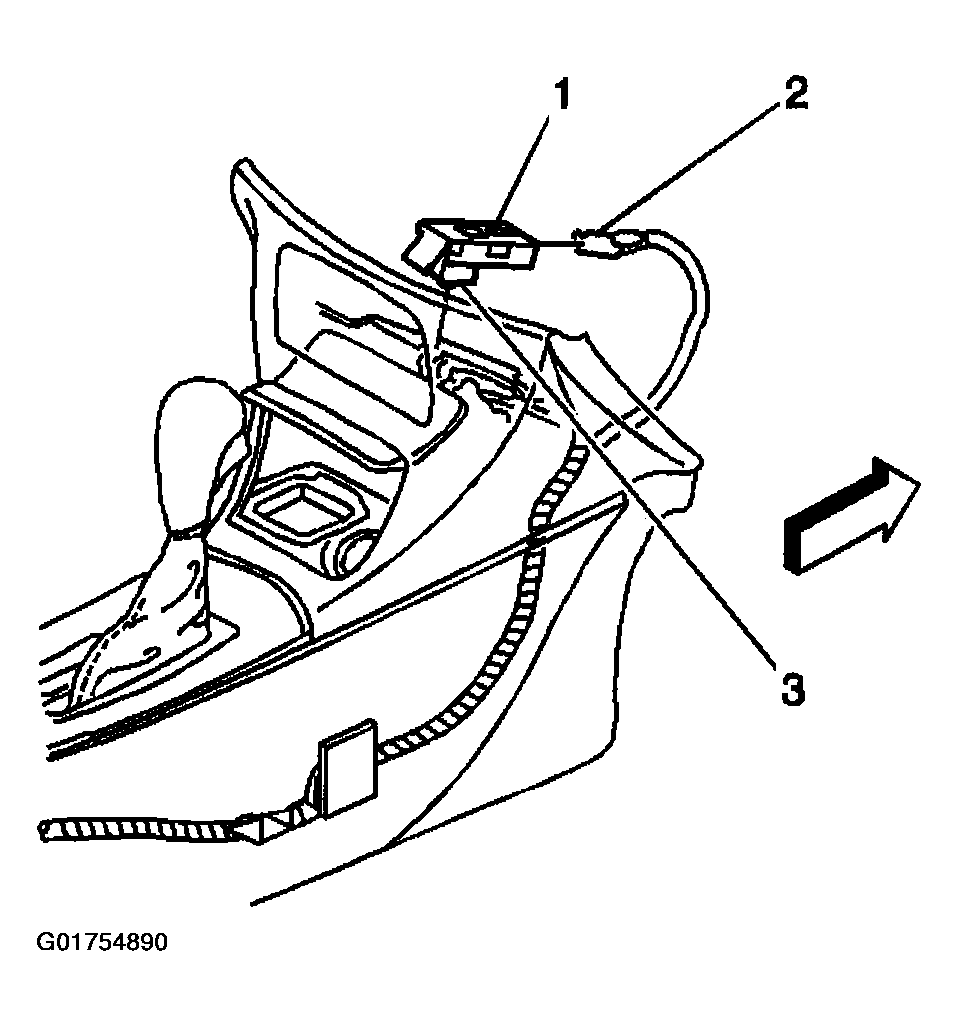

Fig 1: Identifying Console Lamp Switch & Connector

Courtesy of GENERAL MOTORS CORP.

Position and install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) or CONSOLE REPLACEMENT - FRONT FLOOR (D55) in Instrument Panel, Gages and Console.
