Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Align the studs to the rear window panel slots and slide into place.
NOTE: Refer to FASTENER NOTICE .
Tighten the low frequency audio amplifier nuts. Tighten the low frequency audio amplifier nuts to 6 N.m (53 lb in).

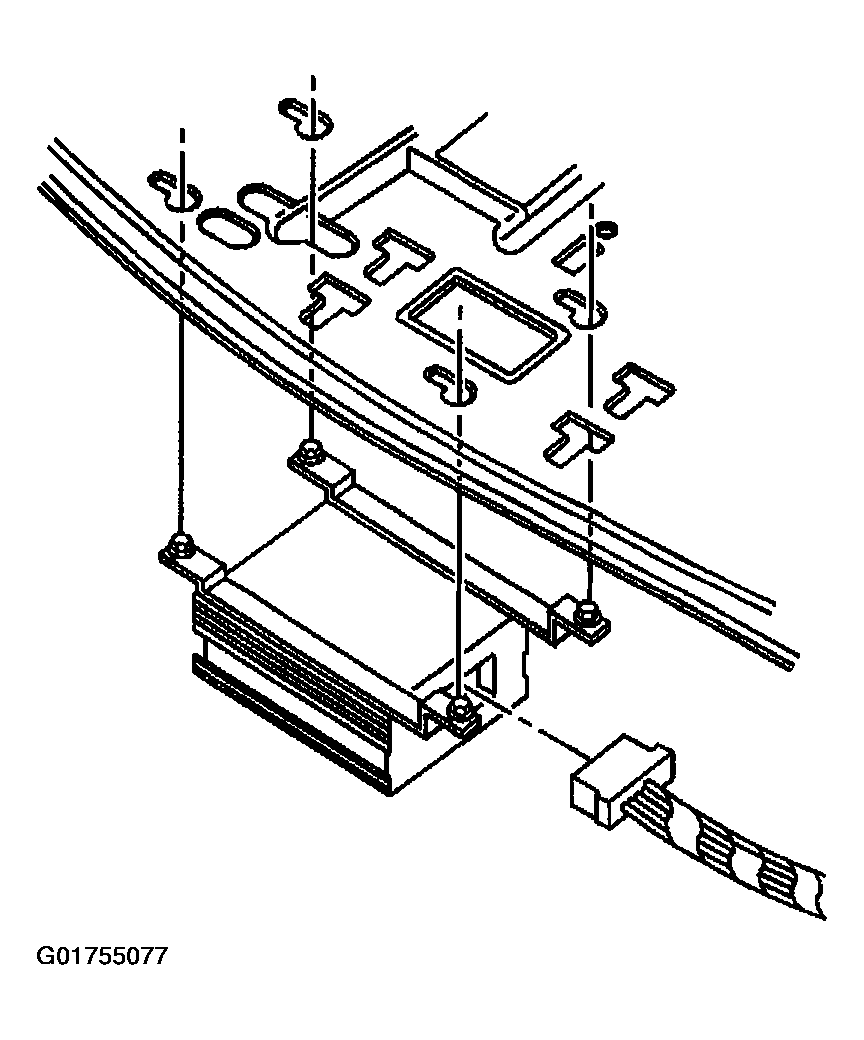

Fig 1: Identifying Amplifier

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors to the low frequency audio amplifier.
Install the rear seat sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK .
Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
