Installation Procedure
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

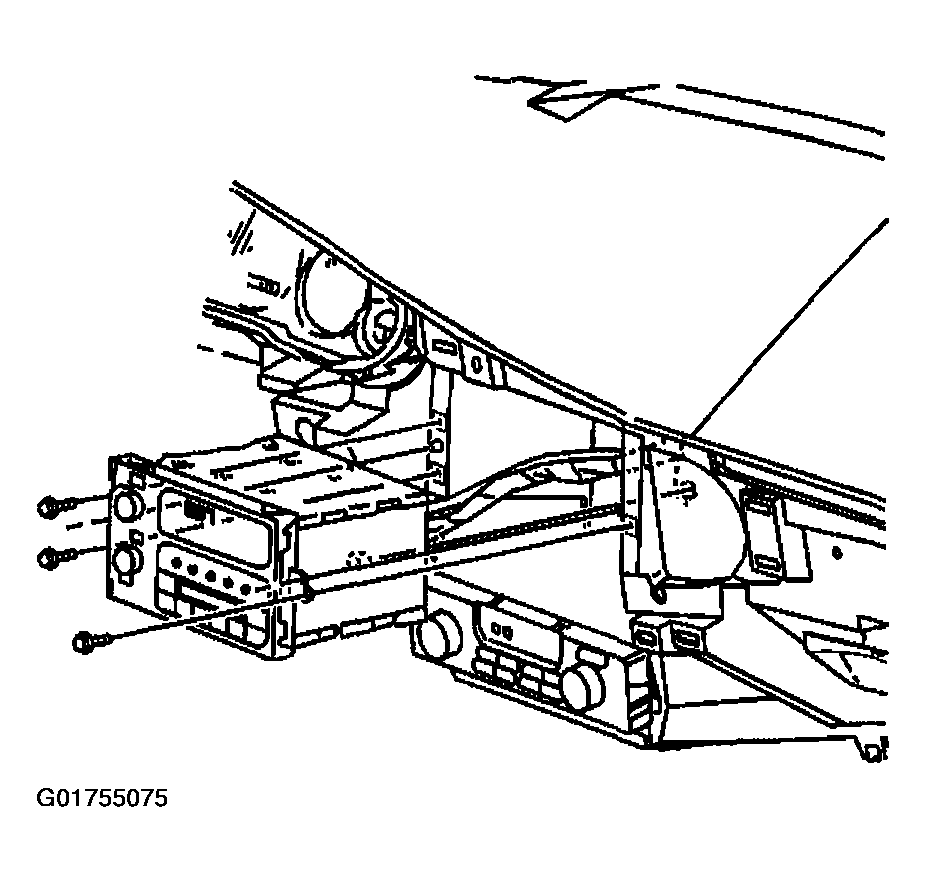

- Connect the electrical connector and the coaxial cable connector to the radio.
- Install the radio to the I/P.
NOTE: Refer to FASTENER NOTICE .
- Install the radio screws. Tighten the screws to 2 N.m (18 lb in).
- Install the cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - I/P CLUSTER .
