Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel (I/P) cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - I/P CLUSTER .
Remove the radio screws.

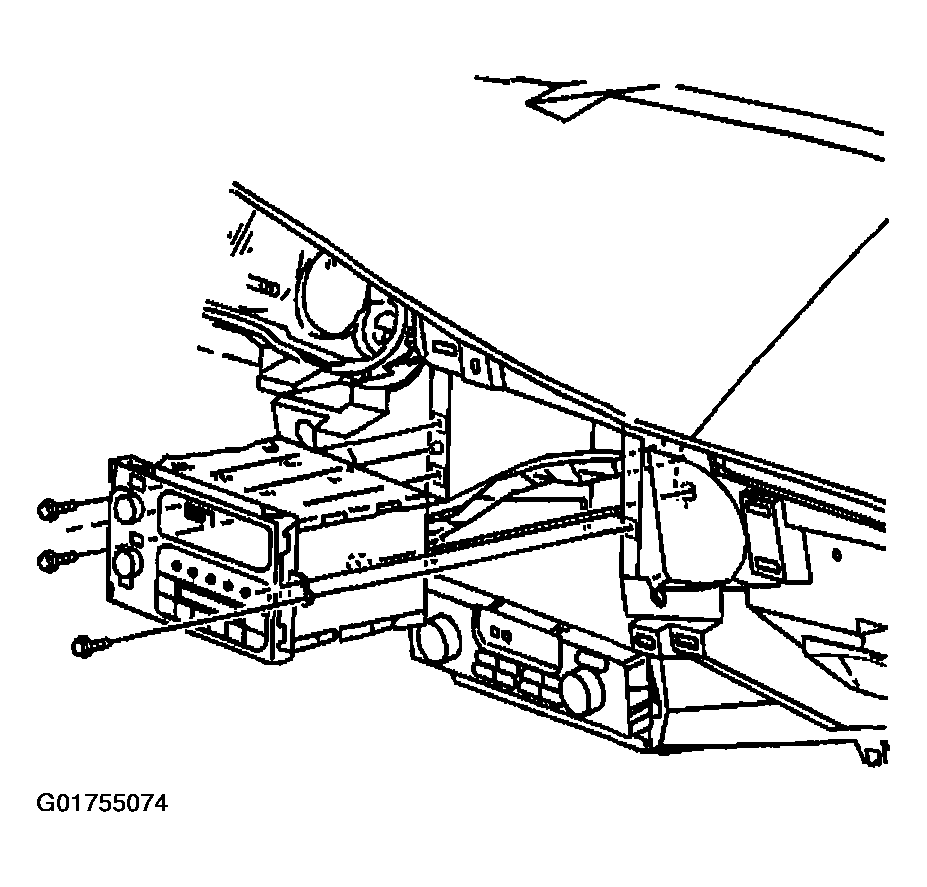

Fig 1: Identifying Radio

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector and the coaxial cable connector from the radio.
Remove the radio from the I/P.
