Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air compressor. Refer to Air Compressor Replacement .
  2. Rotate the spring clip 90 degrees out of the slot.
  3. Remove the air dryer from the air compressor.
  4. Remove the seal from the air compressor.

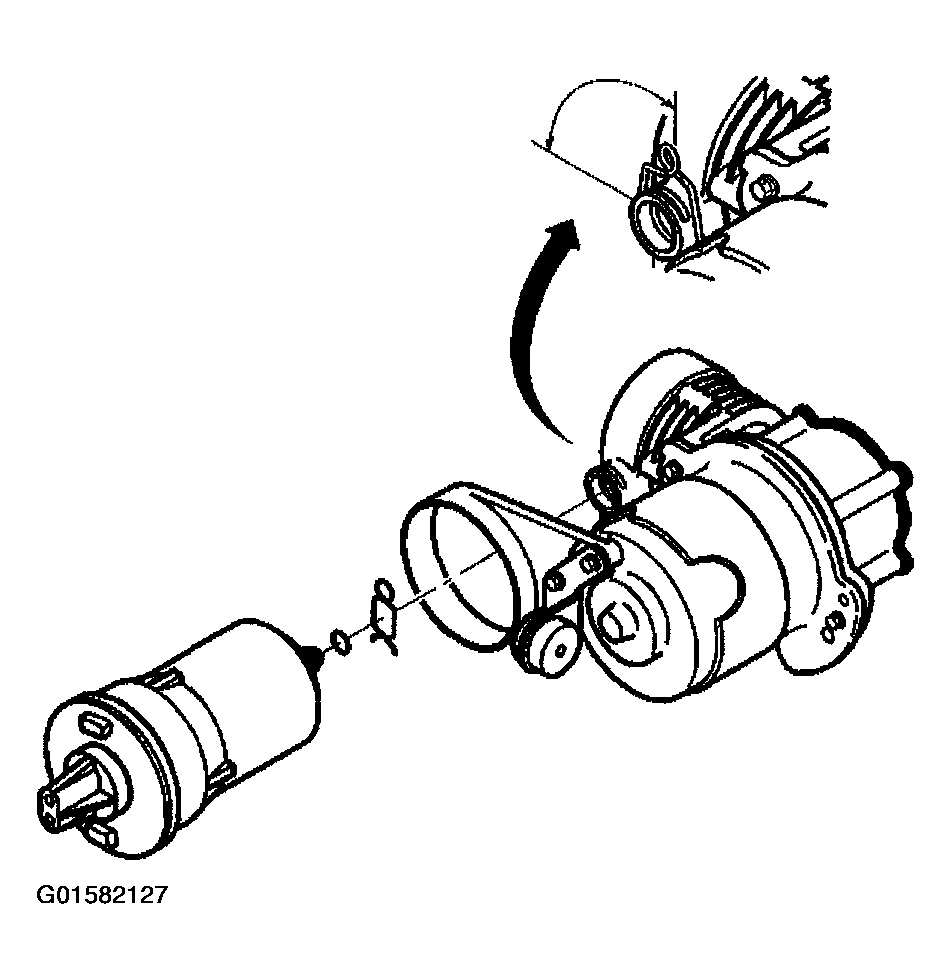

    Fig 1: Removing Automatic Level Control Air Dryer
    G01582127Courtesy of GENERAL MOTORS CORP.
