Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Connect the negative battery cable to the battery.

    Tighten

    Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

  2. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .

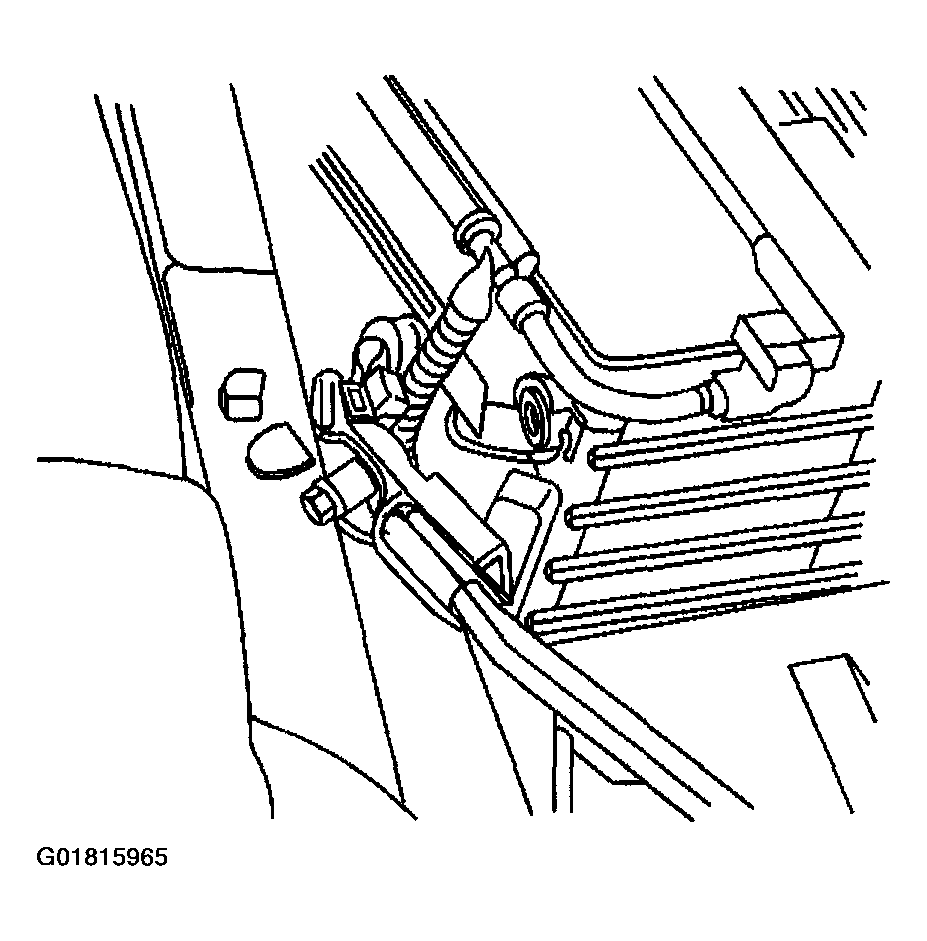

    Fig 1: Locating Negative Battery Cable
    G01815965Courtesy of GENERAL MOTORS CORP.
