Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fender (1) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fender fasteners (2).

    Tighten

    Tighten the fasteners to 9 N.m (80 in lbs).

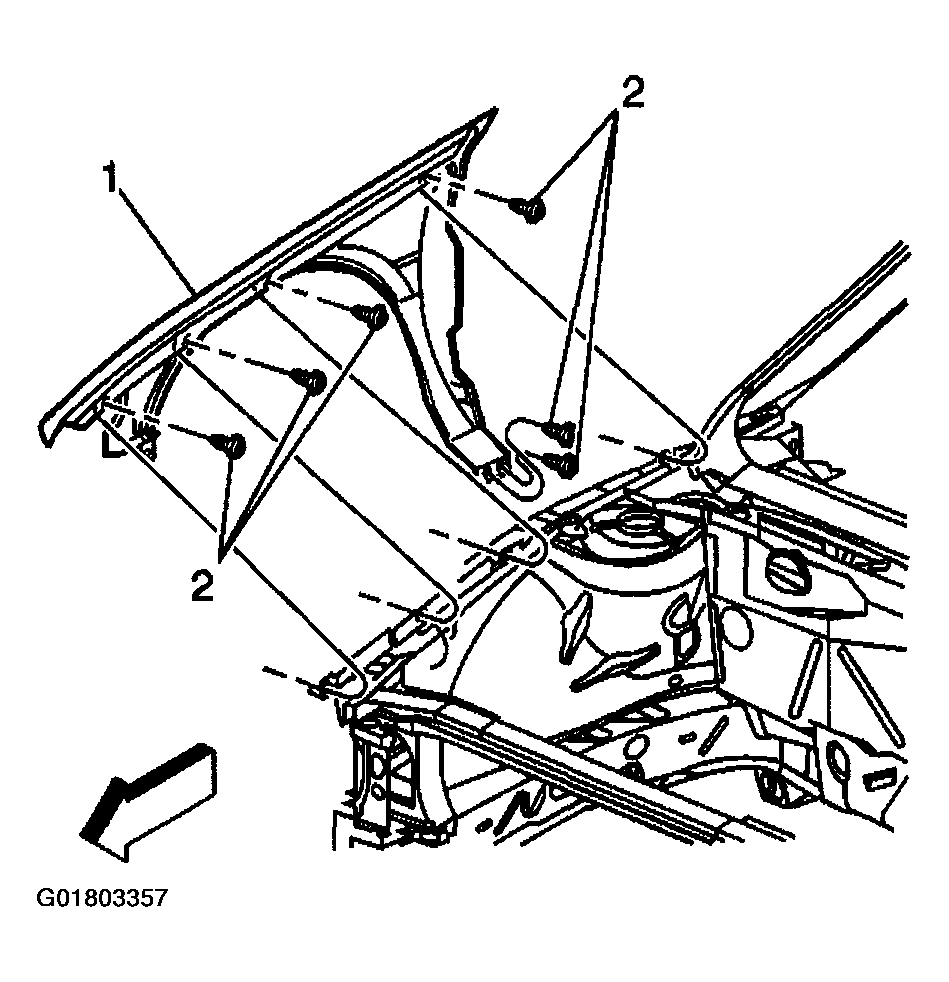

    3. Fig 1: Installing Fender
    G01803357Courtesy of GENERAL MOTORS CORP.
  3. Install the fascia to fender fasteners. Refer to FASCIA REPLACEMENT -- FRONT BUMPER .
  4. Install the air deflector. Refer to Air Deflector Replacement - Front  .
  5. Install the rocker molding. Refer to MOLDING REPLACEMENT -- ROCKER PANEL .
