Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the radiator support bracket fasteners (1).
  3. Remove the radiator support brackets (2) from the vehicle.

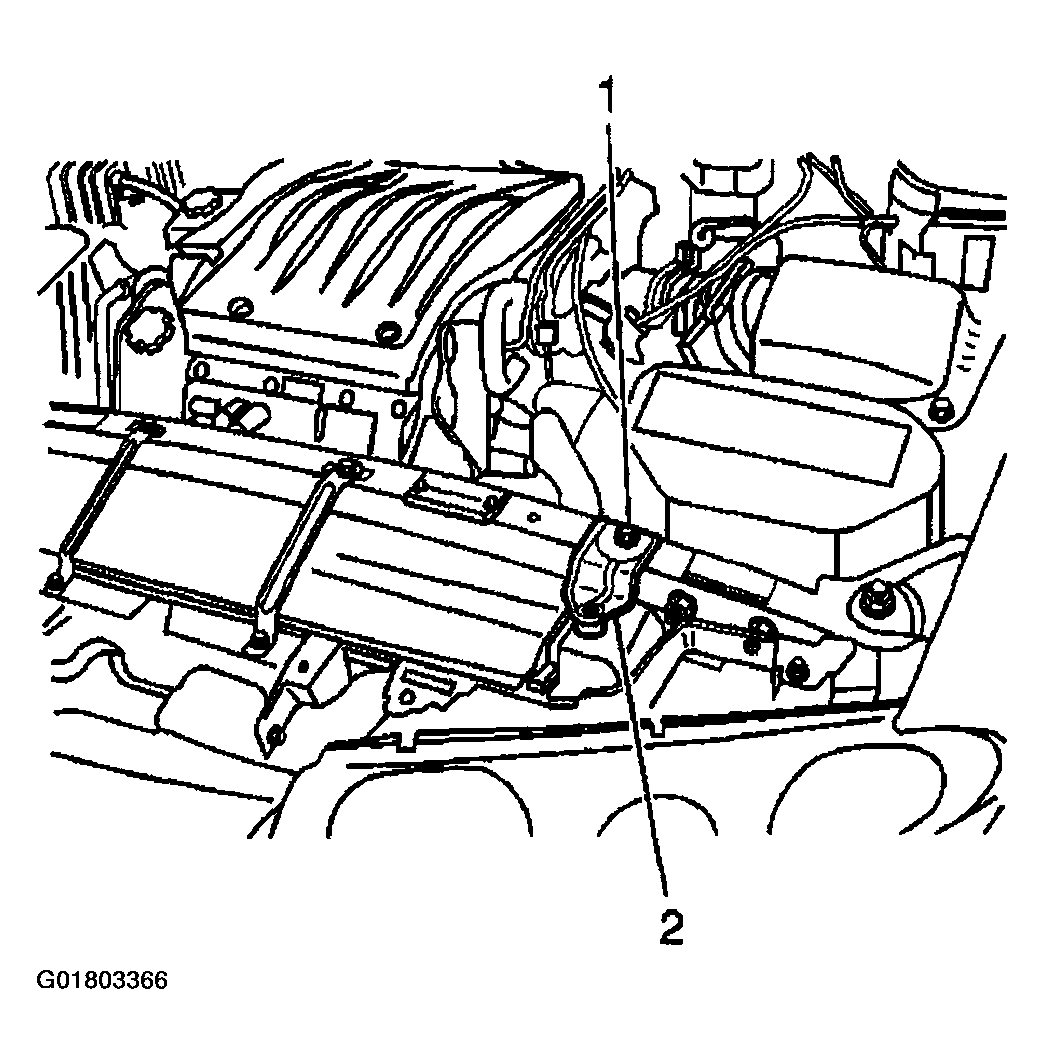

    Fig 1: Removing Radiator Support
    G01803366Courtesy of GENERAL MOTORS CORP.
