Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker into the door with the electrical connector located as noted during removal.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the speaker fasteners (1).

    Tighten

    Tighten the speaker fasteners to 1.8 N.m (16 lb in).

  3. Connect the electrical connector (2).
  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR .

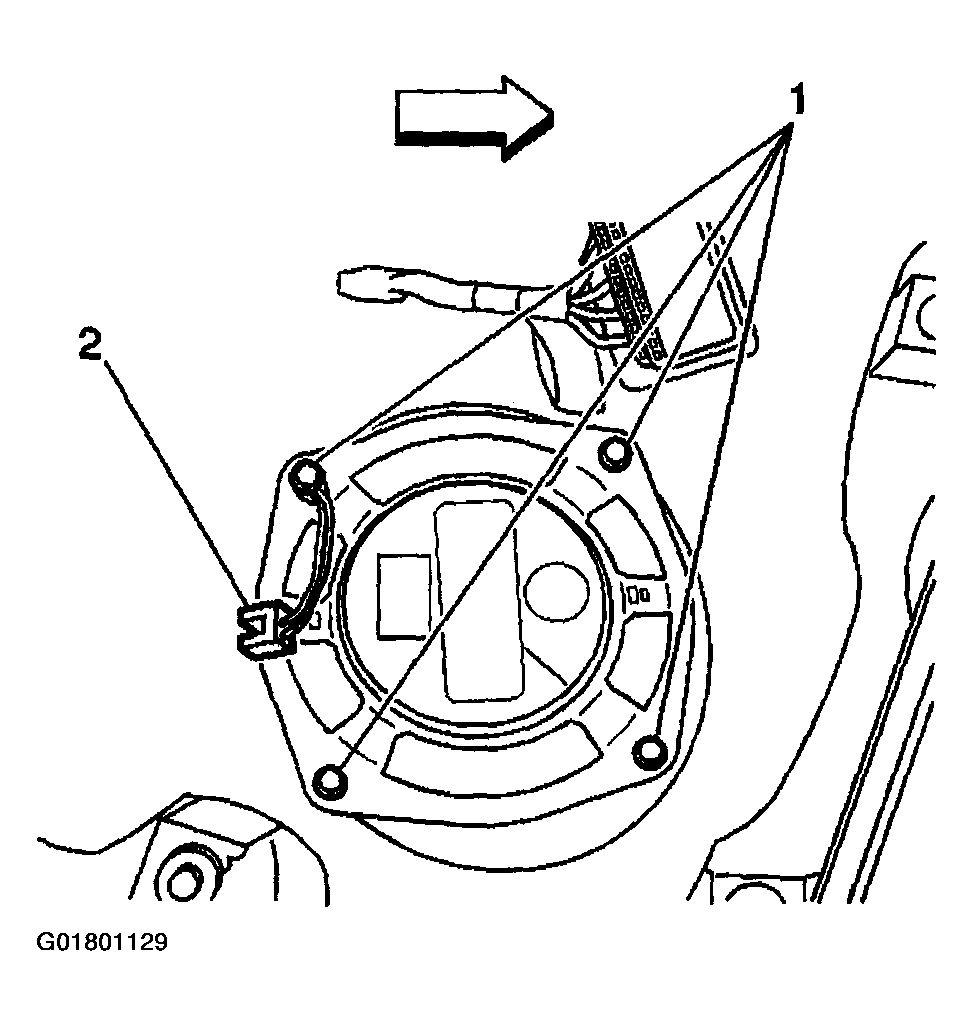

    Fig 1: Installing Lower Front Speaker
    G01801129Courtesy of GENERAL MOTORS CORP.
