Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

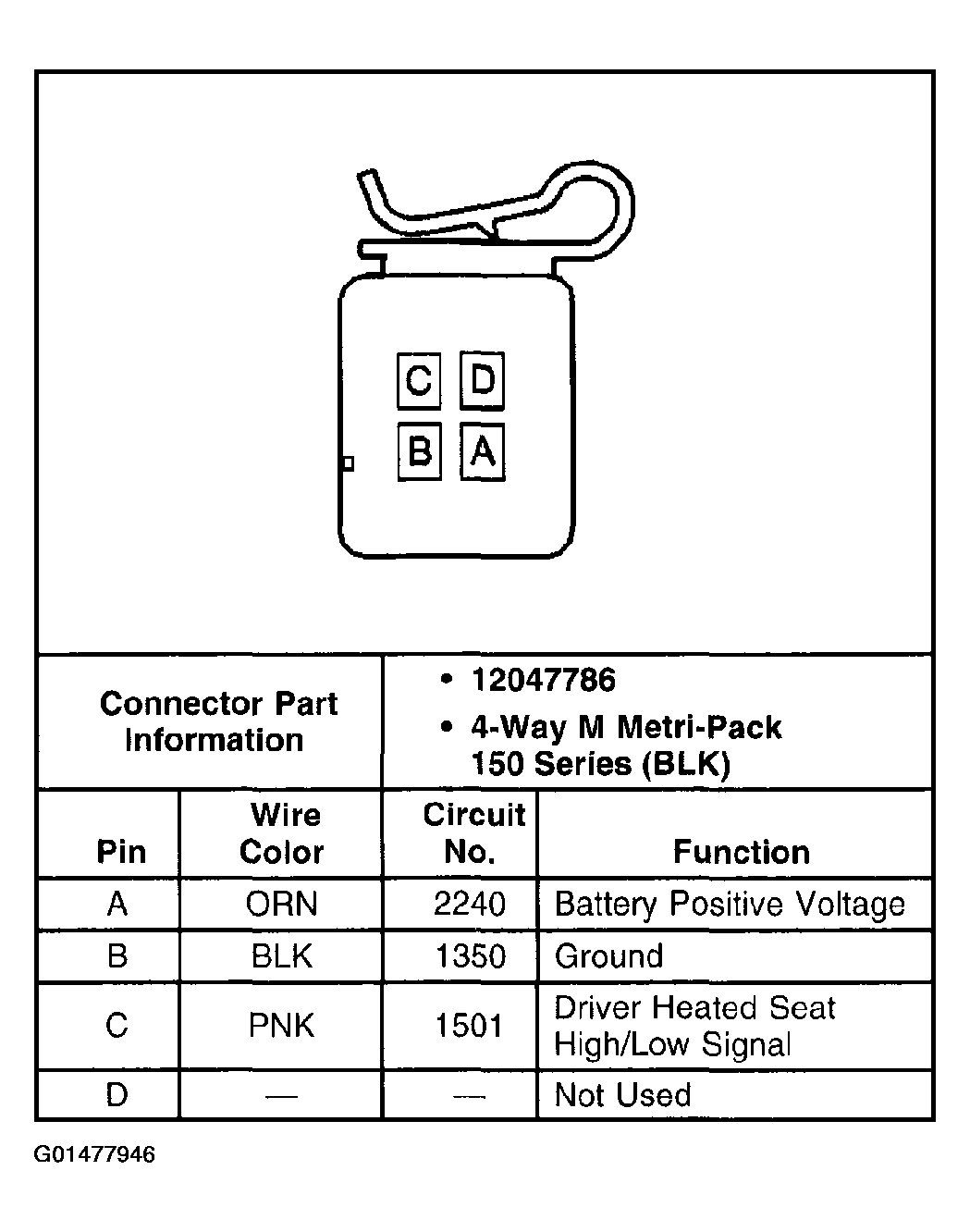

Fig 1: Heated Seat Control Module - Driver/Front Passenger (Part Of the Heated Seat Assembly)

G01477946

Courtesy of GENERAL MOTORS CORP.

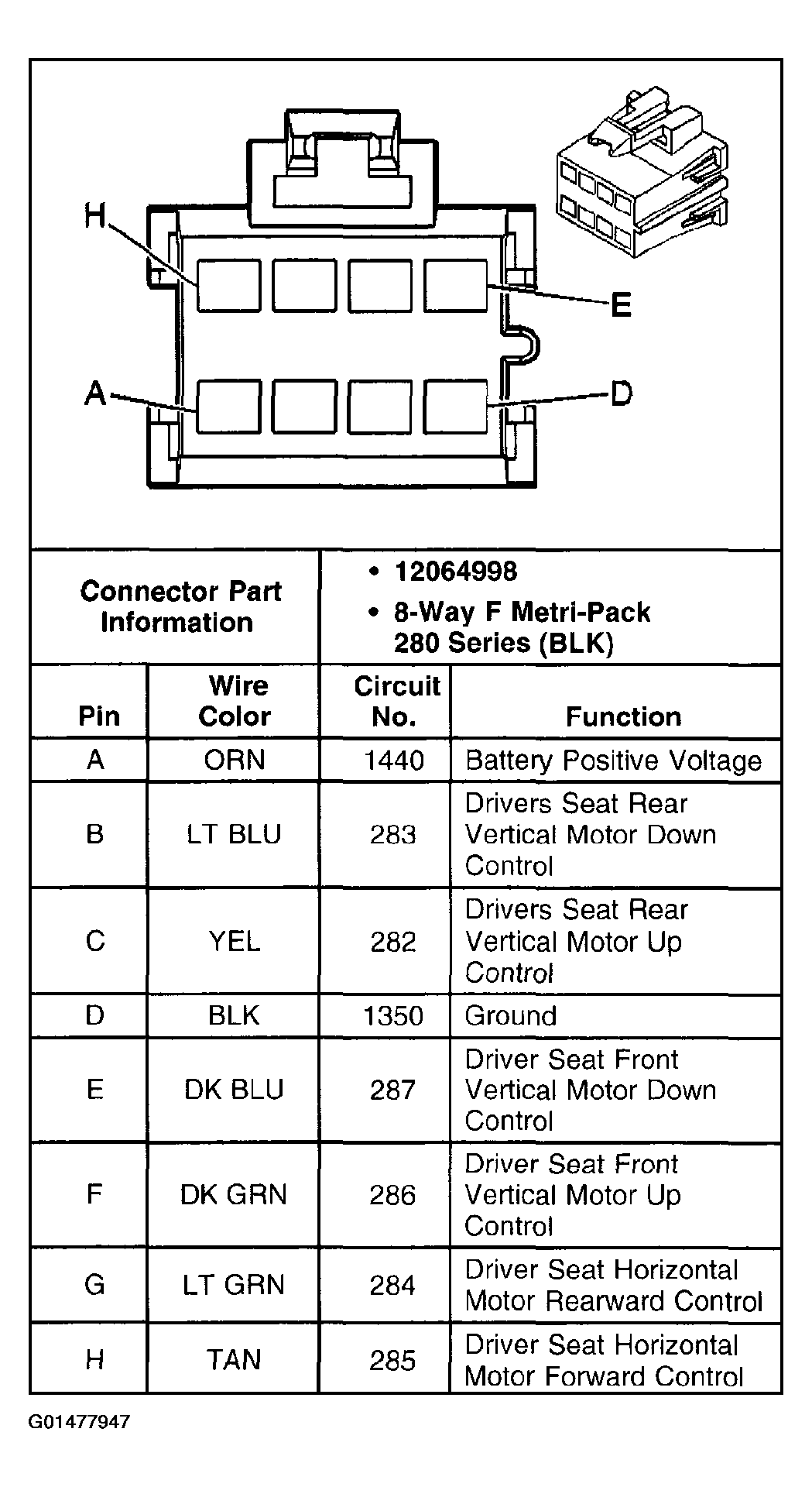

Fig 2: Seat Adjuster Switch - Driver (W/ 6-Way)

G01477947

Courtesy of GENERAL MOTORS CORP.

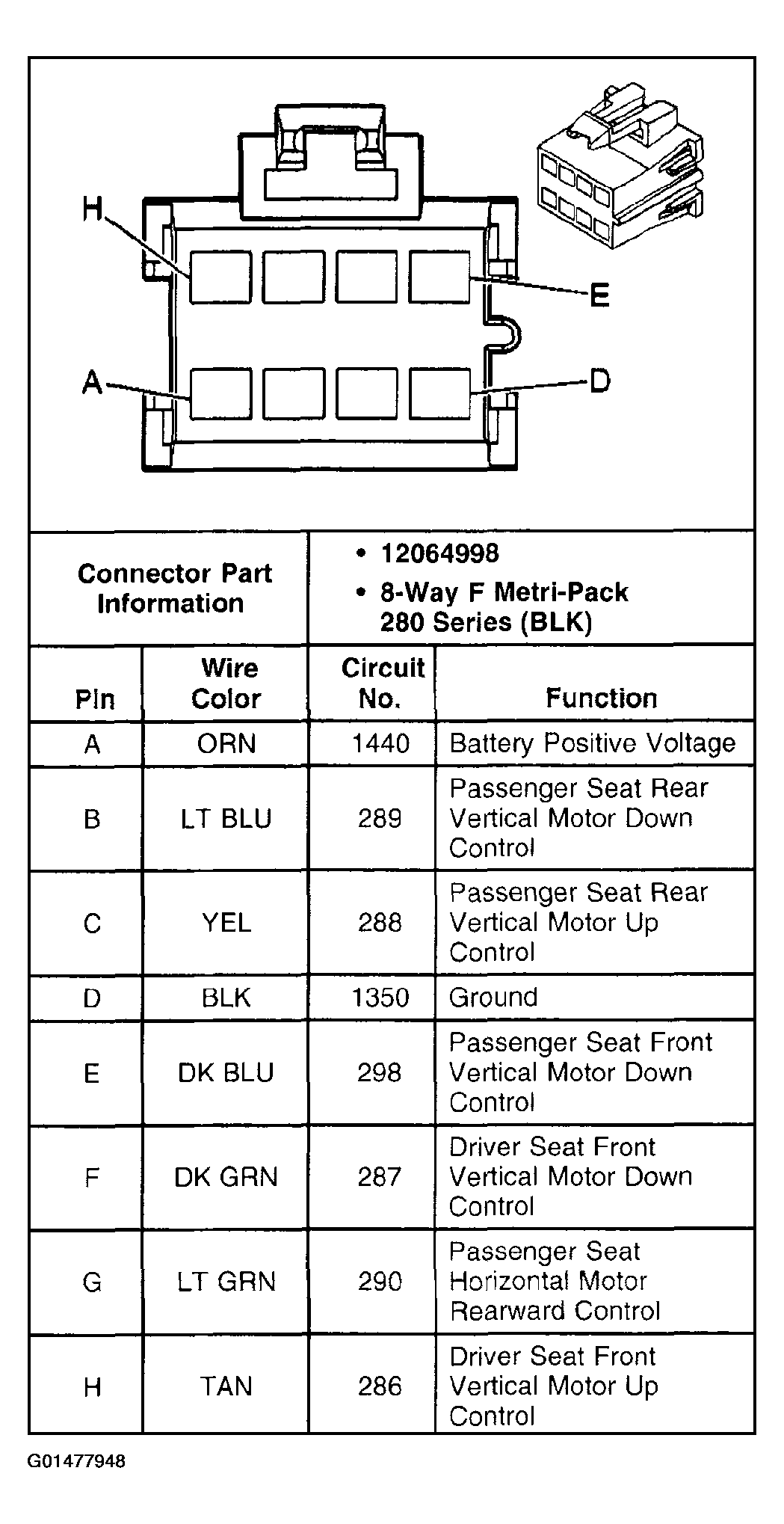

Fig 3: Seat Adjuster Switch - Front Passenger (W/ 6-Way)

G01477948

Courtesy of GENERAL MOTORS CORP.

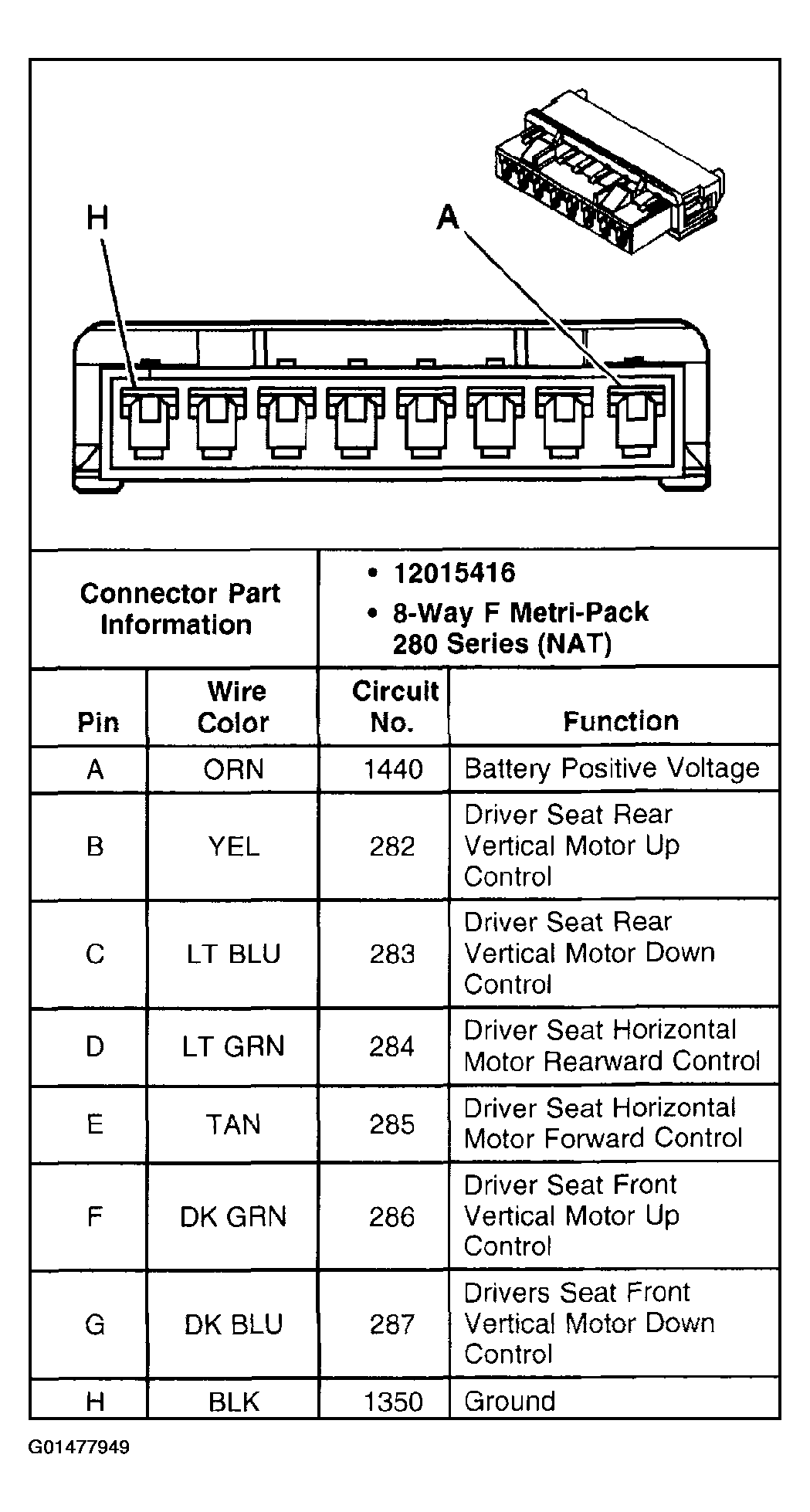

Fig 4: Seat Adjuster Switch - Driver C1 (W/ 8-Way, W/O Memory)

G01477949

Courtesy of GENERAL MOTORS CORP.

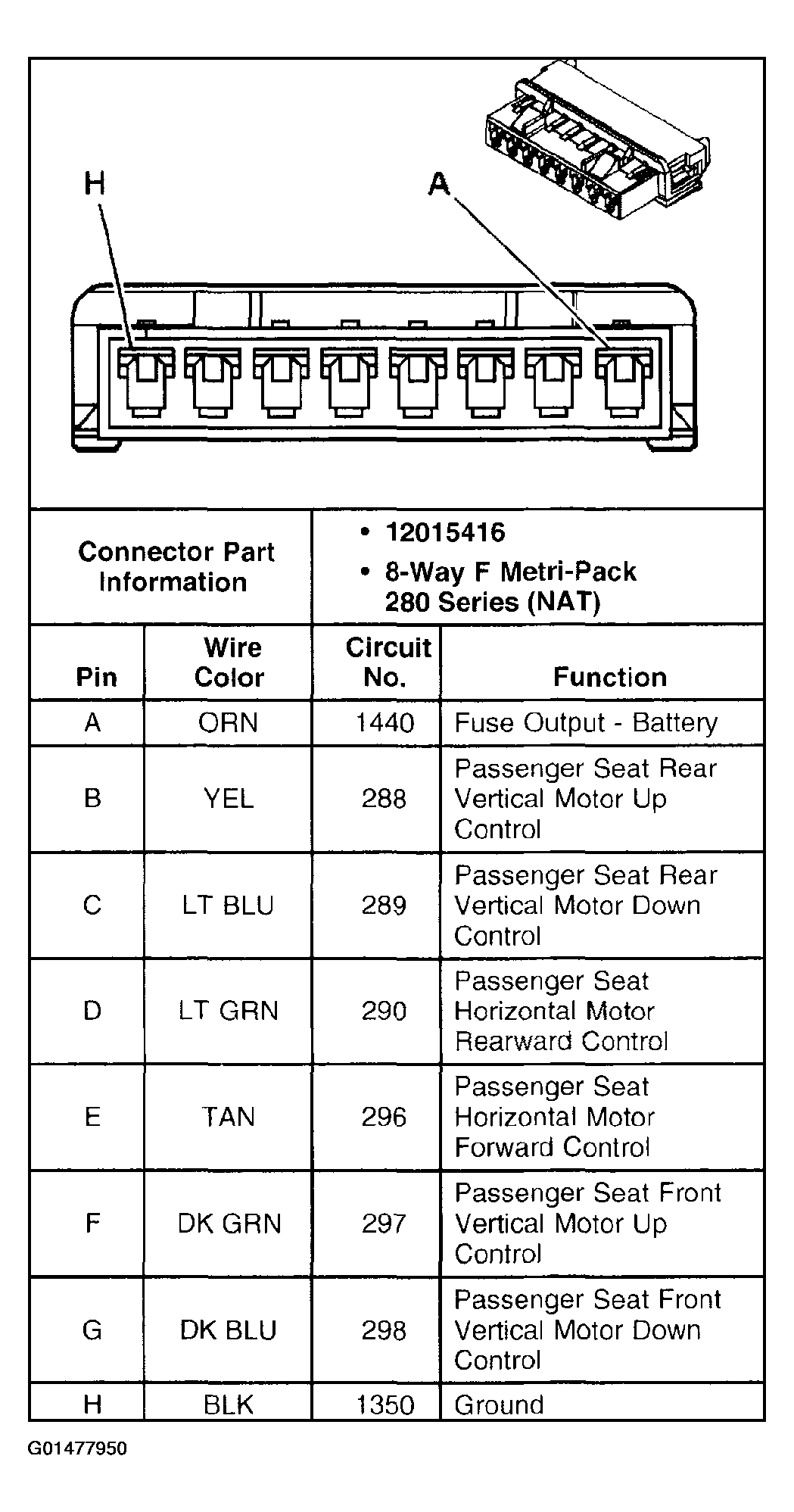

Fig 5: Seat Adjuster Switch - Front Passenger C1 (W/ 8-Way, W/O Memory)

G01477950

Courtesy of GENERAL MOTORS CORP.

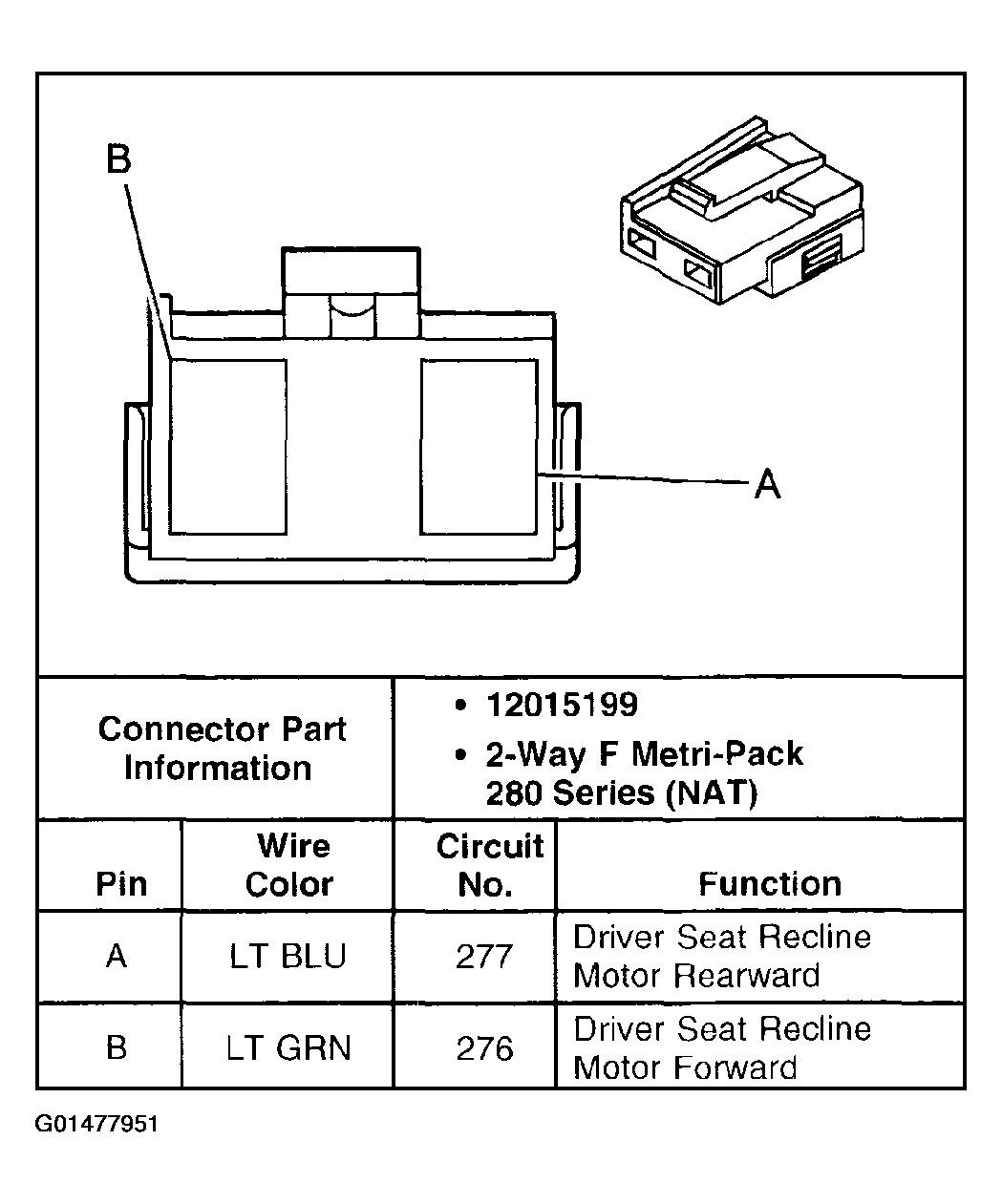

Fig 6: Seat Adjuster Switch - Driver C2 (W/ 8-Way, W/O Memory)

G01477951

Courtesy of GENERAL MOTORS CORP.

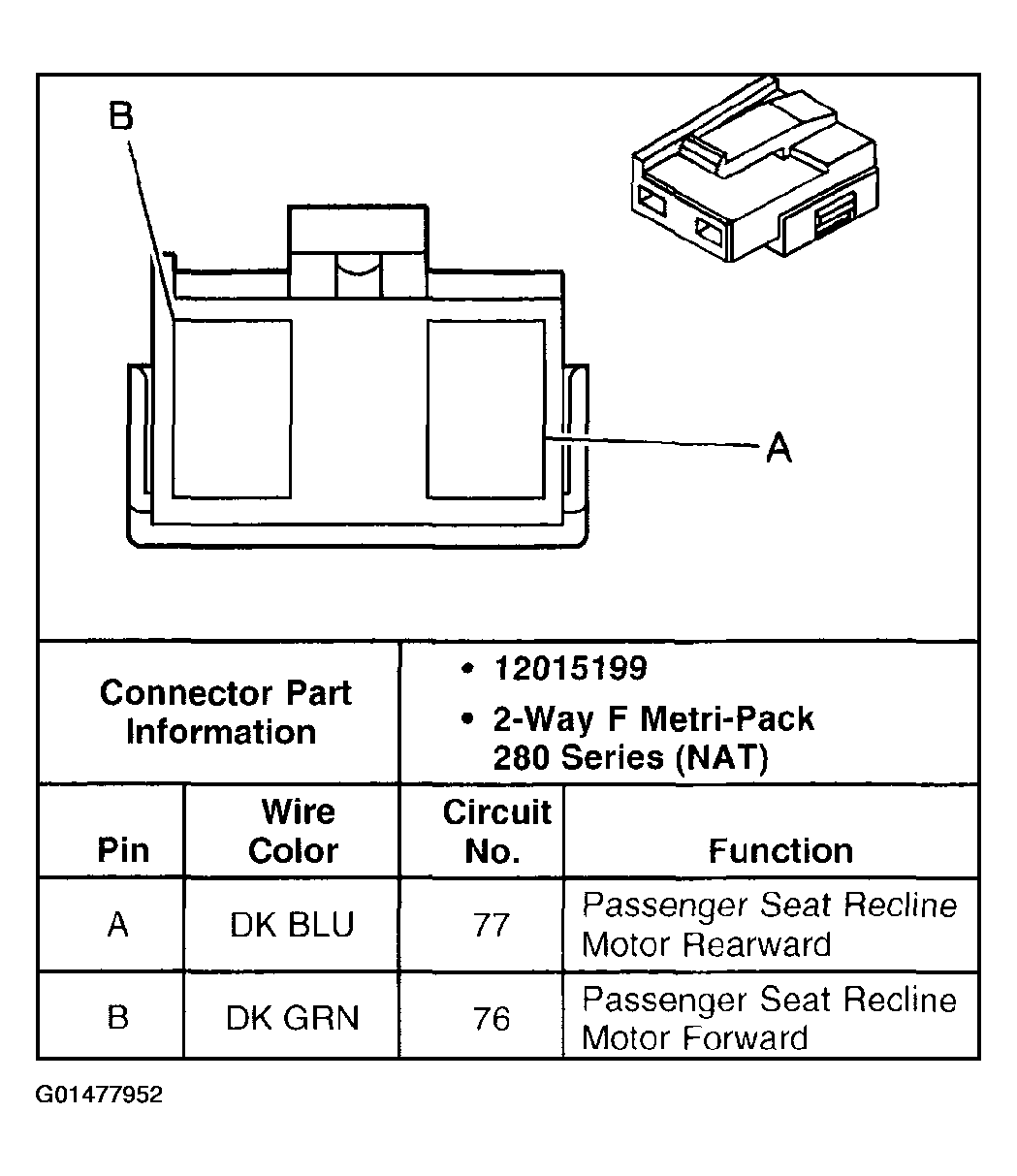

Fig 7: Seat Adjuster Switch - Front Passenger C2 (W/ 8-Way, W/O Memory)

G01477952

Courtesy of GENERAL MOTORS CORP.

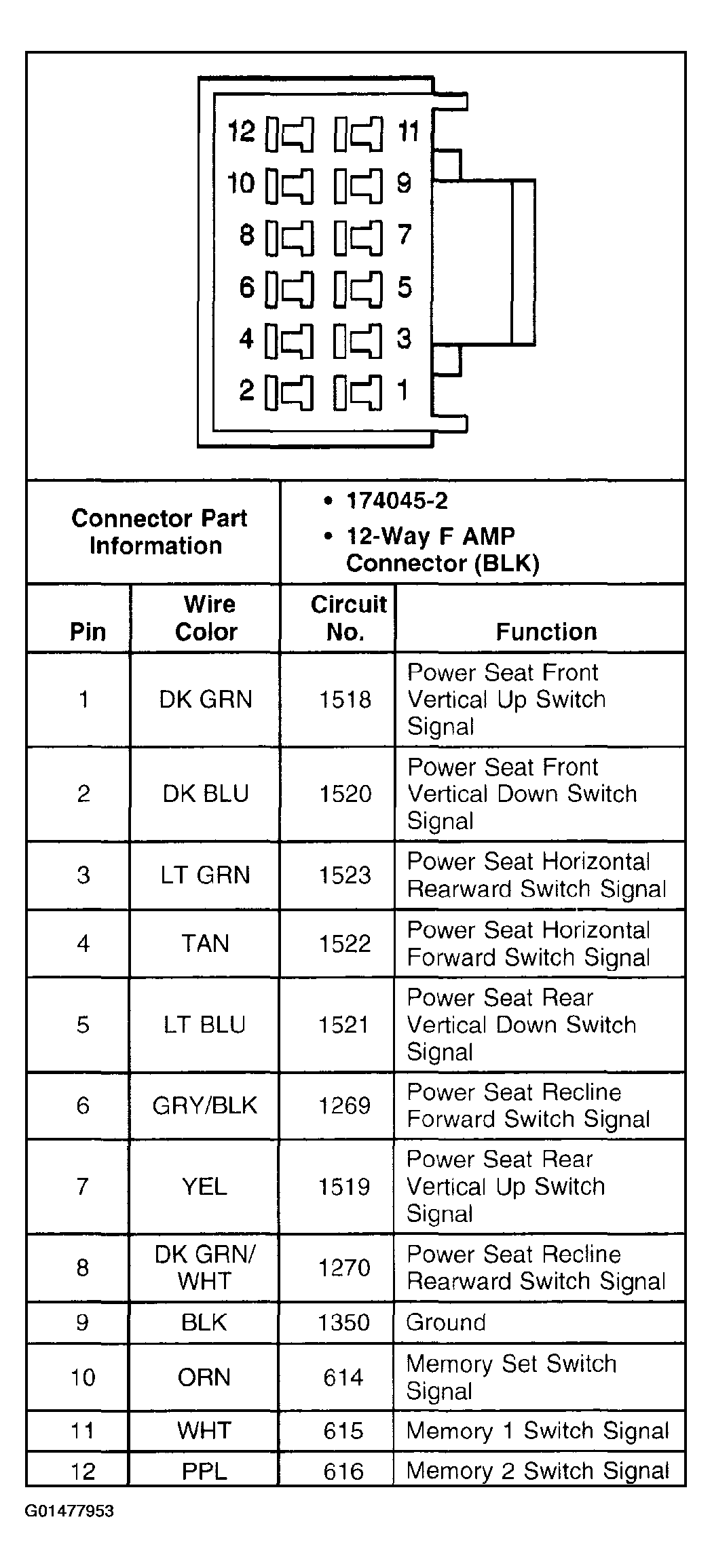

Fig 8: Seat Adjuster Switch - Driver/Front Passenger (W/ Memory)

G01477953

Courtesy of GENERAL MOTORS CORP.

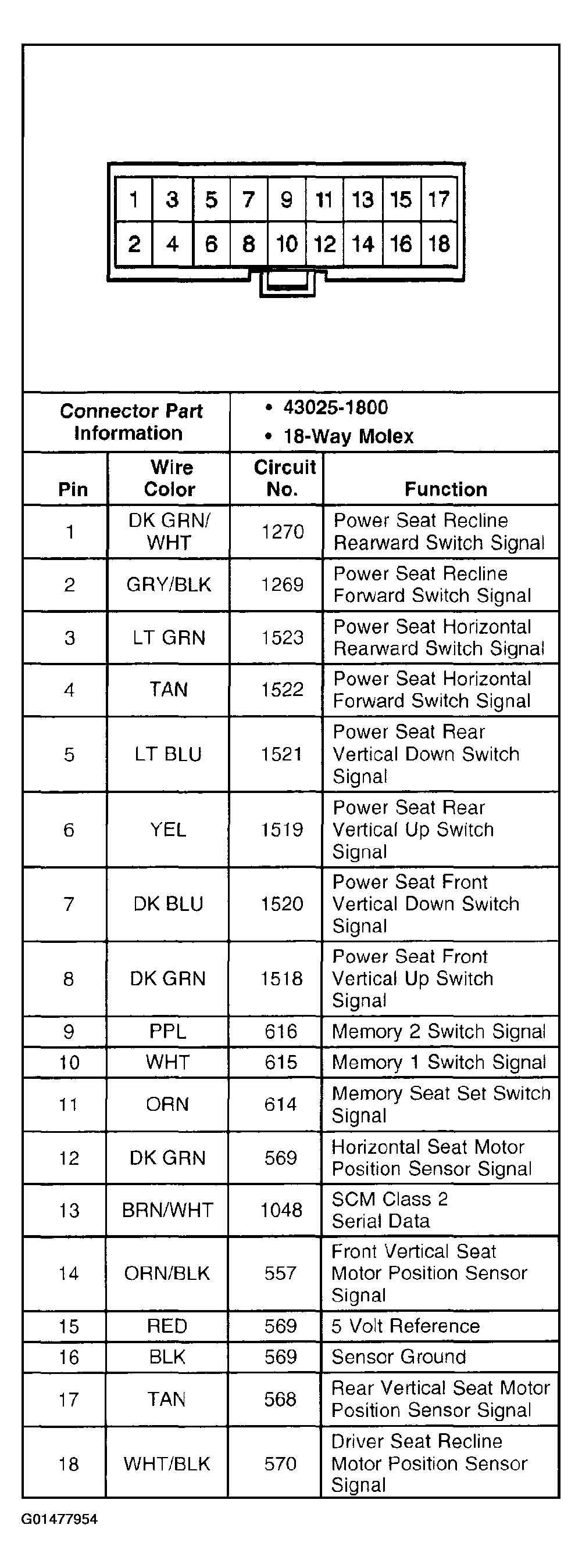

Fig 9: Memory Seat Module - Driver C1

G01477954

Courtesy of GENERAL MOTORS CORP.

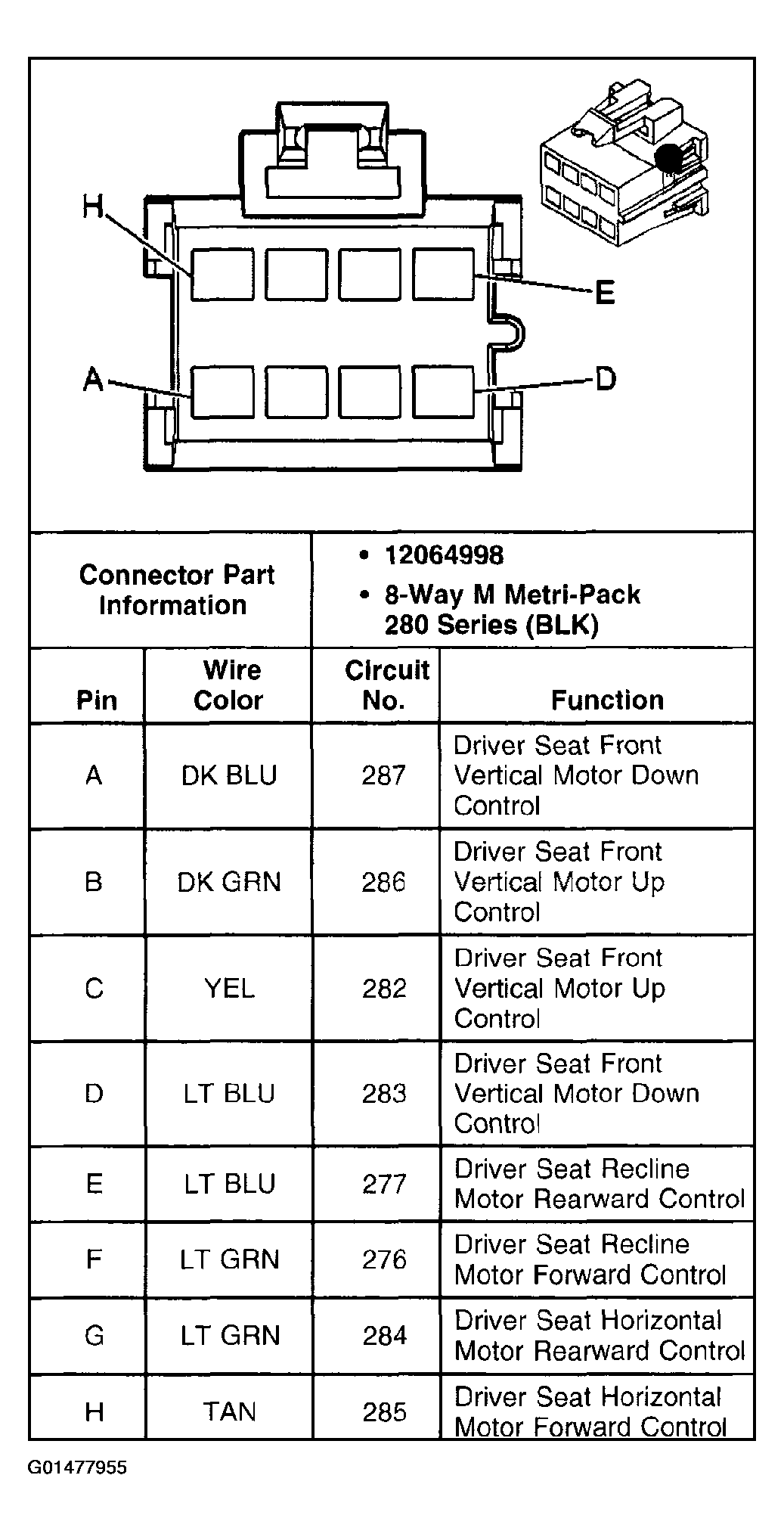

Fig 10: Memory Seat Module - Driver C2

G01477955

Courtesy of GENERAL MOTORS CORP.

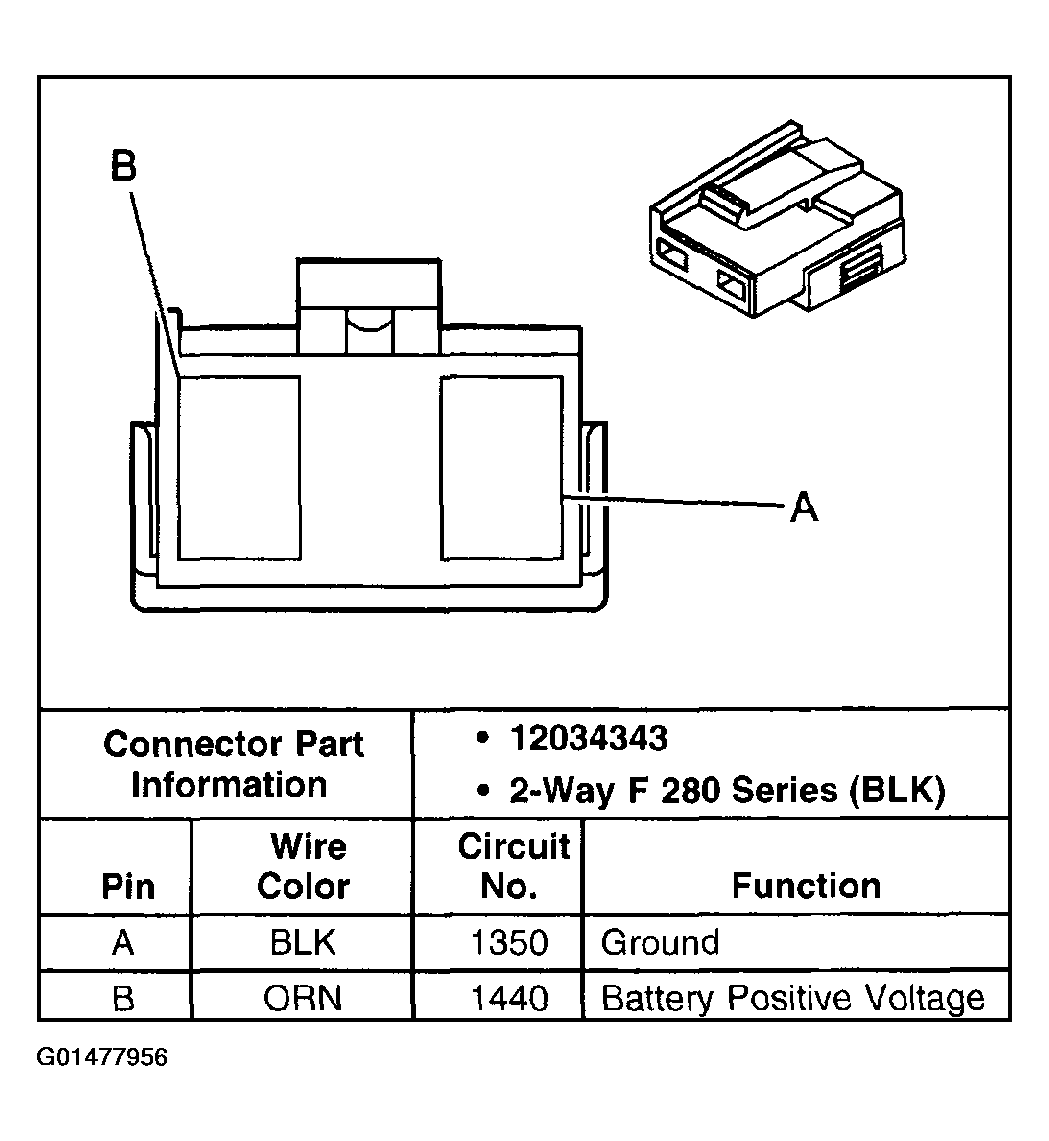

Fig 11: Memory Seat Module - Driver C3

G01477956

Courtesy of GENERAL MOTORS CORP.

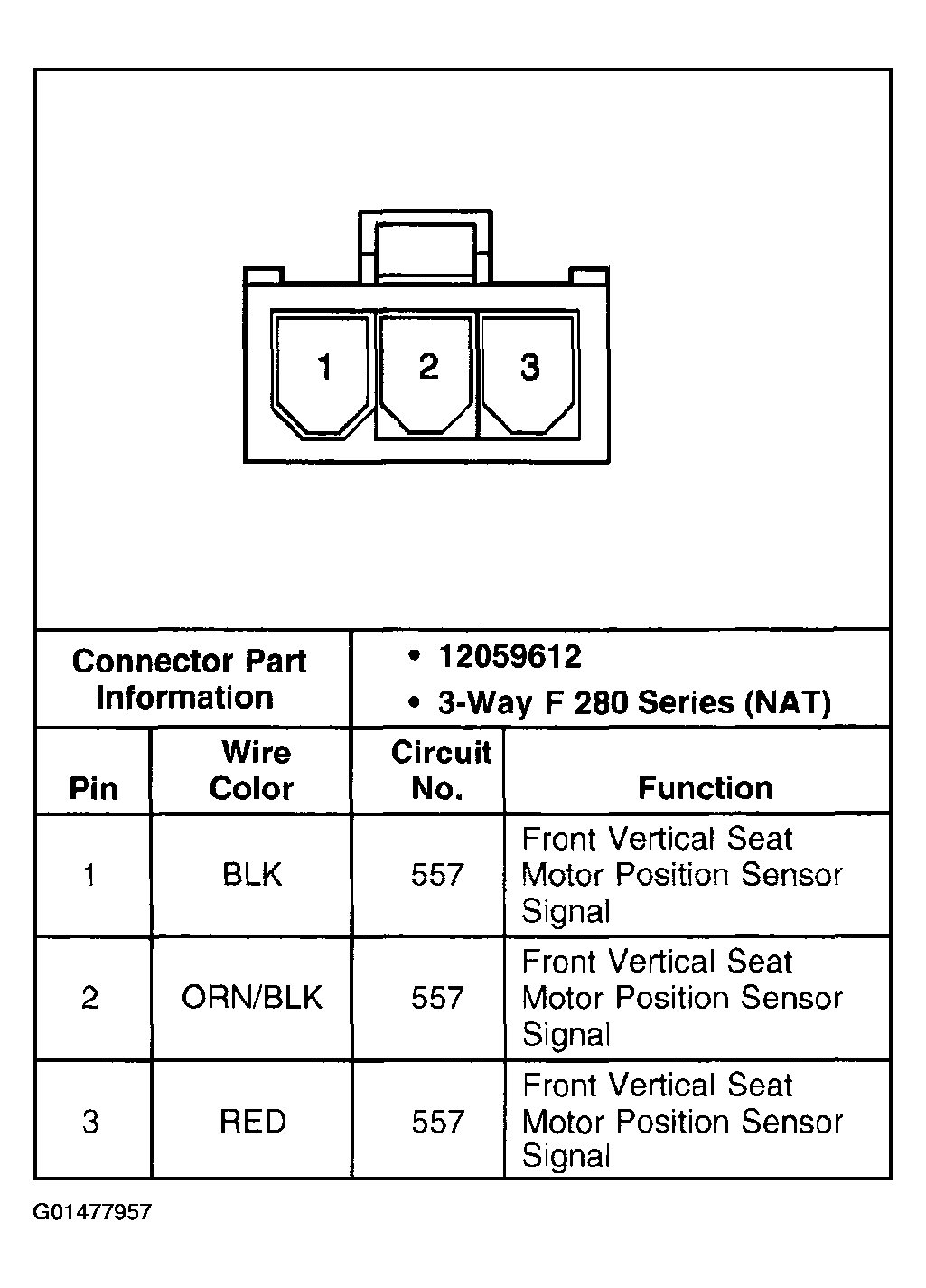

Fig 12: Seat Front Vertical Position Sensor - Driver (W/ Memory)

G01477957

Courtesy of GENERAL MOTORS CORP.

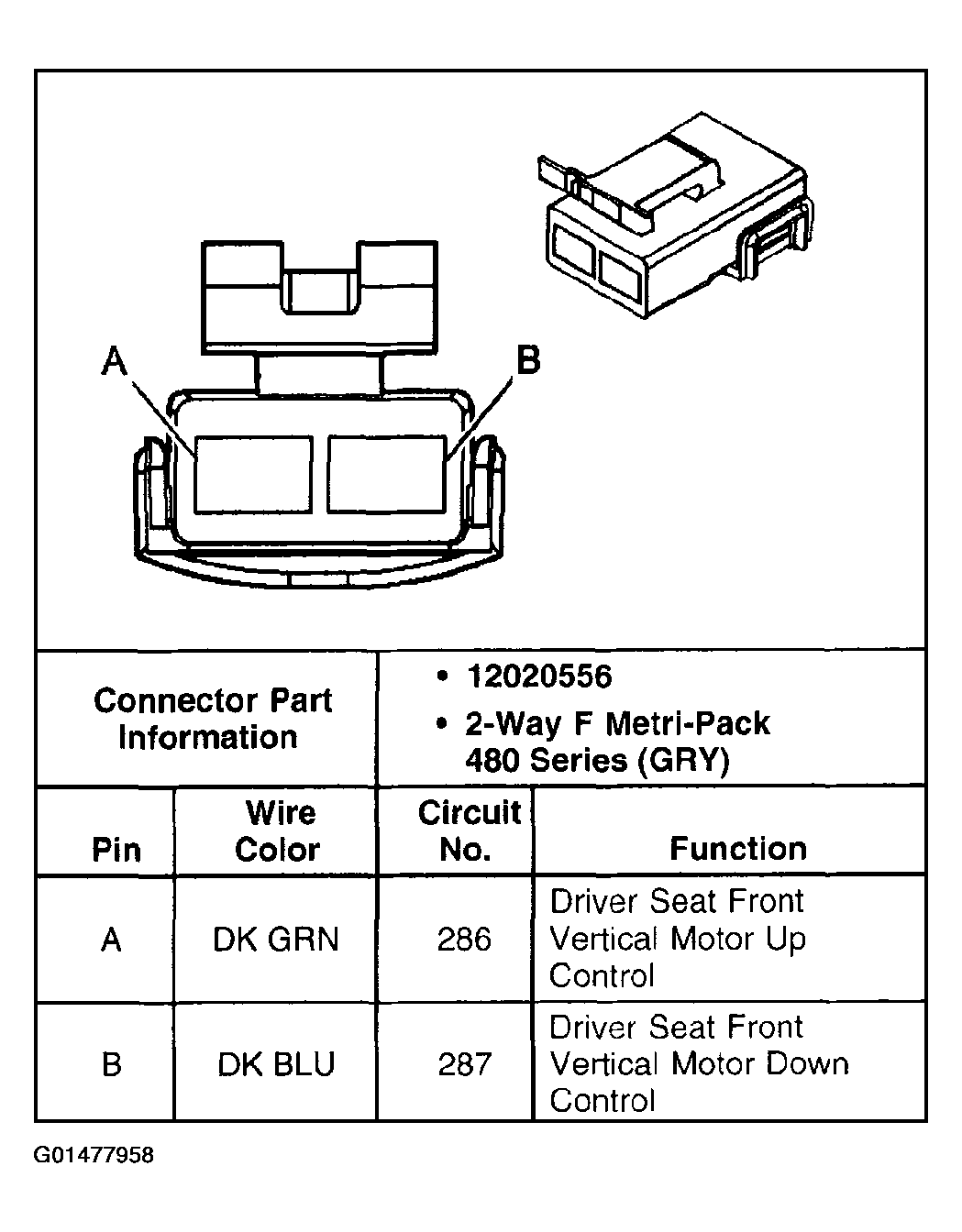

Fig 13: Seat Front Vertical Motor - Driver

G01477958

Courtesy of GENERAL MOTORS CORP.

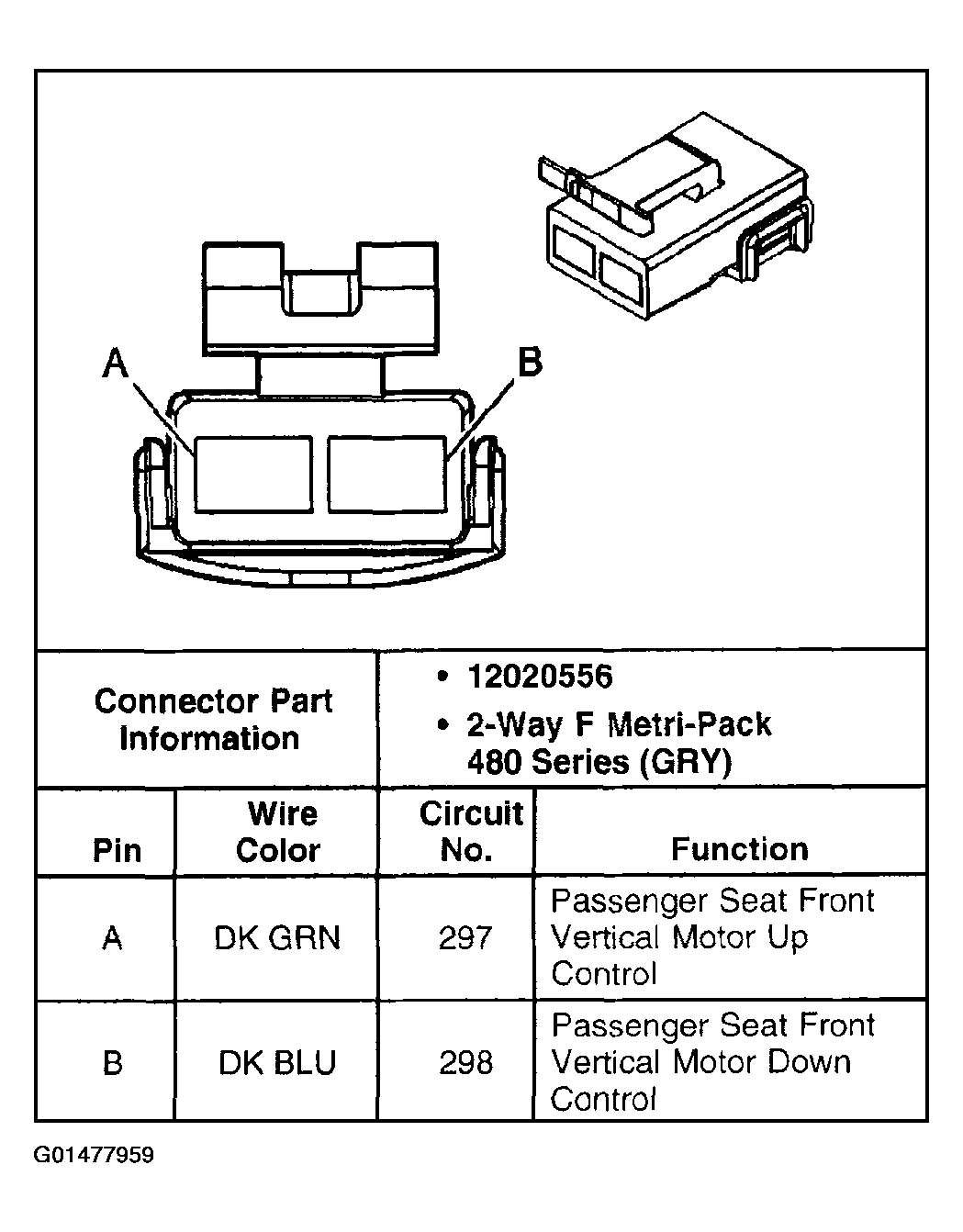

Fig 14: Seat Front Vertical Motor - Front Passenger (W/O Memory)

G01477959

Courtesy of GENERAL MOTORS CORP.

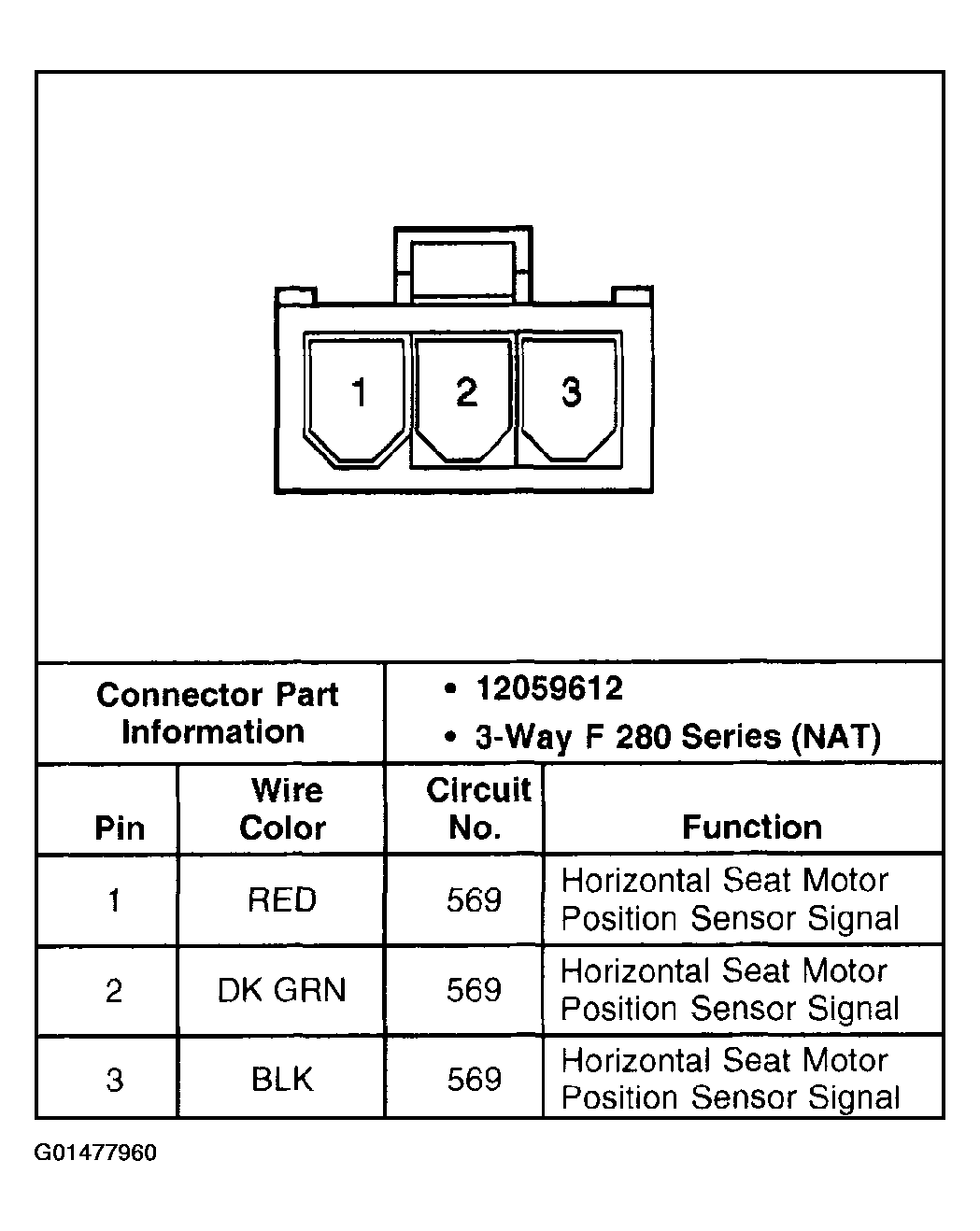

Fig 15: Seat Horizontal Position Sensor - Driver (W/ Memory)

G01477960

Courtesy of GENERAL MOTORS CORP.

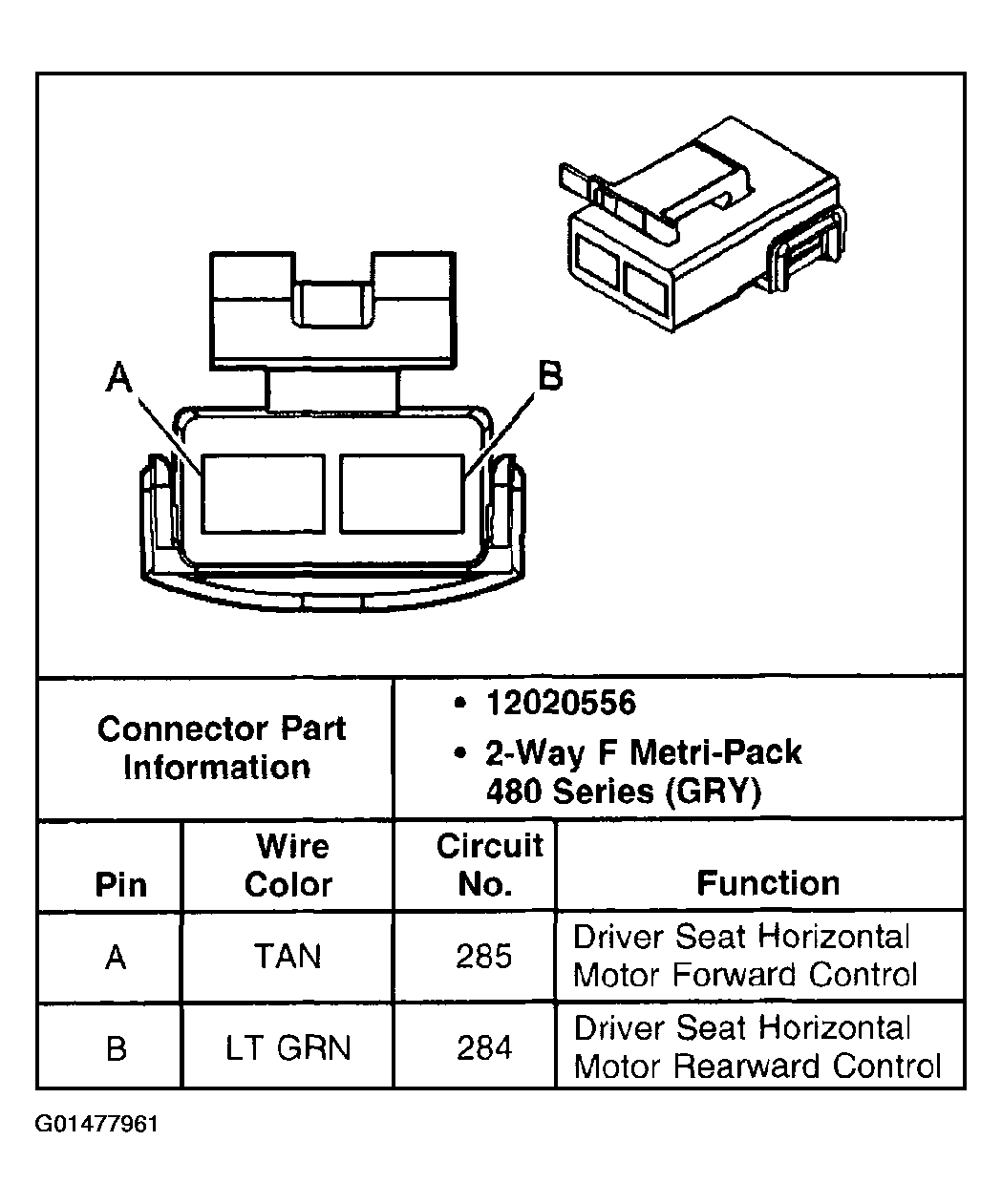

Fig 16: Seat Horizontal Motor - Driver

G01477961

Courtesy of GENERAL MOTORS CORP.

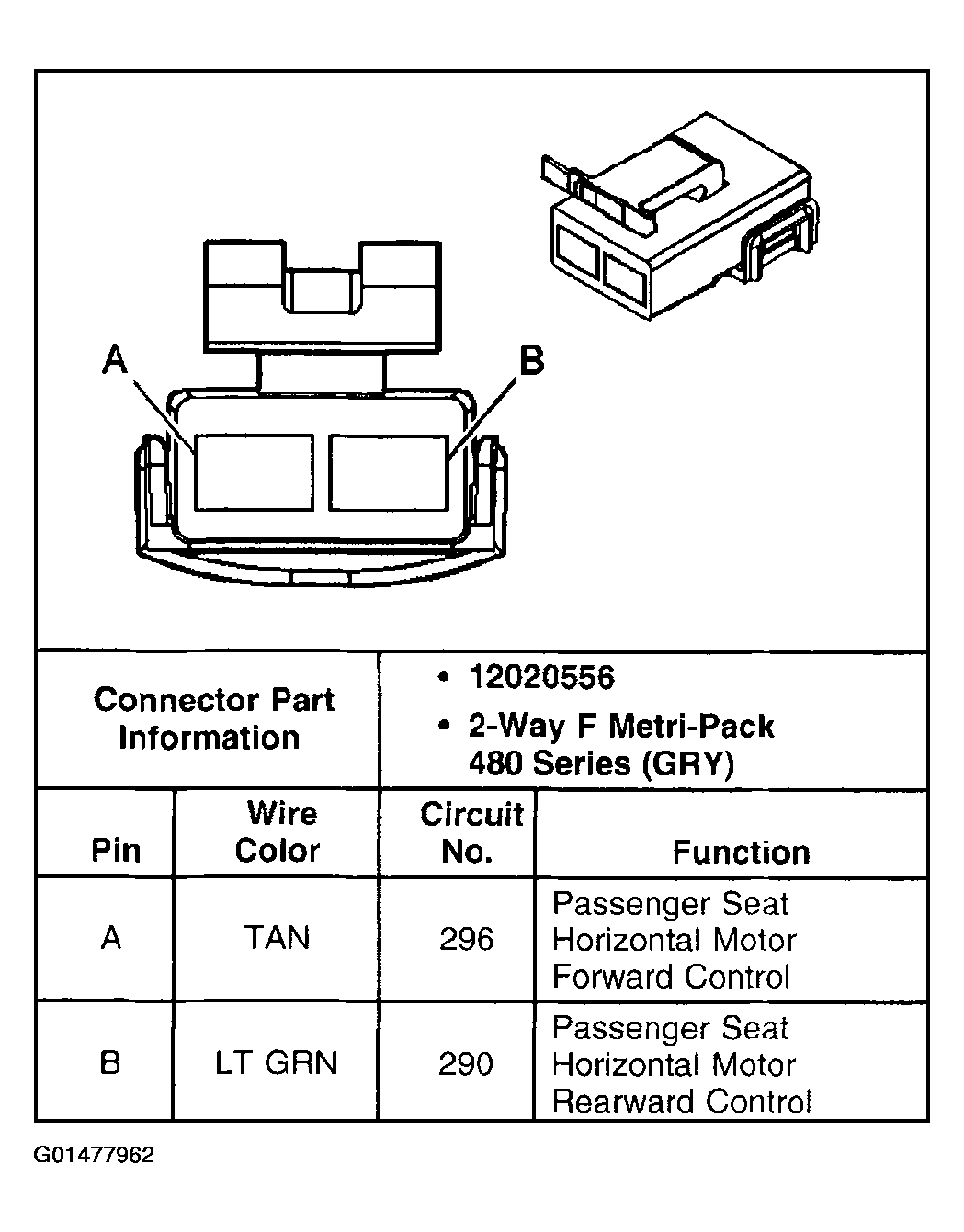

Fig 17: Seat Horizontal Motor - Front Passenger

G01477962

Courtesy of GENERAL MOTORS CORP.

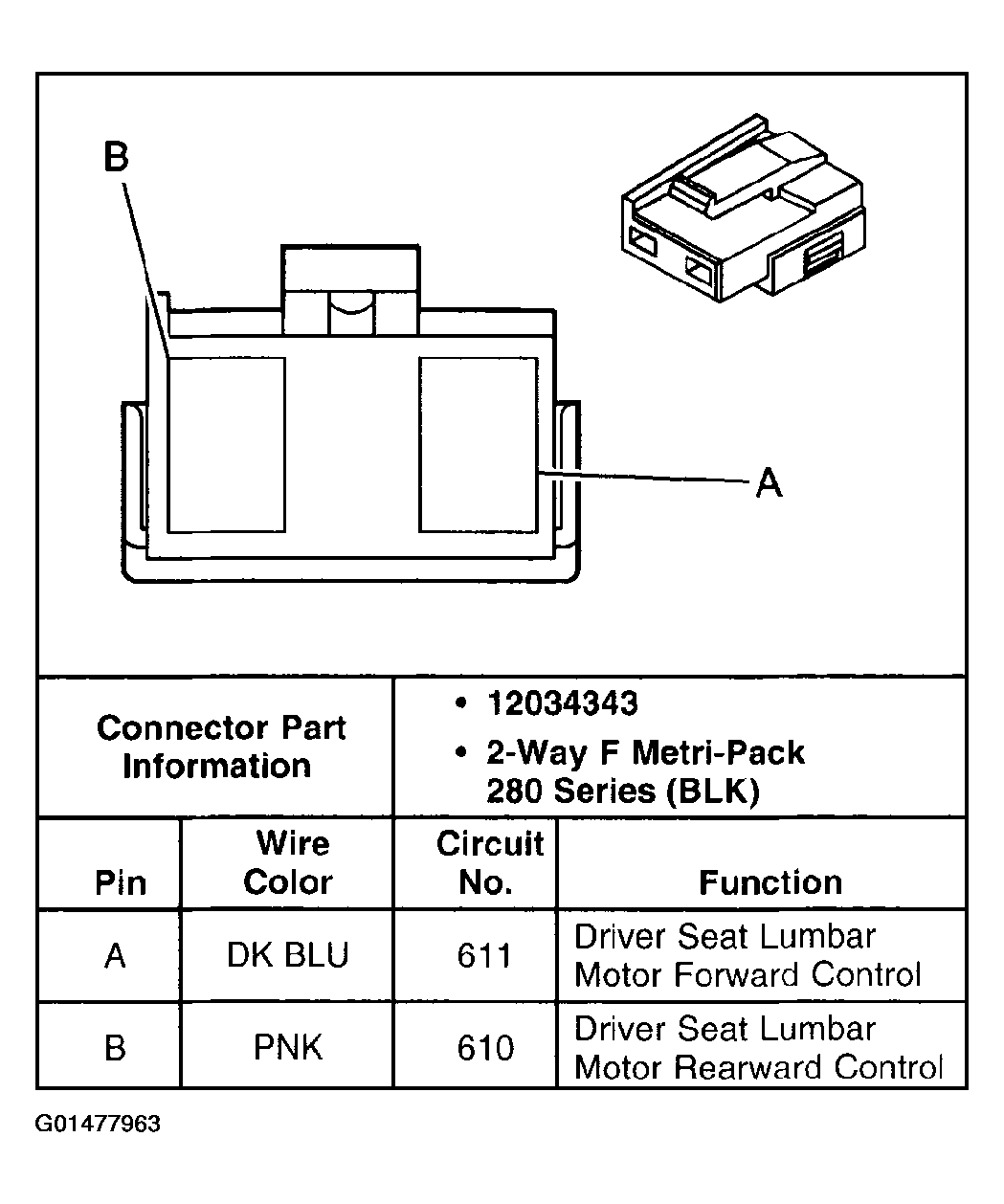

Fig 18: Seat Lumbar Motor - Driver

G01477963

Courtesy of GENERAL MOTORS CORP.

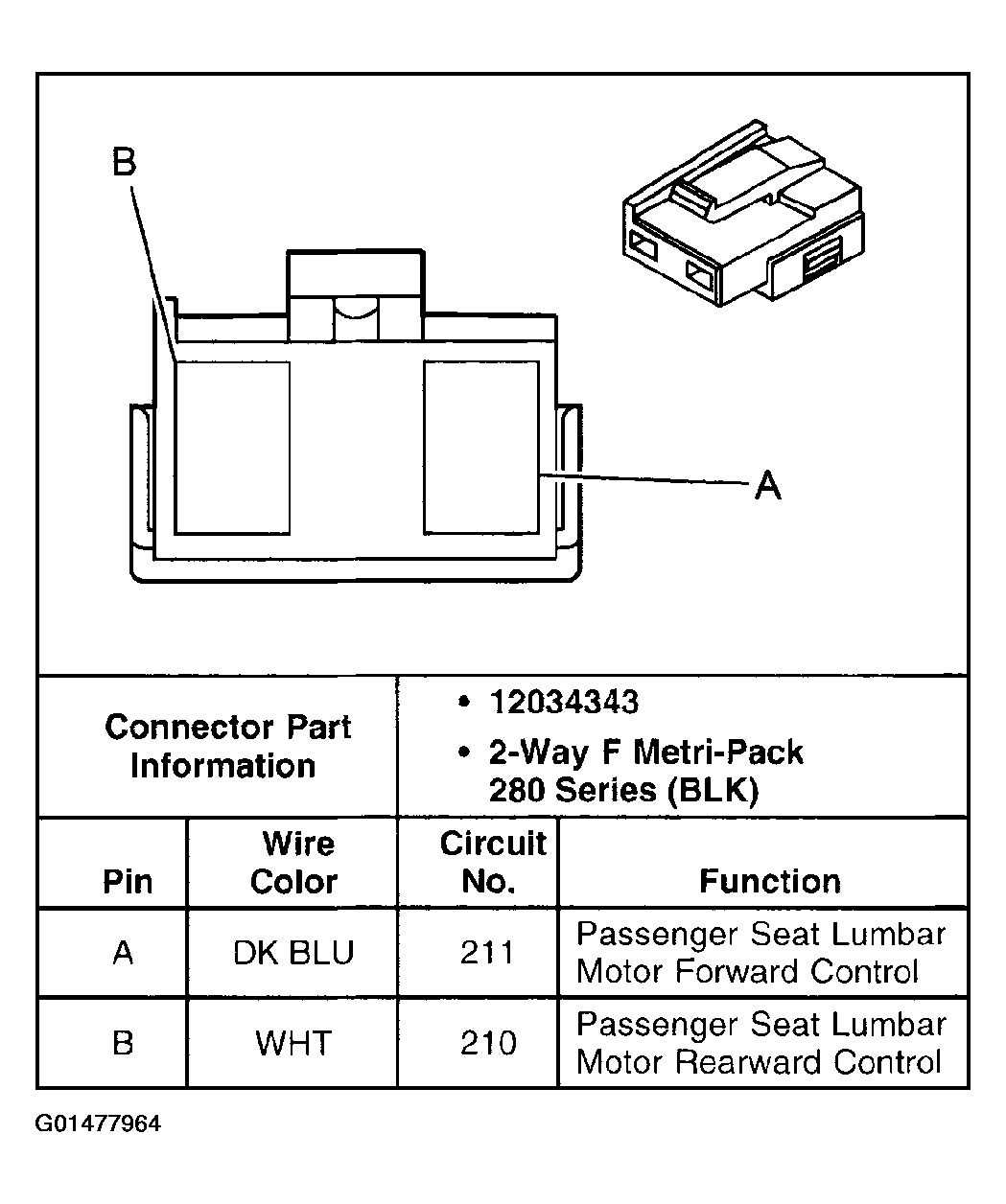

Fig 19: Seat Lumbar Motor - Front Passenger

G01477964

Courtesy of GENERAL MOTORS CORP.

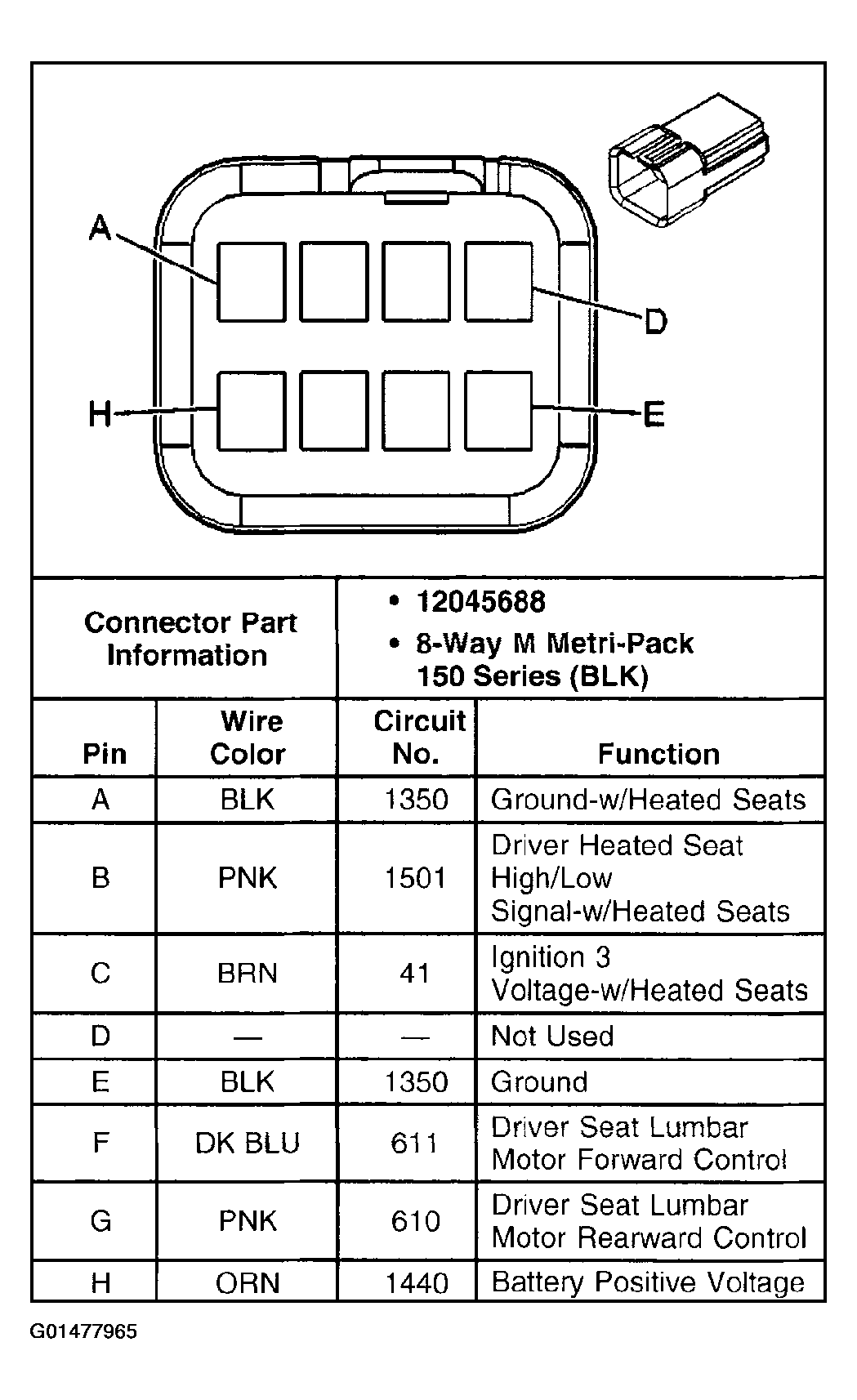

Fig 20: Seat Lumbar Switch - Driver

G01477965

Courtesy of GENERAL MOTORS CORP.

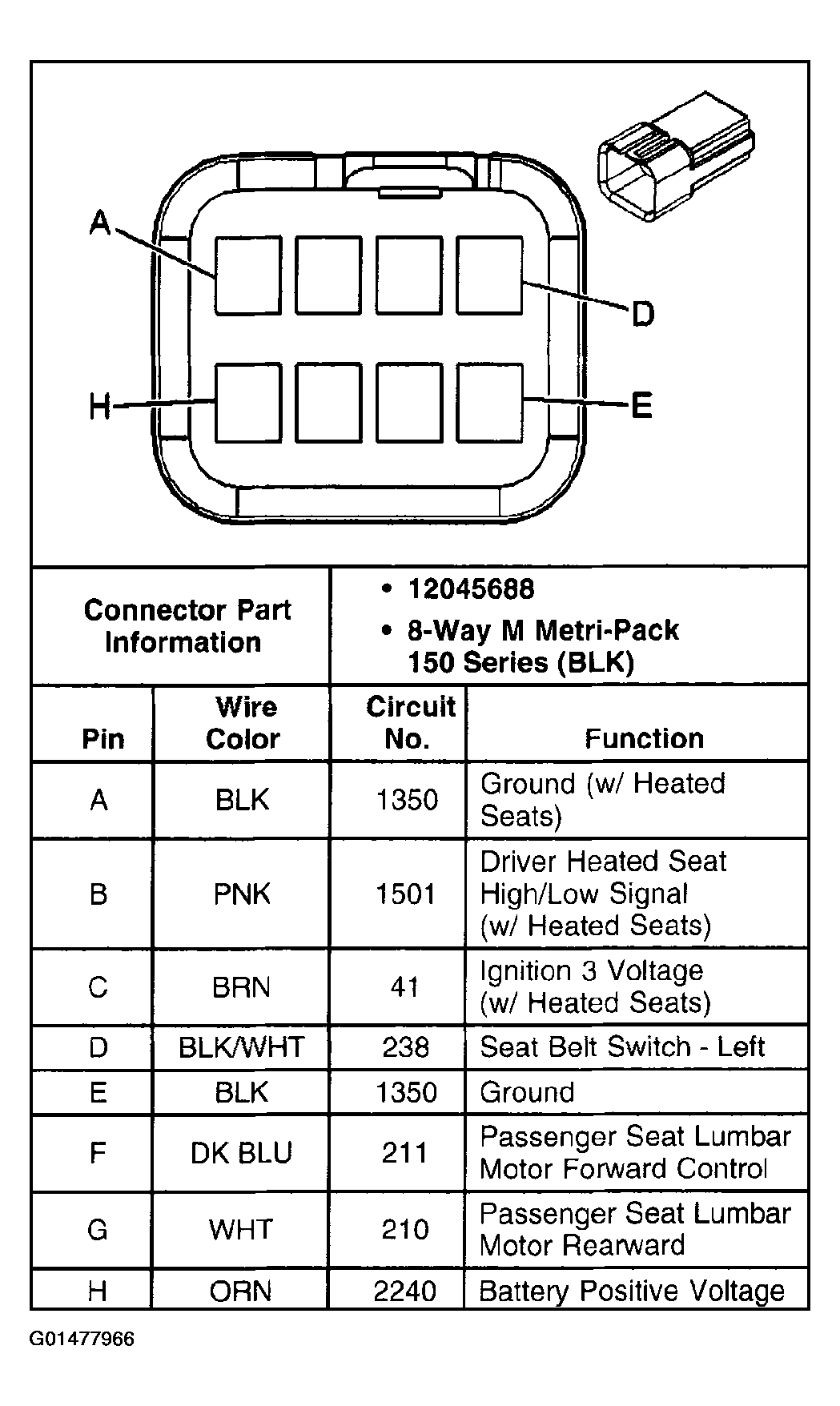

Fig 21: Seat Lumbar Switch - Front Passenger

G01477966

Courtesy of GENERAL MOTORS CORP.

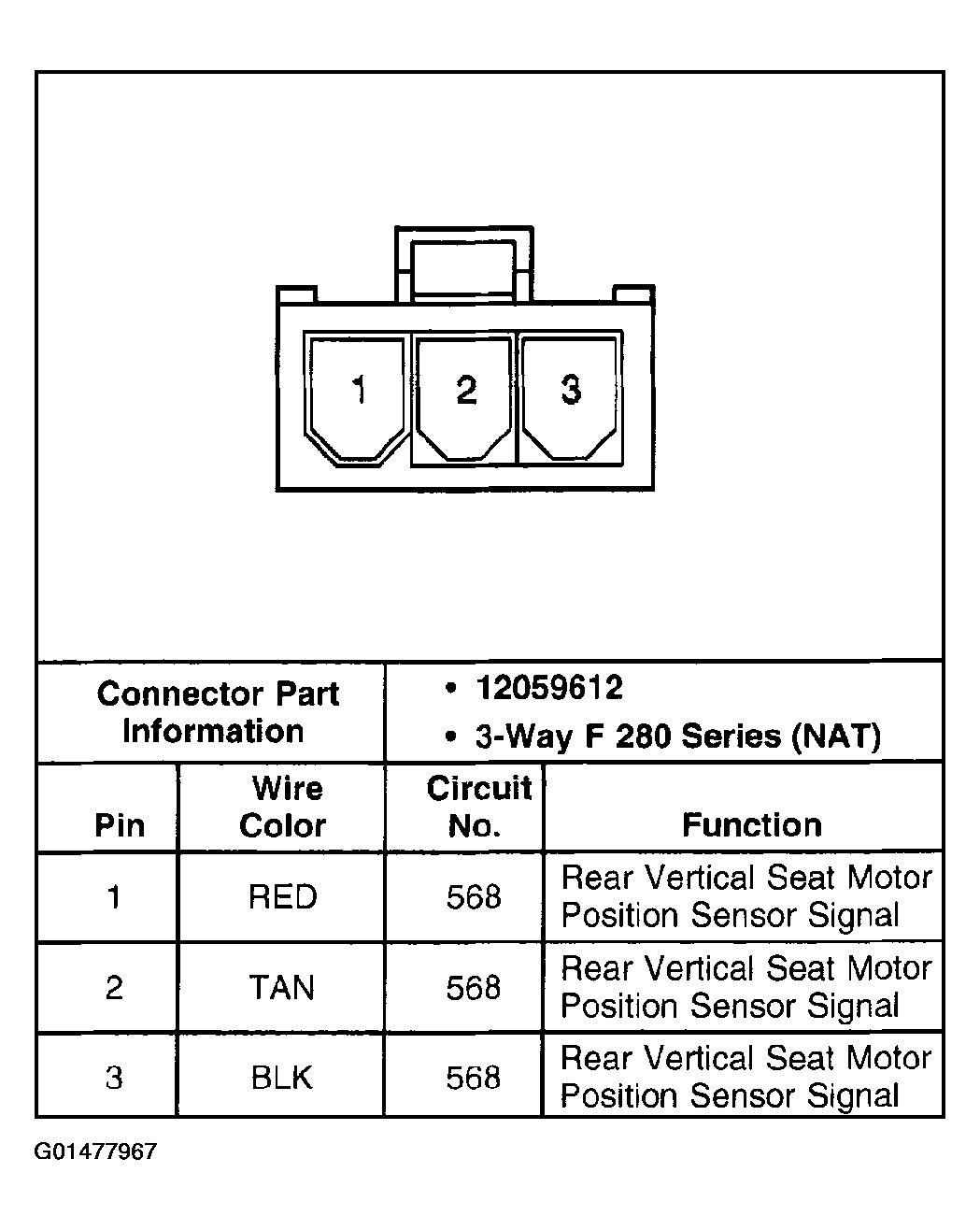

Fig 22: Seat Rear Vertical Position Sensor - Driver (W/ Memory)

G01477967

Courtesy of GENERAL MOTORS CORP.

Fig 23: Seat Rear Vertical Motor - Driver

G01477968

Courtesy of GENERAL MOTORS CORP.

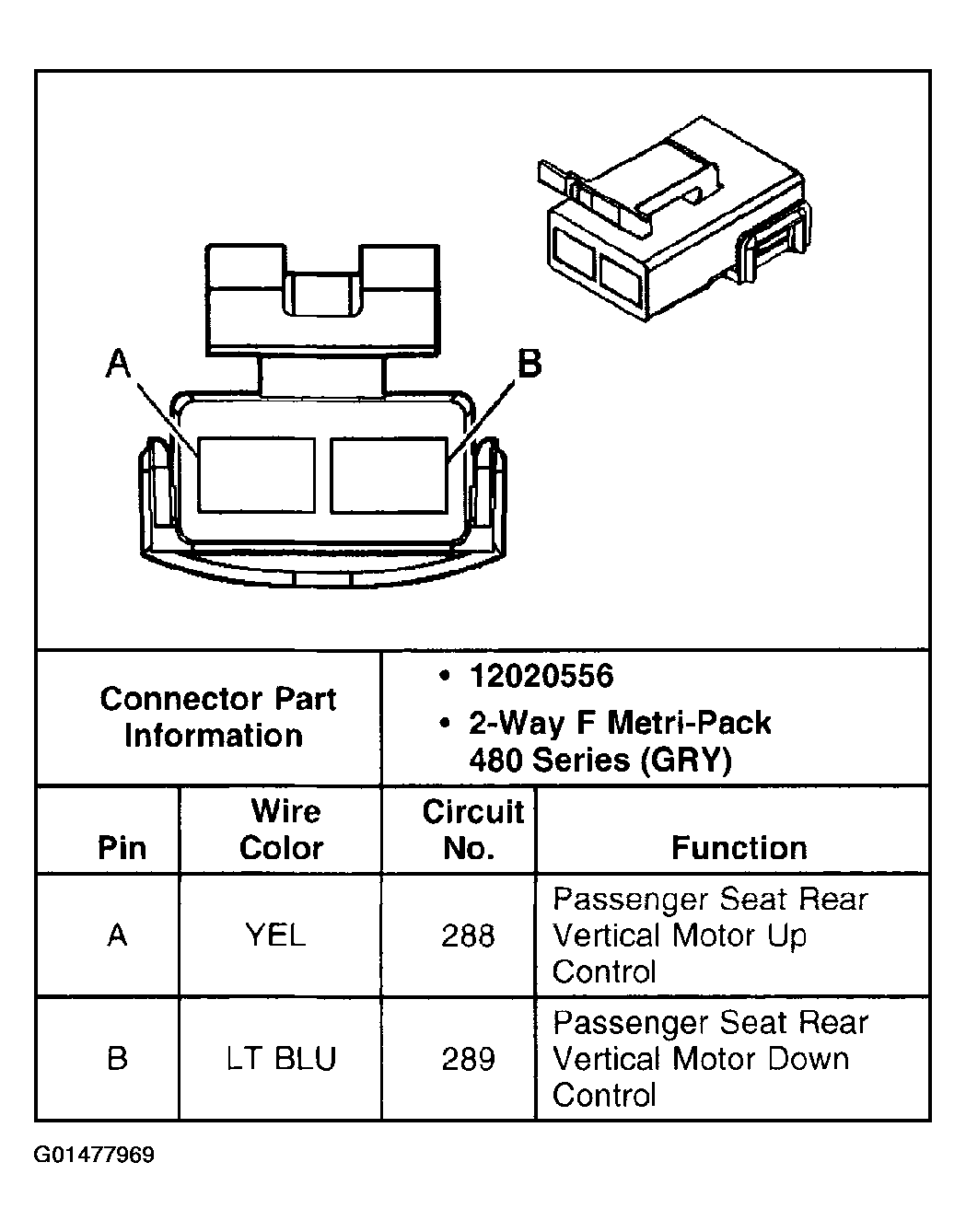

Fig 24: Seat Rear Vertical Motor - Front Passenger

G01477969

Courtesy of GENERAL MOTORS CORP.

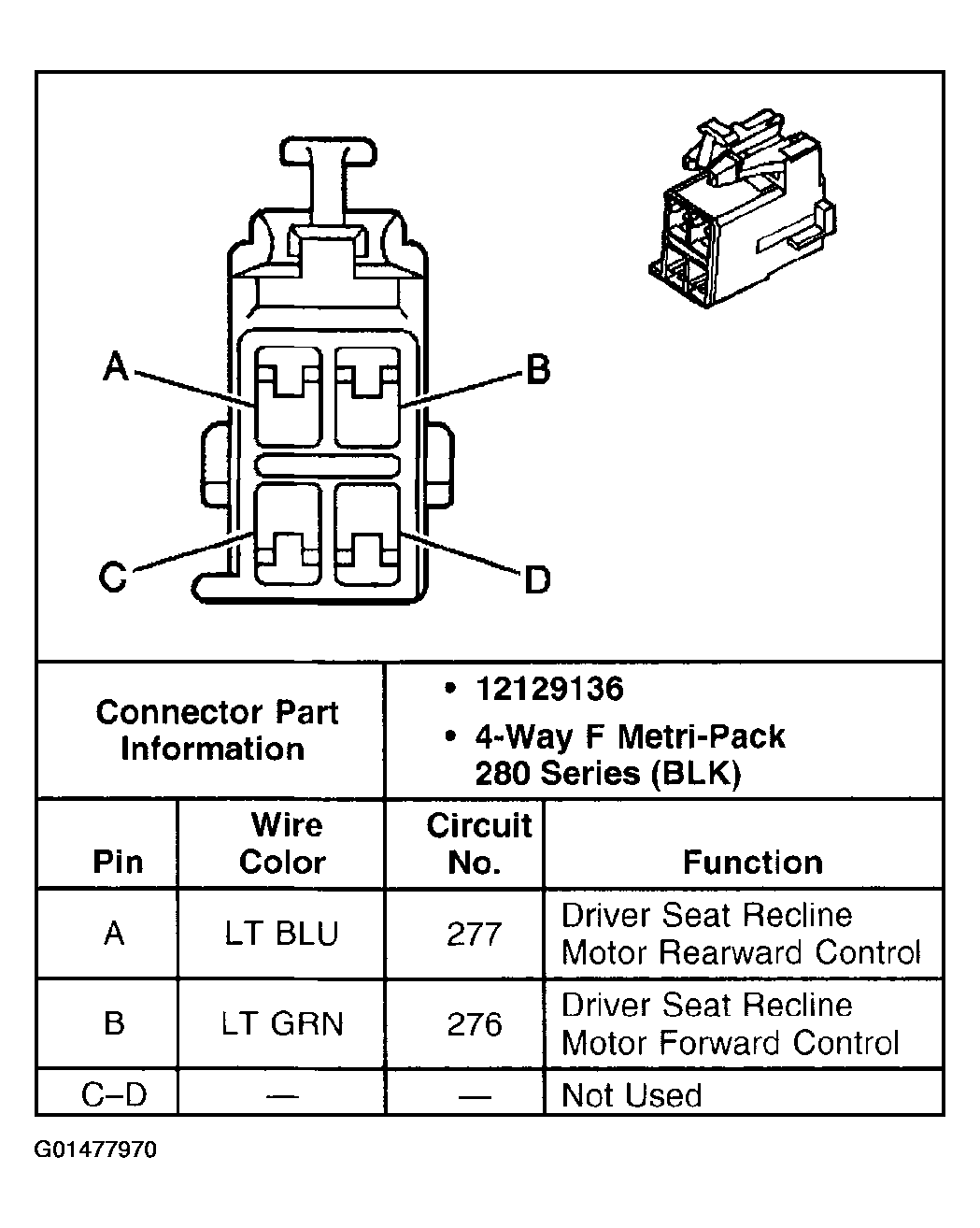

Fig 25: Seat Recliner Motor - Driver (W/O Memory)

G01477970

Courtesy of GENERAL MOTORS CORP.

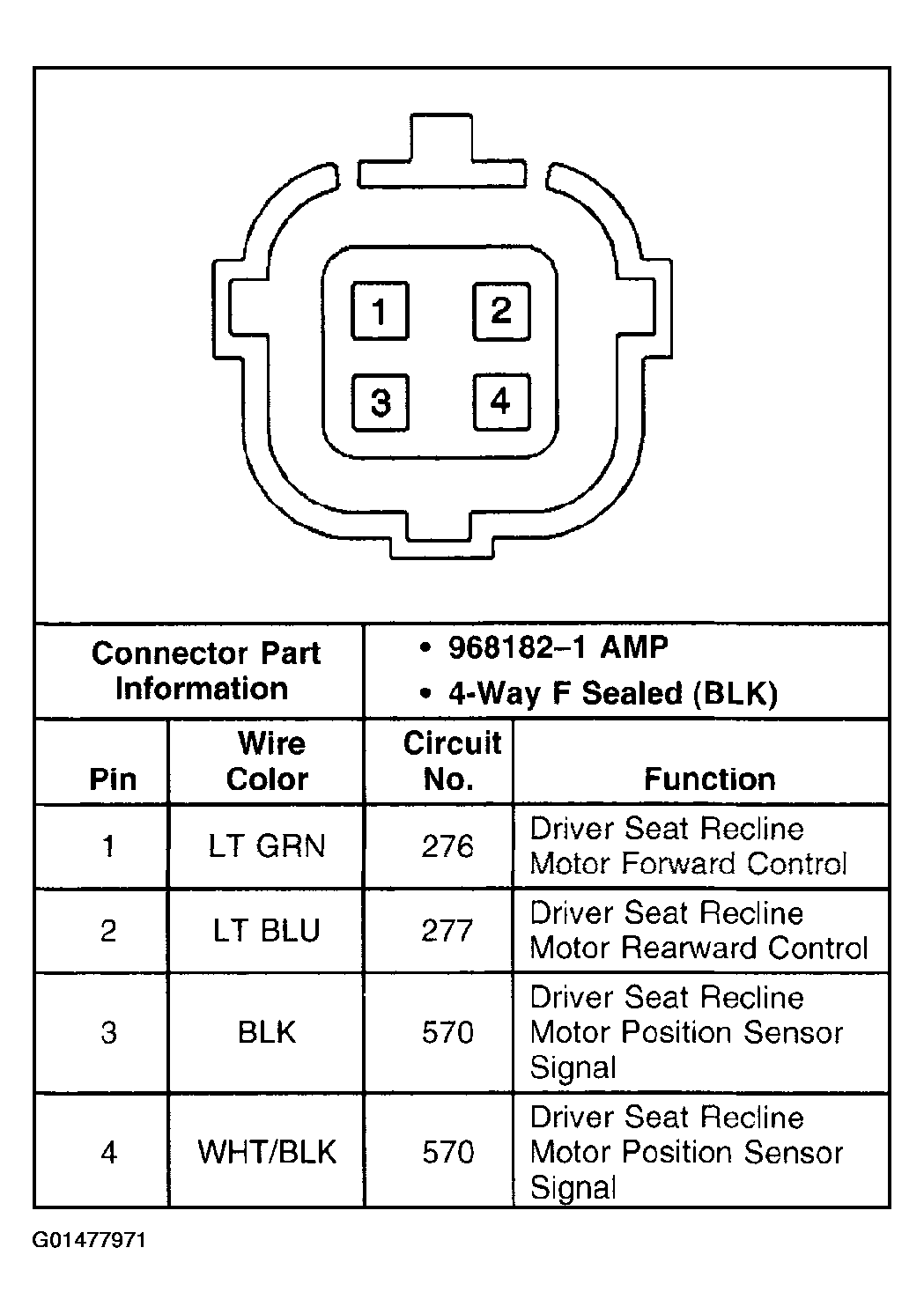

Fig 26: Seat Recliner Motor - Driver (W/ Memory)

G01477971

Courtesy of GENERAL MOTORS CORP.
