Scan Tool Data List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

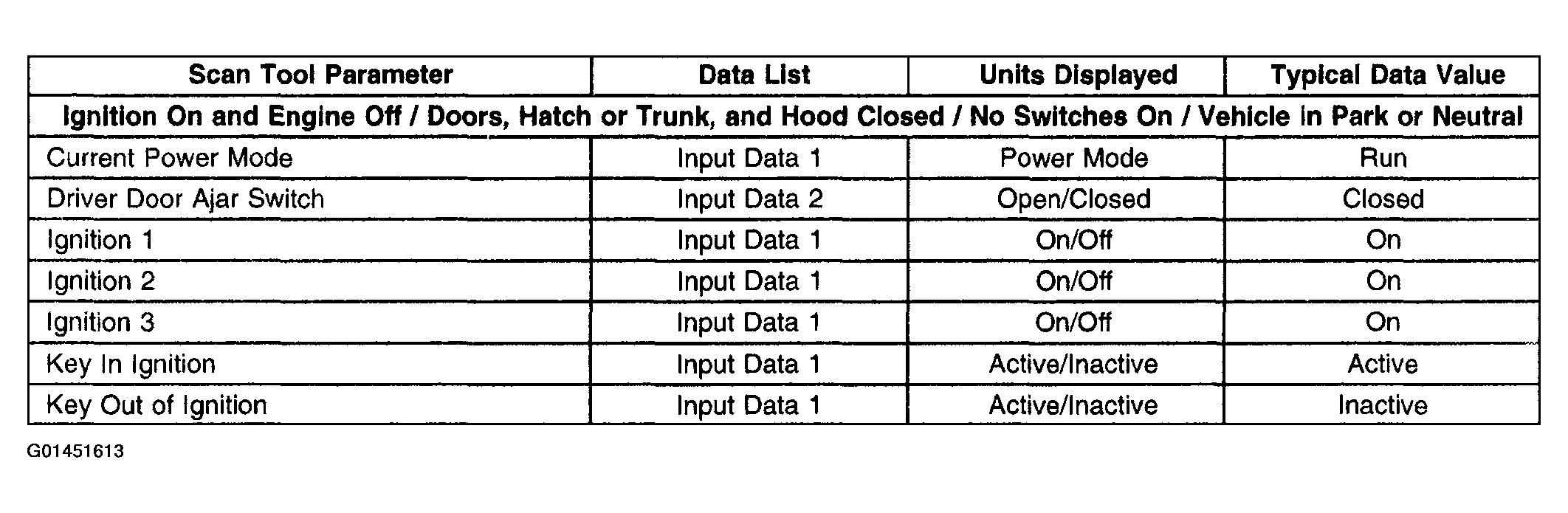

Fig 1: BCM Data List
G01451613Courtesy of GENERAL MOTORS CORP.

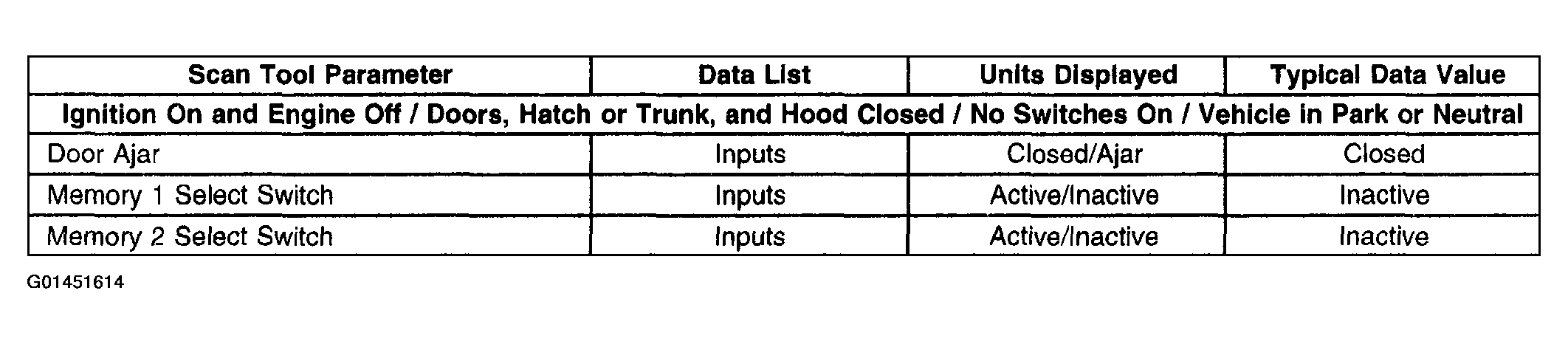

Fig 2: LDCM Data List
G01451614Courtesy of GENERAL MOTORS CORP.

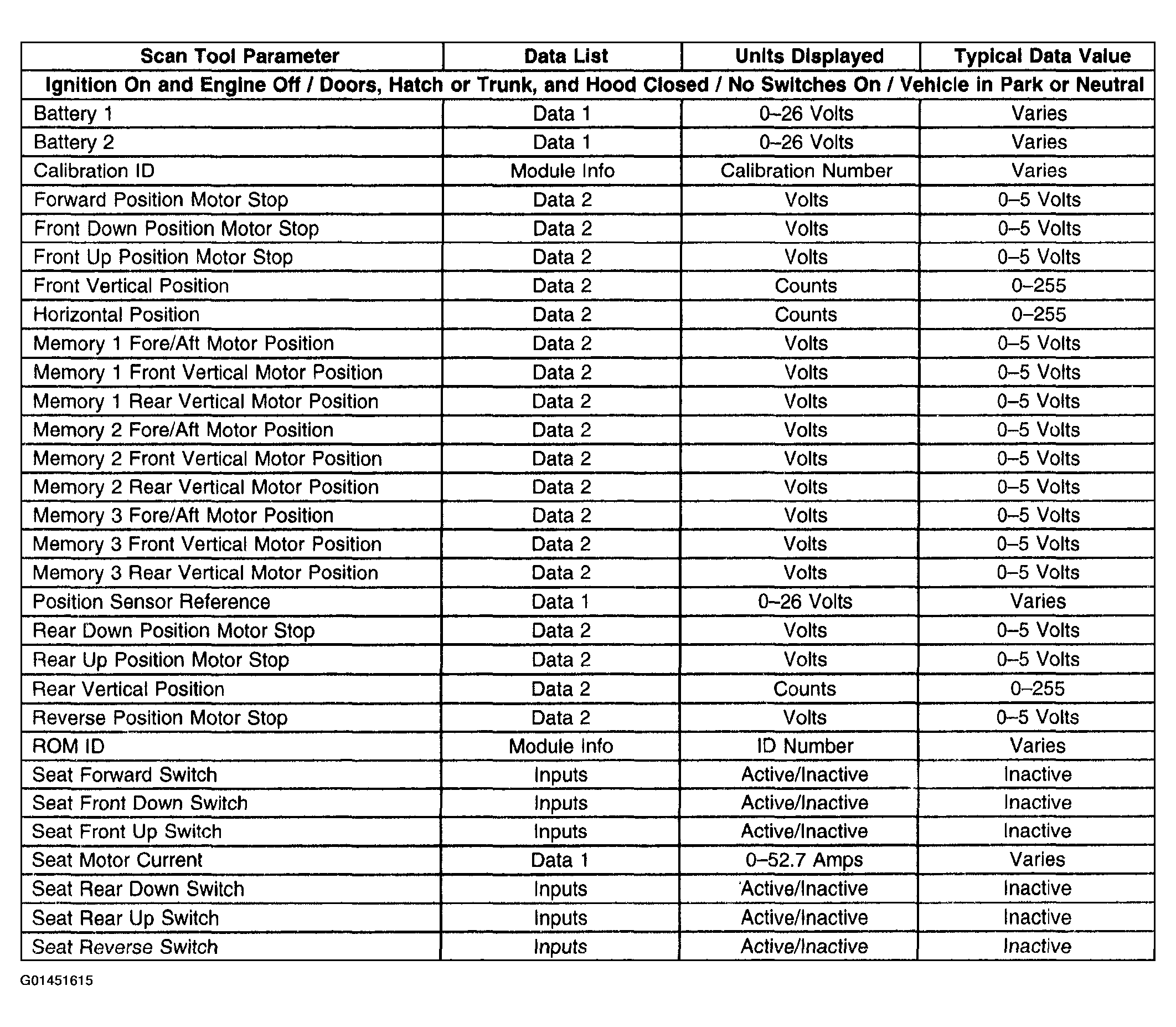

Fig 3: SCM Data List
G01451615Courtesy of GENERAL MOTORS CORP.
