Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seal on the drain plug stem.
  2. Install the drain plug. Make sure that the body is fully seated in the side tank.

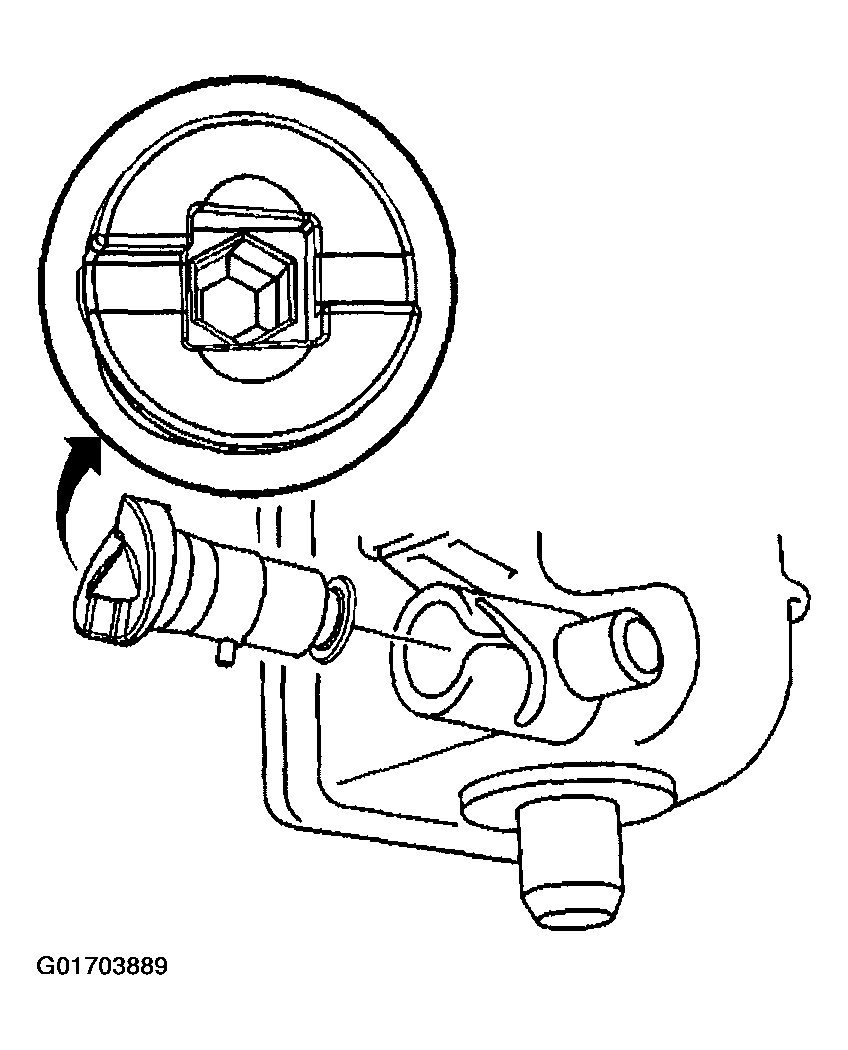

    Fig 1: Radiator Drain Plug & Seal
    G01703889Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
  4. Fill the cooling system. Refer to Draining and Filling Cooling System .
