Rear Toe Adjustment

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the hex nuts at the rear wheel spindle rod (rear).

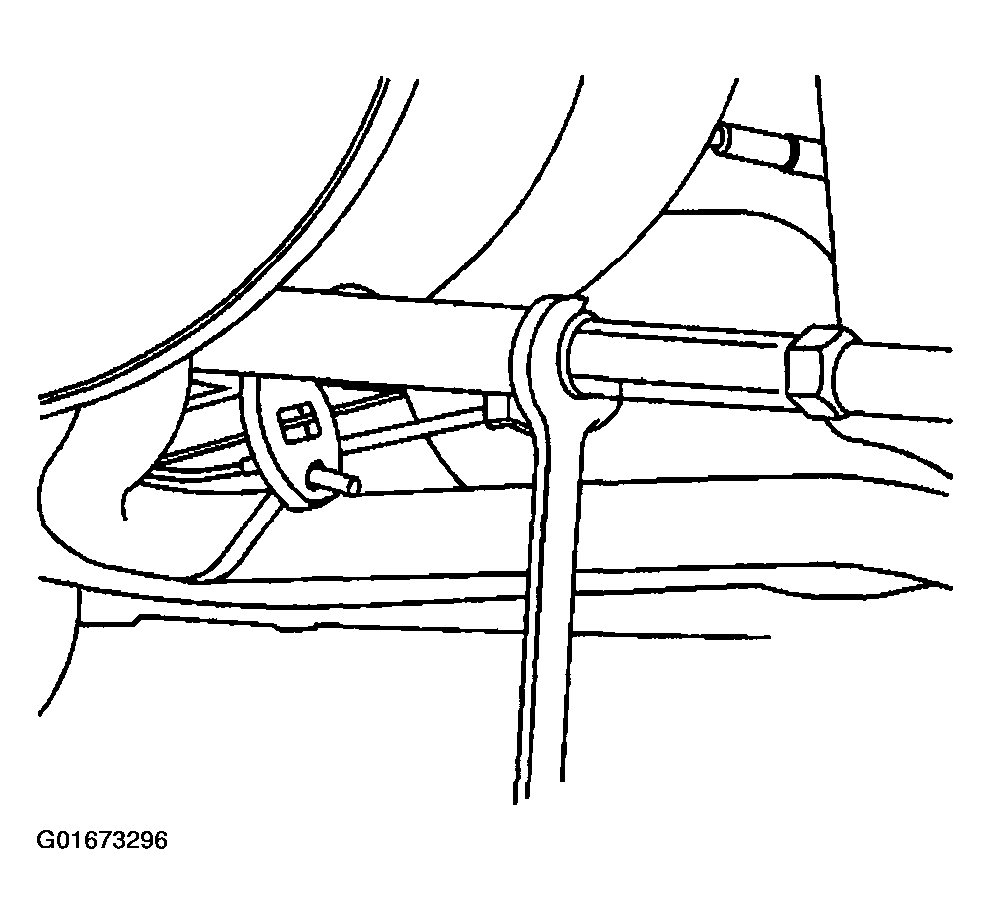

Fig 1: Loosening Hex Nuts At Rear Wheel Spindle Rod
Courtesy of GENERAL MOTORS CORP.
Adjust the toe to the proper setting by turning the adjusting nut. Refer to Wheel Alignment Specifications .

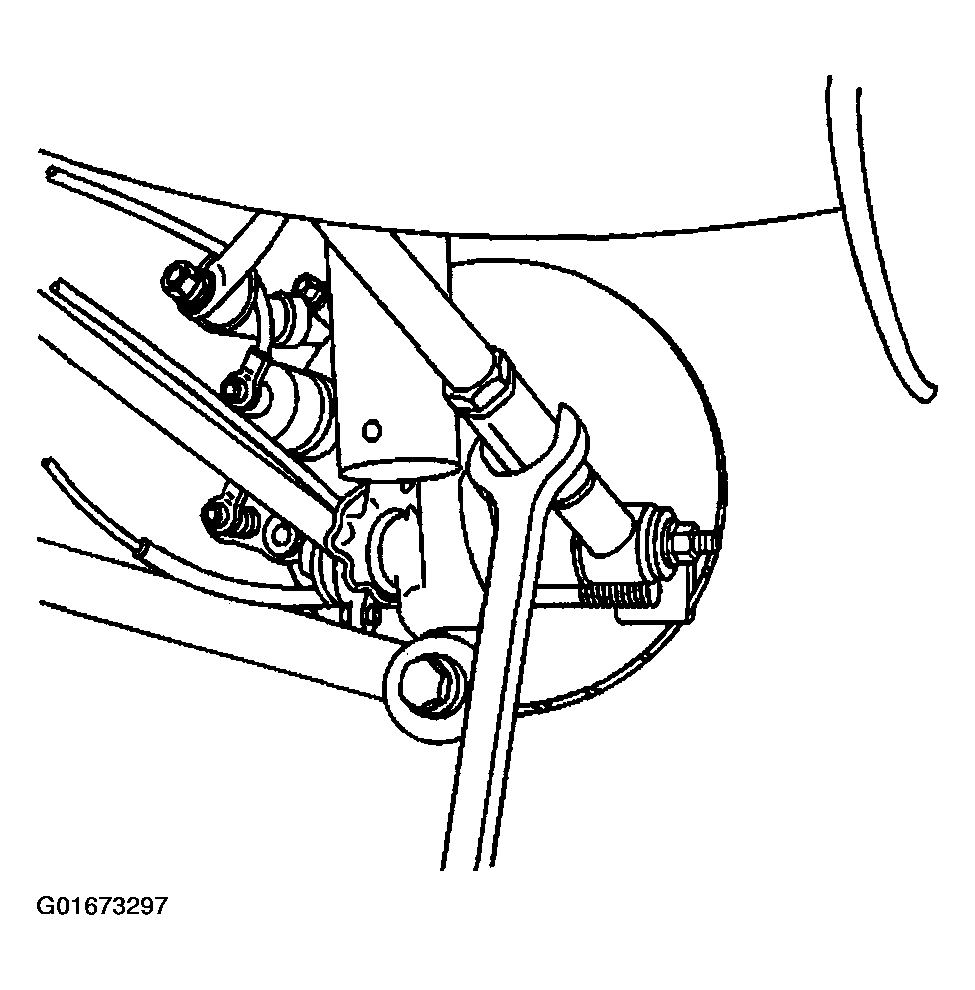

Fig 2: Adjusting Rear Toe
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the hex nuts on the rear wheel spindle rod (rear).
Tighten

Tighten the rear wheel spindle rod ends hex nuts to 50 N.m (37 lb ft).

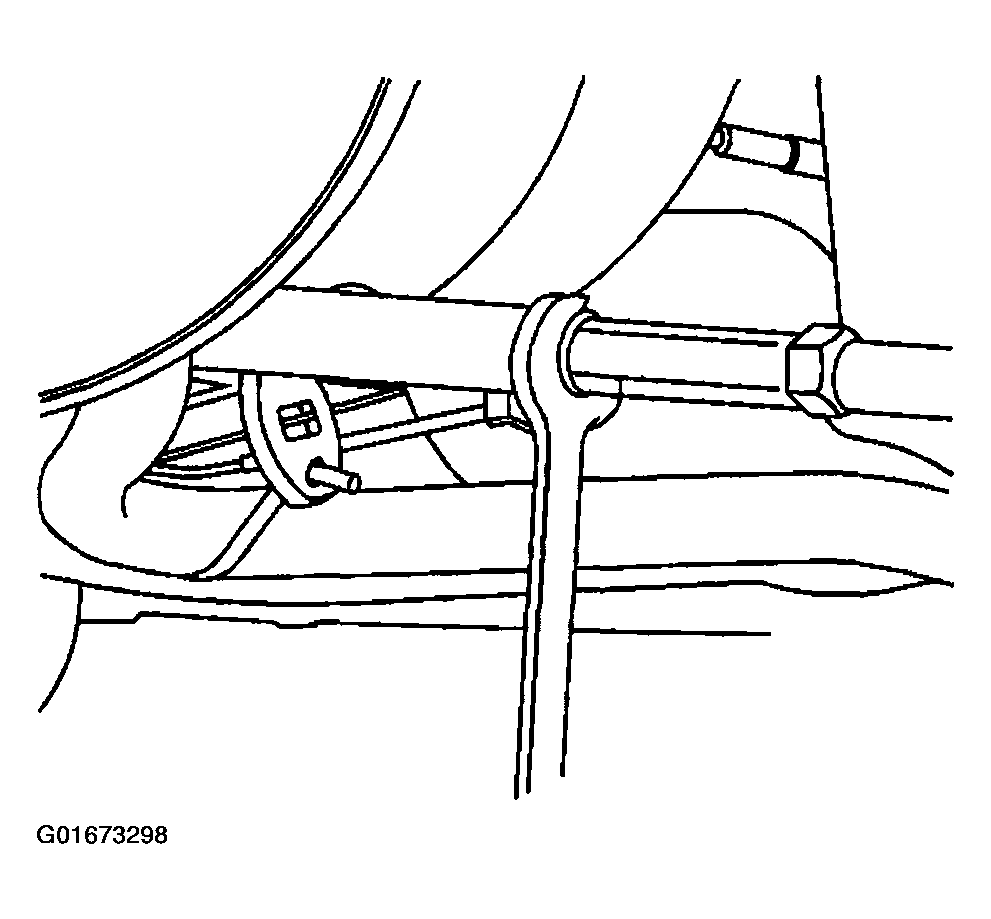

Fig 3: Tightening Rear Wheel Spindle Rod Hex Huts
Courtesy of GENERAL MOTORS CORP.
