Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the right front diagonal brace. Refer to BRACE REPLACEMENT -- SHEET METAL DIAGONAL .
  3. Disconnect the positive battery cable.

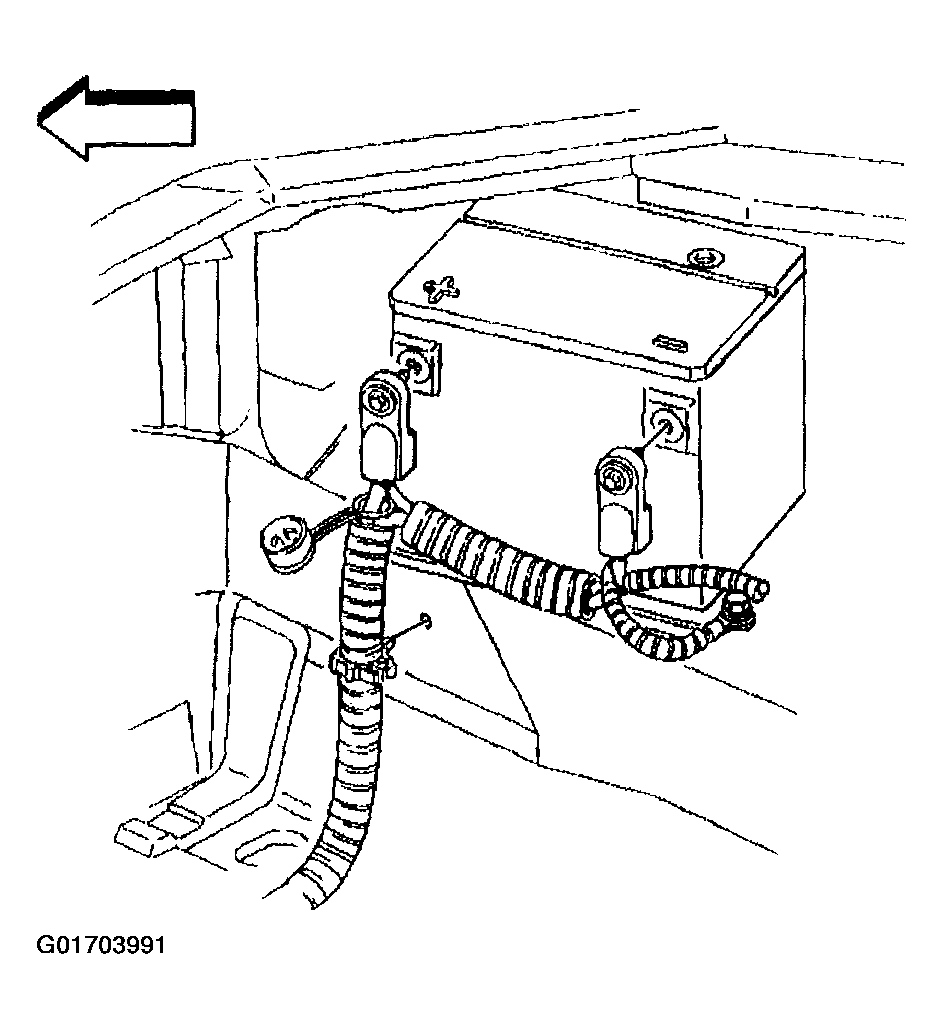

    Fig 1: Battery & Cables
    G01703991Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery hold down retainer bolt (1).
  5. Remove the battery hold down retainer (2).
    IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  6. Remove the battery (3).

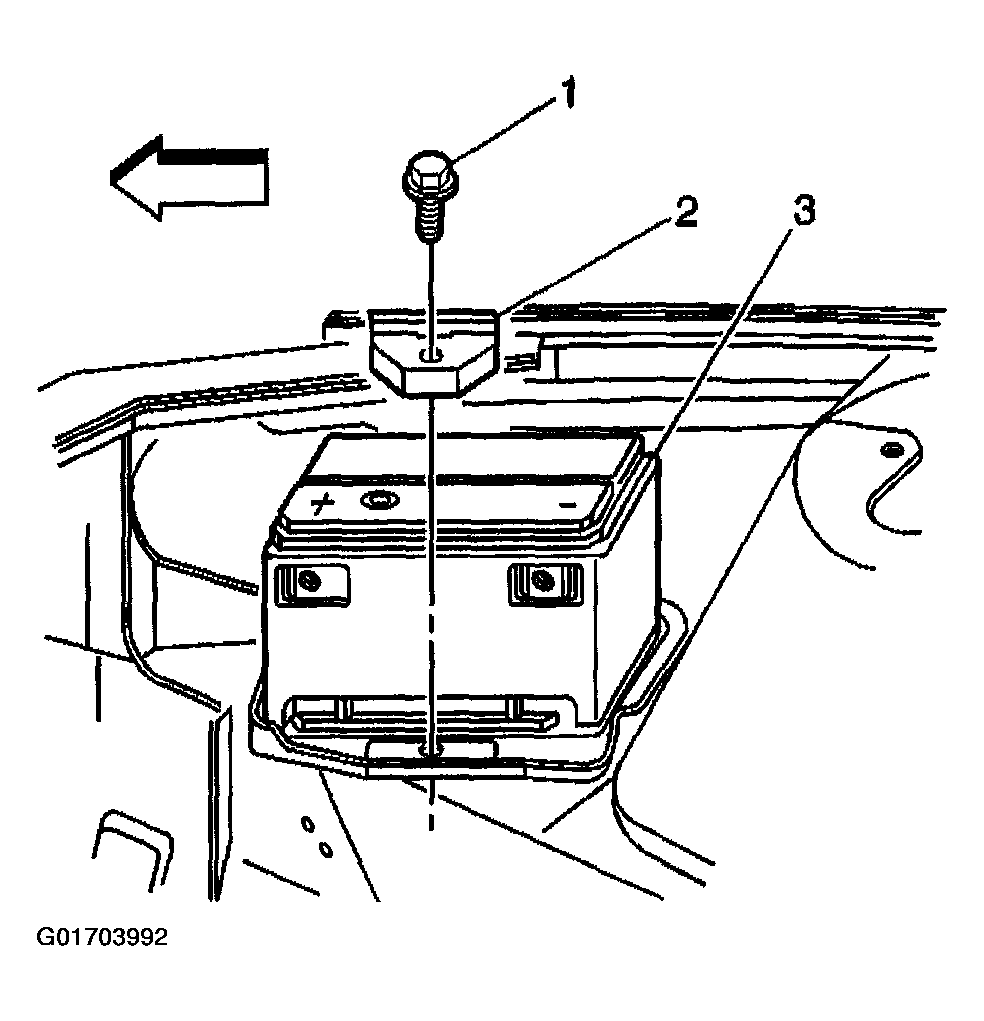

    Fig 2: Battery, Hold Down Retainer & Bolt
    G01703992Courtesy of GENERAL MOTORS CORP.
  7. Remove the battery insulator from the battery.

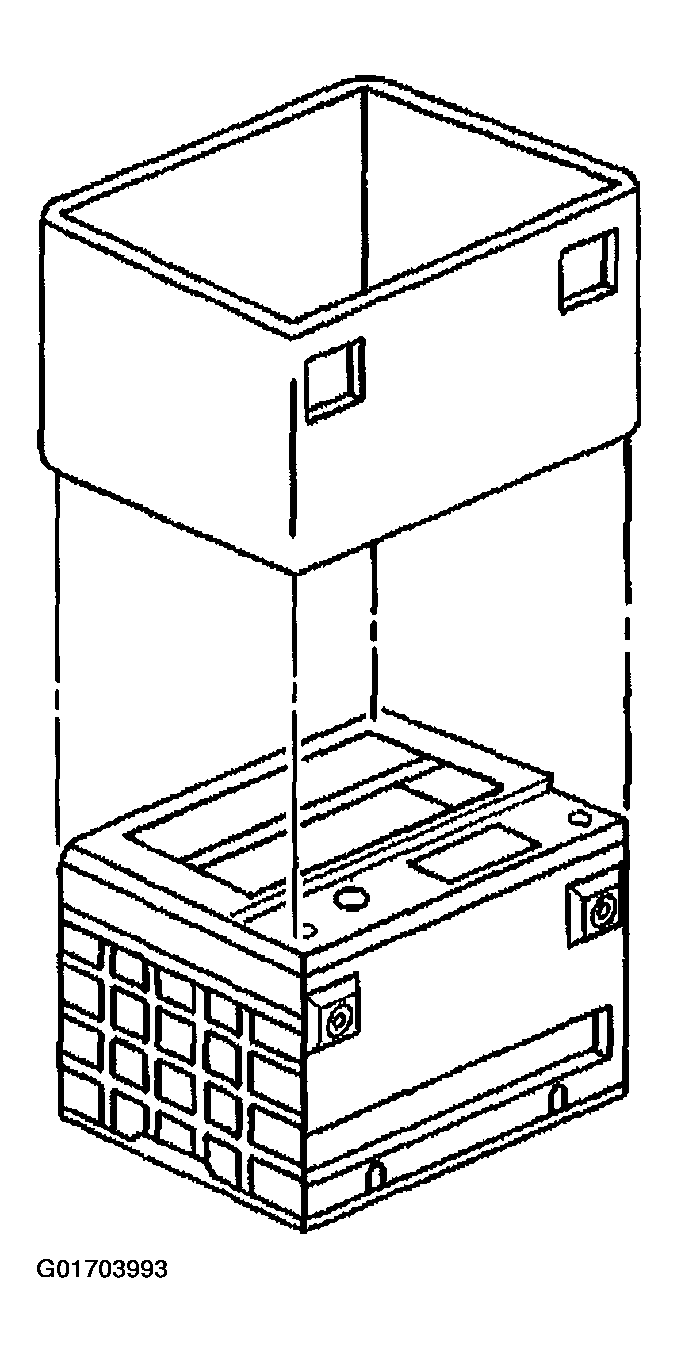

    Fig 3: Battery Insulator
    G01703993Courtesy of GENERAL MOTORS CORP.
