Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Radiator Seals
    GM931817Courtesy of GENERAL MOTORS CORP.
  1. Install the radiator seals.
    2. Fig 2: Condenser & Radiator
    GM949047Courtesy of GENERAL MOTORS CORP.
  2. Install the radiator.

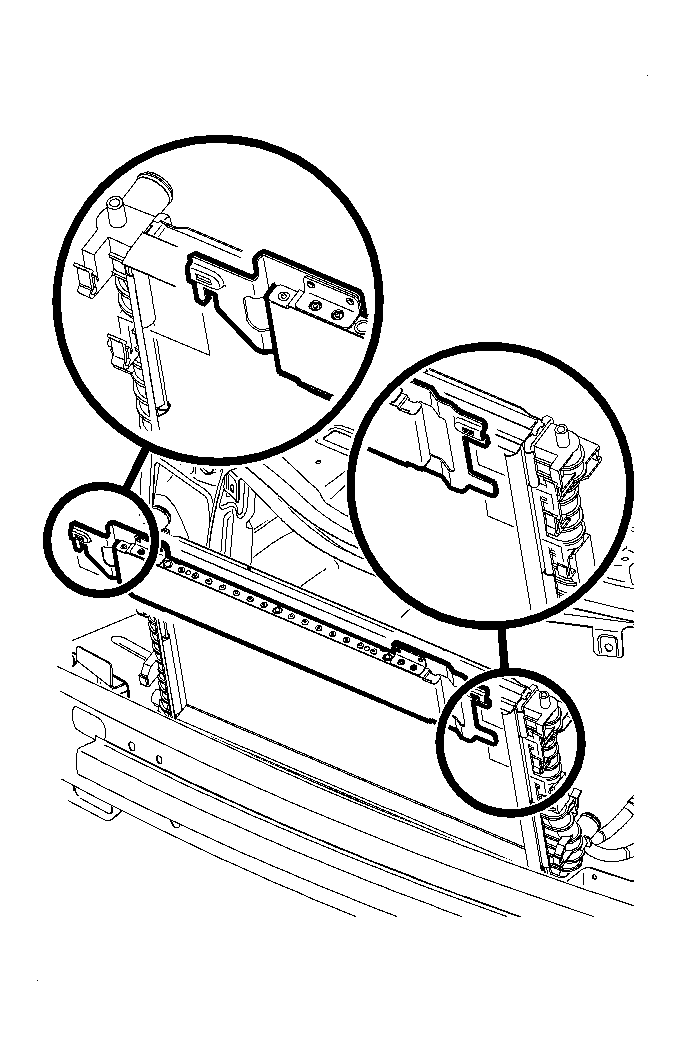

    3. Fig 3: View Of Transmission Cooler Liners To Vehicle
    GM949086Courtesy of GENERAL MOTORS CORP.
  3. Clip the transaxle oil cooler, if equipped, and condenser to the radiator.
  4. Install the engine cooling fan assembly. Refer to Engine Cooling Fan installation procedure in this section.
  5. Fill the cooling system. Refer to Coolant replacement procedure in this section.
