Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Coolant Intake Housing & O-Ring Seal
    GM894858Courtesy of GENERAL MOTORS CORP.
  1. Install the O-ring seal to housing assembly.
  2. Install the coolant intake housing and O-ring seal to the engine.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the coolant intake housing bolts and tighten.

    Tighten:  Tighten the coolant intake housing bolts to 20 N.m (15 lb ft).

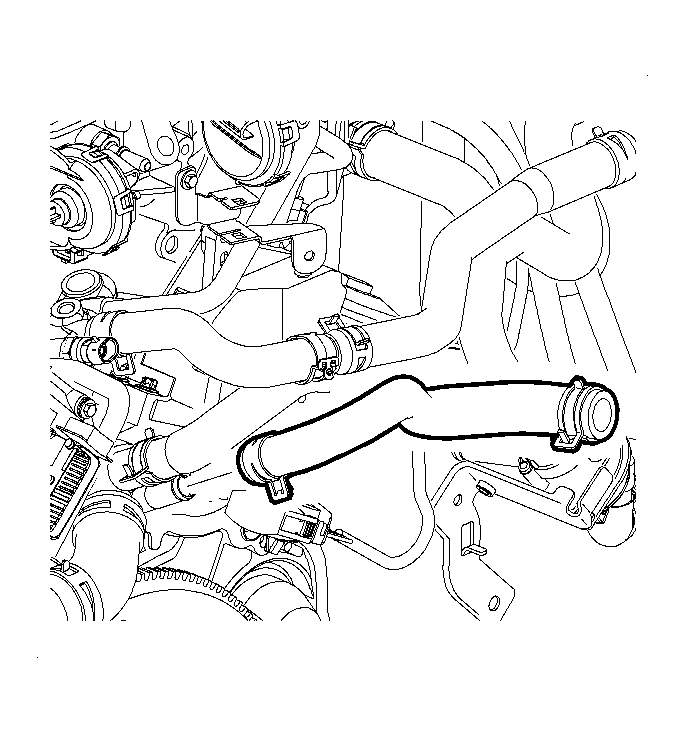

    4. Fig 2: Installing Lower Radiator Hose To Coolant Housing
    GM933795Courtesy of GENERAL MOTORS CORP.
  4. Install the lower radiator hose to coolant housing.
  5. Install the coolant pump hoses and clamps to the intake coolant housing.
  6. Install the battery box/UHFB assembly. Refer to Battery Box Replacement .
  7. Connect the negative battery cable.

    Tighten:  Tighten the battery terminal bolt to 17 N.m (13 lb ft).

  8. Fill the cooling system. Refer to Draining and Filling Cooling System .
