Disabling System

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Accidental air bag deployment is possible. Personal injury may result. Read and follow service precautions. See AIR BAG SAFETY PRECAUTIONS .
NOTE: When SIR fuse is removed and ignition is on, AIR BAG warning light will be on. This does not indicate a system malfunction.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off. Remove key.
  2. Remove left-side instrument panel access cover to access fuse block. Remove SRS fuse (10-amp) from fuse block. See Fig 1. Remove Connector Position Assurance (CPA) clip from driver-side air bag module Yellow connector and disconnect connector. See Fig 2.
  3. Remove passenger-side instrument panel end cover. Remove CPA clip and disconnect passenger-side air bag module Yellow connector. See Fig 3. Remove CPA clip and disconnect driver side impact air bag module connector, located under driver seat. See Fig 4.

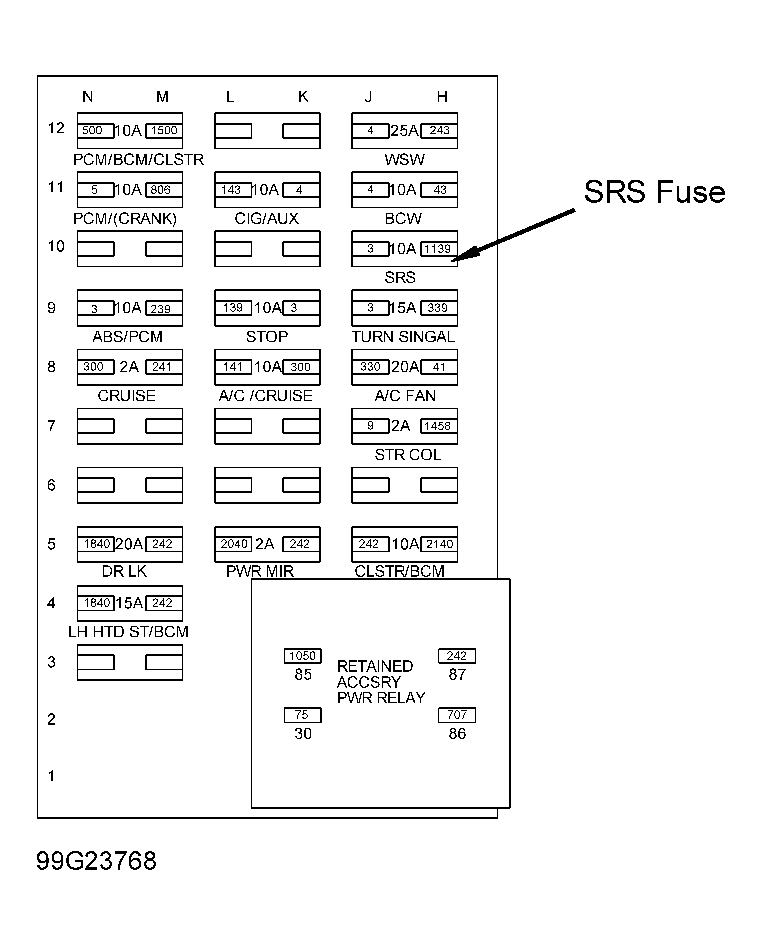

Fig 1: Identifying SRS Fuse Location
G99G23768Courtesy of GENERAL MOTORS CORP.

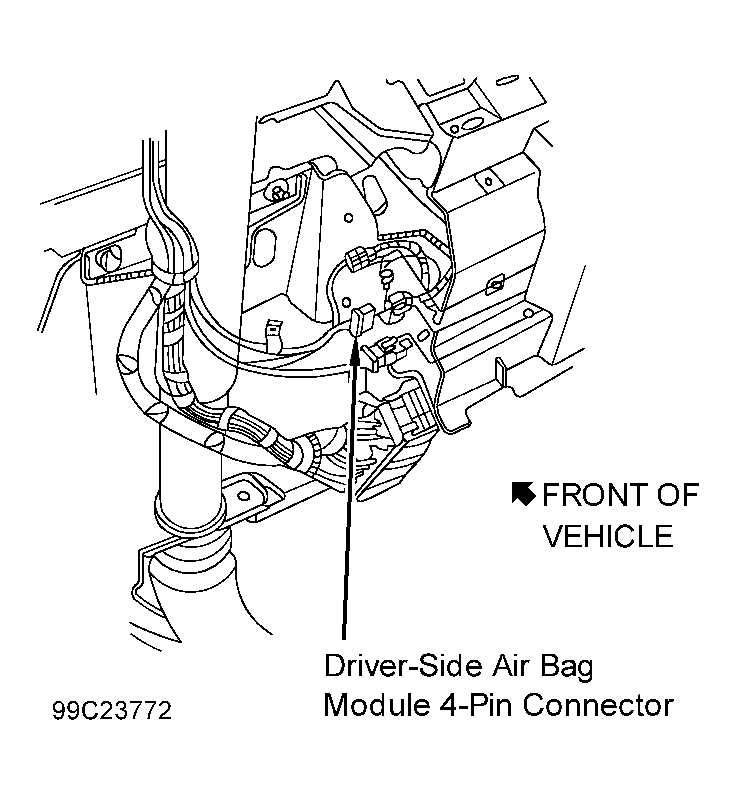

Fig 2: Identifying Driver-side Air Bag Module Yellow 4-pin Connector
G99C23772Courtesy of GENERAL MOTORS CORP.

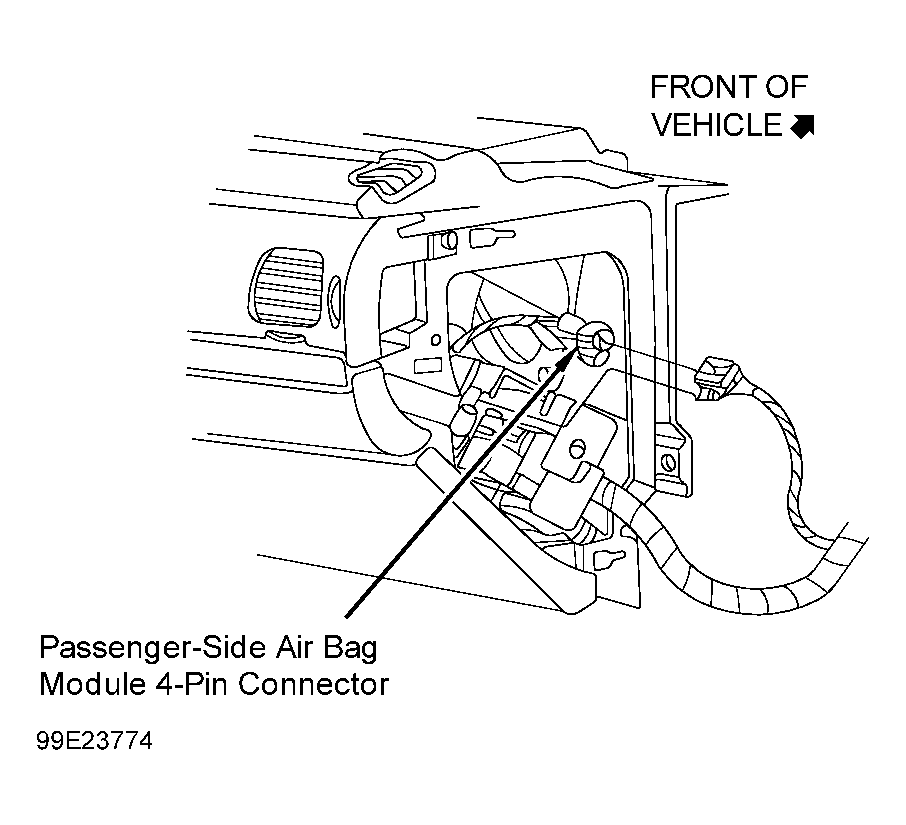

Fig 3: Identifying Passenger-side Air Bag Module Yellow 4-pin Connector
G99E23774Courtesy of GENERAL MOTORS CORP.

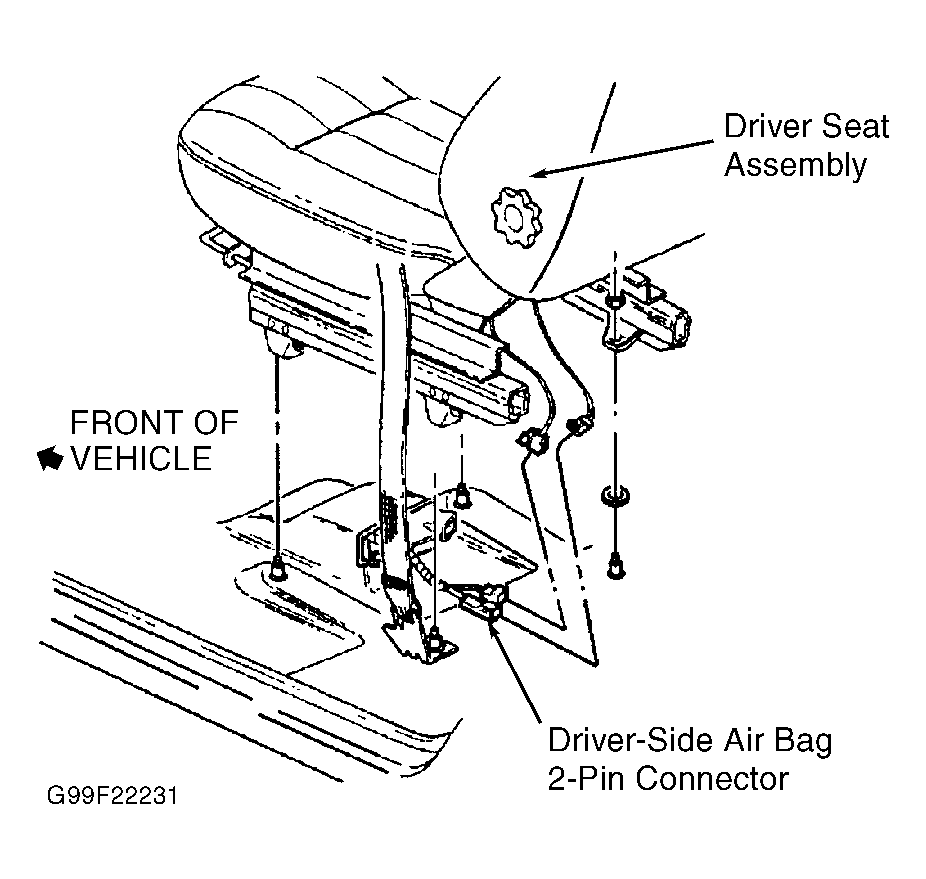

Fig 4: Locating Driver Side Impact Air Bag Connector
G99F22231Courtesy of GENERAL MOTORS CORP.
