Vibration Analysis - Road Testing
NOTE:

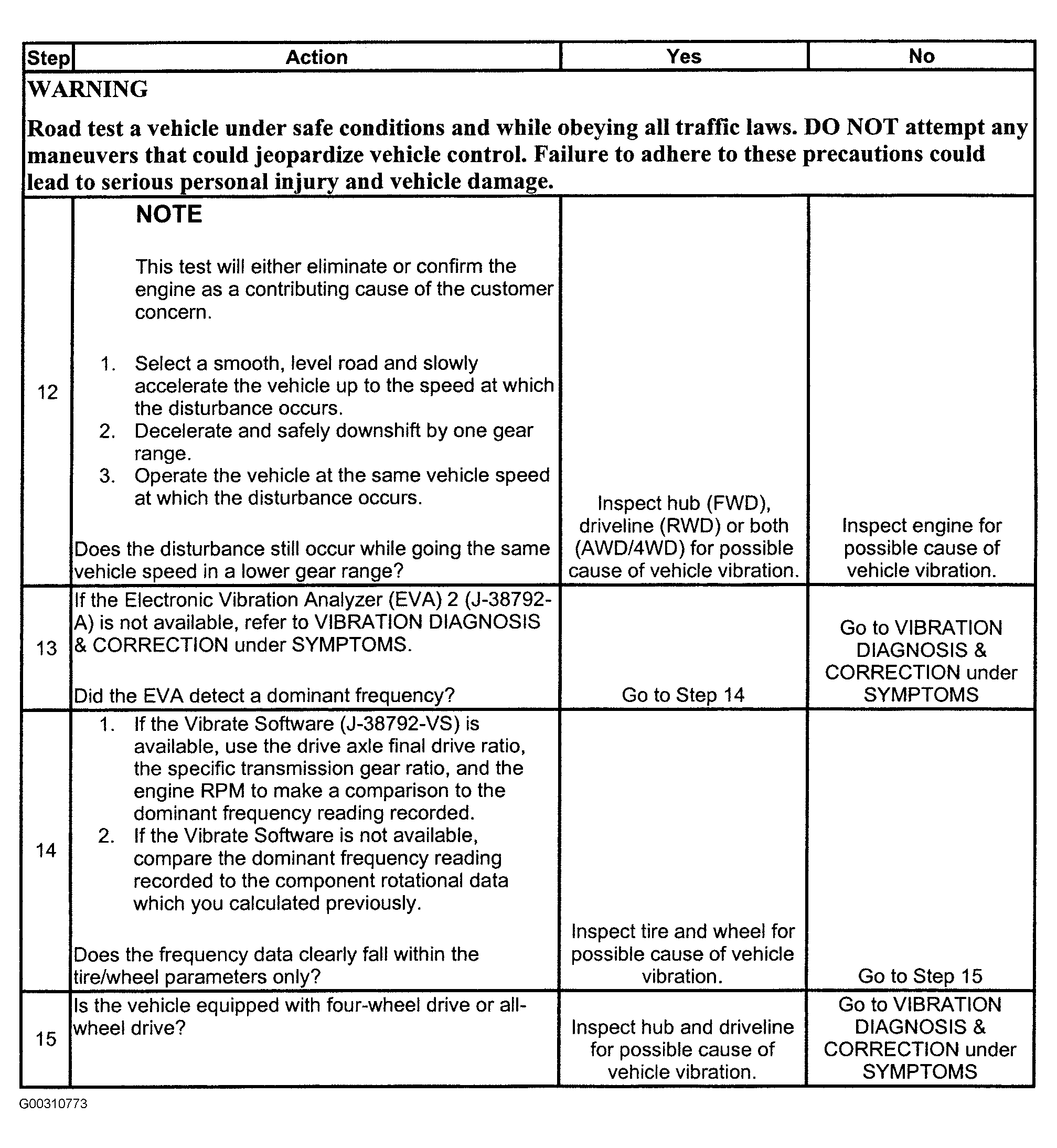

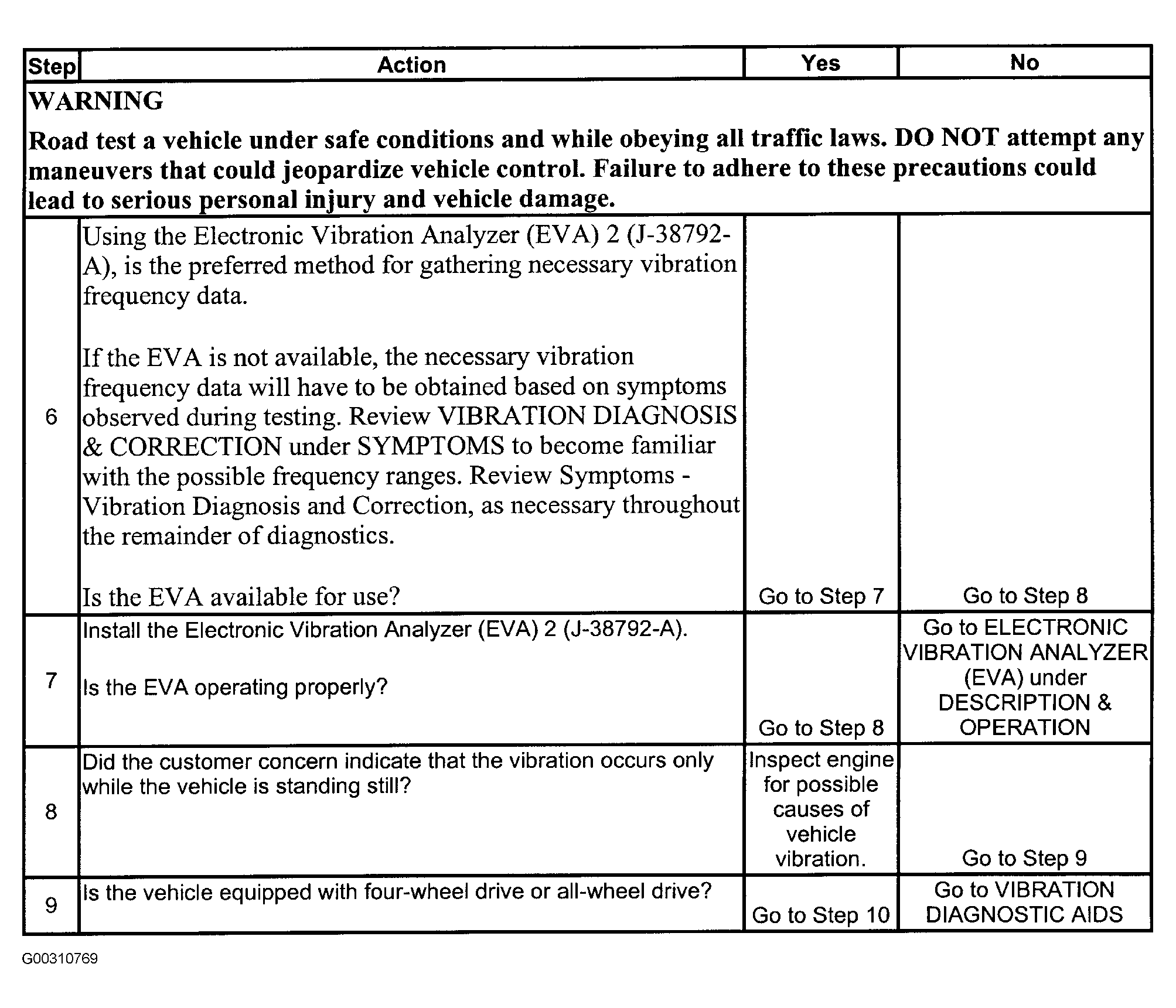

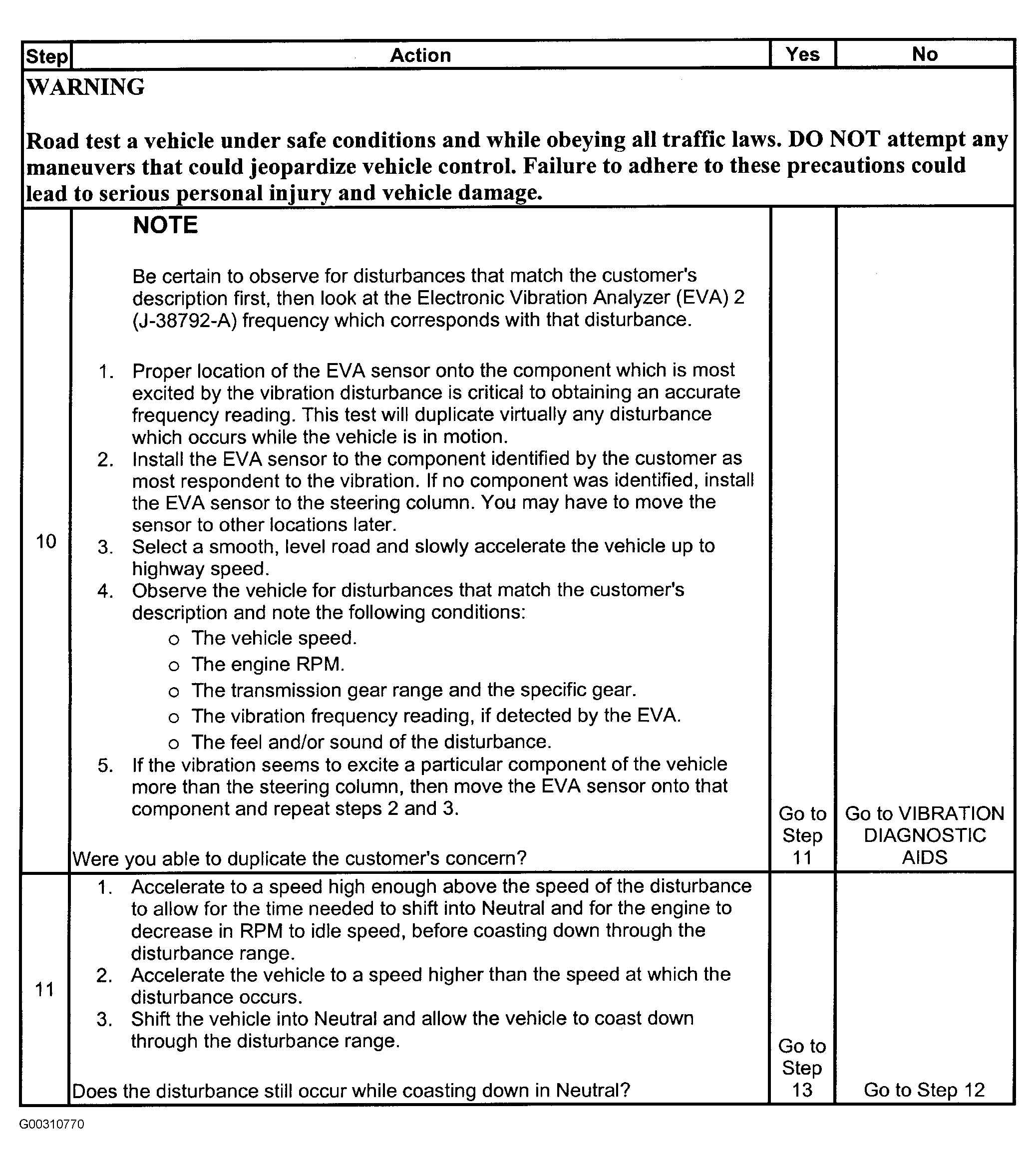

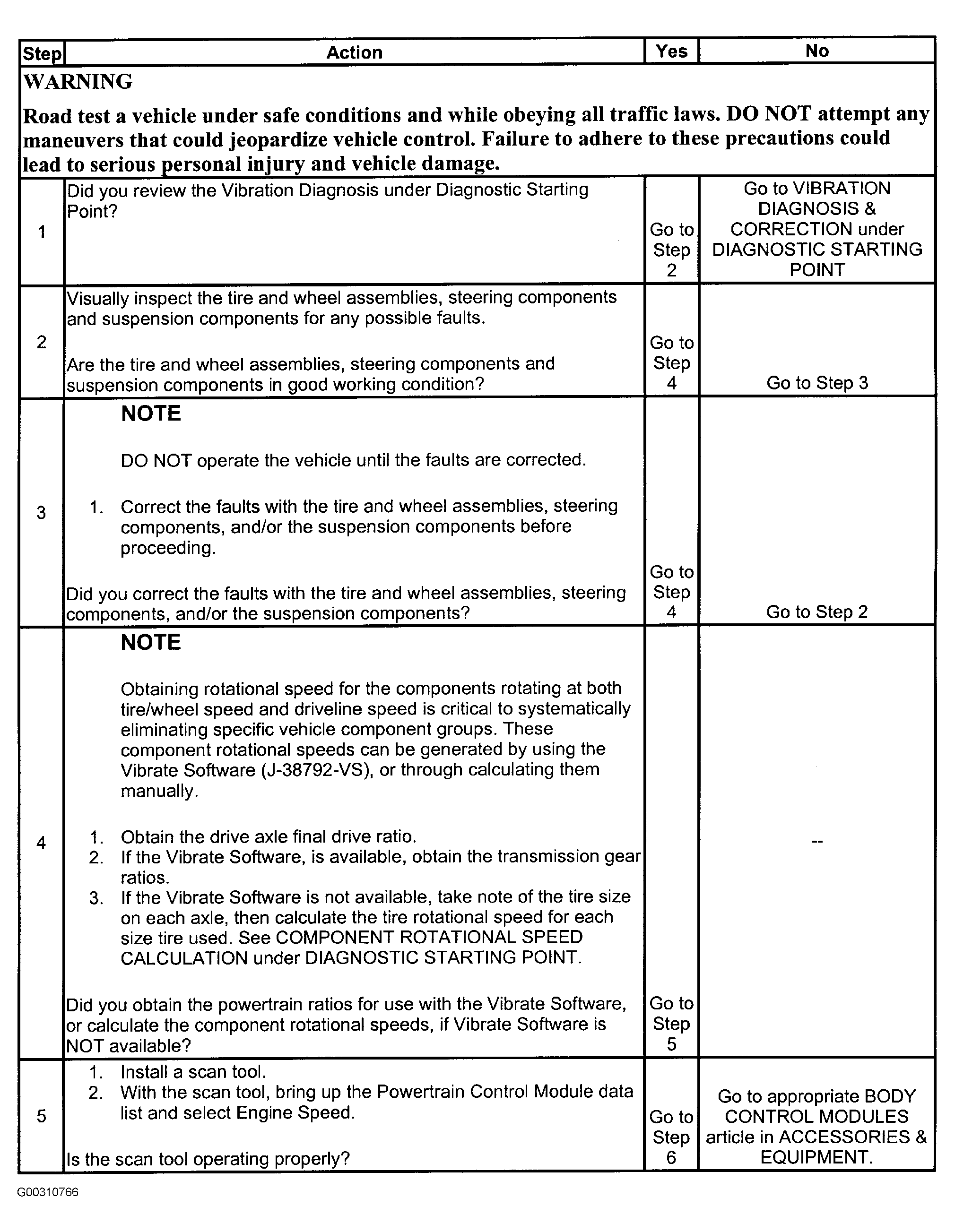

For Vibration Analysis - Road Testing, refer to illustrations. See Fig 1
-Fig 4
.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
