A/T Shift Lock Control Solenoid Connector End View - Rendezvous

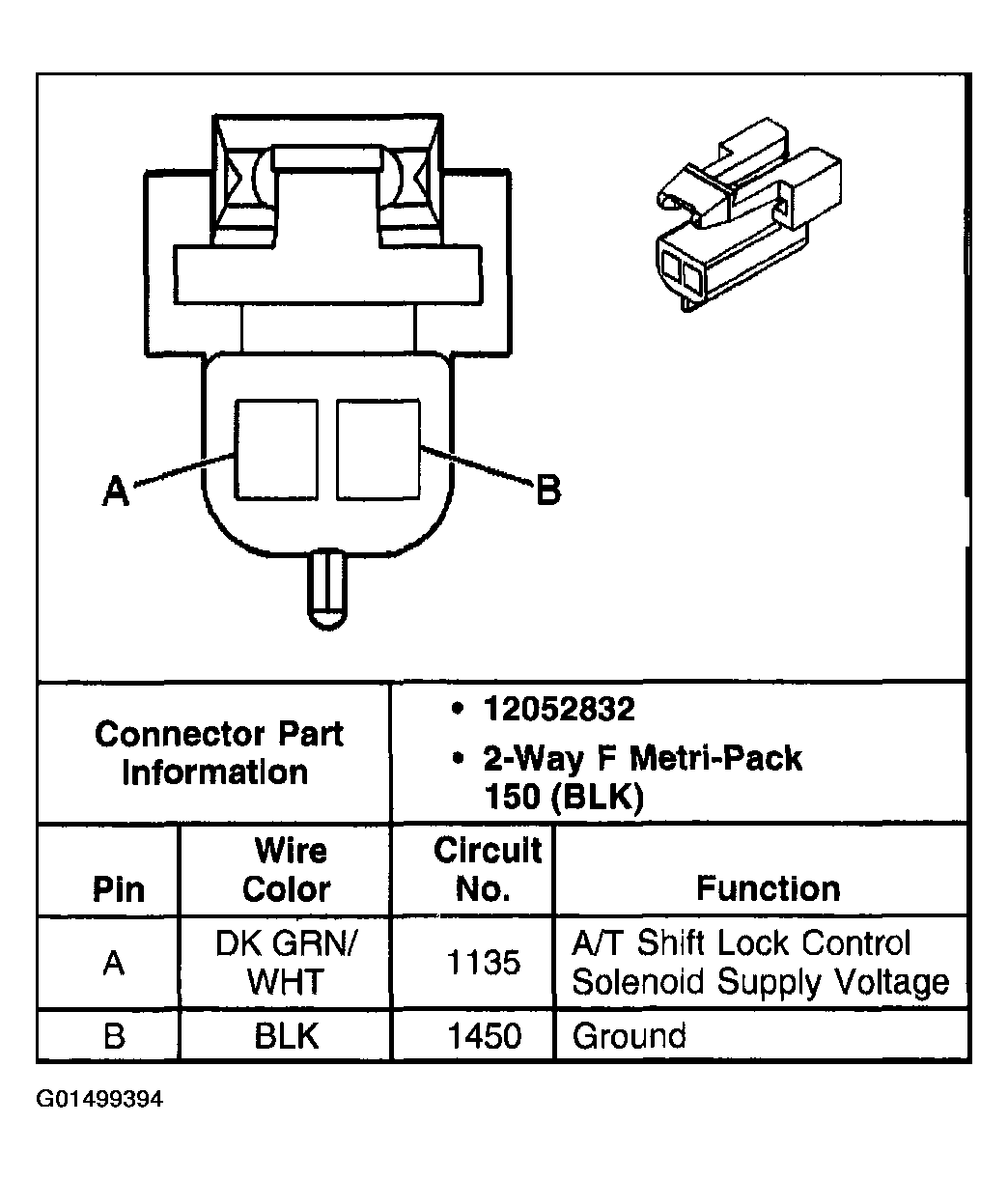

Fig 1: A/T Shift Lock Control Solenoid Connector - Rendezvous
Courtesy of GENERAL MOTORS CORP.
