In-Line Connector End View C320

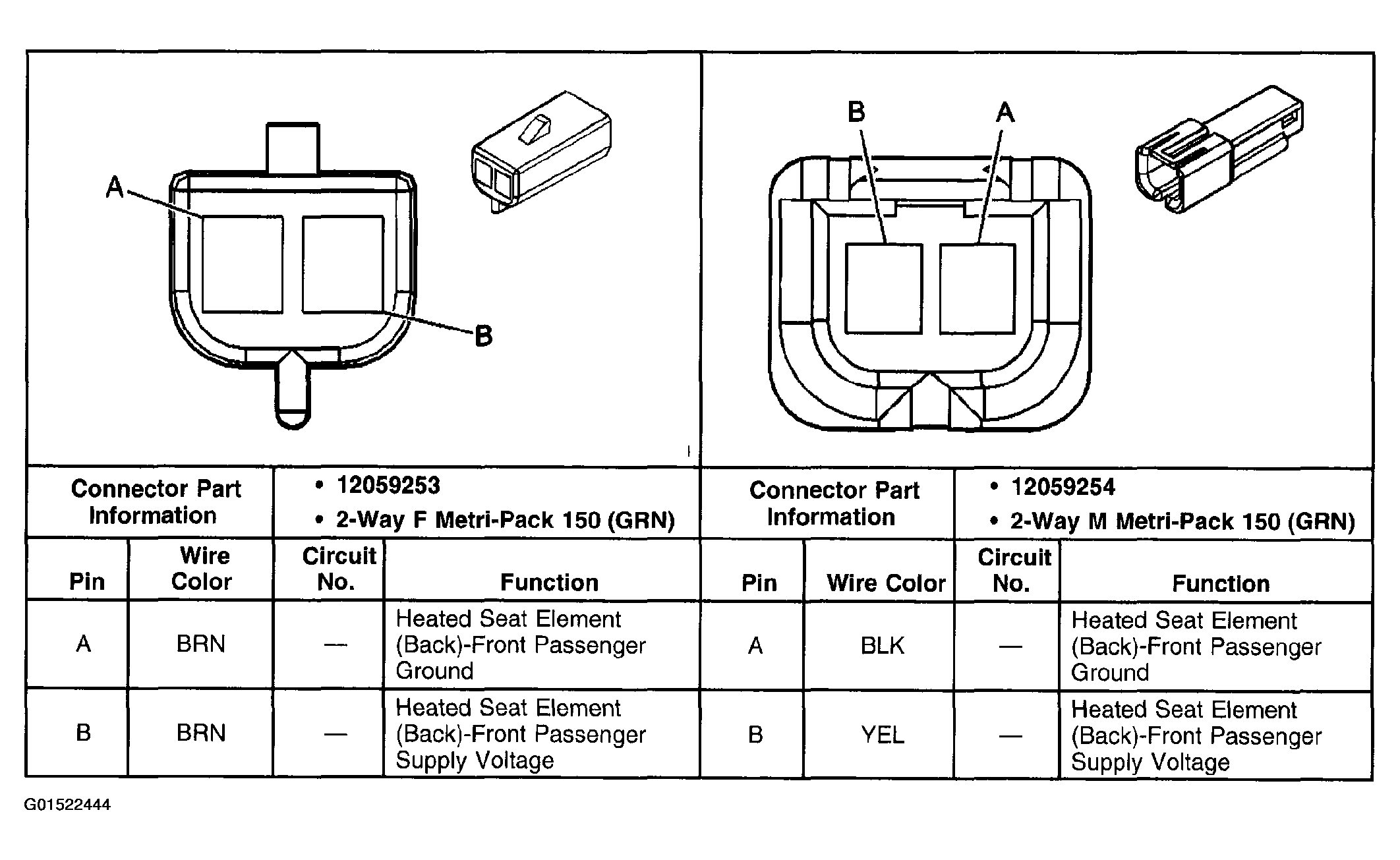

Fig 1: In-Line Connector C320

G01522444

Courtesy of GENERAL MOTORS CORP.
